2018 Hyundai R215VS

1/9
Used Hyundai R215VS Excavator 2018 Model / 1

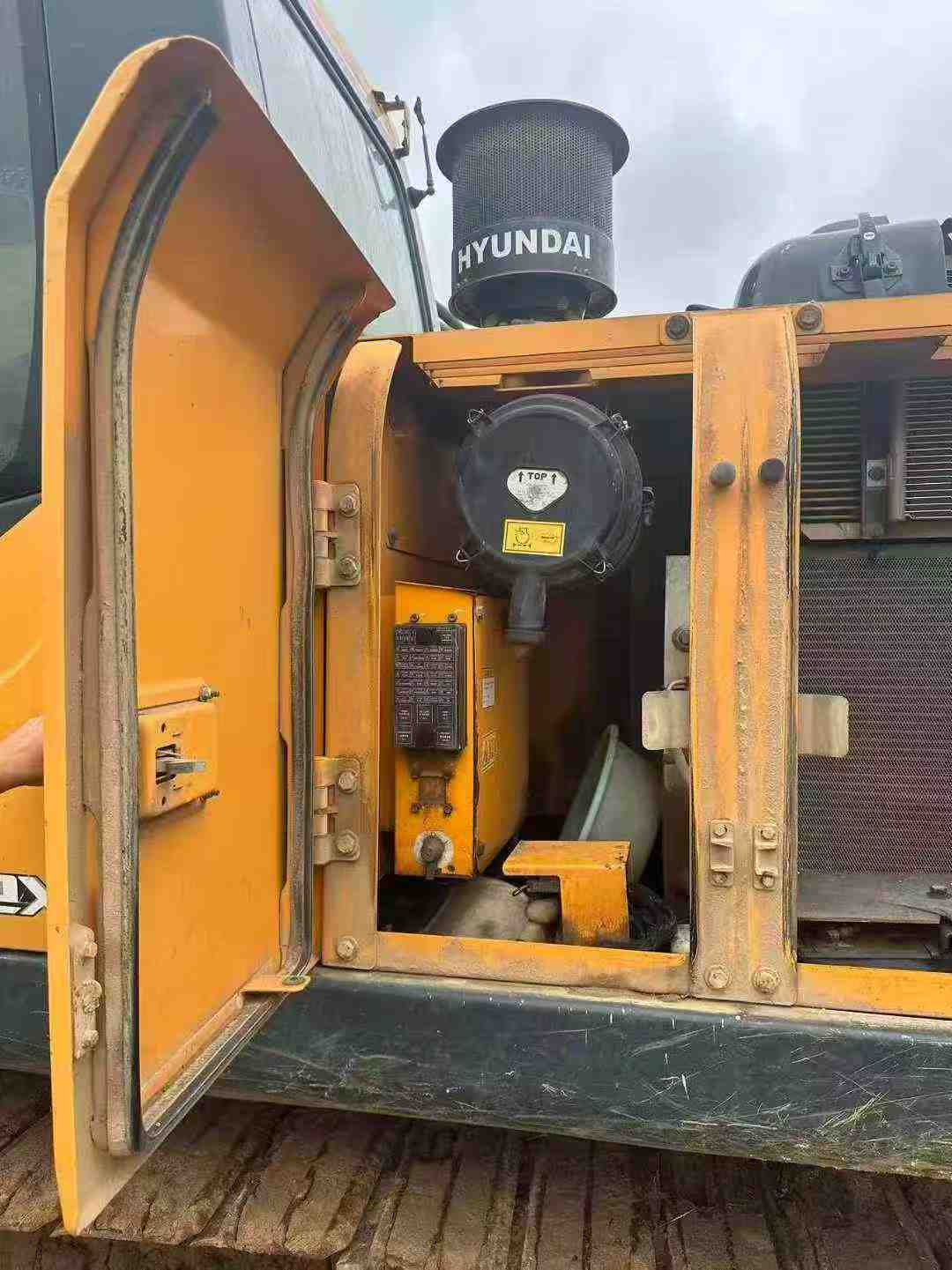

Used Hyundai R215VS Excavator 2018 Model / 2
Used Hyundai R215VS Excavator 2018 Model / 3

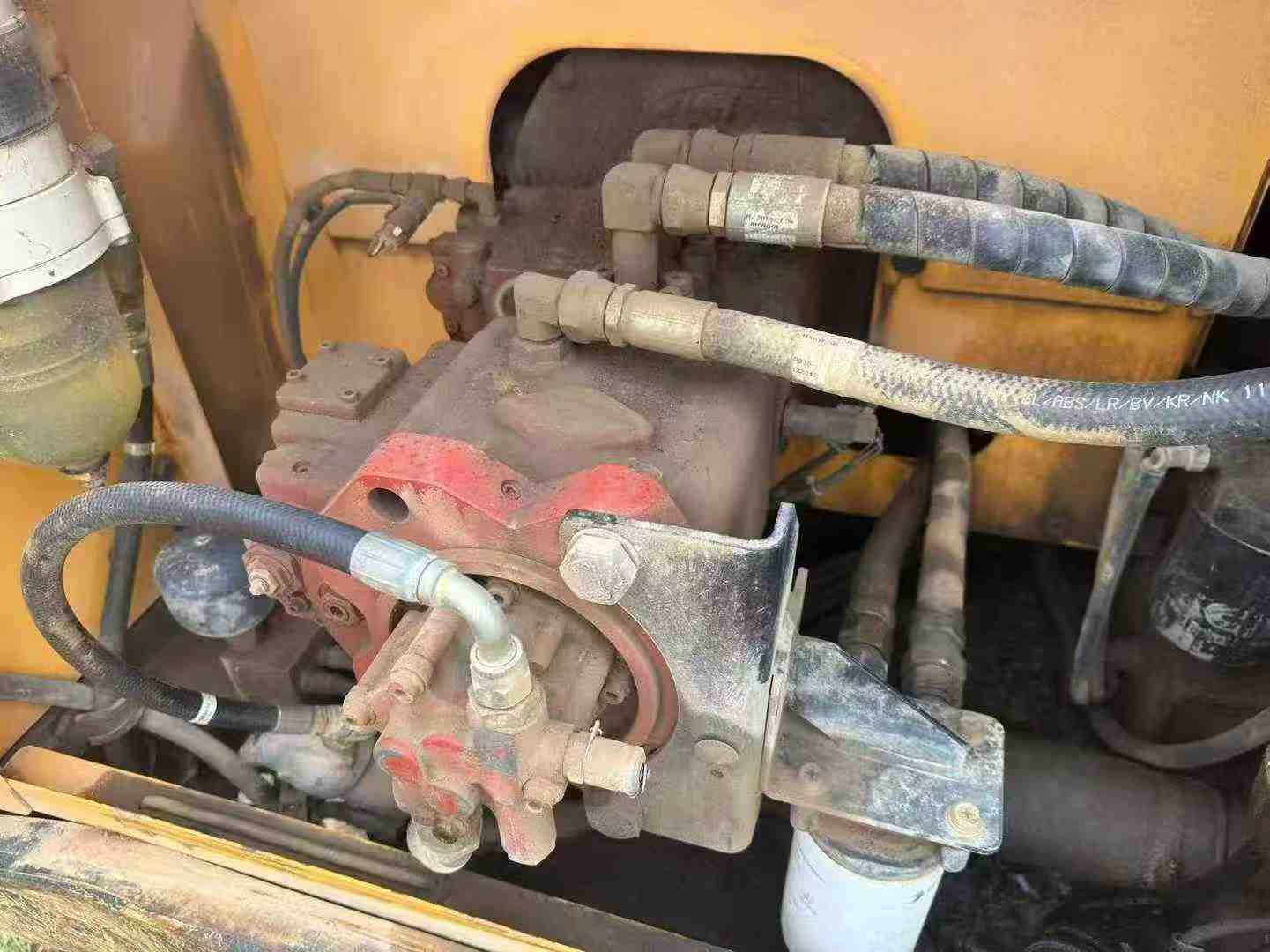

Used Hyundai R215VS Excavator 2018 Model / 4

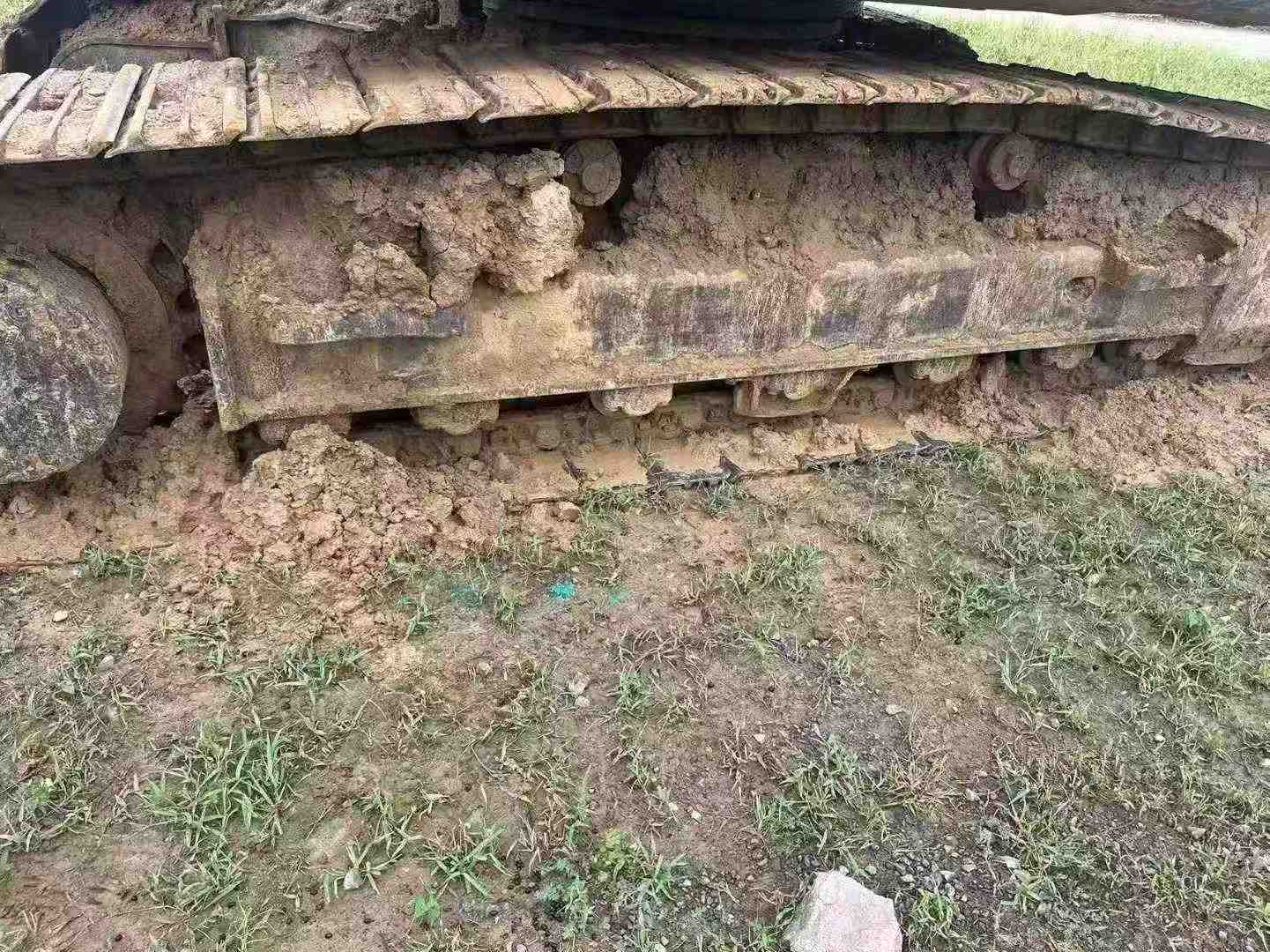

Used Hyundai R215VS Excavator 2018 Model / 5
Used Hyundai R215VS Excavator 2018 Model / 6

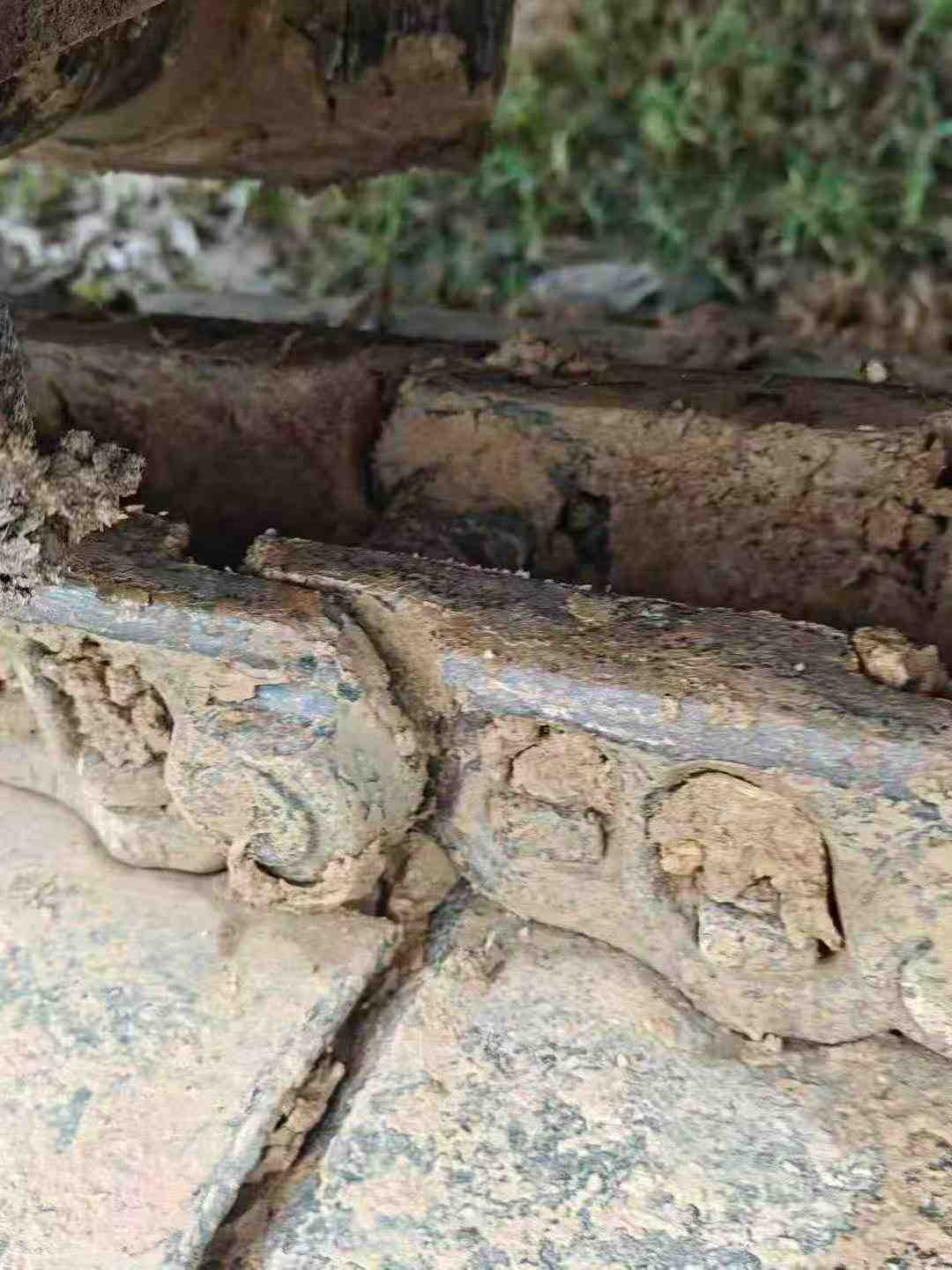

Used Hyundai R215VS Excavator 2018 Model / 7

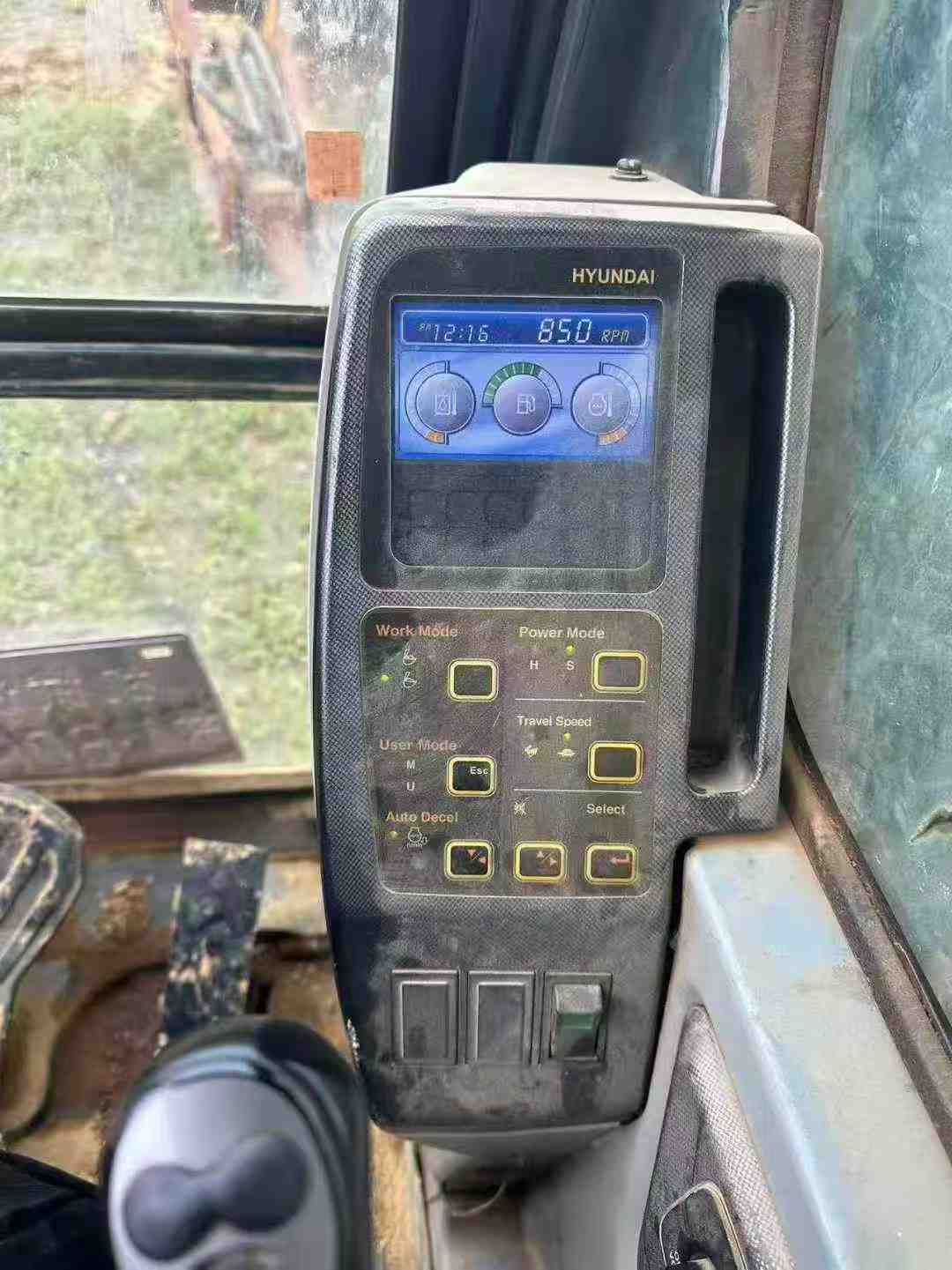

Used Hyundai R215VS Excavator 2018 Model / 8

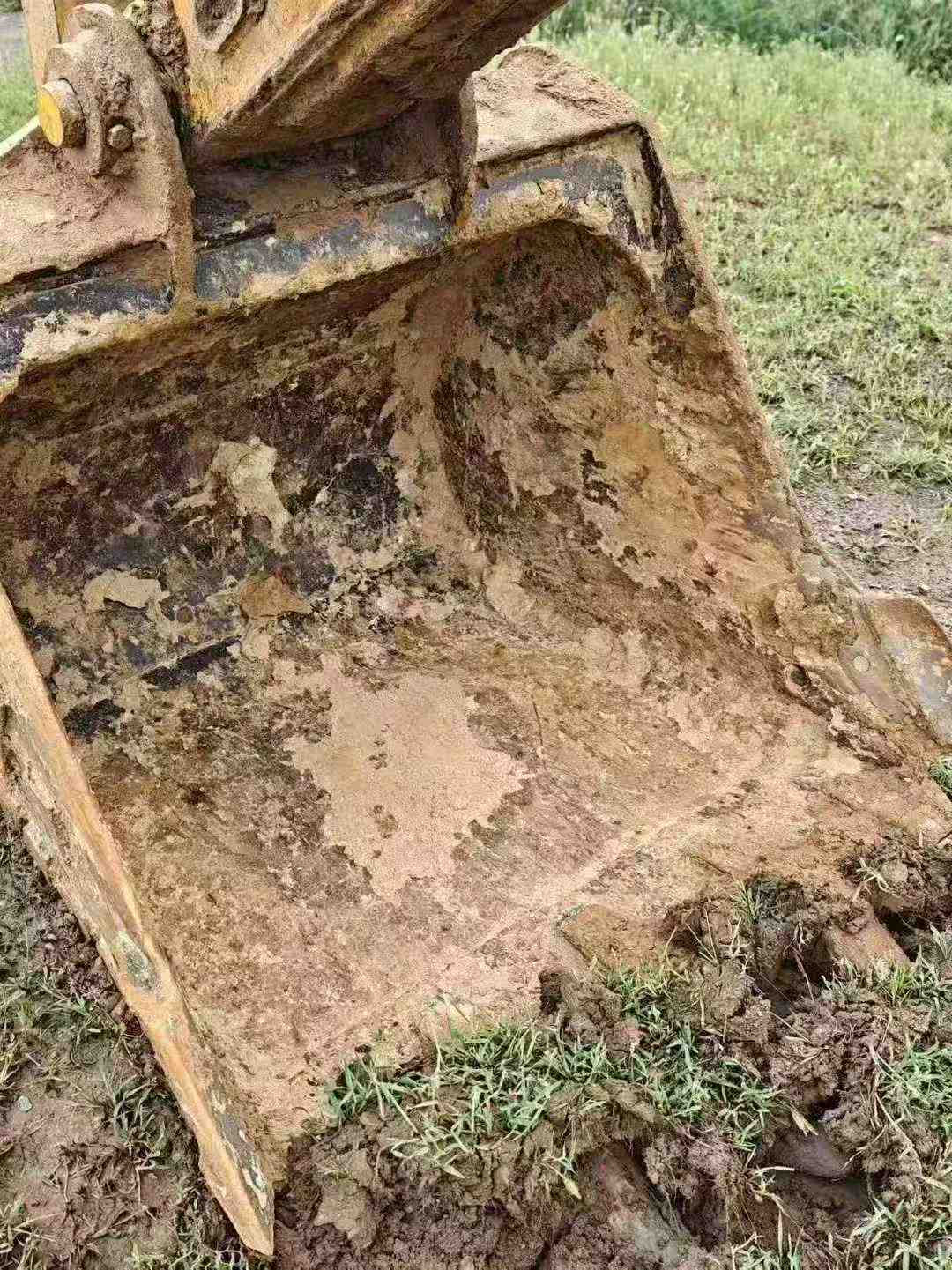

Used Hyundai R215VS Excavator 2018 Model / 9

Product Description

【 Premium Recommendation 】2018 Hyundai R215VS second-hand excavator, specially designed for efficient earthwork operations. This excavator has only been in operation for 3,600 hours since leaving the factory and is in the best working condition, making it highly suitable for engineering projects that require high efficiency and low maintenance costs. This device is equipped with a powerful and reliable Cummins engine, with a maximum output power of up to 129kW, ensuring abundant power under various complex working conditions. Its advanced hydraulic system adopts closed center load sensitive control technology, which not only improves operational accuracy and response speed, but also effectively reduces fuel consumption and extends the service life of the entire machine. In addition, this R215VS is also equipped with a spacious and comfortable cab, with a reasonable interior layout and a wide field of vision, which can significantly reduce the fatigue of the driver after long hours of work. The robust and durable chassis structure, combined with the optimally designed traveling mechanism, enables the machine to handle harsh road conditions with ease. Whether it's urban infrastructure construction or rural road renovation, it is your id

SpecificationsValue
No.963826
Tonnage (tons)21
Working weight (kg)20900
Bucket capacity (m³)0.92
Boom length (mm)5650
Rod length (mm)2920
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeCummins QSB7
Rated power (kw/rpm)125 / 1900
Cooling modewater-cooling
Cylinder diameter × stroke (mm)107 x 124
Maximum torque (N.m)63 / 1500
Number of cylinders (PCS)6
Displacement (L)6.7
Working form6-cylinder, 4-stroke, water-cooled turbocharged engine
Rotation speed (rpm)11.4
Climbing ability (%)70
Travel speed (km/h)5.6 / 3.7
Rotary hydraulic motor typeAxial piston motor with automatic braking
Type of walking hydraulic motorTwo-speed axial plunger motor with brake valve and parking brake
Maximum flow of main pump (l/min)2 x 222
Traveling Hydraulic Circuit (Mpa)350
Rotary Hydraulic Circuit (Mpa)250
Main pump typeTwo variable plunger pump
Working Hydraulic Circuit (Mpa)300
Pilot Oil Circuit (MPa)35
Bucket cylinders - Number × diameter × stroke (mm)1 - ø 120 x ø 80 x 1120
Bucket rod cylinders - Number × diameter × stroke (mm)1 - ø 140 x ø 95 x 1570
Boom cylinders - Number × diameter × stroke (mm)2 - ø 125 x ø 85 x 1320
Pilot pump typeGear pump, interactive sensing fuel saving pump system
Fuel Tank (L)340
Hydraulic Tank (L)180
Engine Oil changes (L)24
Coolant (L)35
Hydraulic System (L)270
Total transport length (mm)9510
Total transport width (mm)2800
Total transport height (mm)2990
Counterweight ground clearance (mm)1060
Minimum turning radius of front working device (mm)3770
Back end turning radius (mm)2830
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)7
Number of track plates (single side) (PCS)46
Maximum digging radius (mm)9930
Maximum digging depth (mm)6800
Maximum excavation height (mm)9730
Maximum unloading height (mm)6910
Maximum vertical digging depth (mm)6060
Maximum excavation radius of stop surface (mm)9760
see more

Overview

No.963826

Brand Name:

Hyundai

Model Number:

R215VS

Year:

2018

Location:

Zhejiang China
