Product Description

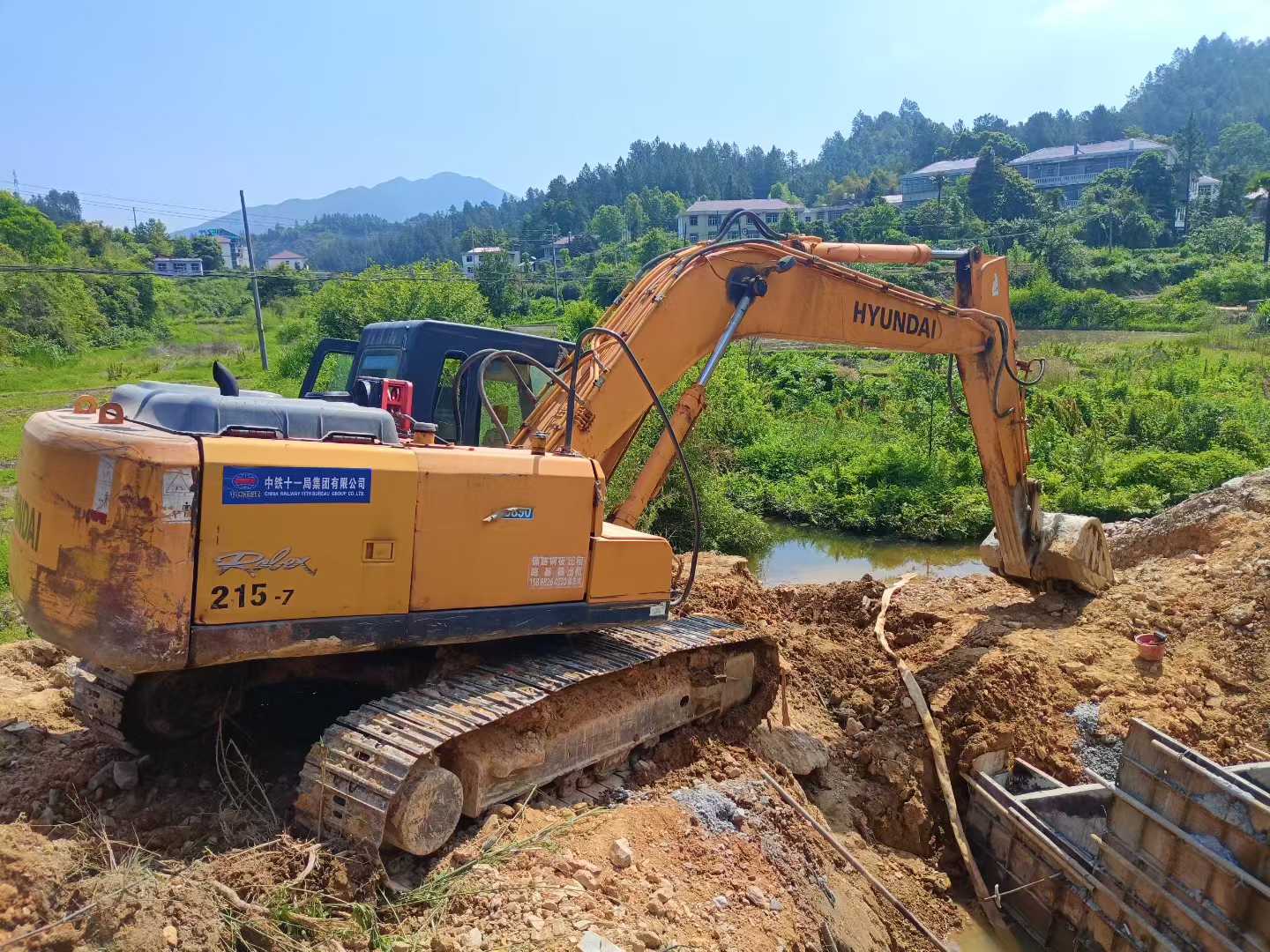

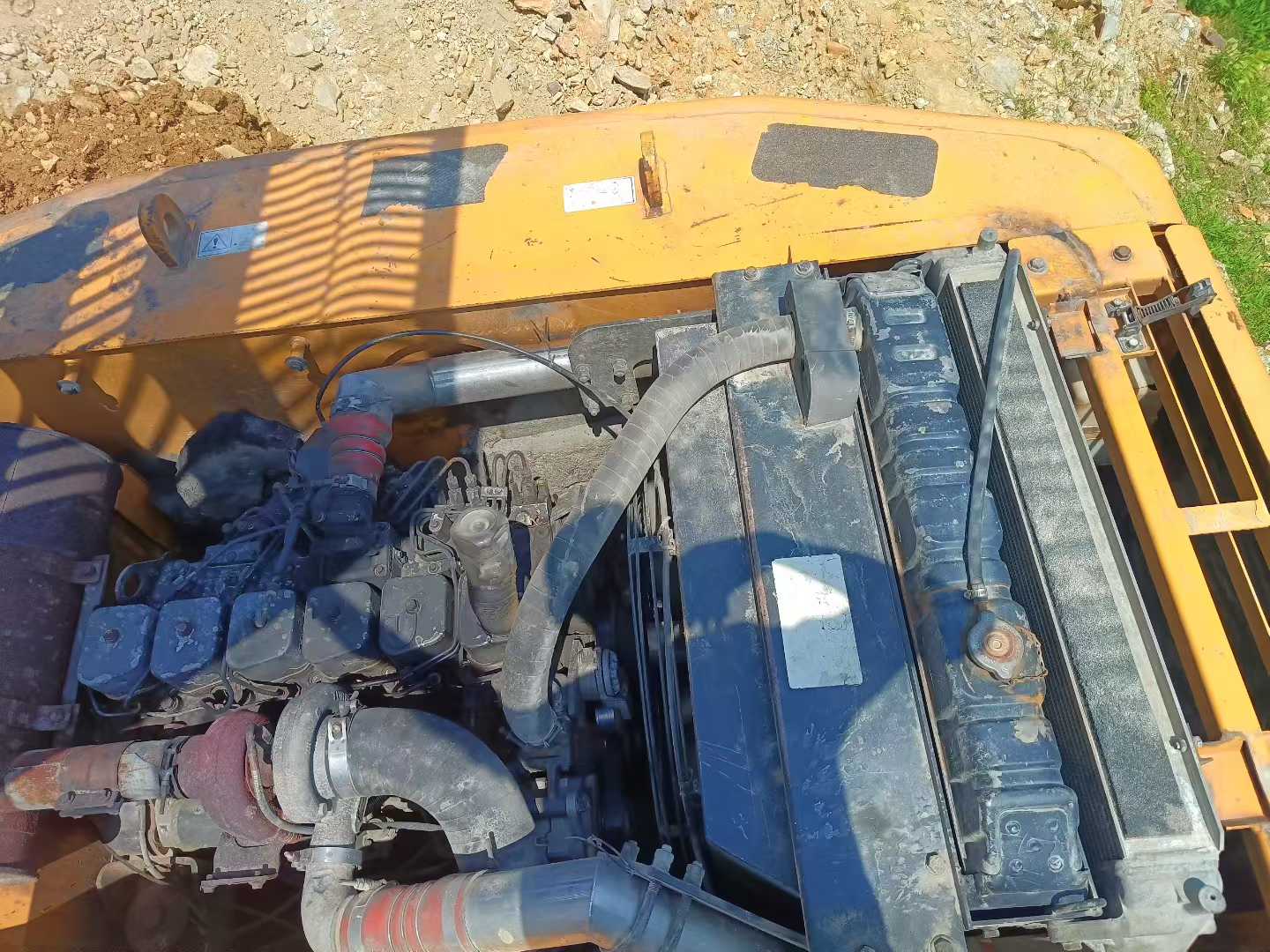

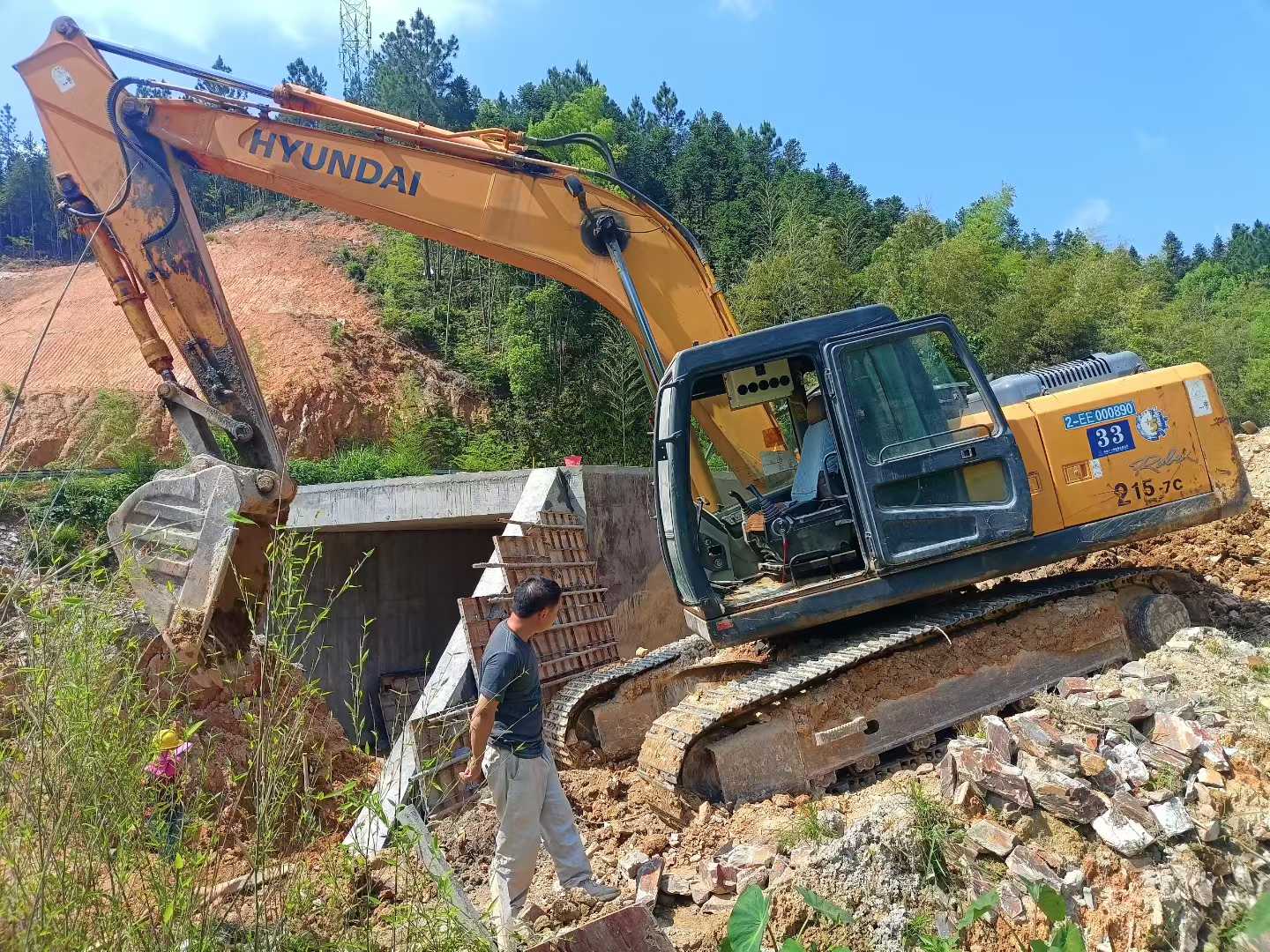

Detailed Introduction of the used Hyundai R215LC-9 Excavator This Hyundai R215LC-9 excavator was manufactured in 2014 and has been in operation for 6,800 hours up to now, making it a medium-life equipment. It is equipped with a powerful power system, featuring a Cummins QSB6.7 engine with a maximum output power of 123 kilowatts (approximately 165 horsepower), ensuring abundant power support under all operating conditions. This engine is renowned for its high efficiency, low emissions and low noise, ensuring operational efficiency while also meeting environmental protection requirements. In terms of the hydraulic system, advanced negative flow control technology is adopted, which can automatically adjust the pump's displacement according to the actual load, thereby achieving more precise operation response and lower energy consumption. In addition, this model is also equipped with an intelligent control system that can monitor and optimize the machine's performance in real time, thereby extending its service life. The vehicle body structure is sturdy and durable. It has been strictly tested and proven to maintain good stability and reliability even in harsh environments. The interior of the driver's cabin is spacious and comfortable,
| Specifications | Value |
|---|---|
| No. | 964096 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 19900 |
| Bucket capacity (m³) | 0.83 |
| Boom length (mm) | 5650 |
| Rod length (mm) | 2700 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cummins QSB7 |
| Rated power (kw/rpm) | 125/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 107*124 |
| Maximum torque (N.m) | 67/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Rotation speed (rpm) | 11.4 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.9/3.8 |

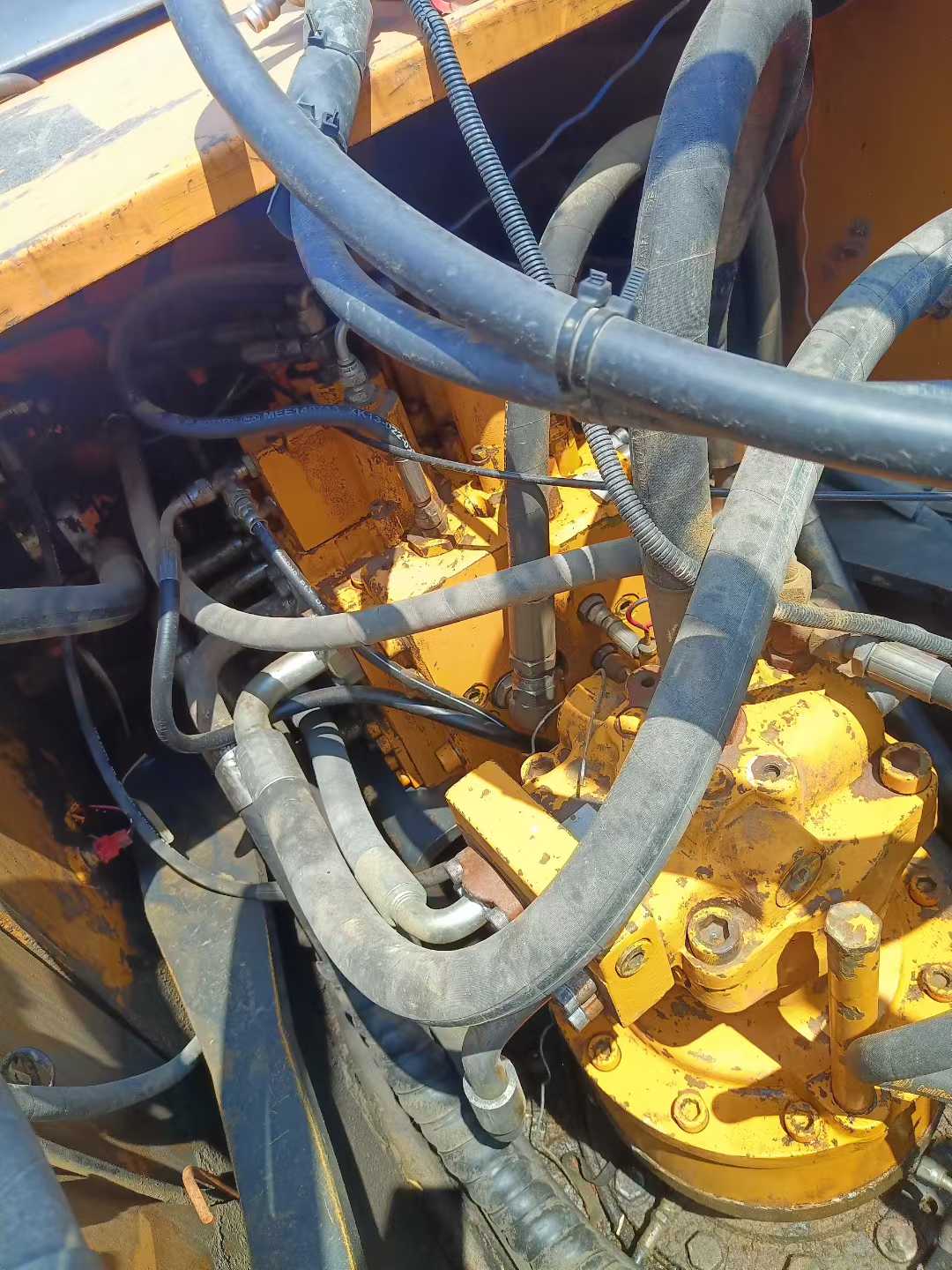

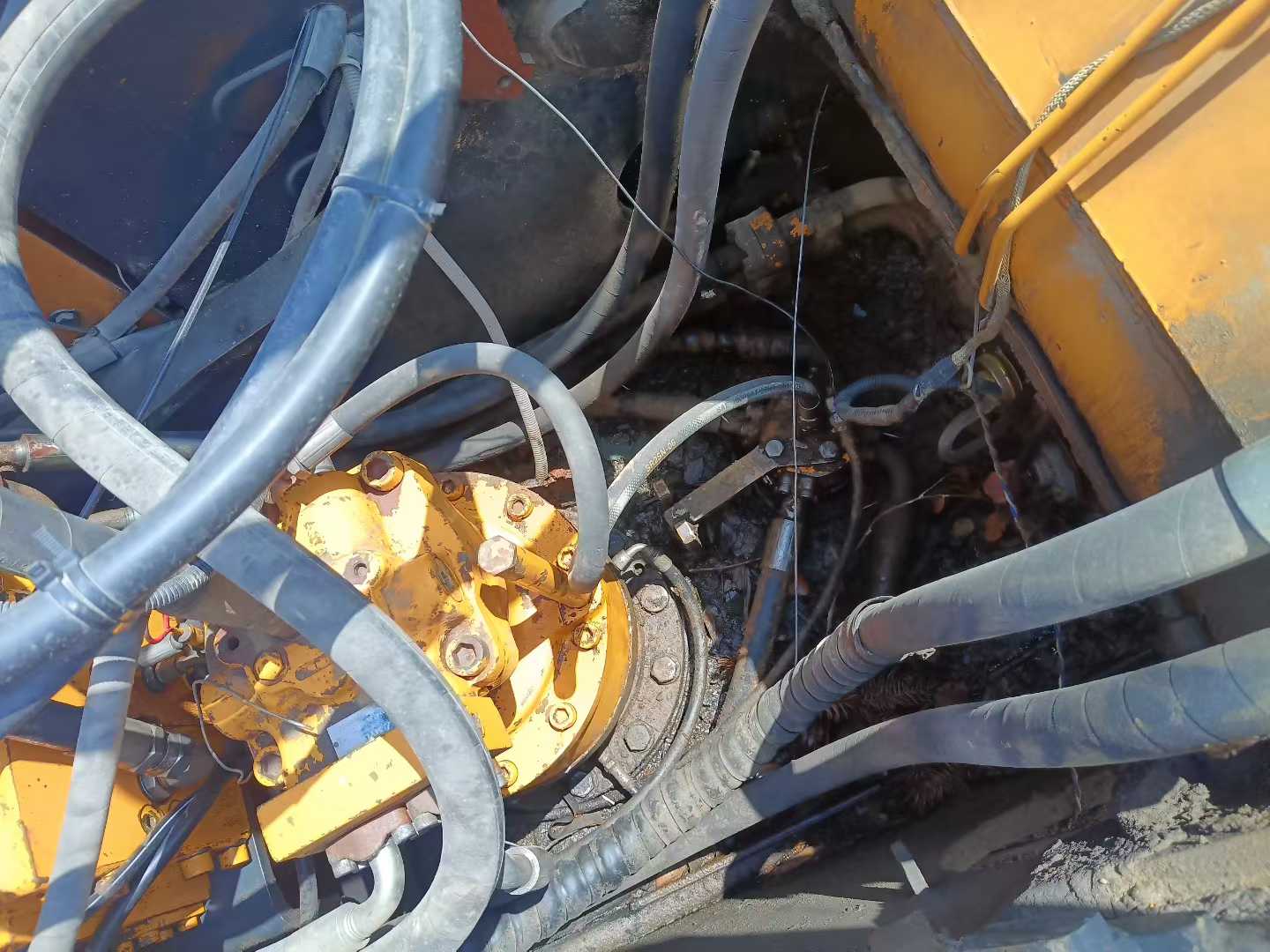

| Rotary hydraulic motor type | Axial piston motor with automatic braking |
| Type of walking hydraulic motor | Two-speed axial plunger motor with brake valve and parking brake |
| Maximum flow of main pump (l/min) | 2*222 |

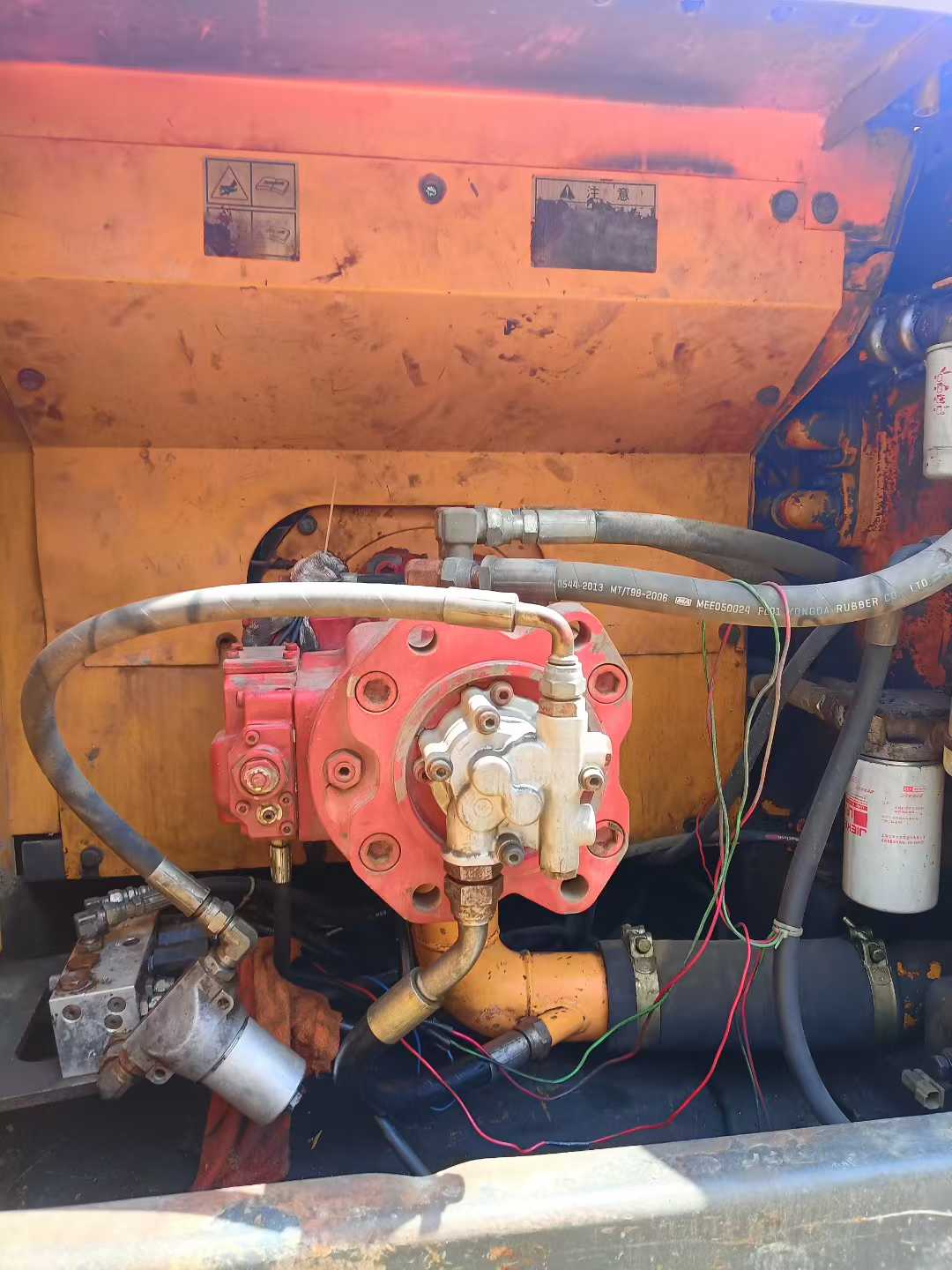

| Main pump type | Two variable plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*120*80*1120 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*140*95*1570 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*125*85*1320 |
| Pilot pump type | Gear pump |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 180 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 35 |
| Hydraulic System (L) | 270 |
| Total transport length (mm) | 9500 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2970 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum turning radius of front working device (mm) | 3470 |
| Back end turning radius (mm) | 2830 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 46 |
| Maximum digging radius (mm) | 9720 |
| Maximum digging depth (mm) | 6550 |
| Maximum excavation height (mm) | 9640 |
| Maximum unloading height (mm) | 6830 |
| Maximum vertical digging depth (mm) | 5920 |
| Maximum excavation radius of stop surface (mm) | 9550 |
