2021 Hyundai R225LVS

1/9
Used Hyundai R225LVS Excavator 2021 Model / 1

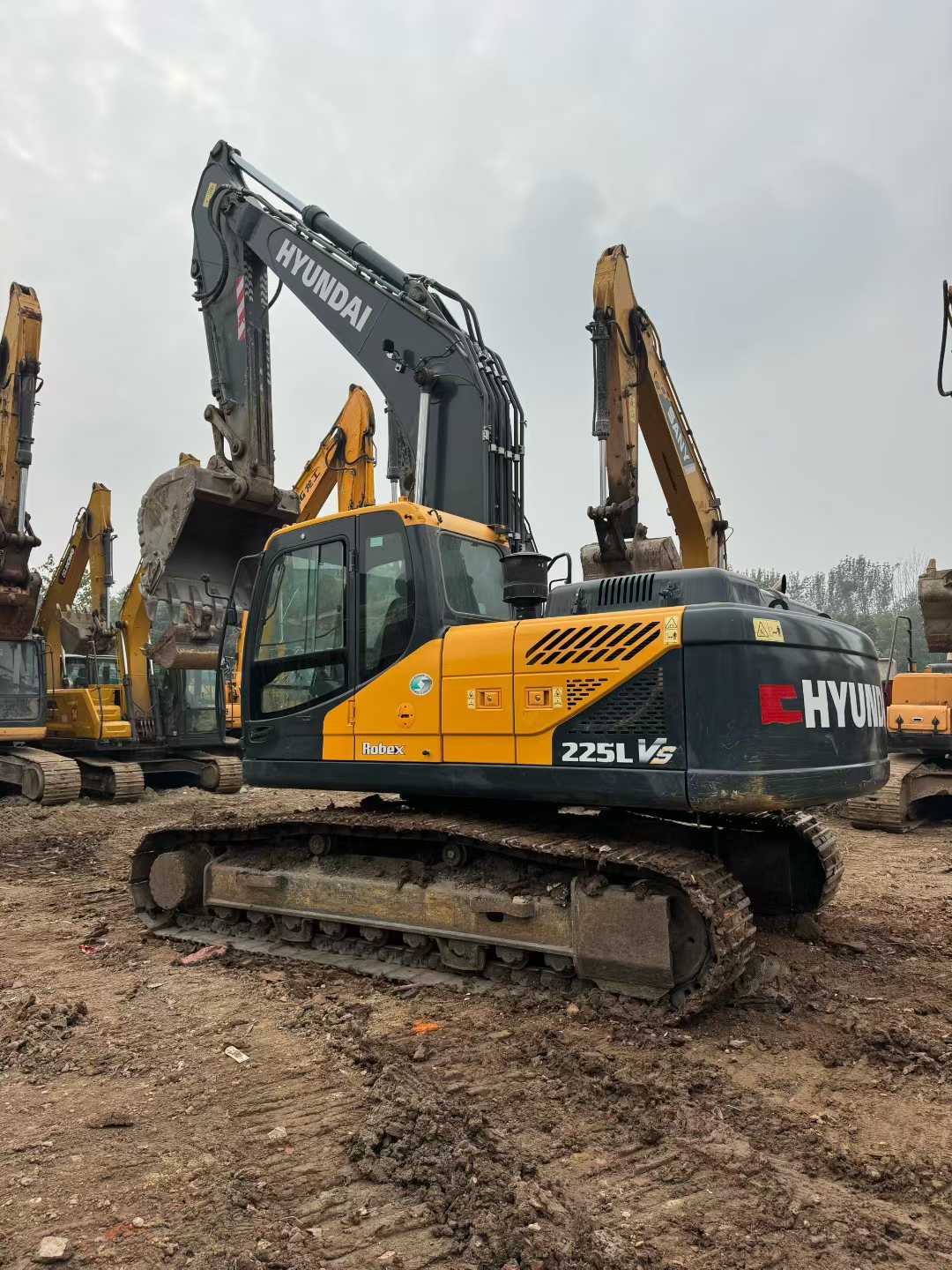

Used Hyundai R225LVS Excavator 2021 Model / 2

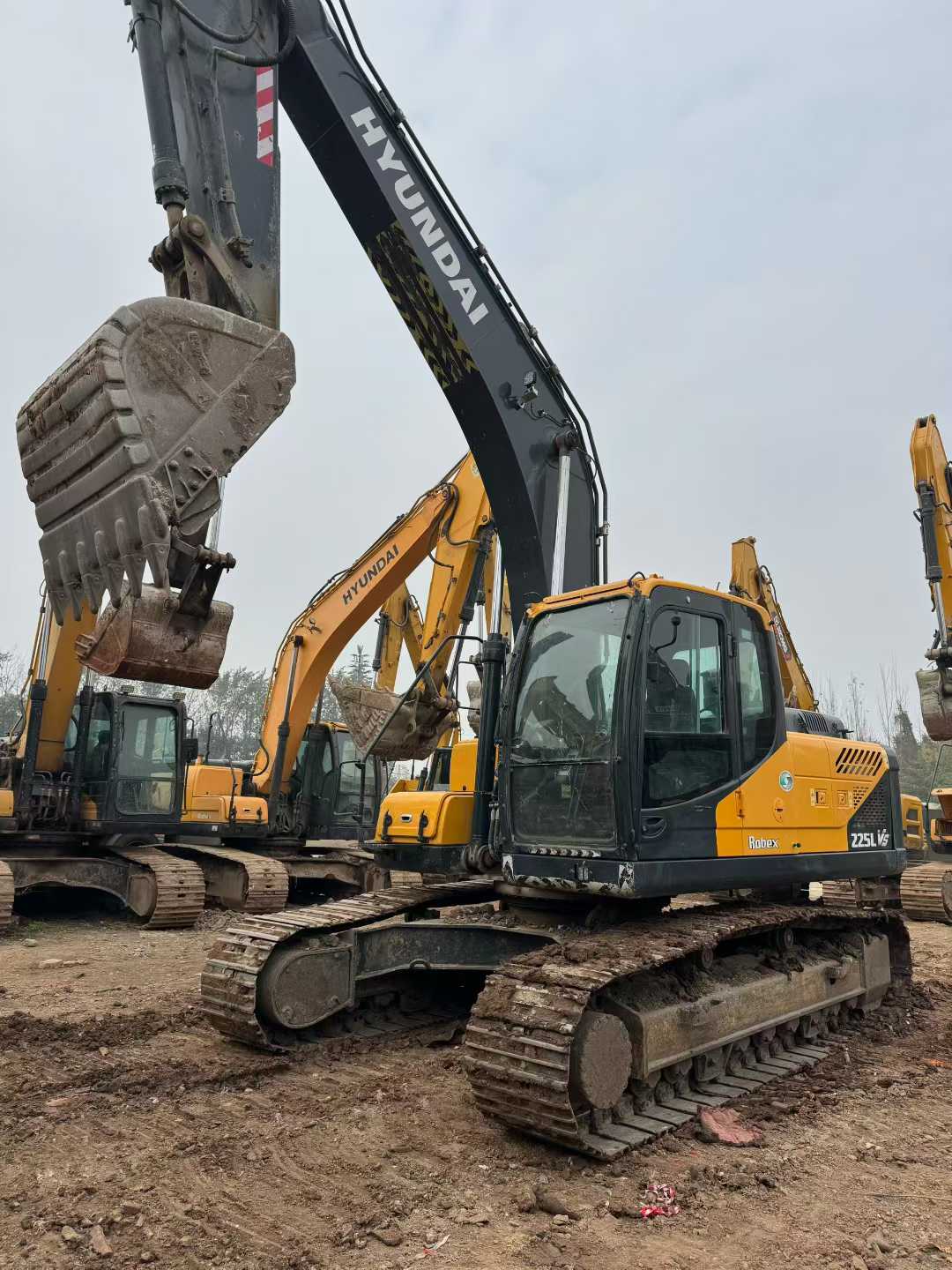

Used Hyundai R225LVS Excavator 2021 Model / 3

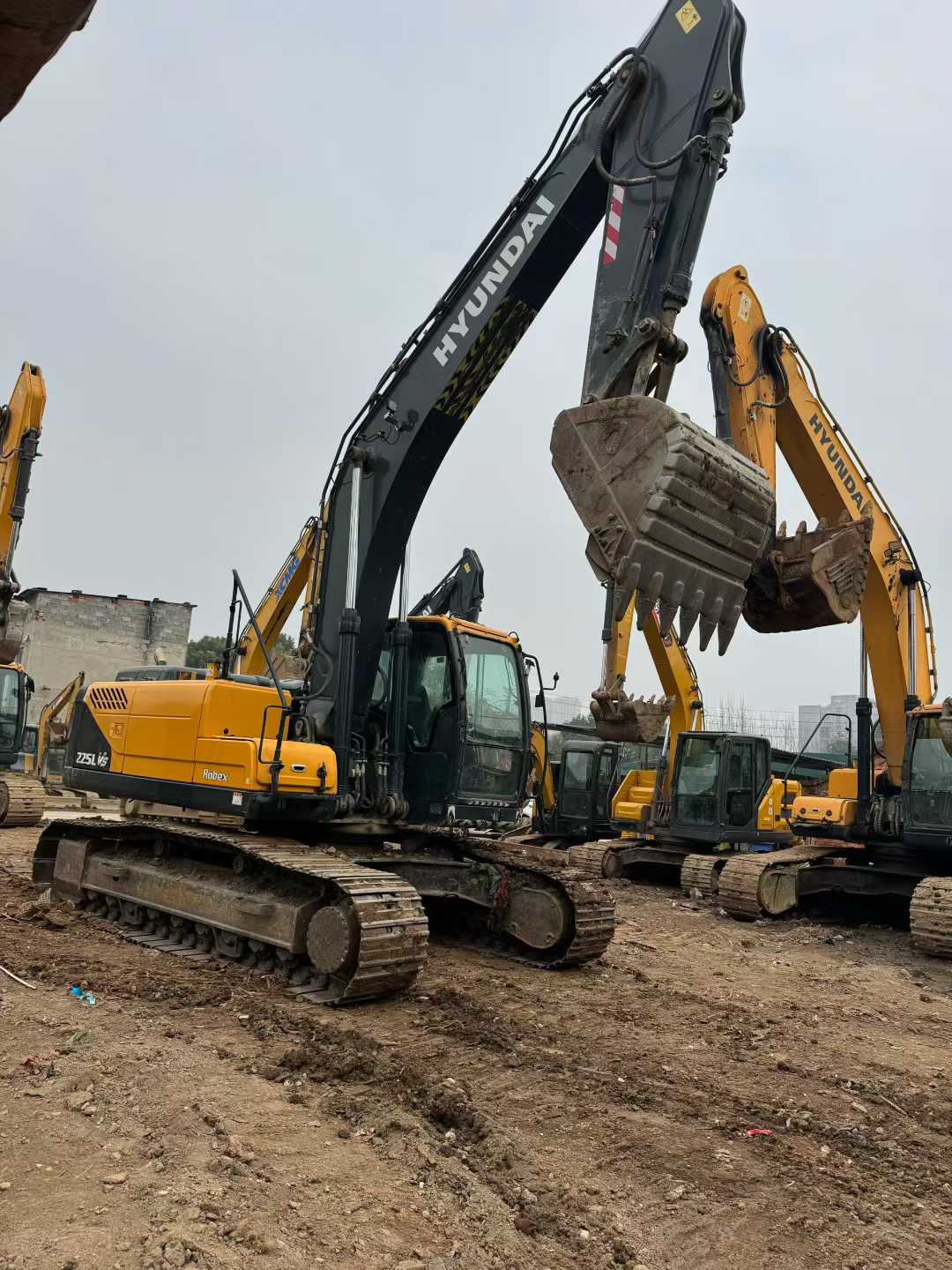

Used Hyundai R225LVS Excavator 2021 Model / 4

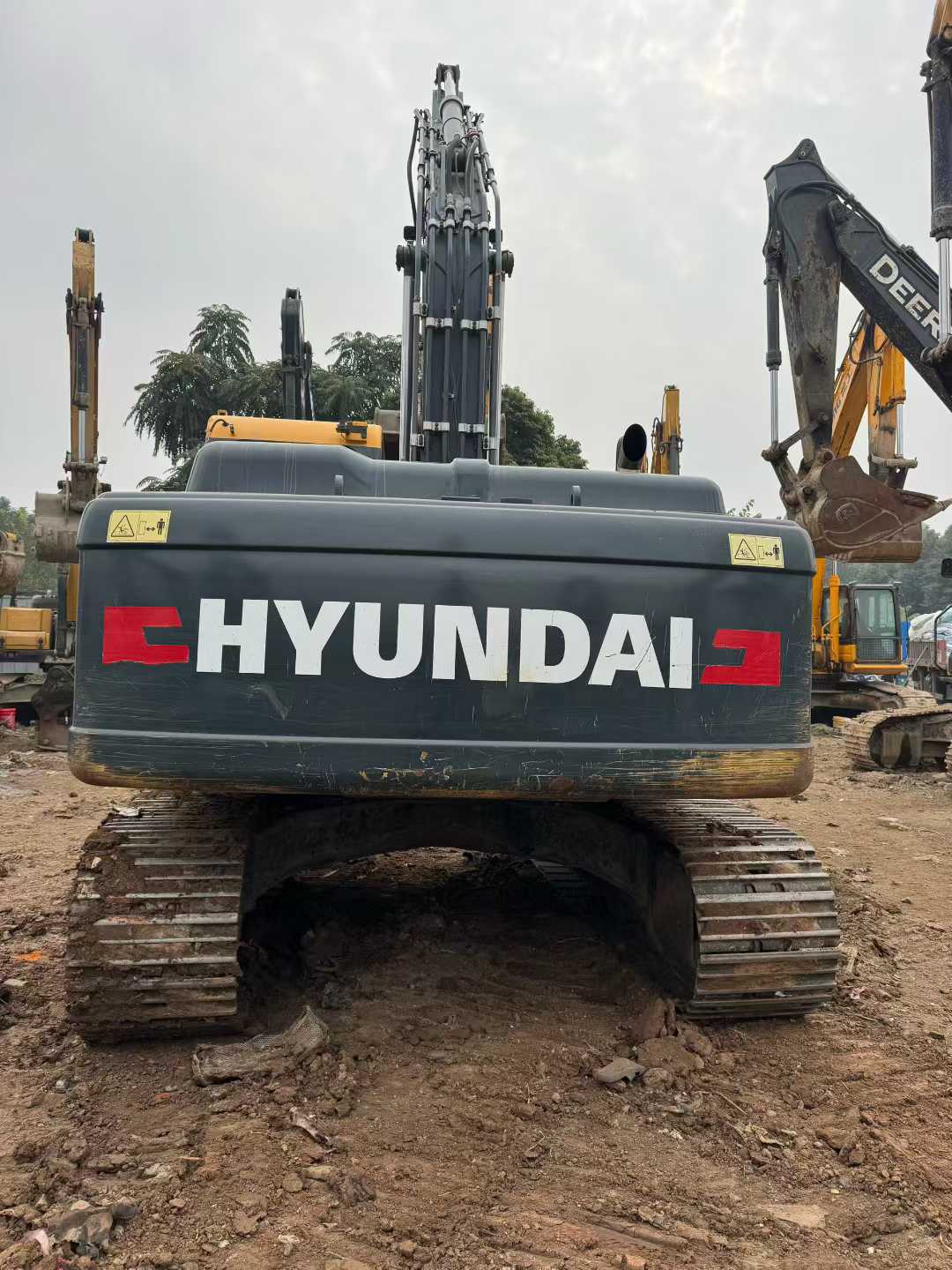

Used Hyundai R225LVS Excavator 2021 Model / 5

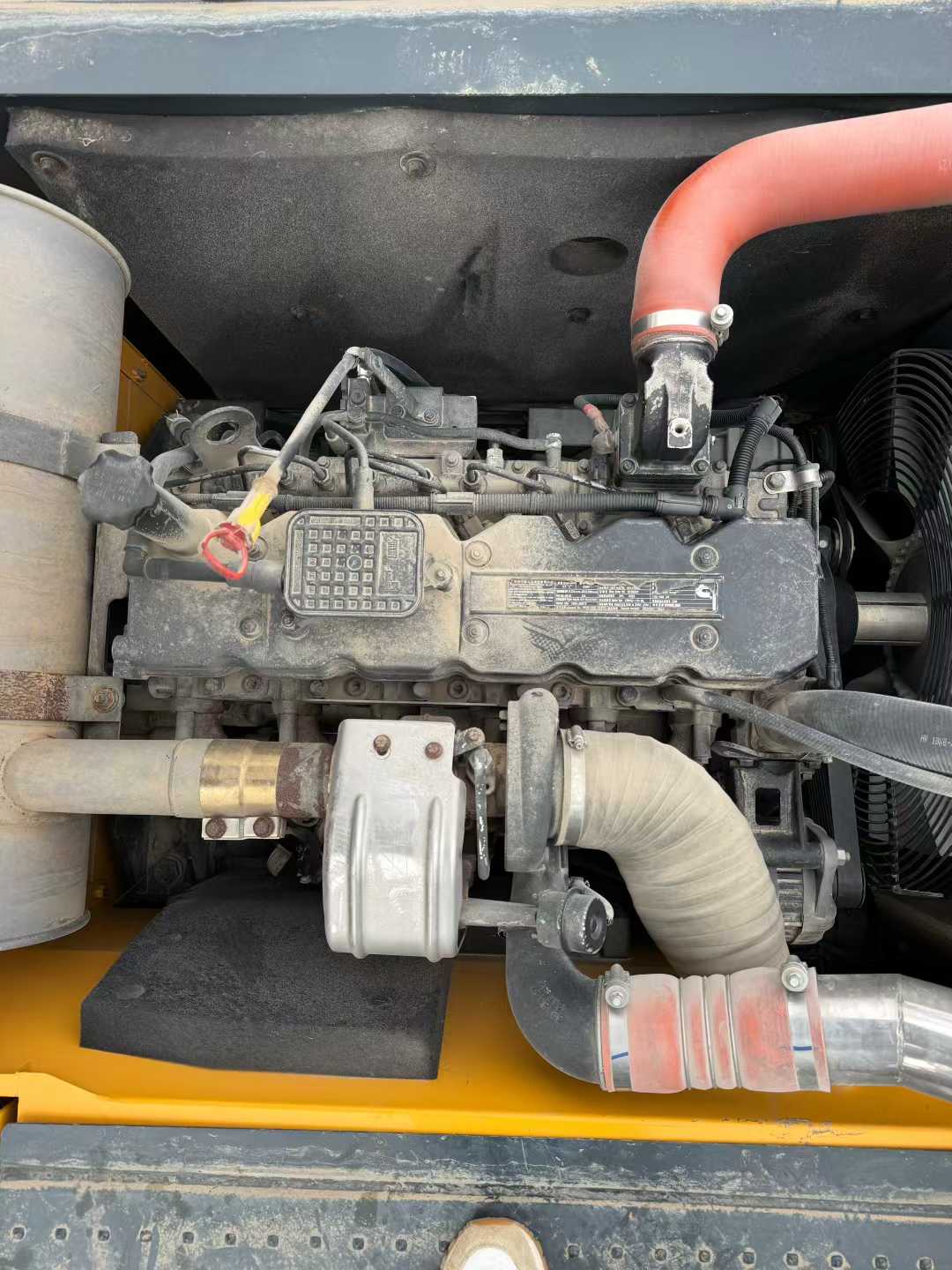

Used Hyundai R225LVS Excavator 2021 Model / 6

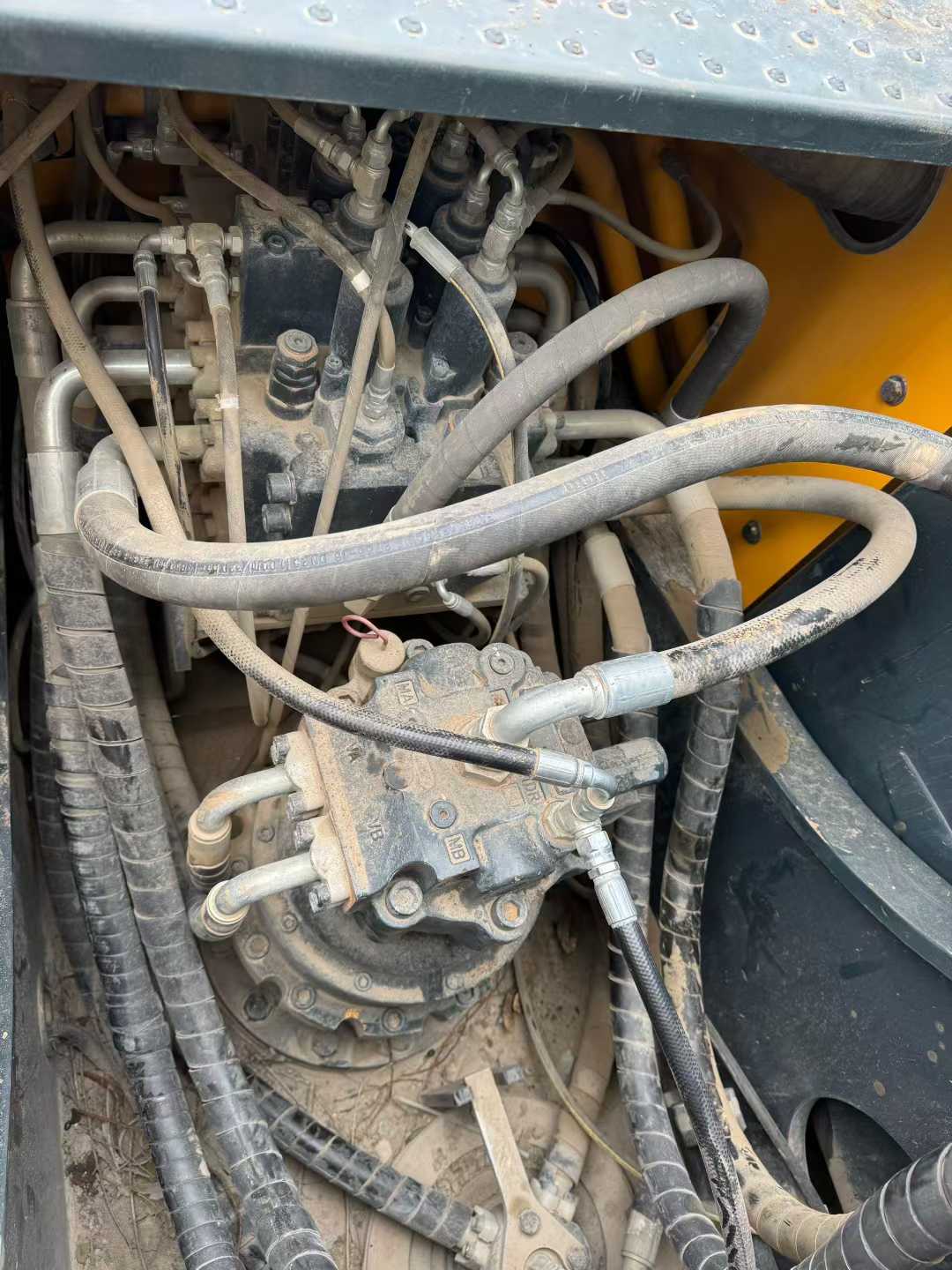

Used Hyundai R225LVS Excavator 2021 Model / 7

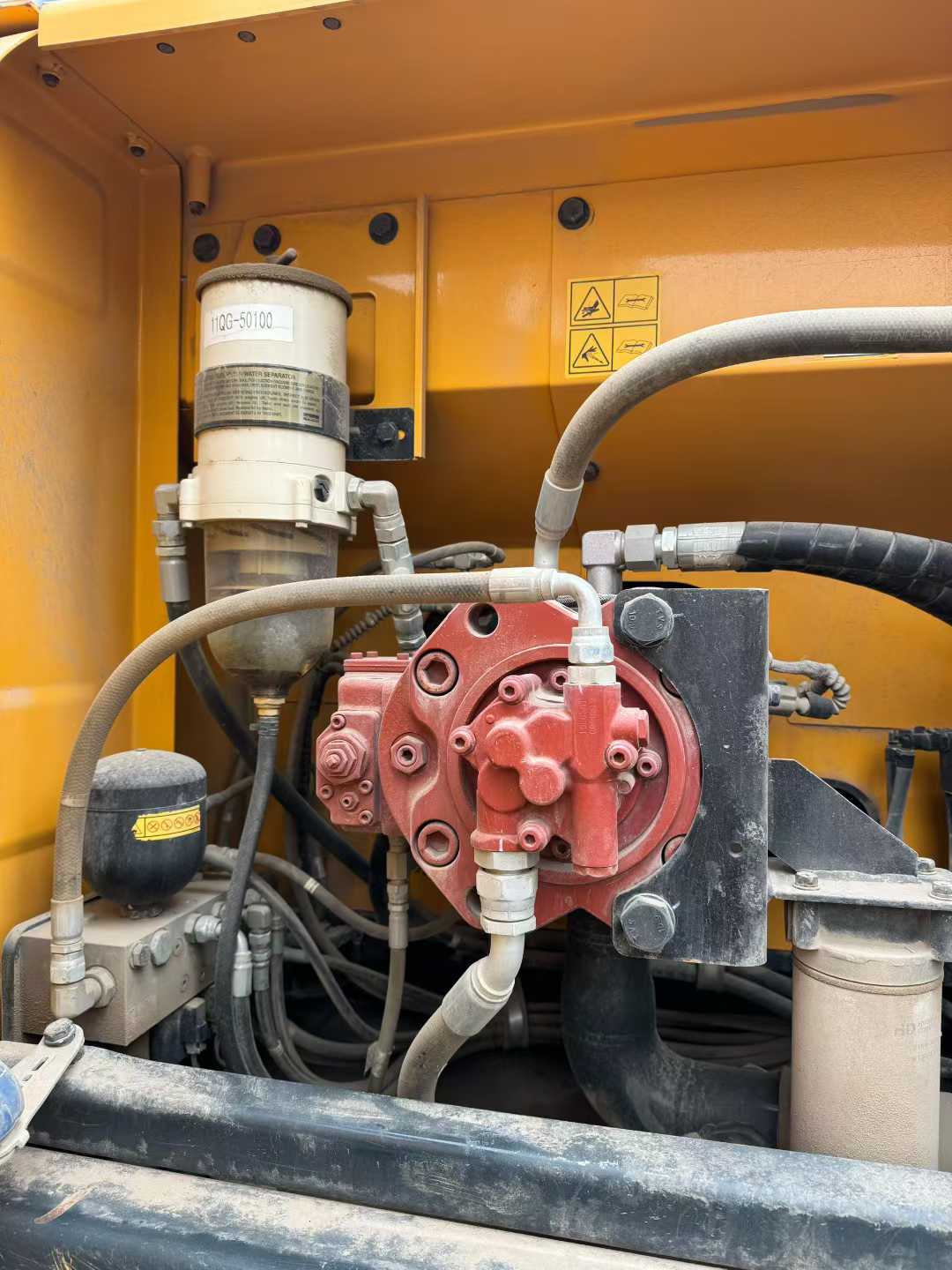

Used Hyundai R225LVS Excavator 2021 Model / 8

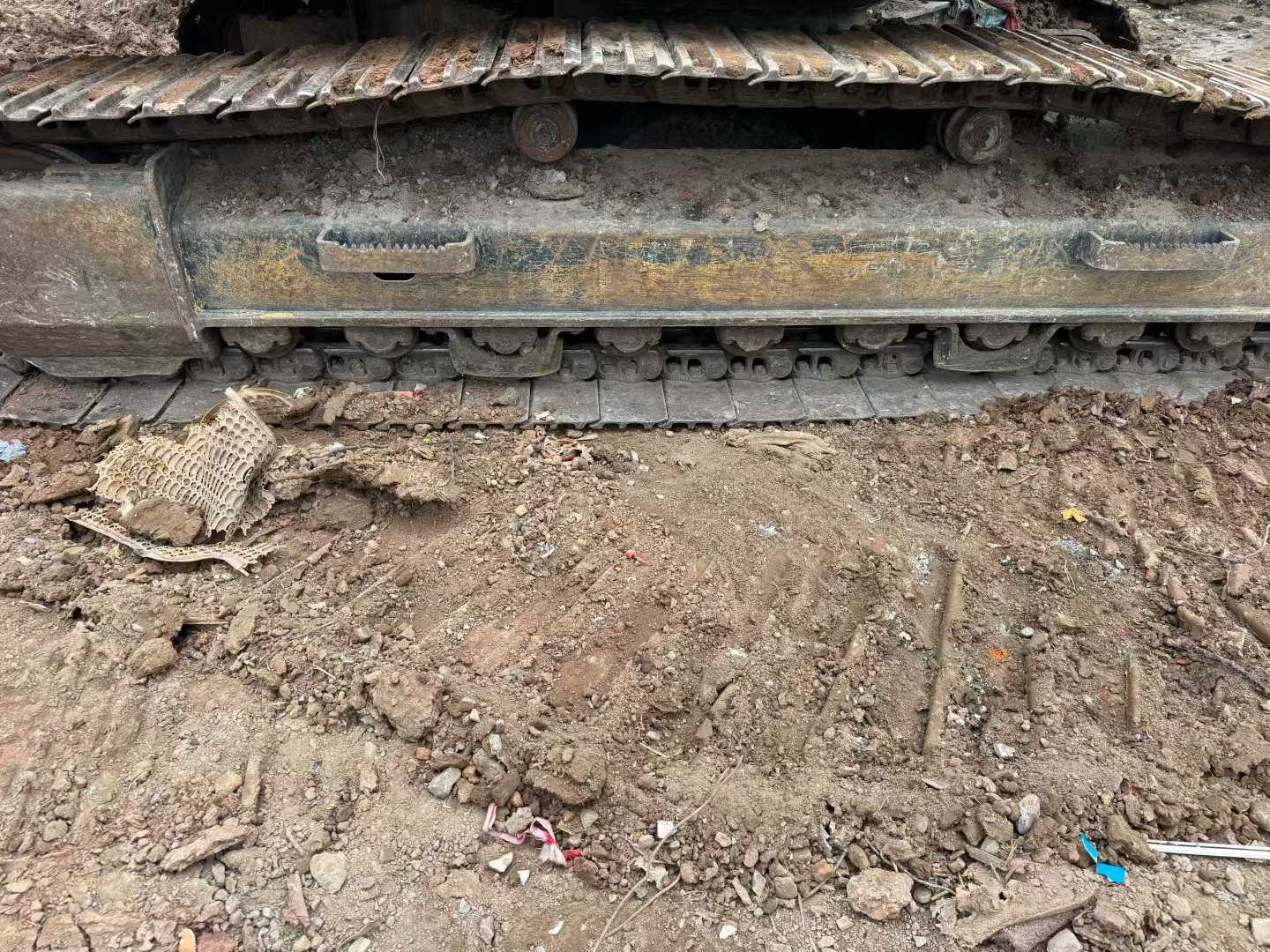

Used Hyundai R225LVS Excavator 2021 Model / 9

Product Description

【 Premium Recommendation 】 The 2021 top-quality Hyundai R225VS excavator is a high-quality earthwork equipment that is extremely rare in the market. This machine has a working time of only 2,600 hours and is in the best usage condition, with stable and reliable performance. The entire vehicle is equipped with a modern original imported engine, which is powerful, fuel-efficient and capable of easily handling excavation tasks under various complex working conditions. The advanced hydraulic system ensures the smoothness and accuracy of operation, enabling it to handle both meticulous excavation and heavy-load operations with ease. It is particularly worth mentioning that this excavator adopts a "black arm" design - that is, the boom has been specially treated to present a deep black color. This not only looks elegant and generous, but more importantly, it increases the surface hardness of the material and extends its service life. The lower frame has remained in its original state from the factory, with the paint surface intact and almost no signs of wear and tear visible. This fully demonstrates its excellent maintenance condition and the previous owner's care for the machine. The entire vehicle is equipped with the original configurat

SpecificationsValue
No.964093
Tonnage (tons)22
Working weight (kg)22570
Bucket capacity (m³)1.05
Boom length (mm)5680
Rod length (mm)2920
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeHYUNDAI HE6.7
Rated power (kw/rpm)113 / 1900
Cooling modewater-cooling
Cylinder diameter × stroke (mm)107 x 124
Maximum torque (N.m)63 / 1500
Number of cylinders (PCS)6
Displacement (L)6.7
Working form6-cylinder, 4-stroke, water-cooled turbocharged engine
Climbing ability (%)35 ° (70%).
Travel speed (km/h)5.3/ 3.4
Rotary hydraulic motor typeAxial piston motor with automatic braking
Type of walking hydraulic motorTwo-speed axial plunger motor with brake valve and parking brake
Maximum flow of main pump (l/min)2 x 222
Traveling Hydraulic Circuit (Mpa)35
Rotary Hydraulic Circuit (Mpa)26.5
Control Hydraulic Circuit (Mpa)4
Main pump typeTwo variable plunger pump
Working Hydraulic Circuit (Mpa)35
Bucket cylinders - Number × diameter × stroke (mm)1-120 x 85 x 1055
Bucket rod cylinders - Number × diameter × stroke (mm)1 - ø 140 x ø 100 x 1510
Boom cylinders - Number × diameter × stroke (mm)2 - ø 120 x ø 85 x 1290
Pilot pump typeGear pump
Fuel Tank (L)400
Hydraulic Tank (L)160
Engine Oil changes (L)24
Coolant (L)35
Hydraulic System (L)275
Theoretical fuel consumption (L/h)160
Total transport length (mm)9550
Total transport width (mm)2990
Total transport height (mm)3080
Full cab height (mm)2920
Counterweight ground clearance (mm)1060
Minimum turning radius of front working device (mm)3740
Back end turning radius (mm)2840
Onboard width (mm)2740
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)9980
Maximum digging depth (mm)6730
Maximum excavation height (mm)9600
Maximum unloading height (mm)6780
Maximum vertical digging depth (mm)6280
Maximum excavation radius of stop surface (mm)2990
Maximum effective digging depth (mm)6730
see more

Overview

No.964093

Brand Name:

Hyundai

Model Number:

R225LVS

Year:

2021

Location:

Sichuan China
