Product Description
Modern 335-9, ten small tables
| Specifications | Value |
|---|---|
| No. | 927786 |
| Tonnage (tons) | 33 |
| Working weight (kg) | 32200 |
| Bucket capacity (m³) | 1.44 |
| Boom length (mm) | Heavy duty 6450 |
| Rod length (mm) | Overloading 2500/ Lengthening 4050 |
| Country of origin | Jiangsu (Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

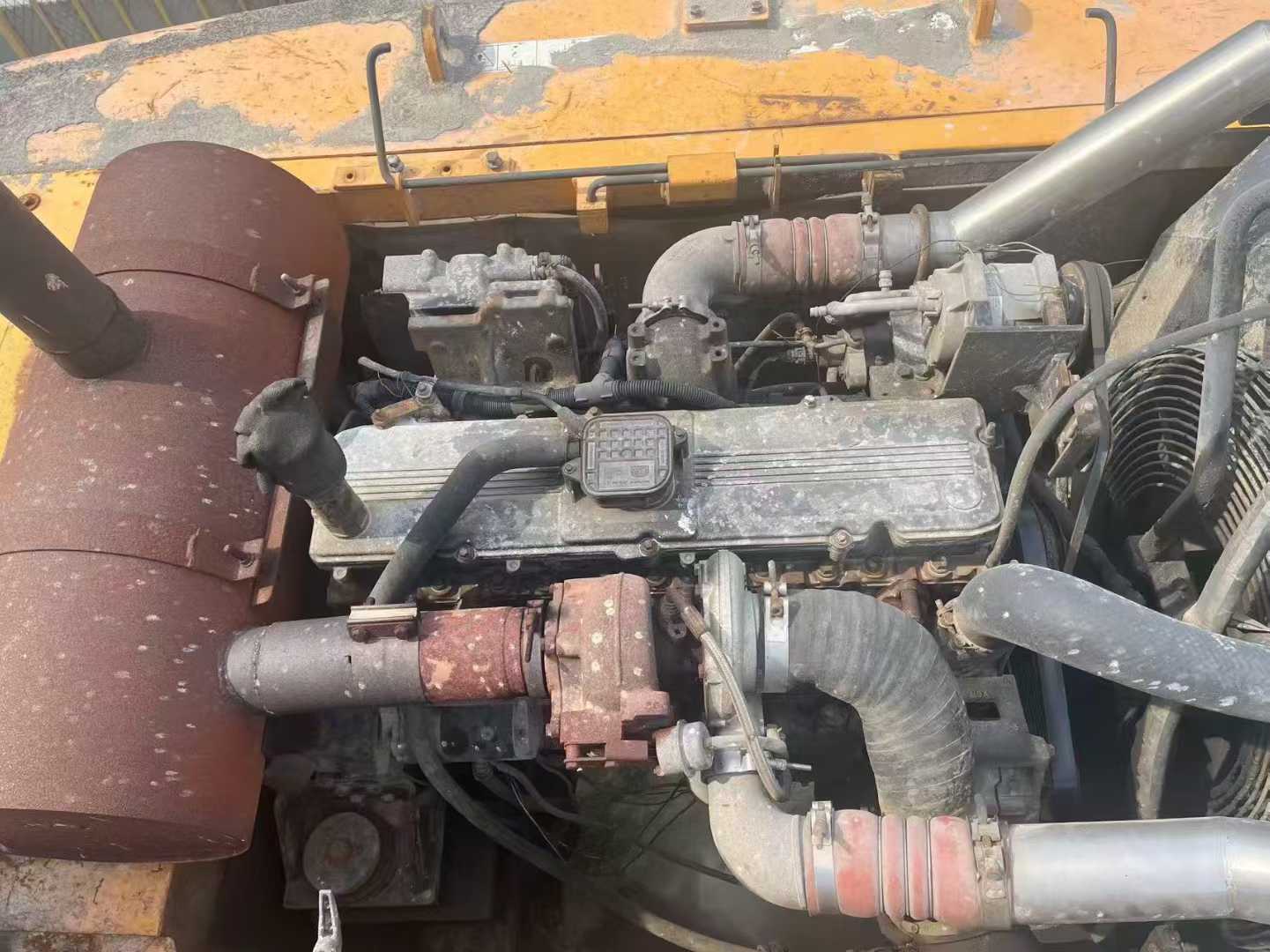

| Engine type | Cummins C8.3-C |
| Rated power (kw/rpm) | 196/1900 |
| Cooling mode | water-cooling |
| Maximum torque (N.m/rpm) | 1218.1 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.3 |
| Working form | Six-cylinder, four-stroke, turbocharged intercooled direct injection engine |
| Ground specific pressure (Kpa) | 63 |
| Rotation speed (rpm) | 9.2 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 212 |
| Rod digging force (kN) | 147 |
| Maximum tractive force (kN) | 295 |
| Travel speed (km/h) | 5.5/3.3 |
| Main overflow set pressure (Mpa) | 38 |

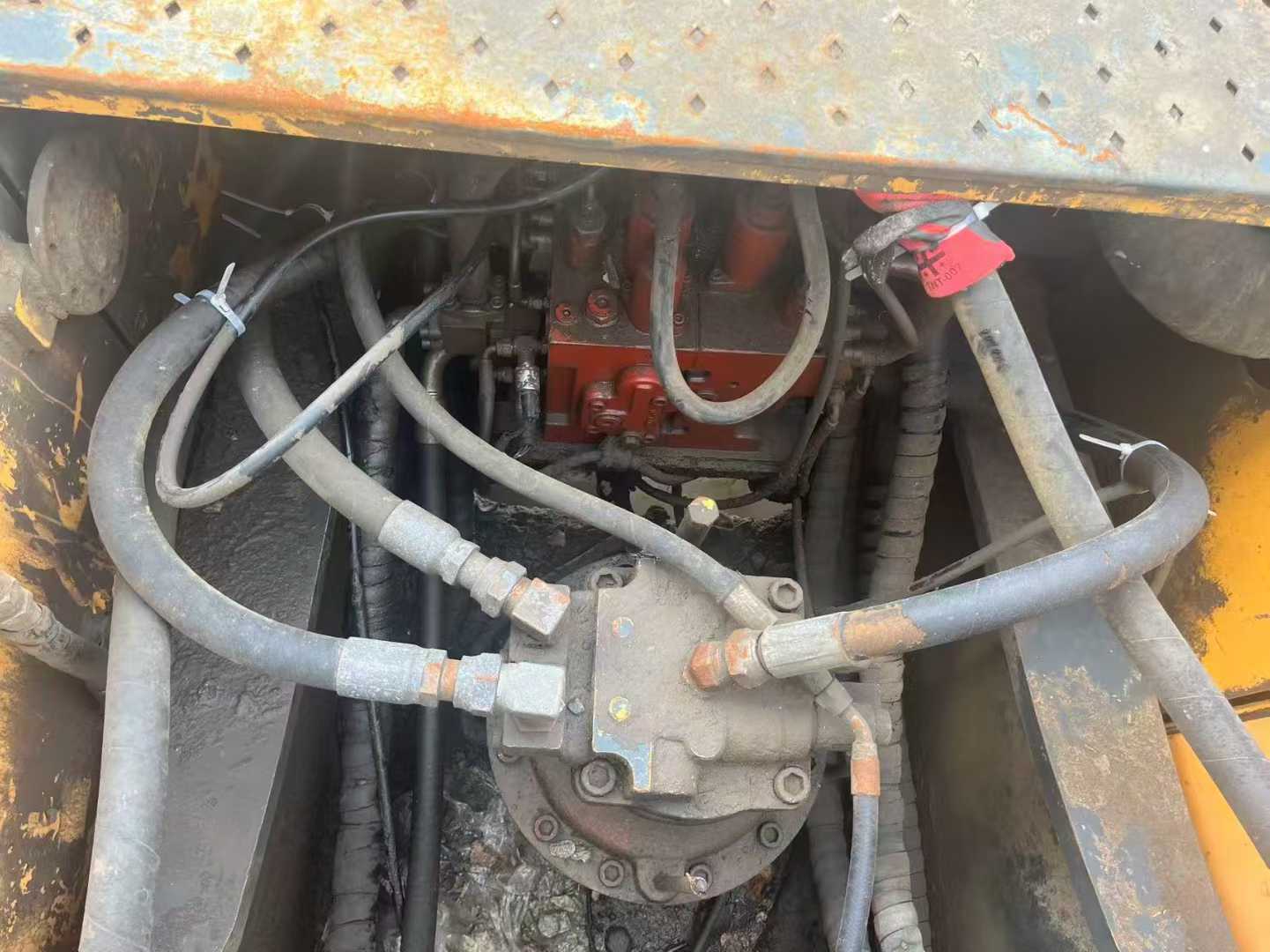

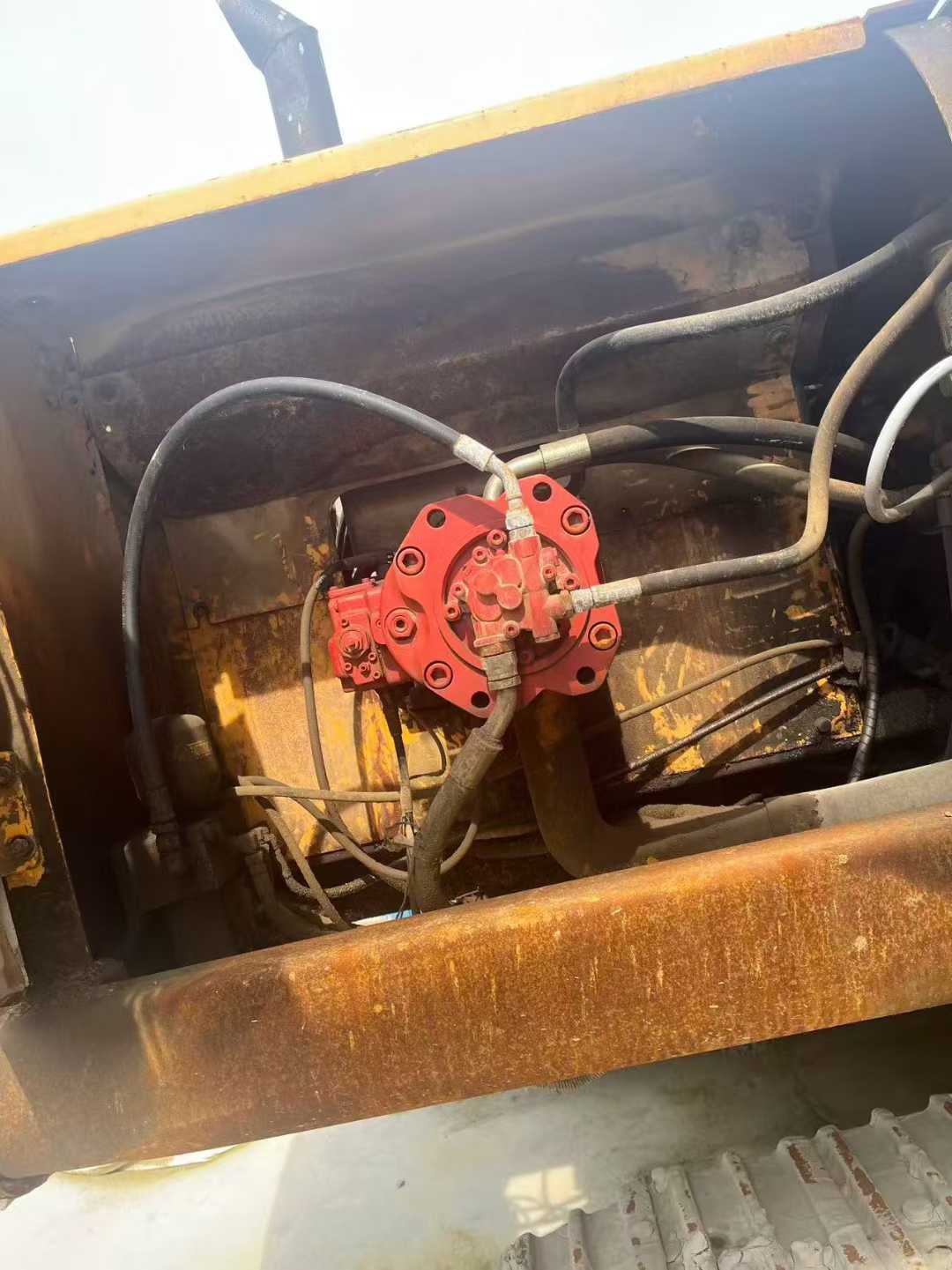

| Rotary hydraulic motor type | Quantitative swash plate axial piston pump |
| Type of walking hydraulic motor | Variable swash plate axial piston pump |
| Maximum flow of main pump (l/min) | 2 x 270 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 30 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | 2× variable axial piston pump |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 4 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 140 x 1285 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 160 x 1685 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 150 x 1480 |
| Fuel Tank (L) | 500 |
| Hydraulic Tank (L) | 190 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 55 |
| Hydraulic System (L) | 330 |
| Total transport length (mm) | 10980 |
| Total transport width (mm) | 3280 |
| Total transport height (mm) | 3380 |
| Full cab height (mm) | 3090 |
| Counterweight ground clearance (mm) | 1200 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4470 |
| Back end turning radius (mm) | 3330 |
| Onboard width (mm) | 2980 |
| Total track length (mm) | 4940 |
| Track gauge (mm) | 2680 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3280 |
| Track ground length (mm) | 4030 |
| Maximum digging radius (mm) | 11140 |
| Maximum digging depth (mm) | 7370 |
| Maximum excavation height (mm) | 10310 |
| Maximum unloading height (mm) | 7240 |
| Maximum vertical digging depth (mm) | 6360 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 10940 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 7210 |
