2019 Hyundai R485LVS

1/4
Used Hyundai R485LVS Excavator 2019 Model / 1

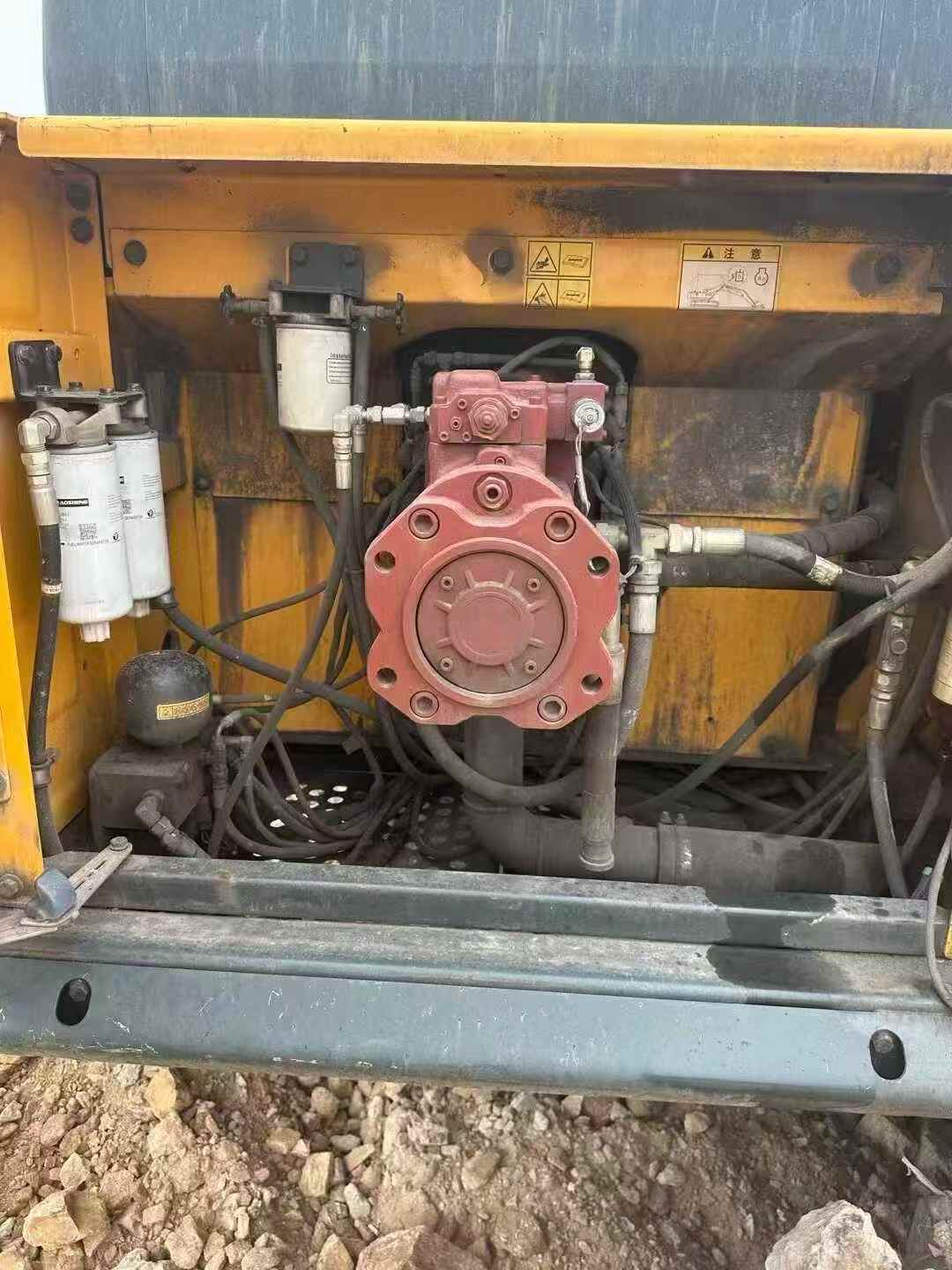

Used Hyundai R485LVS Excavator 2019 Model / 2

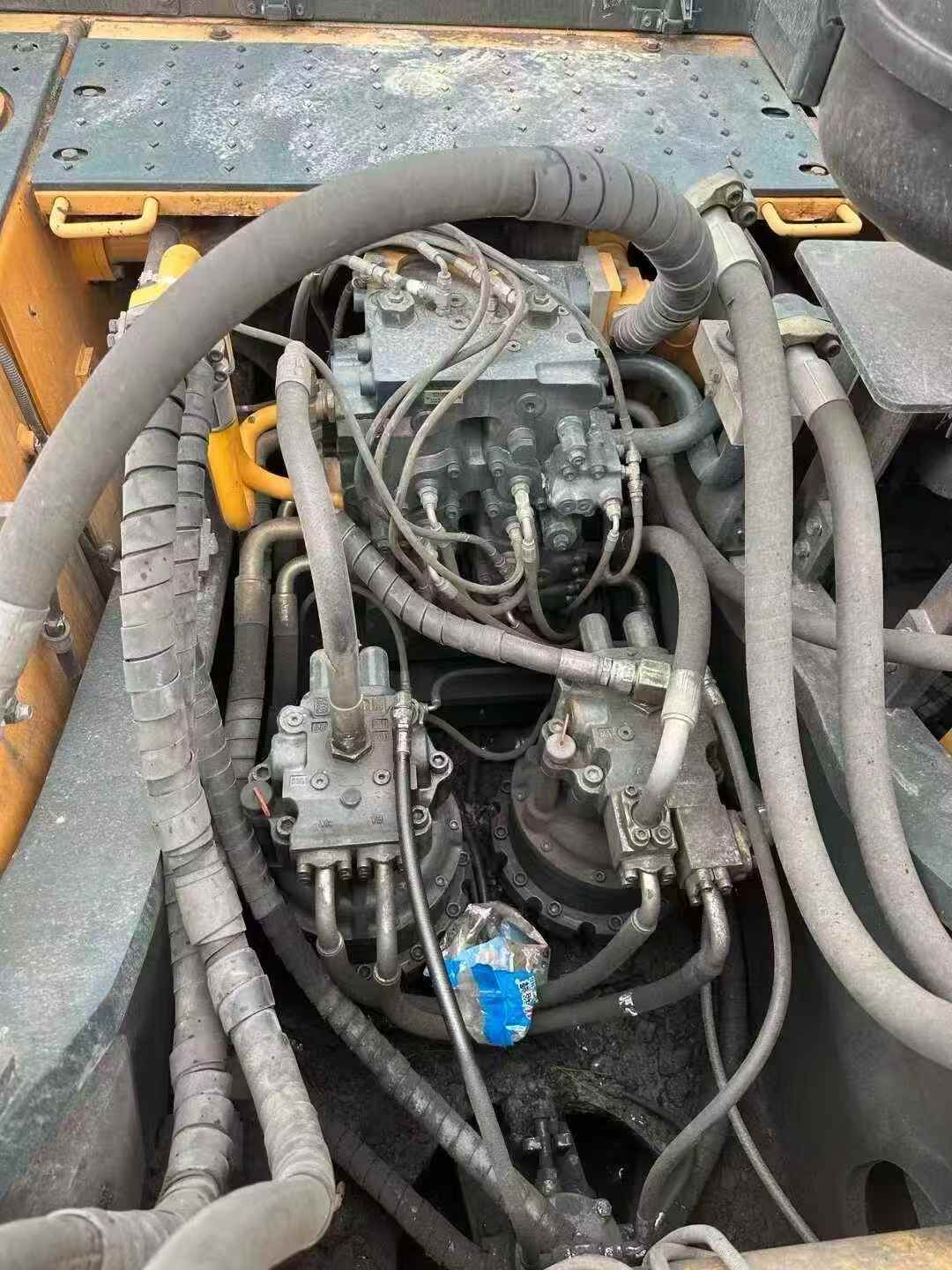

Used Hyundai R485LVS Excavator 2019 Model / 3
Used Hyundai R485LVS Excavator 2019 Model / 4

Product Description

【 Premium Recommendation 】2019 Hyundai 485VS Excavator, equipped with hammer and bucket, multi-functional in one machine, outstanding performance! This second-hand Hyundai 485VS excavator was manufactured in 2019 and has only been in operation for 3,000 hours so far, remaining in its best working condition. It is equipped with a powerful Cummins QSL9-C325 engine, with a rated power of 257kW at 1800rpm. It is powerful, stable and reliable, and can easily handle various complex working conditions. This model adopts an advanced hydraulic system. The main pump is a dual-pump, dual-loop constant power adjustable variable piston pump, with a maximum flow rate of 464 liters per minute. This ensures that the equipment has excellent response speed and control accuracy in operations such as excavation and crushing. In addition, its unique hydraulic cooling system design effectively reduces the oil temperature and extends the service life. This excavator is equipped with original imported breakers and buckets. It is not only suitable for basic construction fields such as earthwork excavation and rock crushing, but also capable of handling various application scenarios including municipal engineering and mining. The whole machine has a compact s

SpecificationsValue
No.966051
Tonnage (tons)48
Working weight (kg)48400
Bucket capacity (m³)2.2
Boom length (mm)6550
Rod length (mm)2900
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeCummins QSM11
Rated power (kw/rpm)266/1900
Cooling modewater-cooling
Cylinder diameter × stroke (mm)125 x 147.1
Number of cylinders (PCS)6
Displacement (L)10.8
Rotation speed (rpm)8.3
Climbing ability (%)70
Travel speed (km/h)4.7/2.9
Rotary hydraulic motor typeAxial plunger motor with automatic control
Maximum flow of main pump (l/min)2*370
Main pump typeTwo variable plunger pump
Bucket cylinders - Number × diameter × stroke (mm)1 - ø 160 x ø 110 x 1370
Bucket rod cylinders - Number × diameter × stroke (mm)1 - ø 190 x ø 130 x 1820
Boom cylinders - Number × diameter × stroke (mm)2 - ø 170 x ø 115 x 1570
Pilot pump typeGear pump
Fuel Tank (L)620
Hydraulic Tank (L)260
Engine Oil changes (L)38
Coolant (L)50
Hydraulic System (L)380
Total transport length (mm)11650
Total transport width (mm)3340
Total transport height (mm)3870
Full cab height (mm)3190
Counterweight ground clearance (mm)1295
Minimum turning radius of front working device (mm)4500
Back end turning radius (mm)3750
Onboard width (mm)2980
Track plate width (mm)600
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)53
Maximum digging radius (mm)11040
Maximum digging depth (mm)6860
Maximum excavation height (mm)10440
Maximum unloading height (mm)7000
Maximum vertical digging depth (mm)5830
Maximum excavation radius of stop surface (mm)10820
see more

Overview

No.966051

Brand Name:

Hyundai

Model Number:

R485LVS

Year:

2019

Location:

Guangxi China
