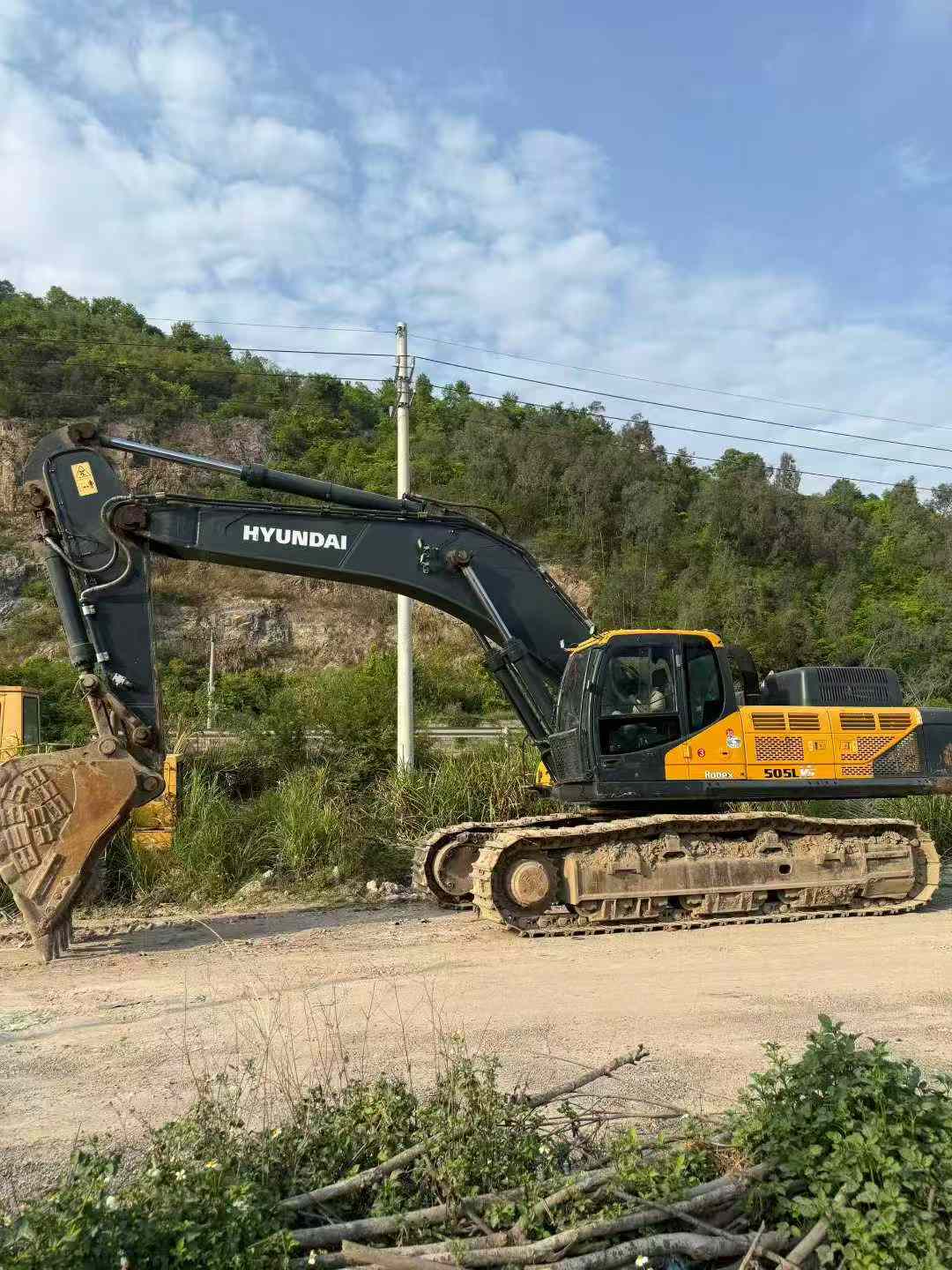

Product Description
20 years of Hyundai 505.VS! The four major items haven't been touched! It's covered by a warranty! Performance is exempt from inspection. You can ship the vehicle upon inspection
| Specifications | Value |
|---|---|
| No. | 937380 |
| Tonnage (tons) | 50 |
| Working weight (kg) | 50200 |
| Bucket capacity (m³) | 2.8 |
| Boom length (mm) | 6550 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

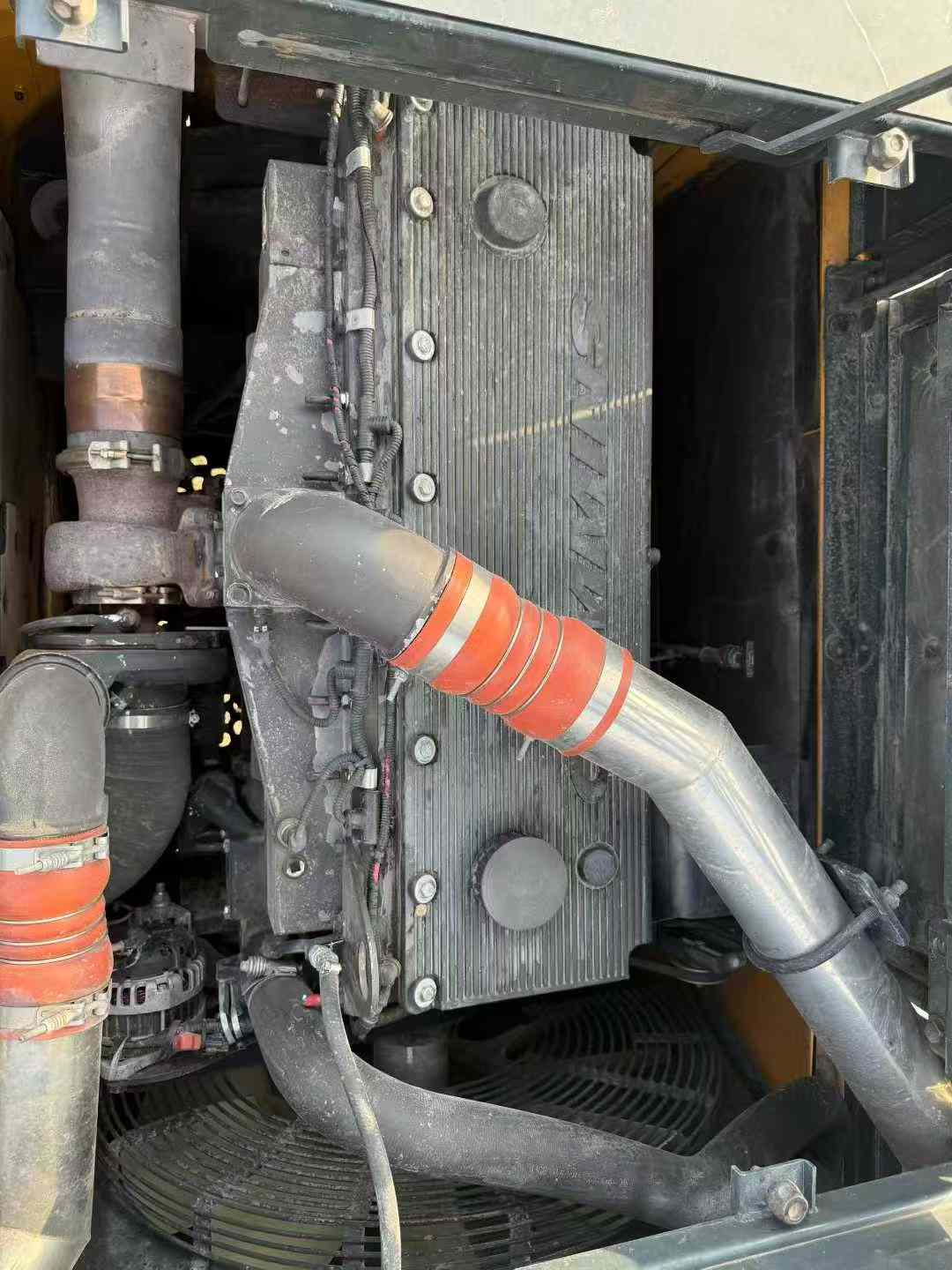

| Engine type | Cummins QSM11 |
| Rated power (kw/rpm) | 299/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 125*147.1 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 10.8 |
| Working form | 4-stroke, water-cooled, in-line turboturbo-charged air-to-air cooled engine |
| Rotation speed (rpm) | 9 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.1/3.25 |

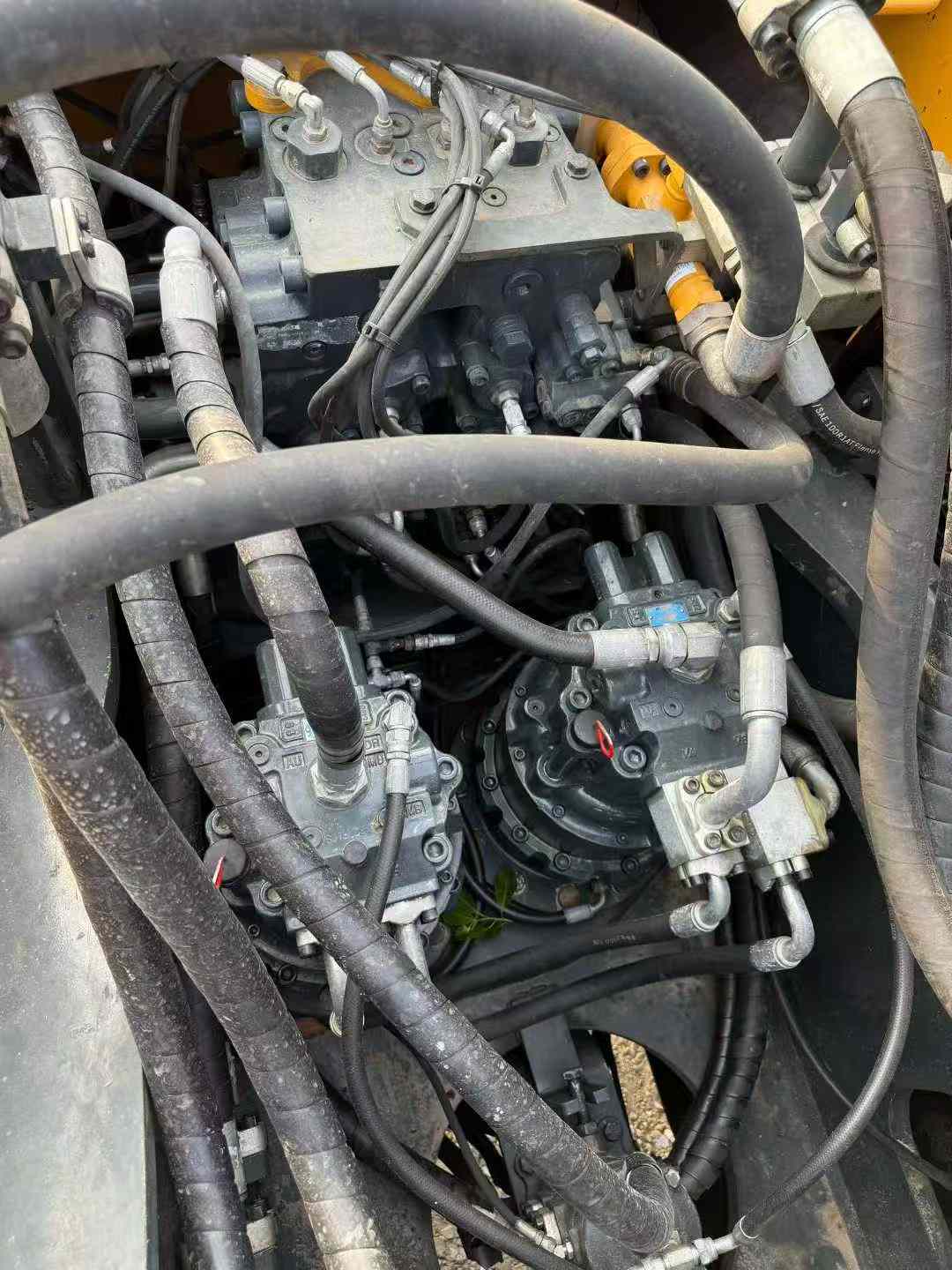

| Rotary hydraulic motor type | Axial piston motor with automatic braking |
| Type of walking hydraulic motor | Two-speed axial plunger motor with brake valve and parking brake |
| Maximum flow of main pump (l/min) | 2 x 405 |
| Main pump type | Two variable plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 - ø 170 x ø 115 x 1370 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 - ø 190 x ø 130 x 1820 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 - ø 170 x ø 115 x 1570 |
| Pilot pump type | Gear pump |
| Fuel Tank (L) | 620 |
| Hydraulic Tank (L) | 295 |
| Engine Oil changes (L) | 38 |
| Coolant (L) | 50 |
| Hydraulic System (L) | 486 |
| Total transport length (mm) | 11710 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3810 |
| Counterweight ground clearance (mm) | 1275 |
| Back end turning radius (mm) | 3780 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 53 |
| Maximum digging radius (mm) | 11050 |
| Maximum digging depth (mm) | 6900 |
| Maximum excavation height (mm) | 10280 |
| Maximum unloading height (mm) | 6990 |
| Maximum vertical digging depth (mm) | 4570 |
| Maximum excavation radius of stop surface (mm) | 10830 |
| Maximum effective digging depth (mm) | 6740 |
