Product Description
Built for precision work in tight spaces, this 2016 Hyundai R55-7 compact excavator delivers reliable performance with its proven Yanmar 4TNV94L engine producing 40kW of power. Operating at 5.5 tons, this machine handles digging depths up to 3.82m and reaches 6.11m maximum radius, making it ideal for foundation work, utility trenching, and site preparation tasks.
Key operational specifications include:
- Bucket digging force: 36.3kN for efficient soil penetration
- Variable bucket capacity: 0.06-0.18m³ for versatile material handling
- Compact transport dimensions: 6.0m length × 1.87m width
- 70% climbing capability on steep grades
- Dual variable axial piston pumps with 2×55 L/min flow rate
Currently located in Zhejiang Lishui, this water-cooled excavator features standard backhoe configuration and maintains excellent mobility with 2.2-4.0 km/h travel speeds. Ready for immediate deployment on construction sites, landscaping projects, and demolition work requiring precise control in confined areas.
| Specifications | Value |
|---|---|
| No. | 981185 |
| Tonnage (tons) | 5 |
| Working weight (kg) | 5500 |
| Bucket capacity (m³) | 0.06-0.18 |
| Boom length (mm) | 2900 |
| Rod length (mm) | 1600 |
| Country of origin | Peking |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

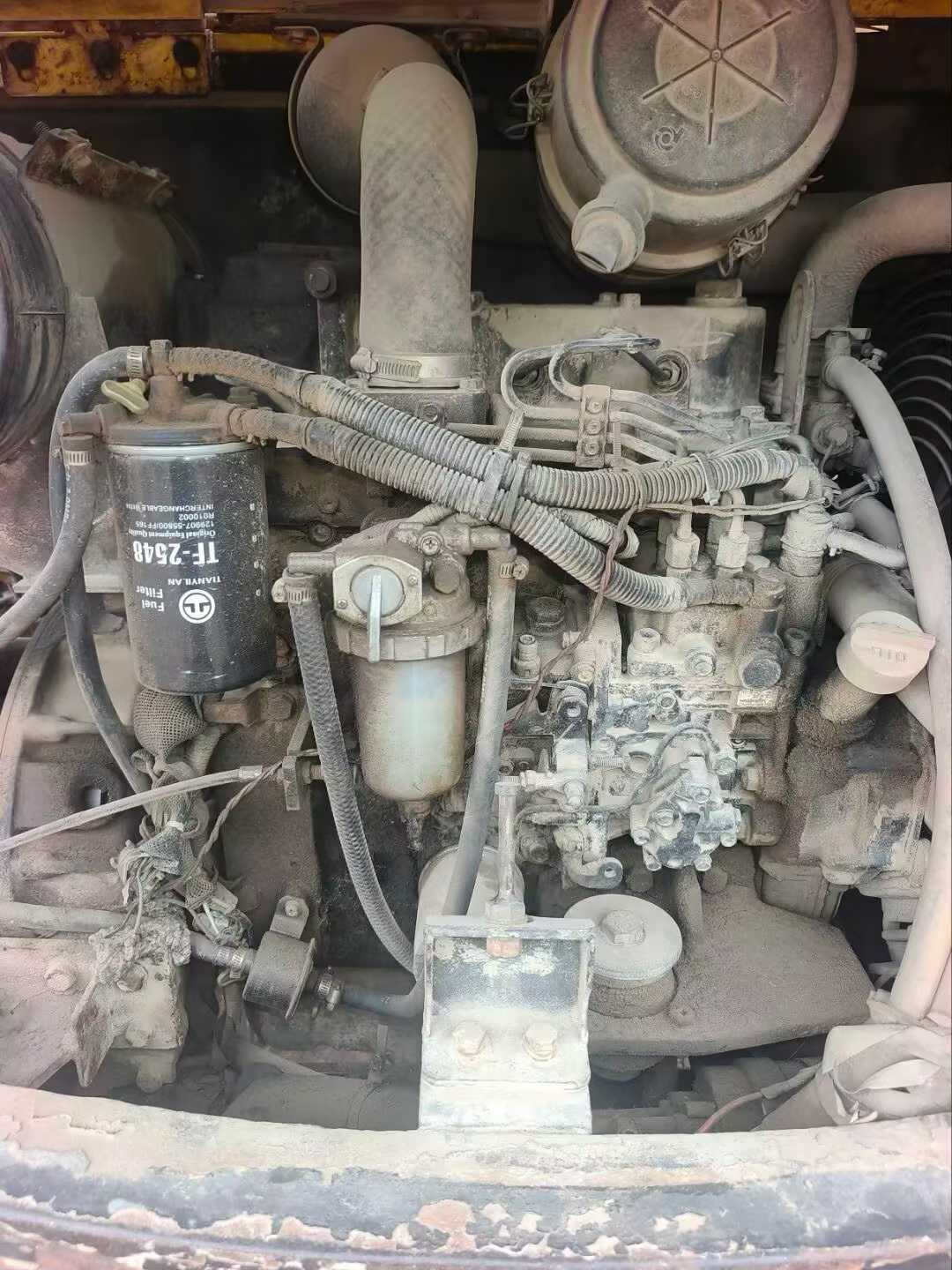

| Engine type | Yanmar Yanma 4TNV94L |
| Rated power (kw/rpm) | 40/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 36.3 |
| Rod digging force (kN) | 26.7 |
| Travel speed (km/h) | 2.2-4.0 |
| Maximum flow of main pump (l/min) | 2 x 55 |
| Traveling Hydraulic Circuit (Mpa) | 220 |
| Rotary Hydraulic Circuit (Mpa) | 180 |
| Hydraulic crushing pipeline is standard | no |

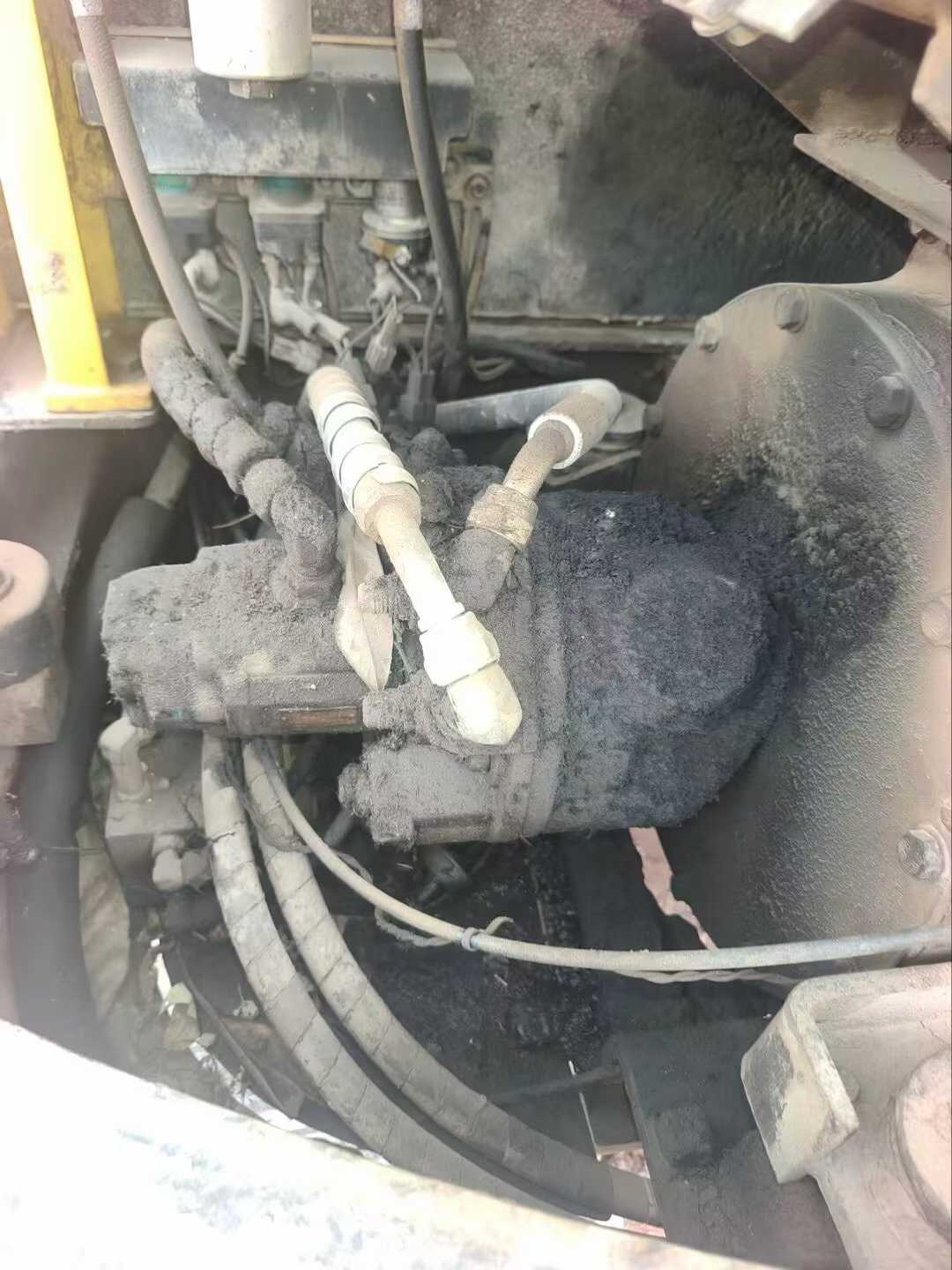

| Main pump type | 2× variable axial piston pump + gear pump |
| Pilot Oil Circuit (MPa) | 35 |
| Fuel Tank (L) | 125 |
| Hydraulic Tank (L) | 80 |
| Engine Oil changes (L) | 92 |
| Total transport length (mm) | 6004 |
| Total transport width (mm) | 1865 |
| Total transport height (mm) | 2548 |
| Full cab height (mm) | 2548 |
| Counterweight ground clearance (mm) | 695 |
| Minimum ground clearance (mm) | 325 |
| Back end turning radius (mm) | 1770 |

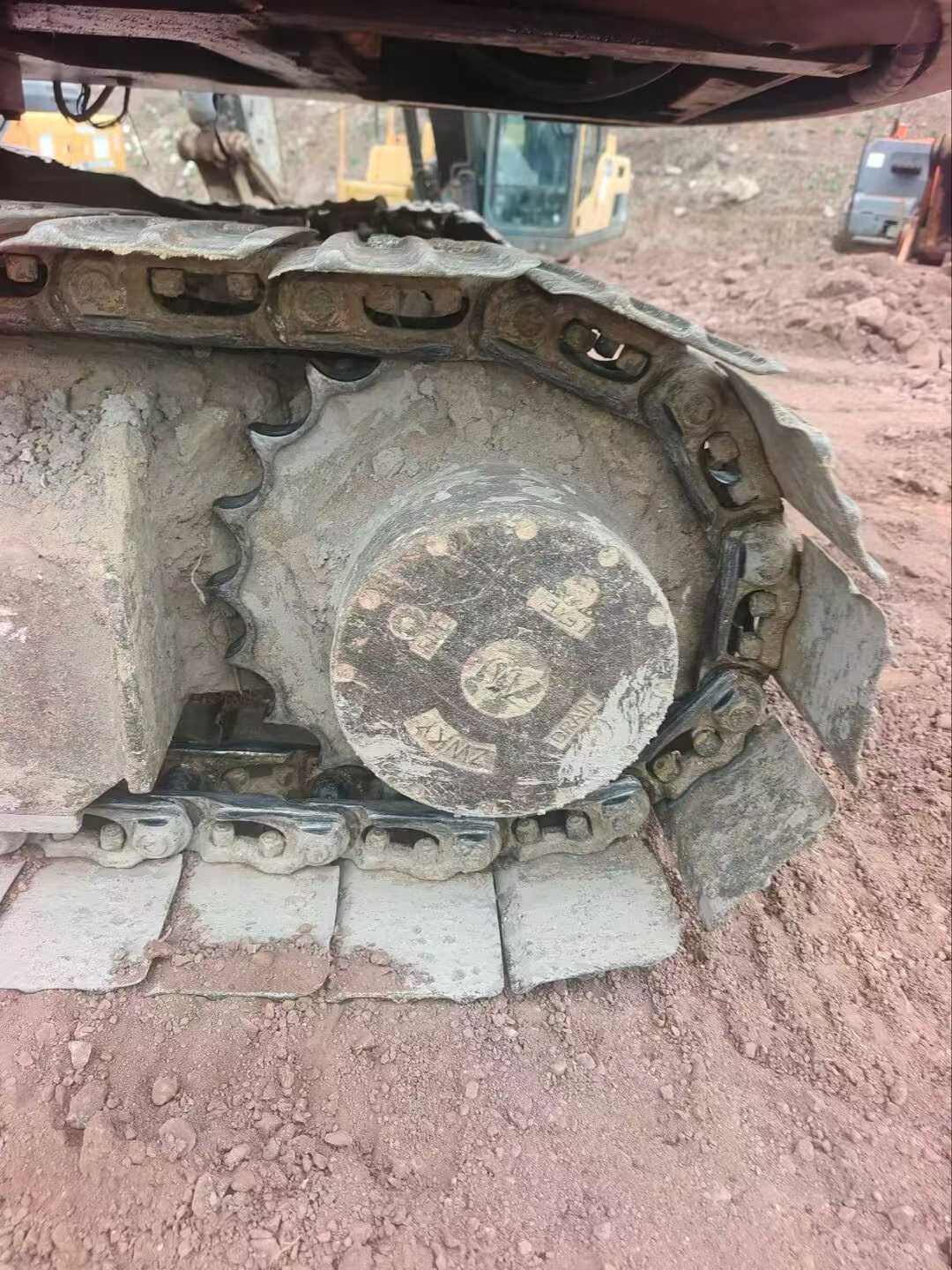

| Total track length (mm) | 2525 |
| Track gauge (mm) | 1445 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 1845 |
| Track ground length (mm) | 1990 |
| Maximum digging radius (mm) | 6110 |
| Maximum digging depth (mm) | 3820 |
| Maximum excavation height (mm) | 5652 |
| Maximum unloading height (mm) | 4010 |
| Maximum vertical digging depth (mm) | 3050 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 5970 |
