Product Description
Modern 265-7 Six o 'clock? All procedures are complete.
| Specifications | Value |
|---|---|
| No. | 935289 |
| Tonnage (tons) | 26 |
| Working weight (kg) | 25200 |
| Bucket capacity (m³) | 1.08 |
| Boom length (mm) | 5850 |
| Rod length (mm) | 3050 |
| Country of origin | Jiangsu (Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

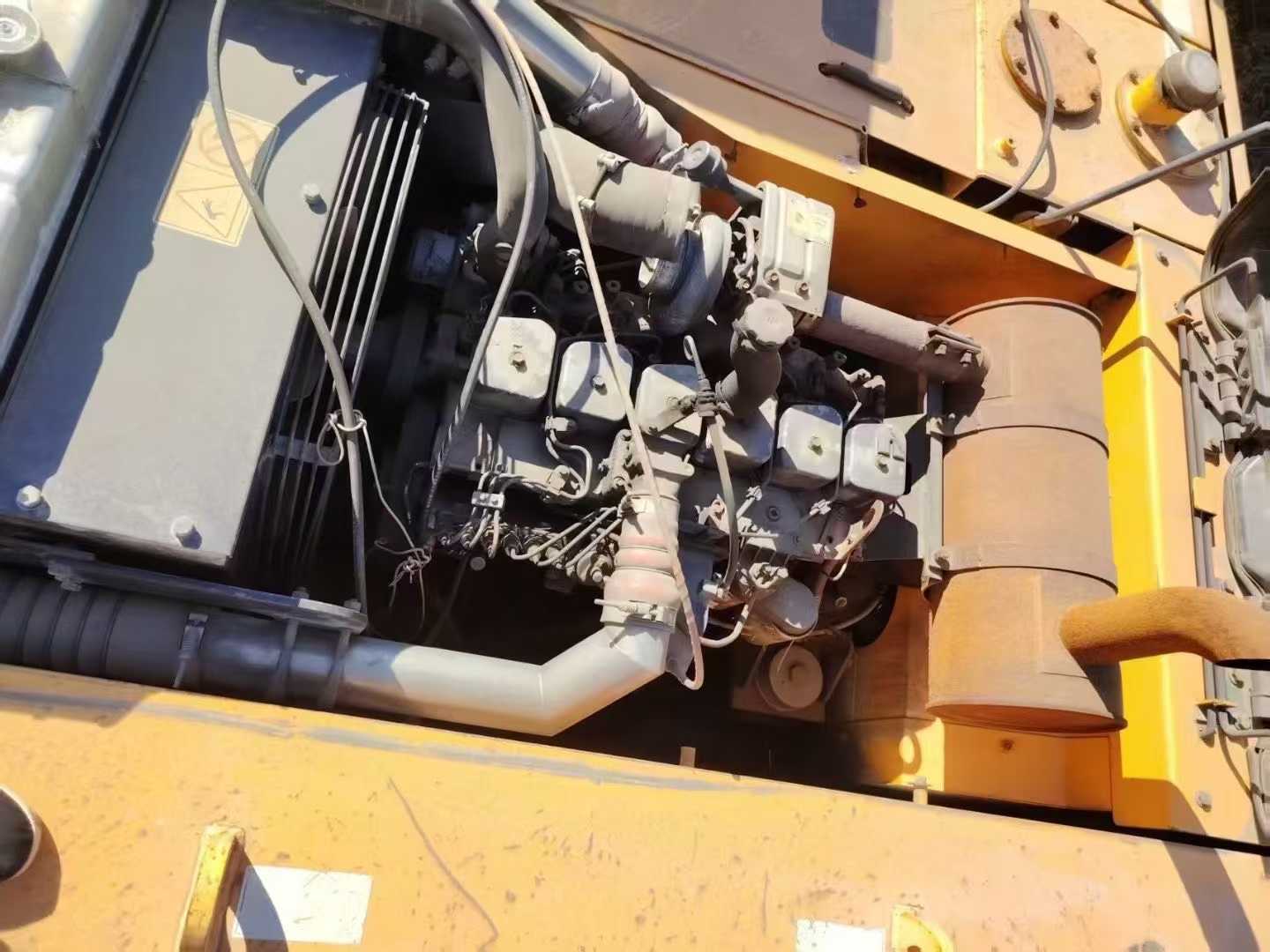

| Engine type | Cummins B5.9-C |
| Rated power (kw/rpm) | 133/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 120 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 5880 |
| Ground specific pressure (Kpa) | 51 |
| Rotation speed (rpm) | 12.6 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 178.5 |
| Rod digging force (kN) | 118.7 |
| Travel speed (km/h) | 3.5-5.5 |
| Maximum flow of main pump (l/min) | 2 x 224 |
| Traveling Hydraulic Circuit (Mpa) | 330 |
| Rotary Hydraulic Circuit (Mpa) | 275 |
| Hydraulic crushing pipeline is standard | no |

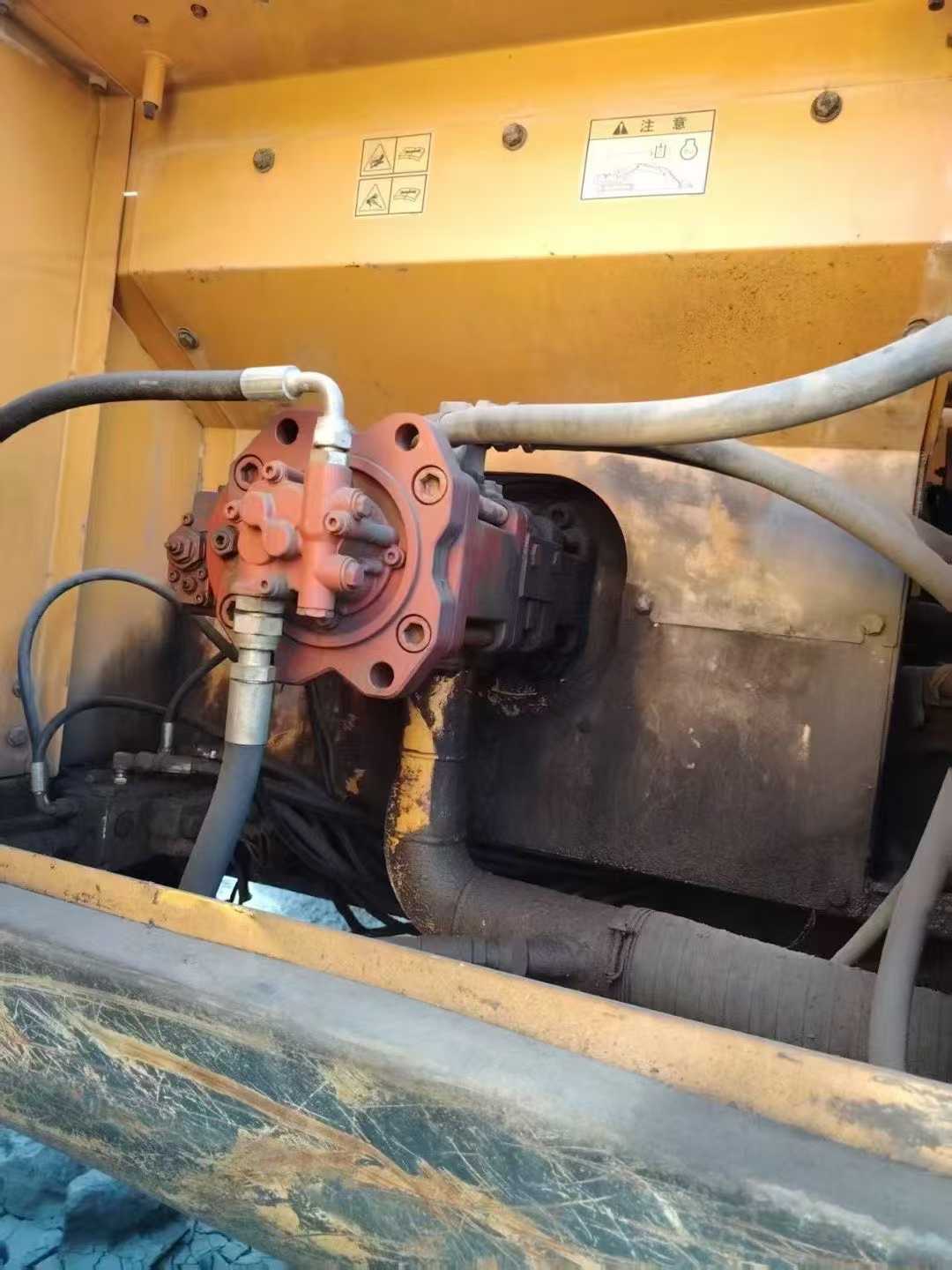

| Main pump type | 2× variable axial piston pump + gear pump |
| Working Hydraulic Circuit (Mpa) | 330 |
| Pilot Oil Circuit (MPa) | 35 |
| Bucket cylinders - Number × diameter × stroke (mm) | 135 * 90 * 1185 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 150 * 110 * 1620 |
| Boom cylinders - Number × diameter × stroke (mm) | 140 * 95 * 1345 |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 190 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 45 |
| Hydraulic System (L) | 300 |
| Total transport length (mm) | 9920 |
| Total transport width (mm) | 3180 |
| Total transport height (mm) | 3220 |
| Full cab height (mm) | 2990 |
| Counterweight ground clearance (mm) | 1115 |
| Minimum ground clearance (mm) | 480 |
| Back end turning radius (mm) | 2965 |
| Total track length (mm) | 4640 |
| Track gauge (mm) | 2580 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3180 |
| Track ground length (mm) | 3830 |
| Maximum digging radius (mm) | 10360 |
| Maximum digging depth (mm) | 7000 |
| Maximum excavation height (mm) | 9670 |
| Maximum unloading height (mm) | 6630 |
| Maximum vertical digging depth (mm) | 6150 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 10190 |
| Maximum effective digging depth (mm) | 6380 |
