2015 Kato 1430R

1/8
Used Kato 1430R Excavator 2015 Model / 1

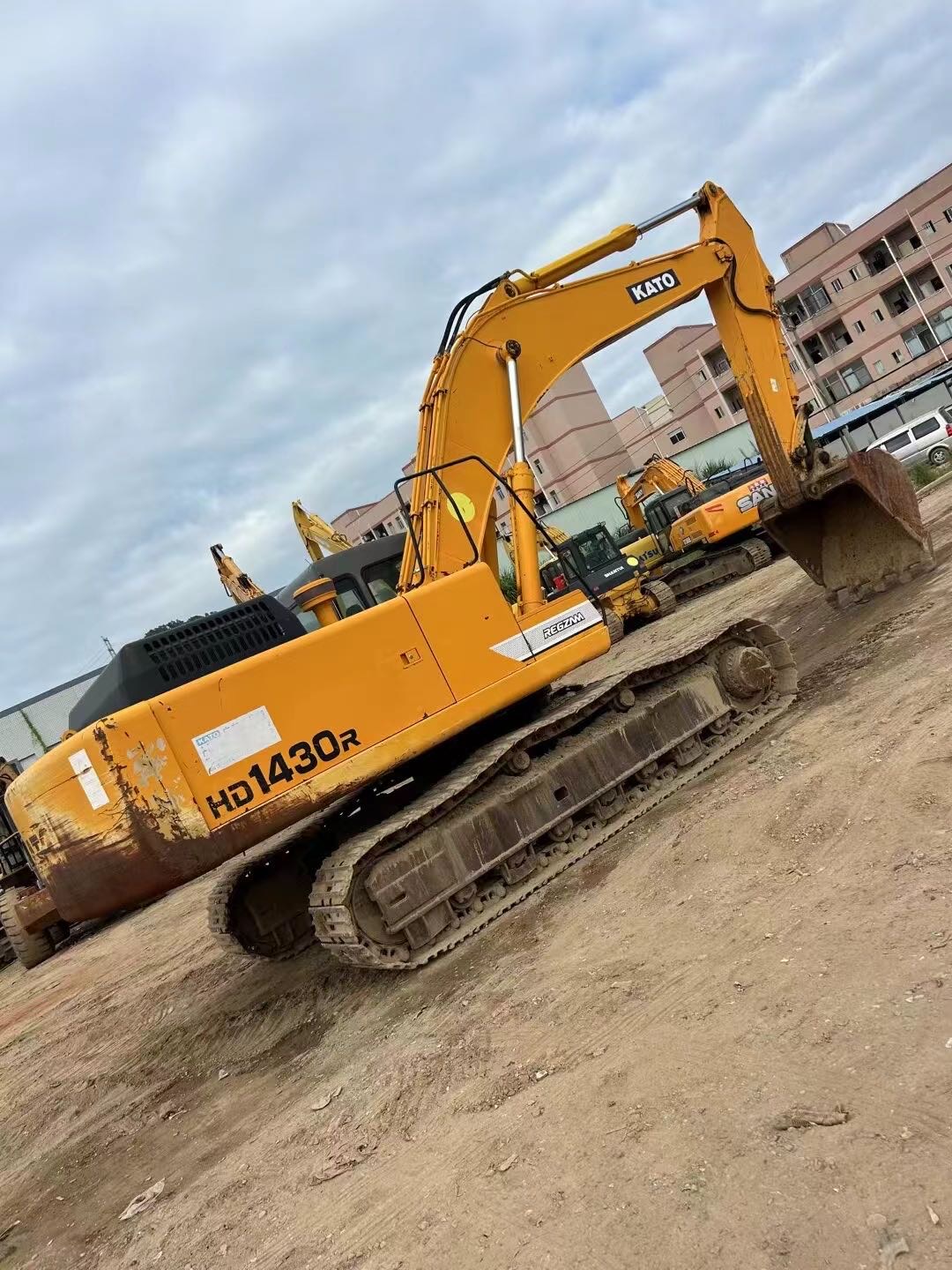

Used Kato 1430R Excavator 2015 Model / 2

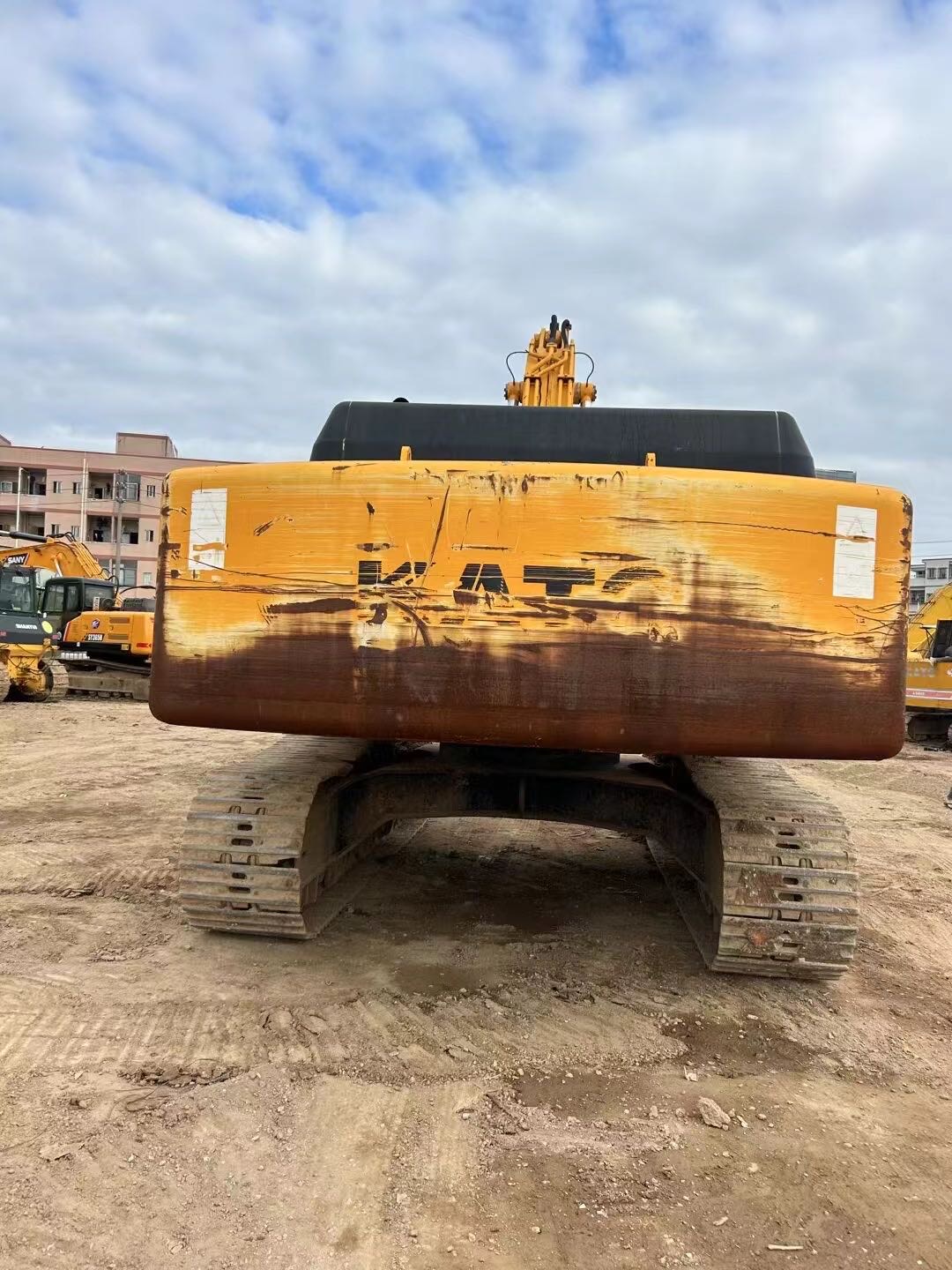

Used Kato 1430R Excavator 2015 Model / 3

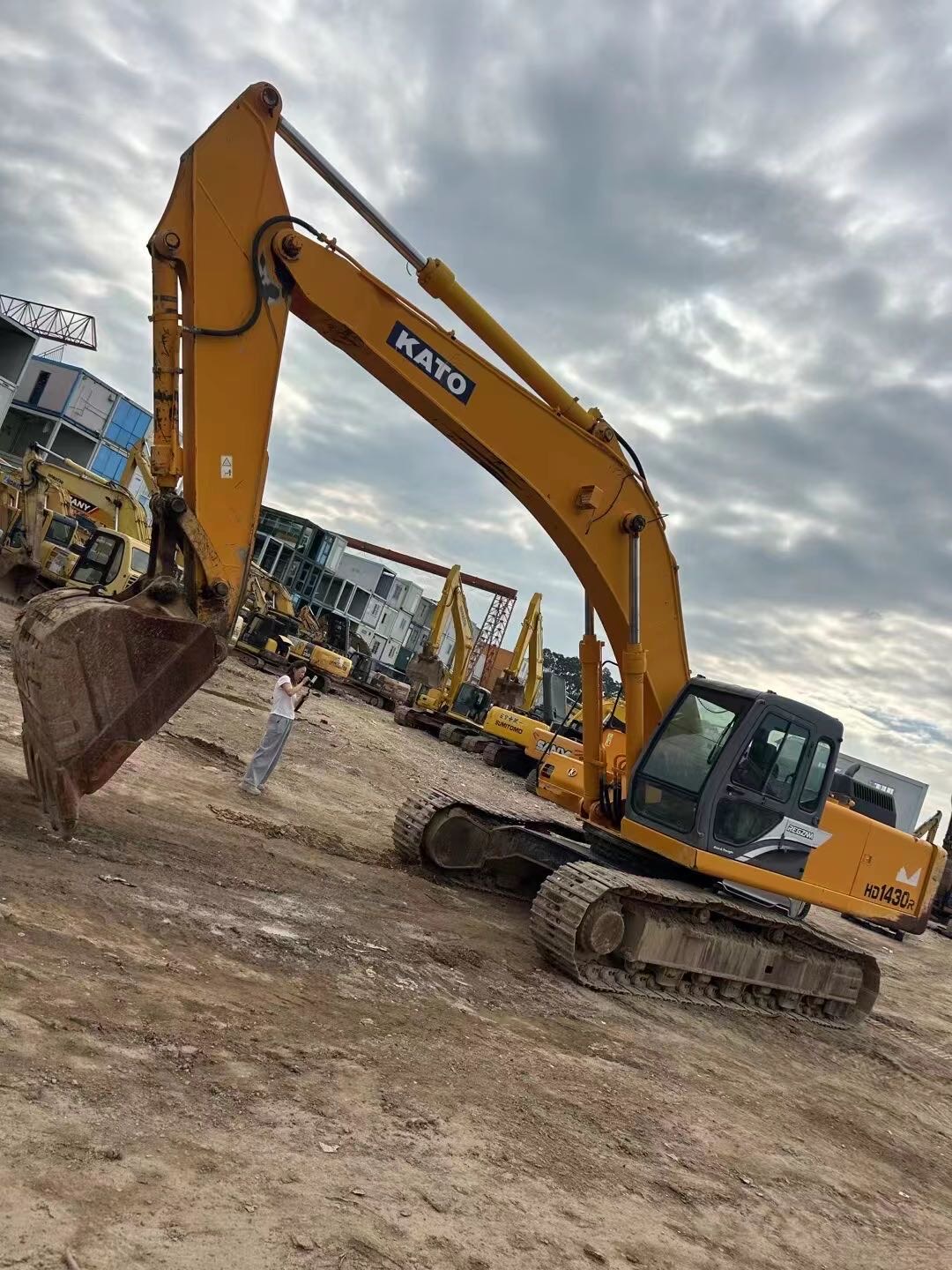

Used Kato 1430R Excavator 2015 Model / 4

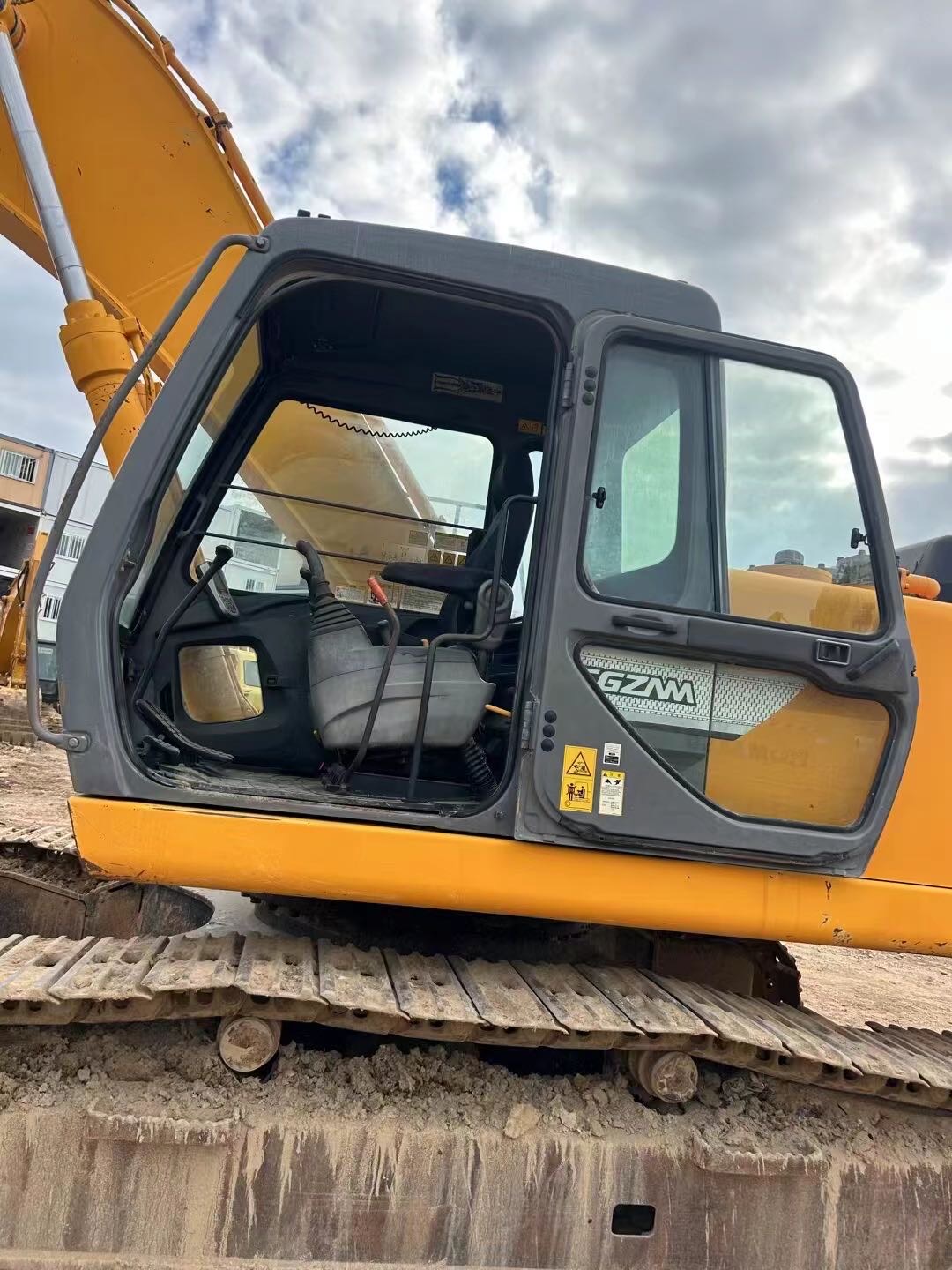

Used Kato 1430R Excavator 2015 Model / 5

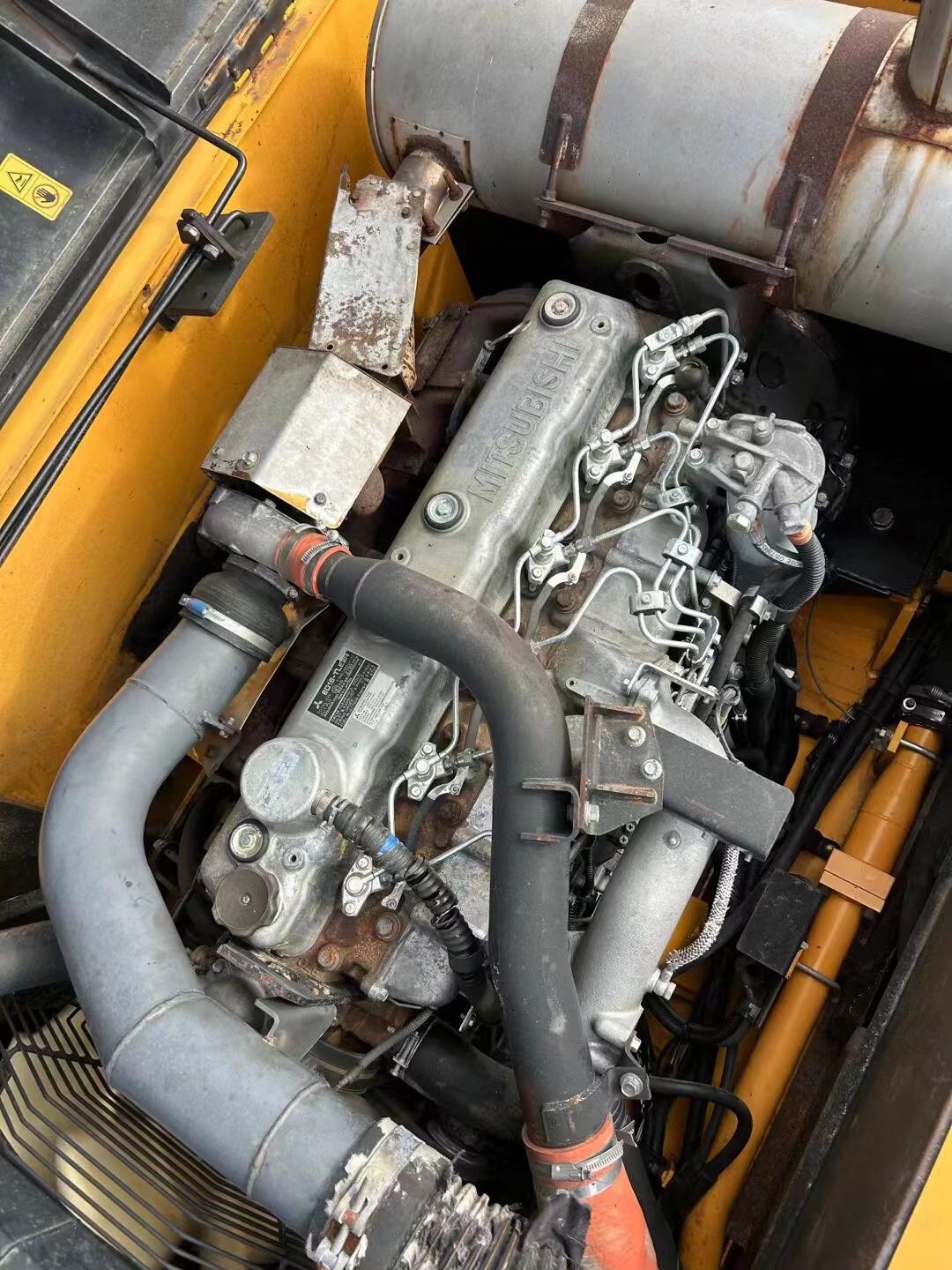

Used Kato 1430R Excavator 2015 Model / 6

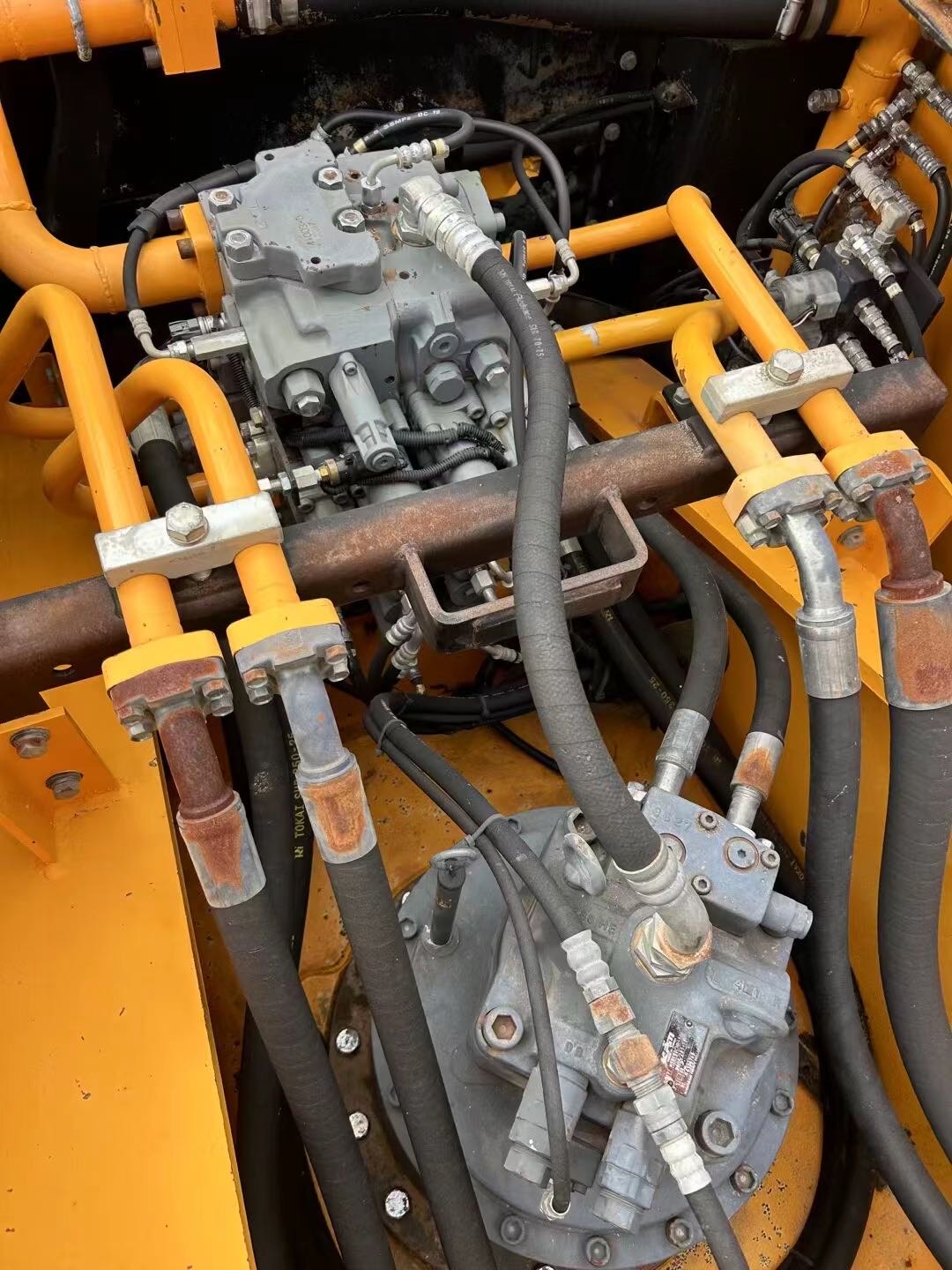

Used Kato 1430R Excavator 2015 Model / 7

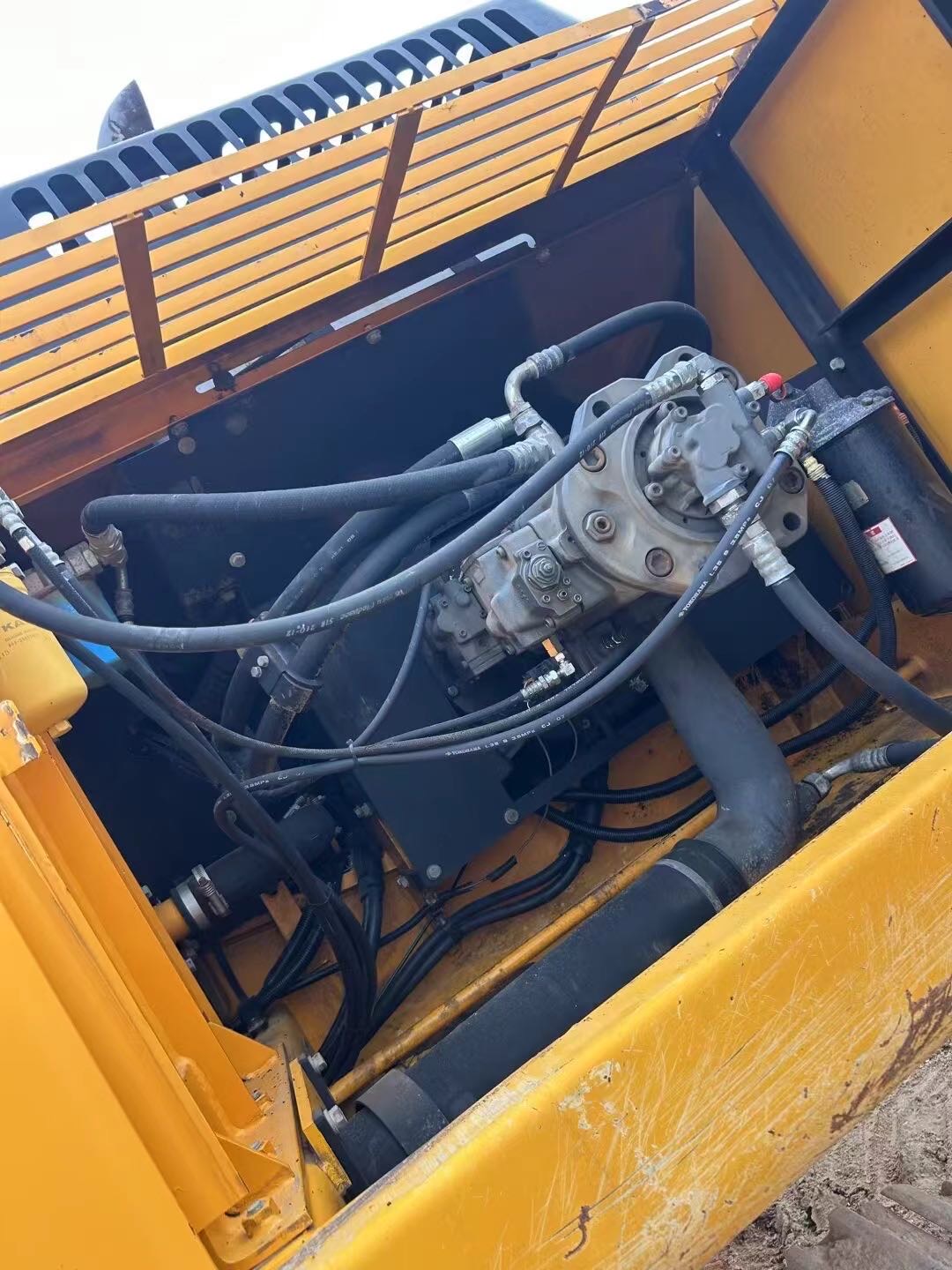

Used Kato 1430R Excavator 2015 Model / 8

Product Description

"Recommendation of Premium Second-hand Excavators This second-hand excavator is a first-hand vehicle. Since it left the factory, it has remained in its original machine condition. None of the three major components (engine, hydraulic pump, and main valve) have undergone any disassembly or replacement, ensuring the original performance and stability of the equipment. The overall appearance of the vehicle is well maintained, with the paint surface as bright as new. The internal structure has also been meticulously maintained. It can be said that the vehicle is in very good condition and fully meets the standards for exemption from inspection. The cumulative working time of this excavator is only about 3,000 hours, which is far lower than the average service life of similar equipment. This means that it is still in the best working condition and can maintain high efficiency and stable operation capacity in the coming years. In terms of the power system, it adopts imported high-quality diesel engines, which not only have strong power but also low fuel consumption. Even in complex working conditions, it can easily handle various challenges. In addition, its advanced hydraulic system ensures the flexibility and accuracy of operation. Both

SpecificationsValue
No.965780
Tonnage (tons)30
Working weight (kg)30700
Bucket capacity (m³)1.4-1.6
Boom length (mm)6480
Rod length (mm)3140
Country of originJapan
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeMitsubishi 6D16-TLC1A
Rated power (kw/rpm)183/2150
Cooling modewater-cooling
Cylinder diameter × stroke (mm)118 x 115
Number of cylinders (PCS)6
Displacement (L)7.54
Ground specific pressure (Kpa)62
Rotation speed (rpm)10
Climbing ability (%)70
Bucket digging force (kN)225 (Standard mode) /236 (Extra mode)
Rod digging force (kN)159 (Standard Mode) /167 (Power mode)
Travel speed (km/h)3.7/5.5
Rotary hydraulic motor typeConstant piston motor
Type of walking hydraulic motorVariable capacity piston motor
Maximum flow of main pump (l/min)301 x 2
Traveling Hydraulic Circuit (Mpa)32.9
Main pump typeVariable capacity piston pump ×2+ gear pump
Working Hydraulic Circuit (Mpa)31.4
Bucket cylinders - Number × diameter × stroke (mm)1-150 x 1230
Bucket rod cylinders - Number × diameter × stroke (mm)1-170 x 1840
Boom cylinders - Number × diameter × stroke (mm)2-150 x 1450
Fuel Tank (L)580
Hydraulic Tank (L)280
Engine Oil changes (L)32
Coolant (L)37
Hydraulic System (L)485
Total transport length (mm)11200
Total transport width (mm)3190
Total transport height (mm)3380
Full cab height (mm)3020
Counterweight ground clearance (mm)1130
Minimum ground clearance (mm)500
Minimum turning radius of front working device (mm)4640
Back end turning radius (mm)3460
Total track length (mm)4650
Track gauge (mm)2590
Track plate width (mm)600
Total track width (mm)3190
Track ground length (mm)3760
Maximum digging radius (mm)11160
Maximum digging depth (mm)7380
Maximum excavation height (mm)10320
Maximum unloading height (mm)7310
Maximum vertical digging depth (mm)5920
see more

Overview

No.965780

Brand Name:

Kato

Model Number:

1430R

Year:

2015

Hour:

8600h

Location:

Guangdong China
