2016 Kato HD1023

1/4
Used Kato HD1023 Excavator 2016 Model / 1

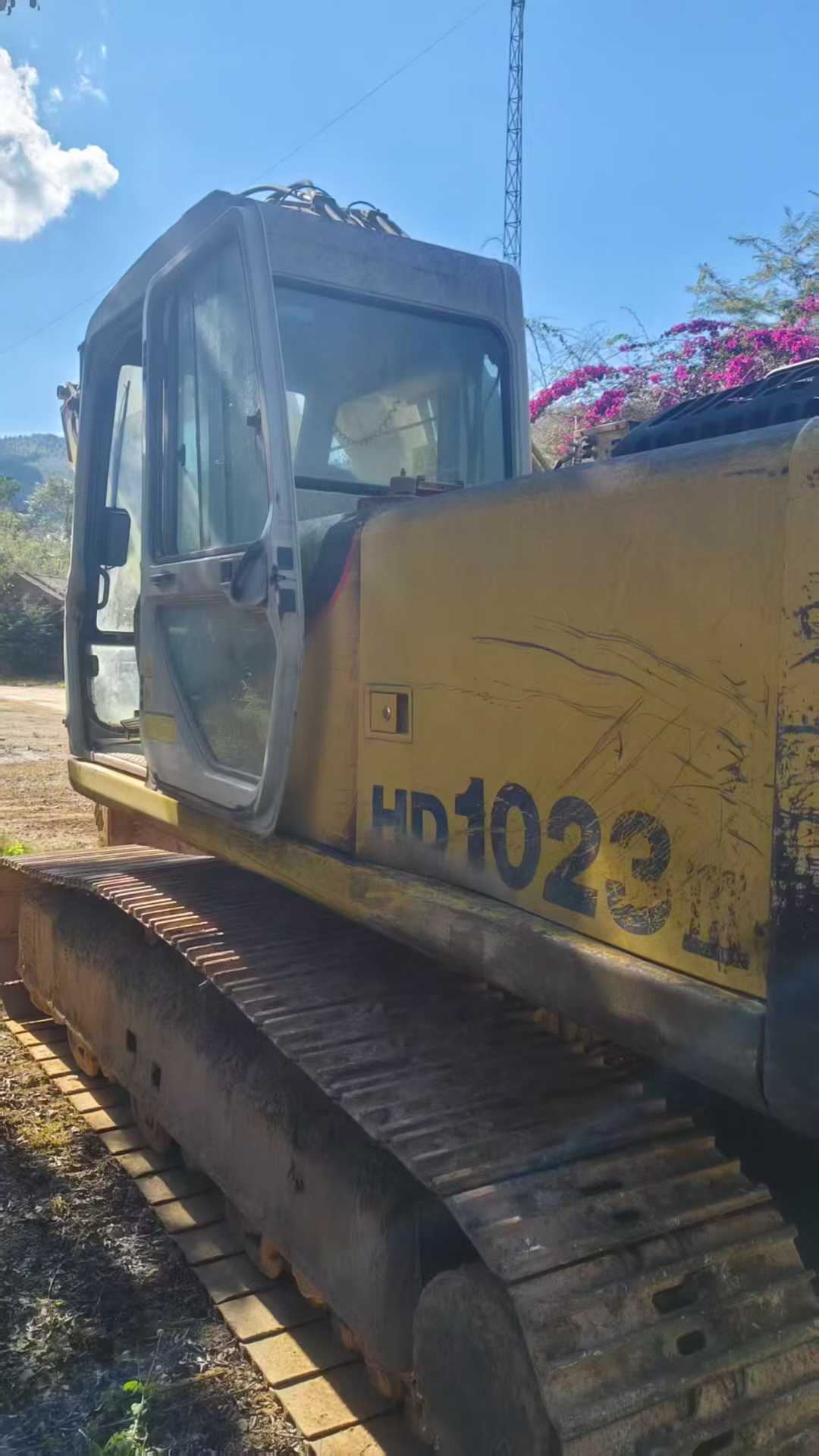

Used Kato HD1023 Excavator 2016 Model / 2

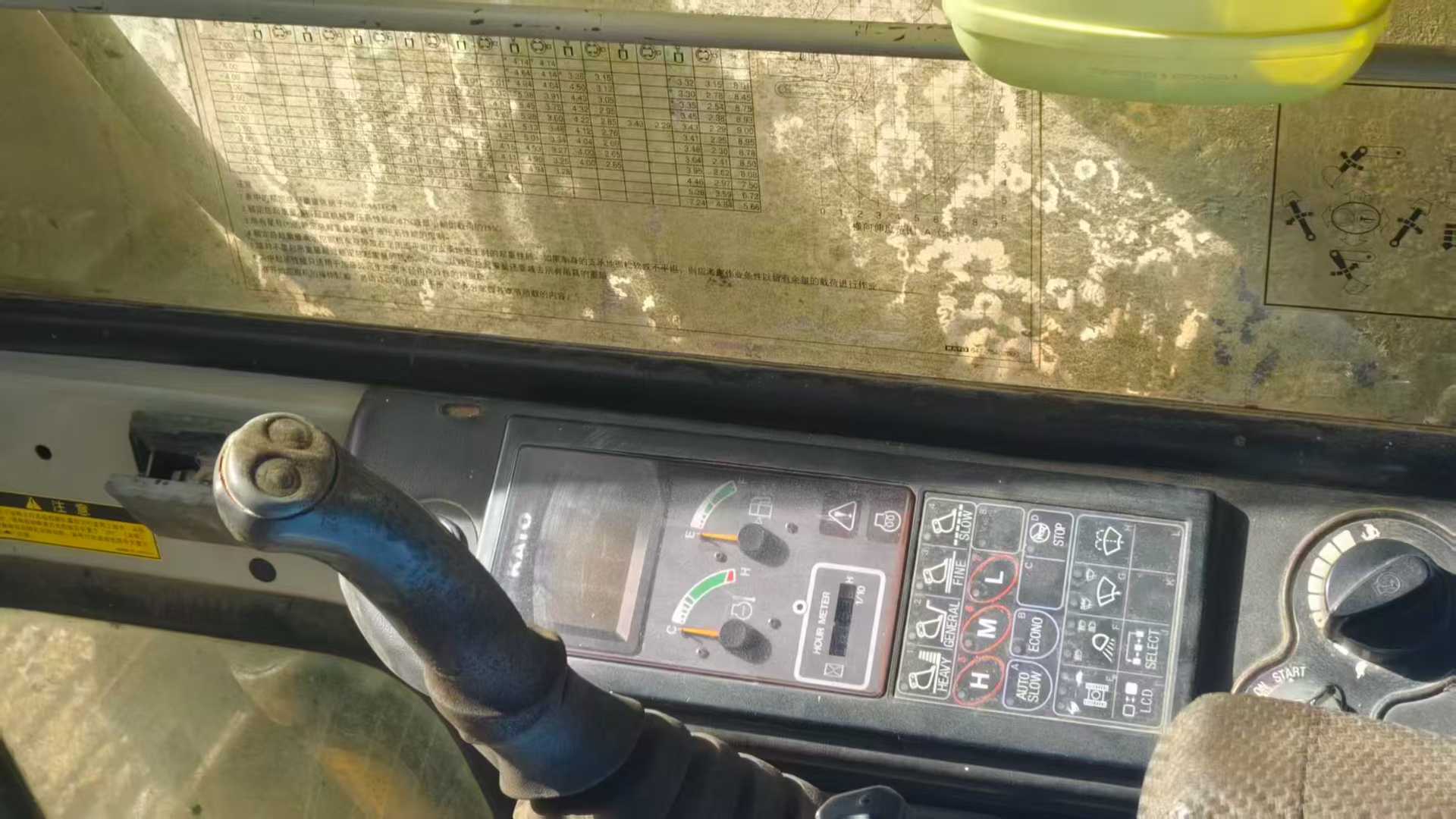

Used Kato HD1023 Excavator 2016 Model / 3

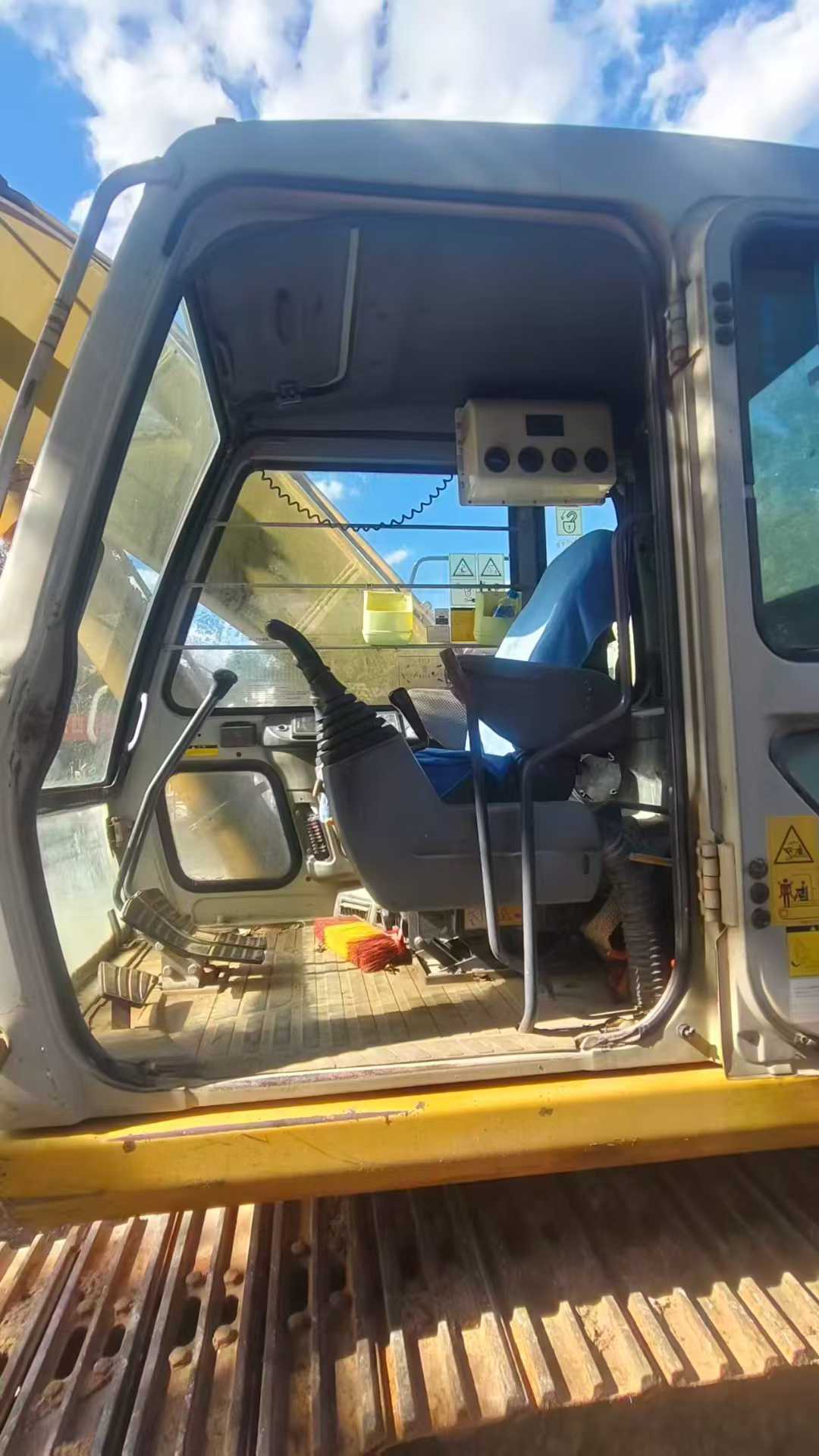

Used Kato HD1023 Excavator 2016 Model / 4

Product Description

【 Kato 1023 second-hand excavator, on-site viewing available at any time This second-hand Kato 1023 excavator has only accumulated 4,500 hours of working time since it was put into use, which is far lower than the average service life of similar equipment. This means that it is still in the best working condition and has a relatively long service life. In terms of appearance, the body paint is in good condition with only slight wear and tear. The overall structure is stable without deformation. The cab is spacious and bright with a wide field of vision, providing a comfortable working environment for the operator. In terms of the power system, this machine is equipped with an efficient and reliable original imported engine, which not only has strong power but also excellent fuel economy, and can easily handle the heavy-load operation requirements under various complex working conditions. In addition, this model is equipped with advanced electronic control injection technology, ensuring that the engine can achieve the best performance under different load conditions, while reducing emission pollution and meeting environmental protection requirements. The hydraulic system is another highlight of this excavator. The combination of high

SpecificationsValue
No.964067
Tonnage (tons)23
Working weight (kg)23000
Bucket capacity (m³)1
Boom length (mm)5870
Rod length (mm)2960
Country of originJapan
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeMitsubishi 6D16-TE1
Rated power (kw/rpm)125/2200
Cooling modewater-cooling
Cylinder diameter × stroke (mm)118 x 115
Number of cylinders (PCS)6
Displacement (L)7.545
Working formDirect injection
Ground specific pressure (Kpa)50
Rotation speed (rpm)11
Climbing ability (%)70/35 °
Bucket digging force (kN)156.9 (Standard mode) /174.6 (Extra mode)
Rod digging force (kN)112.8 (Standard mode) /125.5 (Extra mode)
Travel speed (km/h)2.7/3.9/5.5
Rotary hydraulic motor typeConstant piston motor
Type of walking hydraulic motorVariable capacity piston motor
Maximum flow of main pump (l/min)249 x 2
Traveling Hydraulic Circuit (Mpa)32.9
Hydraulic crushing pipeline is standardno
Main pump typeVariable axial piston pump ×2+ gear pump ×1
Working Hydraulic Circuit (Mpa)29.4
Bucket cylinders - Number × diameter × stroke (mm)1-130 x 1155
Bucket rod cylinders - Number × diameter × stroke (mm)1-150 x 1680
Boom cylinders - Number × diameter × stroke (mm)2-140 x 1370
Fuel Tank (L)320
Hydraulic Tank (L)165
Engine Oil changes (L)28
Coolant (L)25.5
Hydraulic System (L)310
Total transport length (mm)10080
Total transport width (mm)2990
Total transport height (mm)3120
Full cab height (mm)2930
Counterweight ground clearance (mm)1100
Minimum ground clearance (mm)480
Minimum turning radius of front working device (mm)3880
Back end turning radius (mm)3100
Total track length (mm)4260
Track gauge (mm)2390
Track plate width (mm)600
Total track width (mm)2990
Track ground length (mm)3460
Maximum digging radius (mm)10350
Maximum digging depth (mm)7010
Maximum excavation height (mm)10060
Maximum unloading height (mm)6990
Maximum vertical digging depth (mm)6250
Bulldozer lift or depth (mm)No bulldozer
Dodging plate width × height (mm)No bulldozer
Maximum excavation radius of stop surface (mm)10170
Maximum effective digging depth (mm)6850
see more

Overview

No.964067

Brand Name:

Kato

Model Number:

HD1023

Year:

2016

Location:

Yunnan China
