2016 Kato HD1430R

1/9
Used Kato HD1430R Excavator 2016 Model / 1

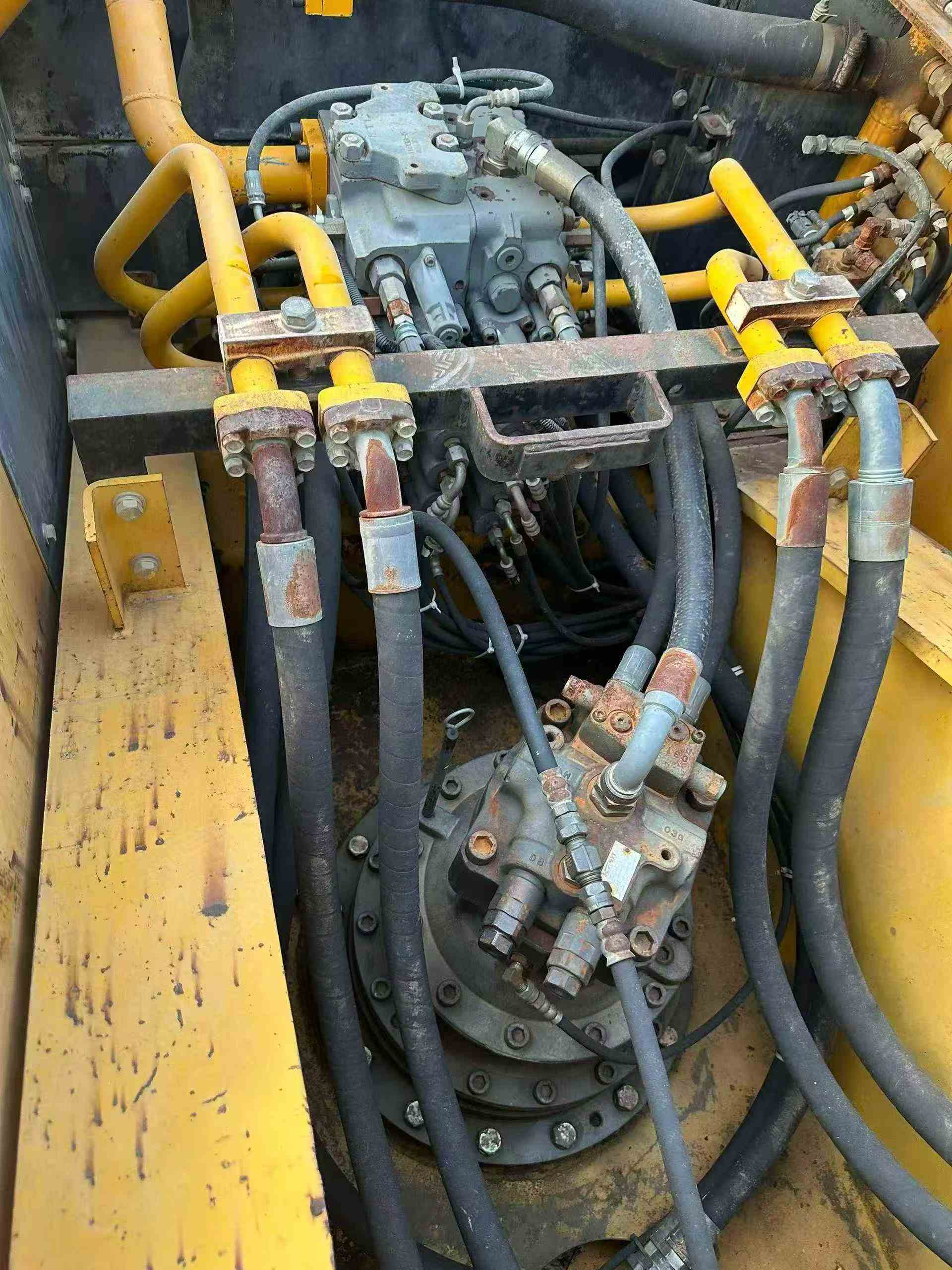

Used Kato HD1430R Excavator 2016 Model / 2

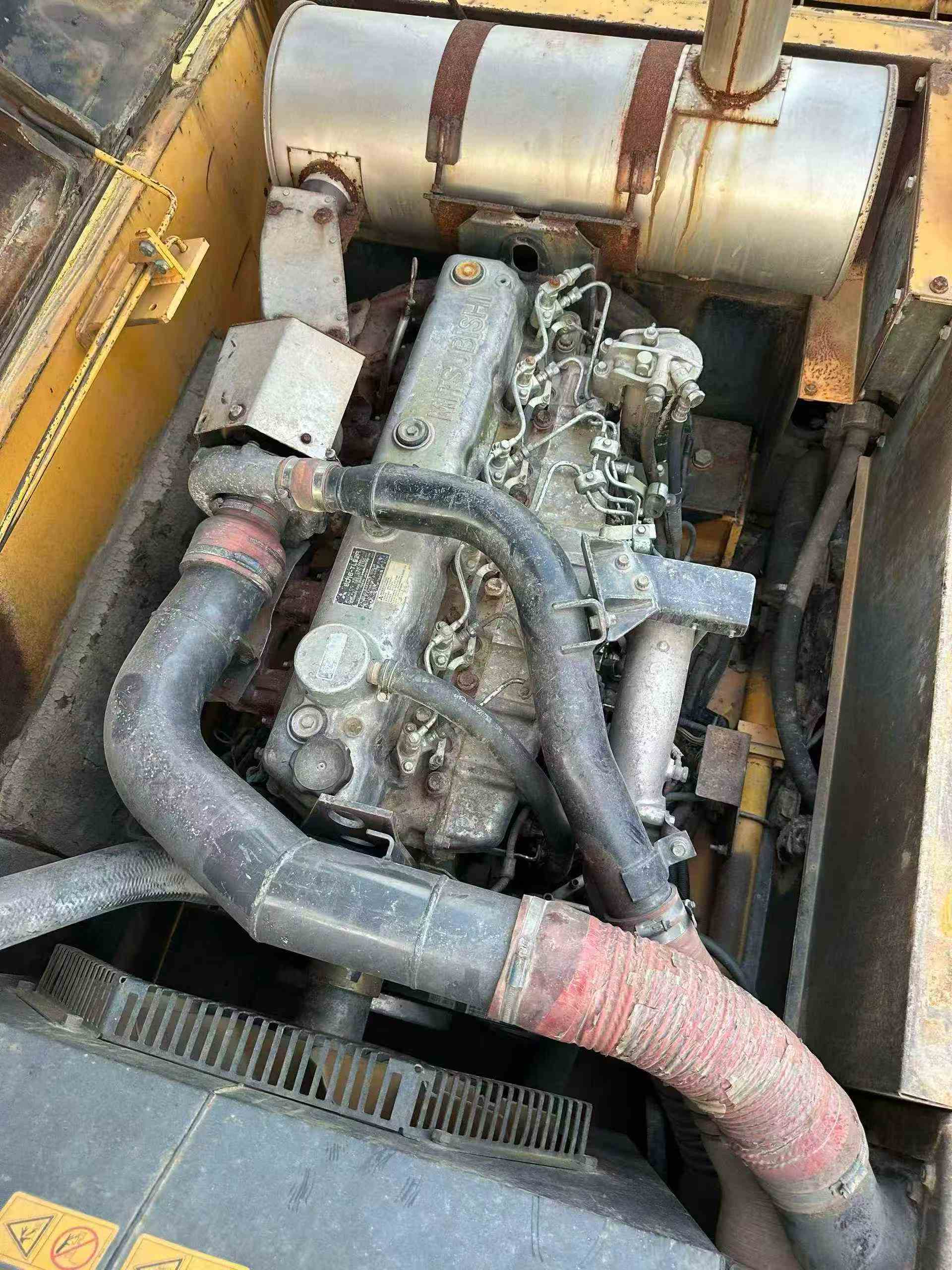

Used Kato HD1430R Excavator 2016 Model / 3

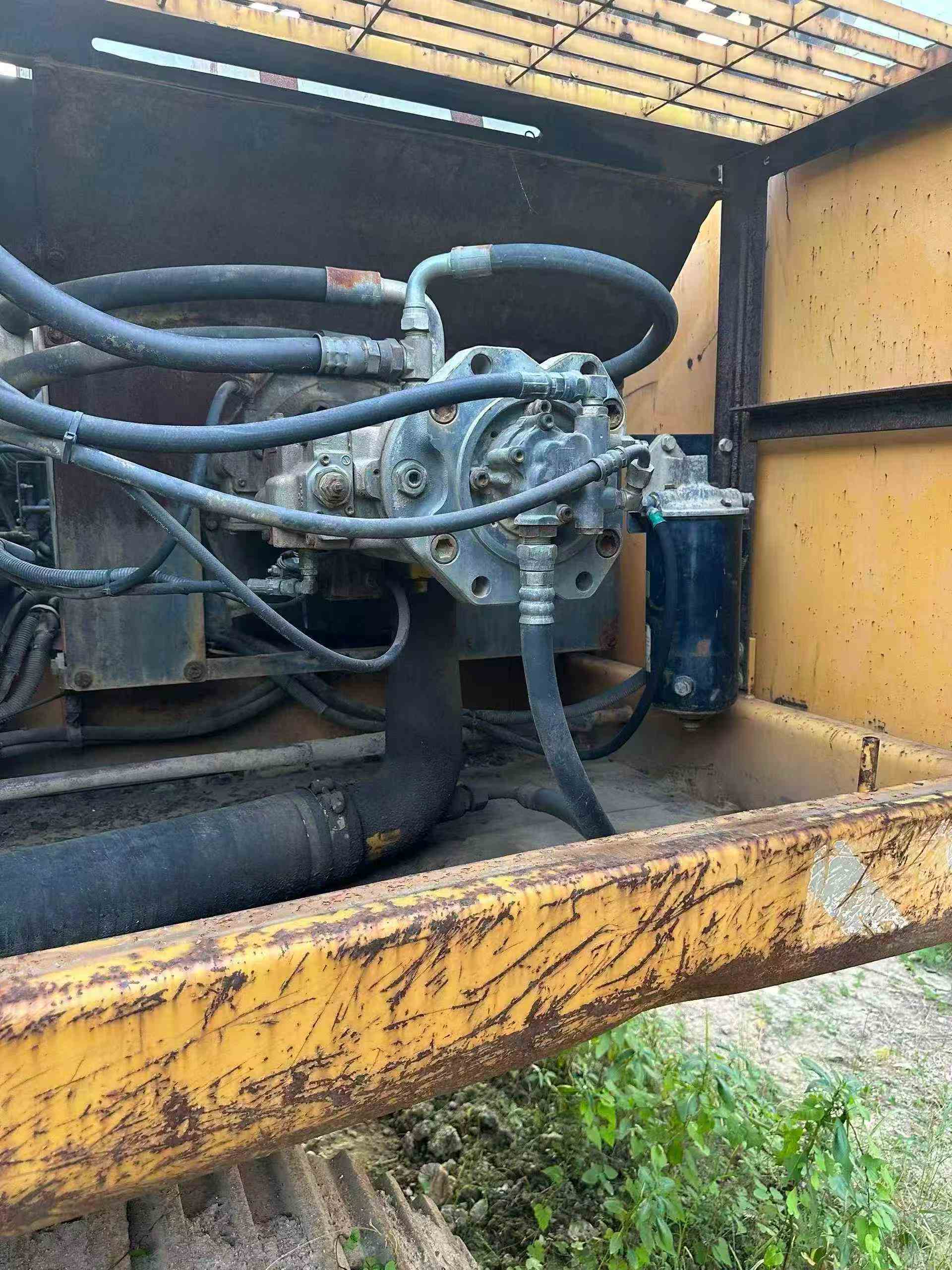

Used Kato HD1430R Excavator 2016 Model / 4

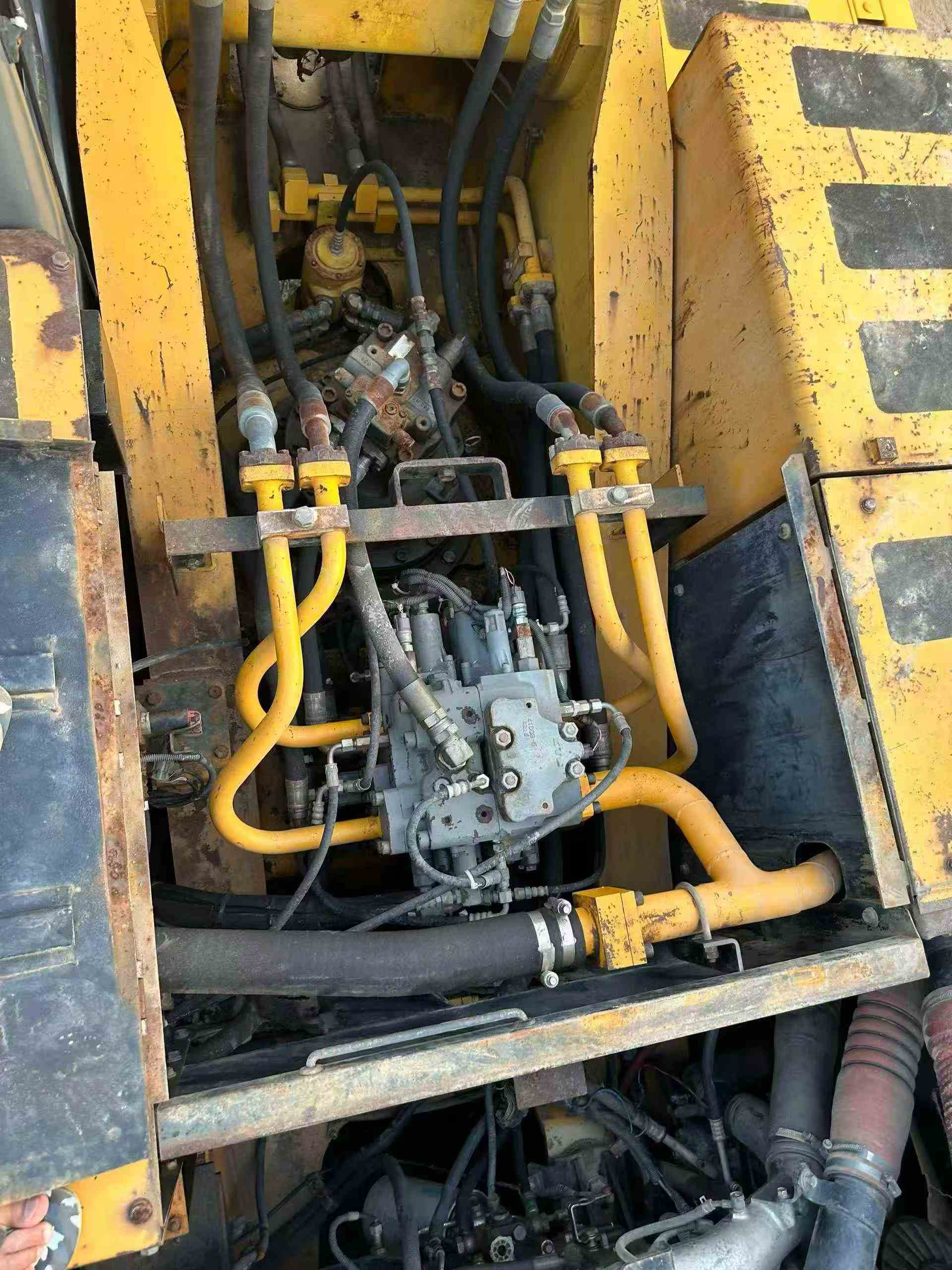

Used Kato HD1430R Excavator 2016 Model / 5

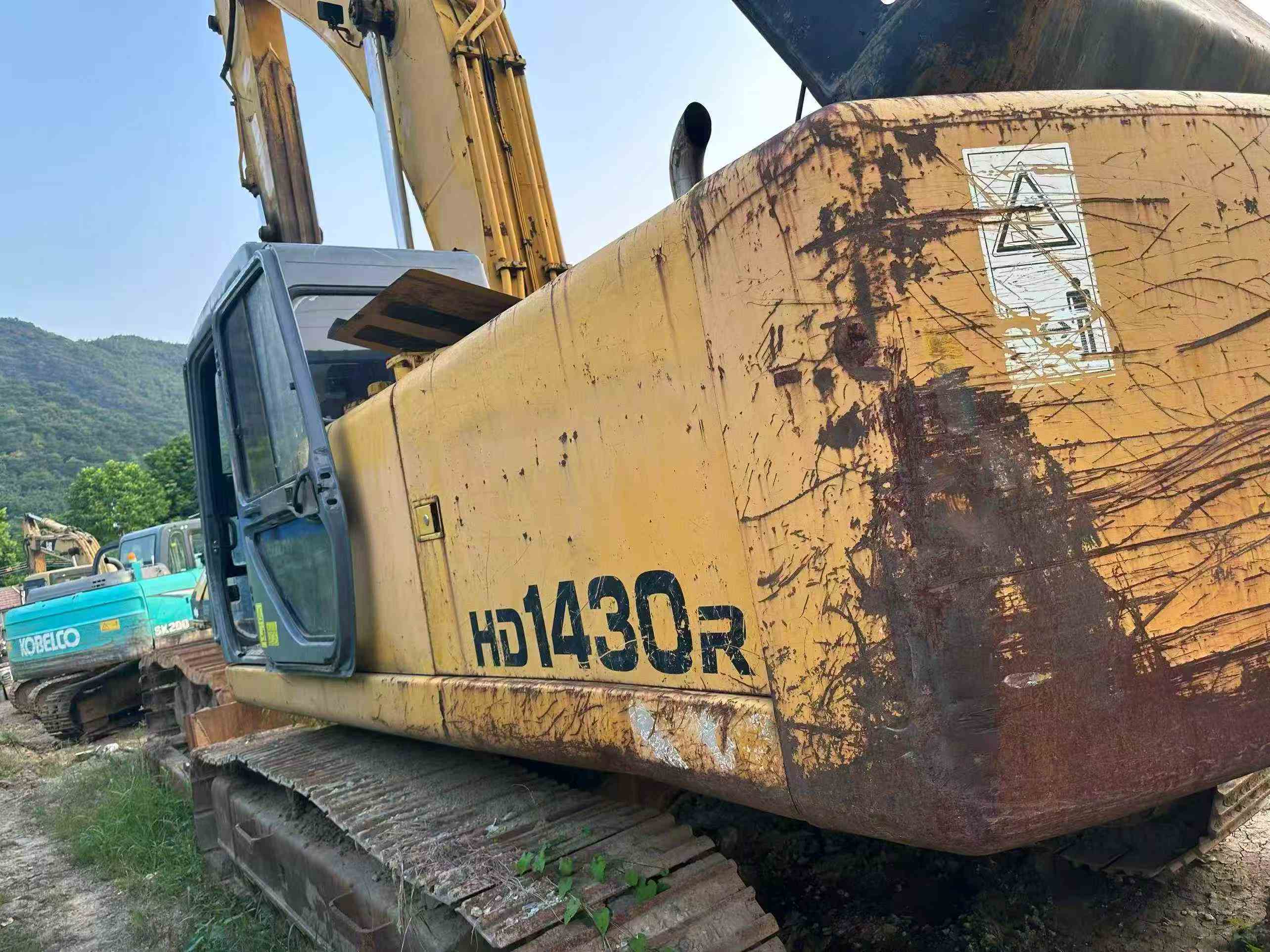

Used Kato HD1430R Excavator 2016 Model / 6

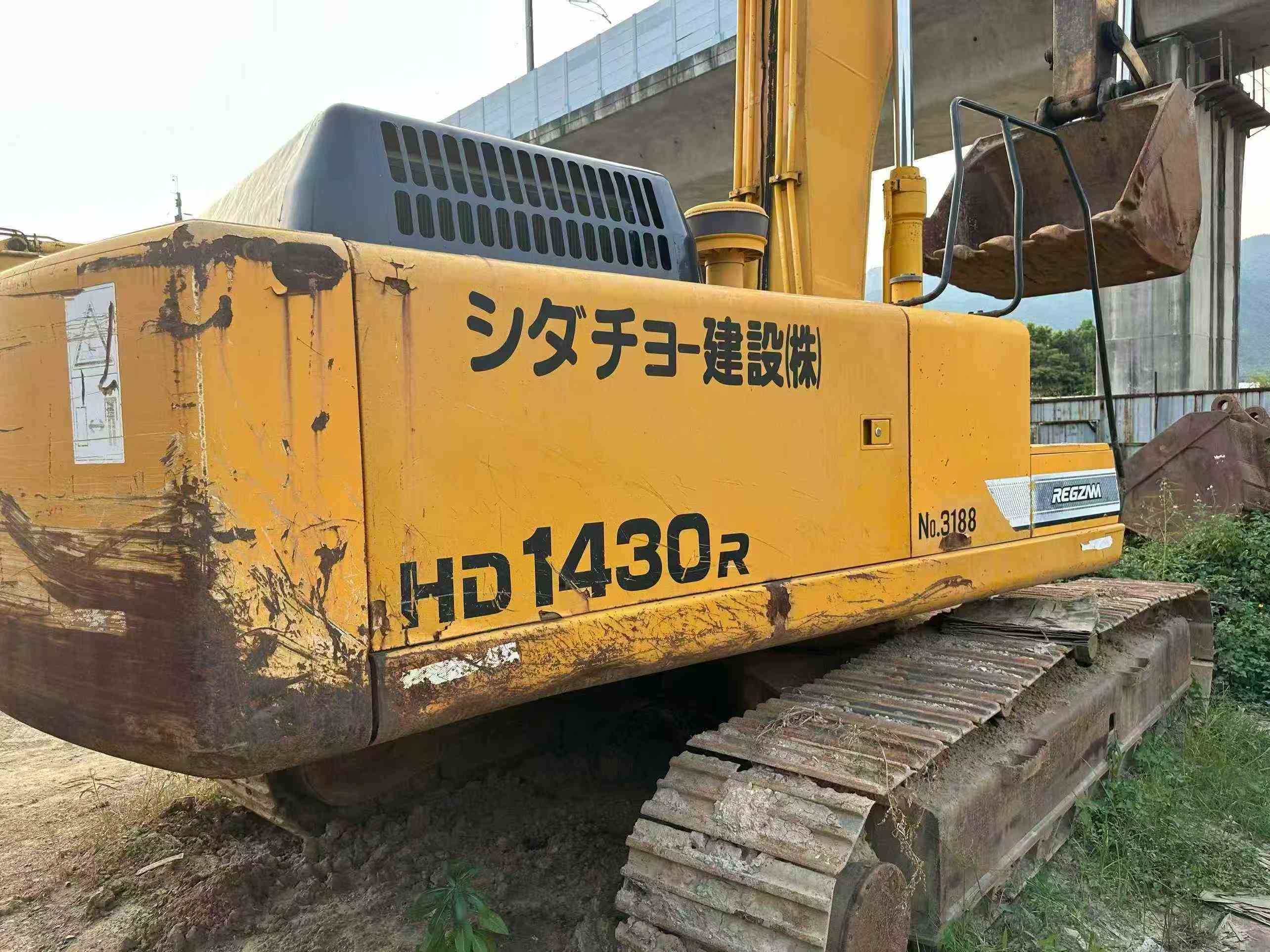

Used Kato HD1430R Excavator 2016 Model / 7
Used Kato HD1430R Excavator 2016 Model / 8

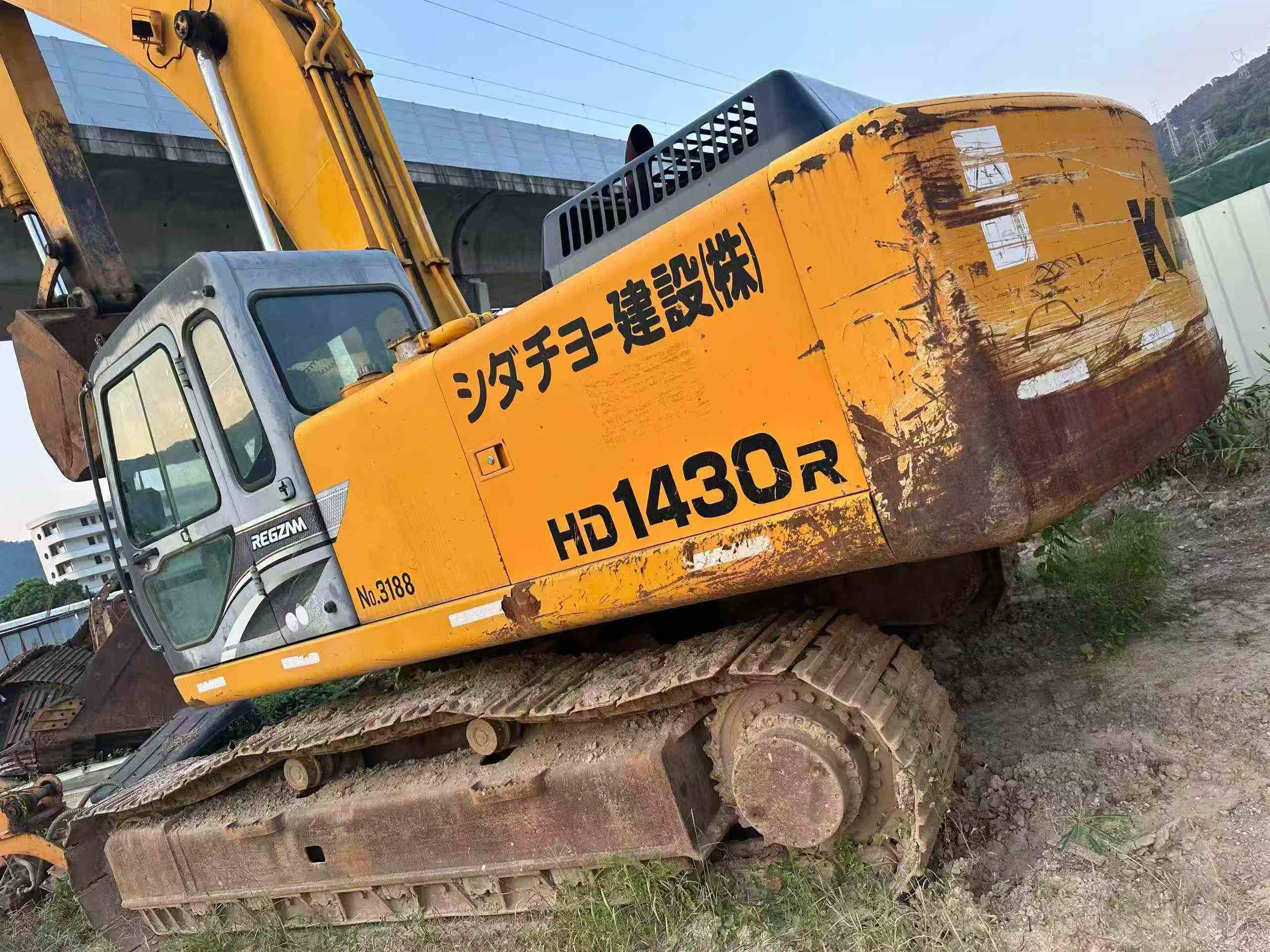

Used Kato HD1430R Excavator 2016 Model / 9

Product Description

【 Premium Recommendation 】 Two second-hand Kato HD1430R excavators, with outstanding performance and extremely high cost performance, are your ideal choice for engineering operations. Both of these two devices have undergone strict testing and maintenance to ensure their stable operation under various working conditions. ** Working hours: ** The first one: The cumulative working hours are 5,200 hours The second one: The cumulative working hours are 4,800 hours "Power System: It adopts a highly efficient and reliable original Japanese imported engine, which is powerful and has good fuel economy. Even in harsh environments, it can maintain excellent power output and smooth operation. The engine has undergone a comprehensive inspection and maintenance to ensure there are no potential faults, and it starts quickly and runs smoothly. "Hydraulic system: Both the hydraulic pump and the motor are well-known brand products, featuring fast response, flexible and precise operation, and the ability to easily handle complex and changeable construction environments. The entire hydraulic system has been debugged and optimized by professional technicians, ensuring strong digging force and excellent controllability. It can handle both precise operat

SpecificationsValue
No.964342
Tonnage (tons)30
Working weight (kg)30700
Bucket capacity (m³)1.4-1.6
Boom length (mm)6480
Rod length (mm)3140
Country of originJapan
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeMitsubishi 6D16-TLC1A
Rated power (kw/rpm)183/2150
Cooling modewater-cooling
Cylinder diameter × stroke (mm)118 x 115
Number of cylinders (PCS)6
Displacement (L)7.54
Ground specific pressure (Kpa)62
Rotation speed (rpm)10
Climbing ability (%)70
Bucket digging force (kN)225 (Standard mode) /236 (Extra mode)
Rod digging force (kN)159 (Standard Mode) /167 (Power mode)
Travel speed (km/h)3.7/5.5
Rotary hydraulic motor typeConstant piston motor
Type of walking hydraulic motorVariable capacity piston motor
Maximum flow of main pump (l/min)301 x 2
Traveling Hydraulic Circuit (Mpa)32.9
Main pump typeVariable capacity piston pump ×2+ gear pump
Working Hydraulic Circuit (Mpa)31.4
Bucket cylinders - Number × diameter × stroke (mm)1-150 x 1230
Bucket rod cylinders - Number × diameter × stroke (mm)1-170 x 1840
Boom cylinders - Number × diameter × stroke (mm)2-150 x 1450
Fuel Tank (L)580
Hydraulic Tank (L)280
Engine Oil changes (L)32
Coolant (L)37
Hydraulic System (L)485
Total transport length (mm)11200
Total transport width (mm)3190
Total transport height (mm)3380
Full cab height (mm)3020
Counterweight ground clearance (mm)1130
Minimum ground clearance (mm)500
Minimum turning radius of front working device (mm)4640
Back end turning radius (mm)3460
Total track length (mm)4650
Track gauge (mm)2590
Track plate width (mm)600
Total track width (mm)3190
Track ground length (mm)3760
Maximum digging radius (mm)11160
Maximum digging depth (mm)7380
Maximum excavation height (mm)10320
Maximum unloading height (mm)7310
Maximum vertical digging depth (mm)5920
see more

Overview

No.964342

Brand Name:

Kato

Model Number:

HD1430R

Year:

2016

Location:

Guangdong China
