2018 Kato HD1430R

1/6
Used Kato HD1430R Excavator 2018 Model / 1

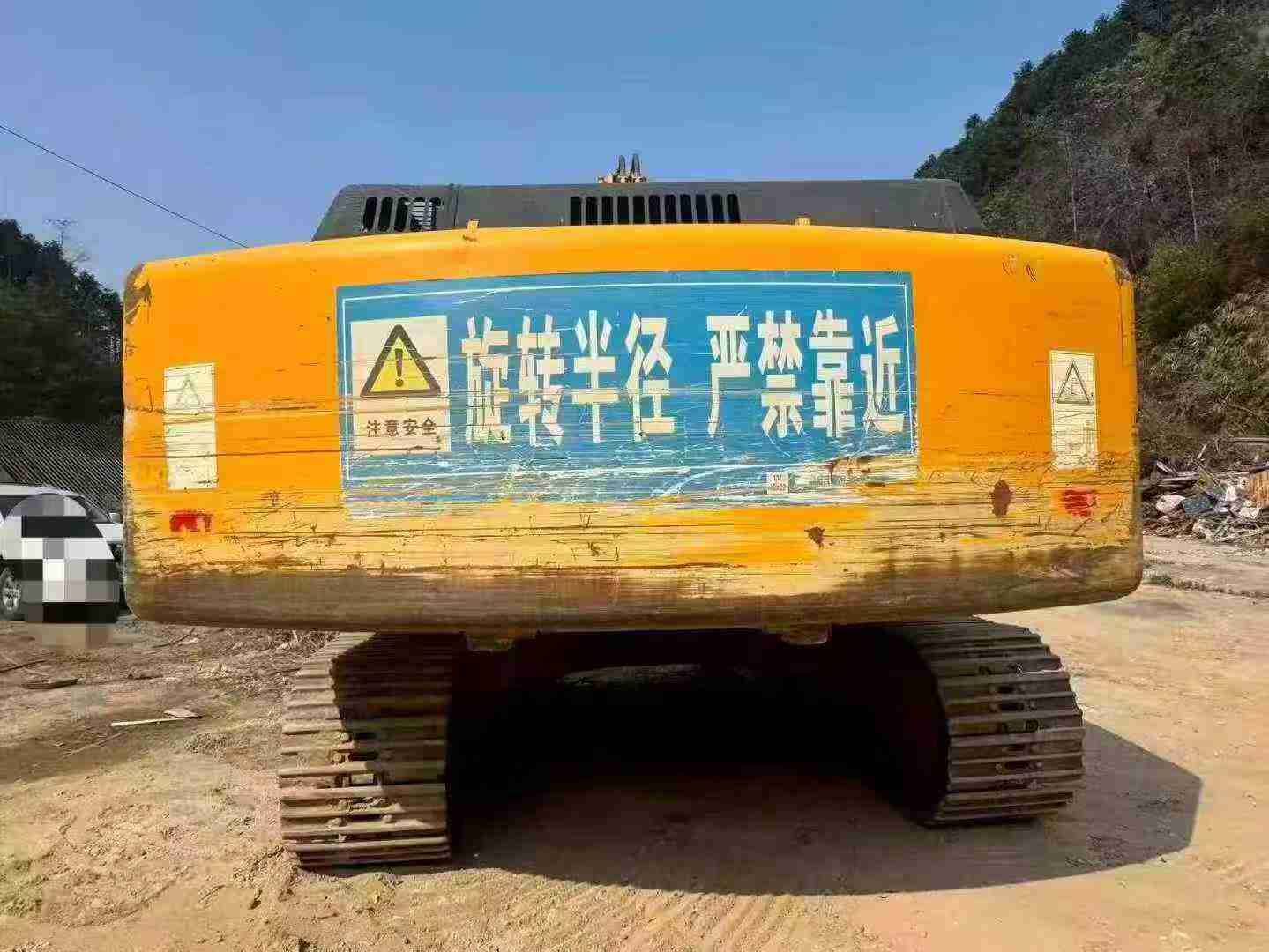

Used Kato HD1430R Excavator 2018 Model / 2

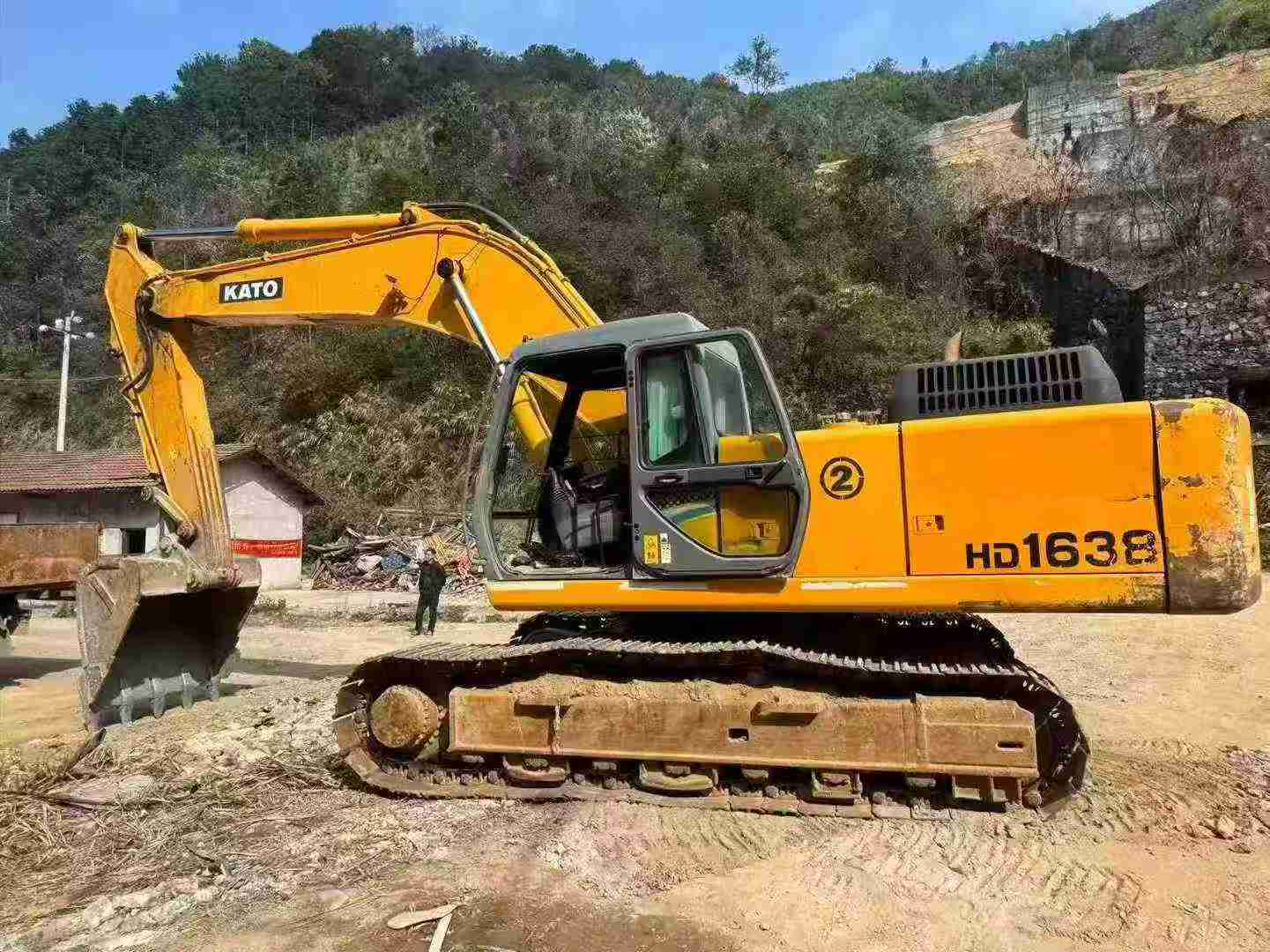

Used Kato HD1430R Excavator 2018 Model / 3

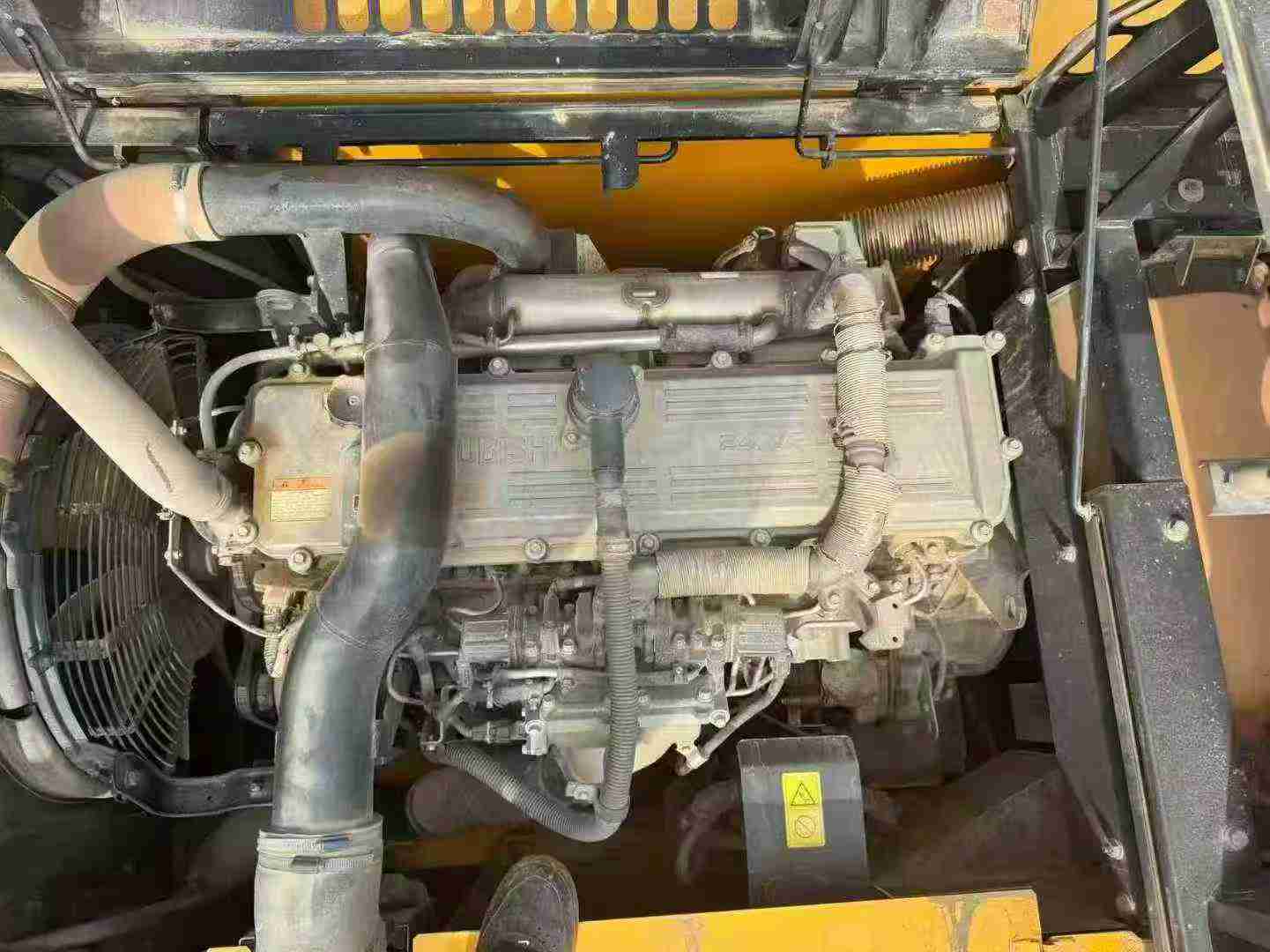

Used Kato HD1430R Excavator 2018 Model / 4

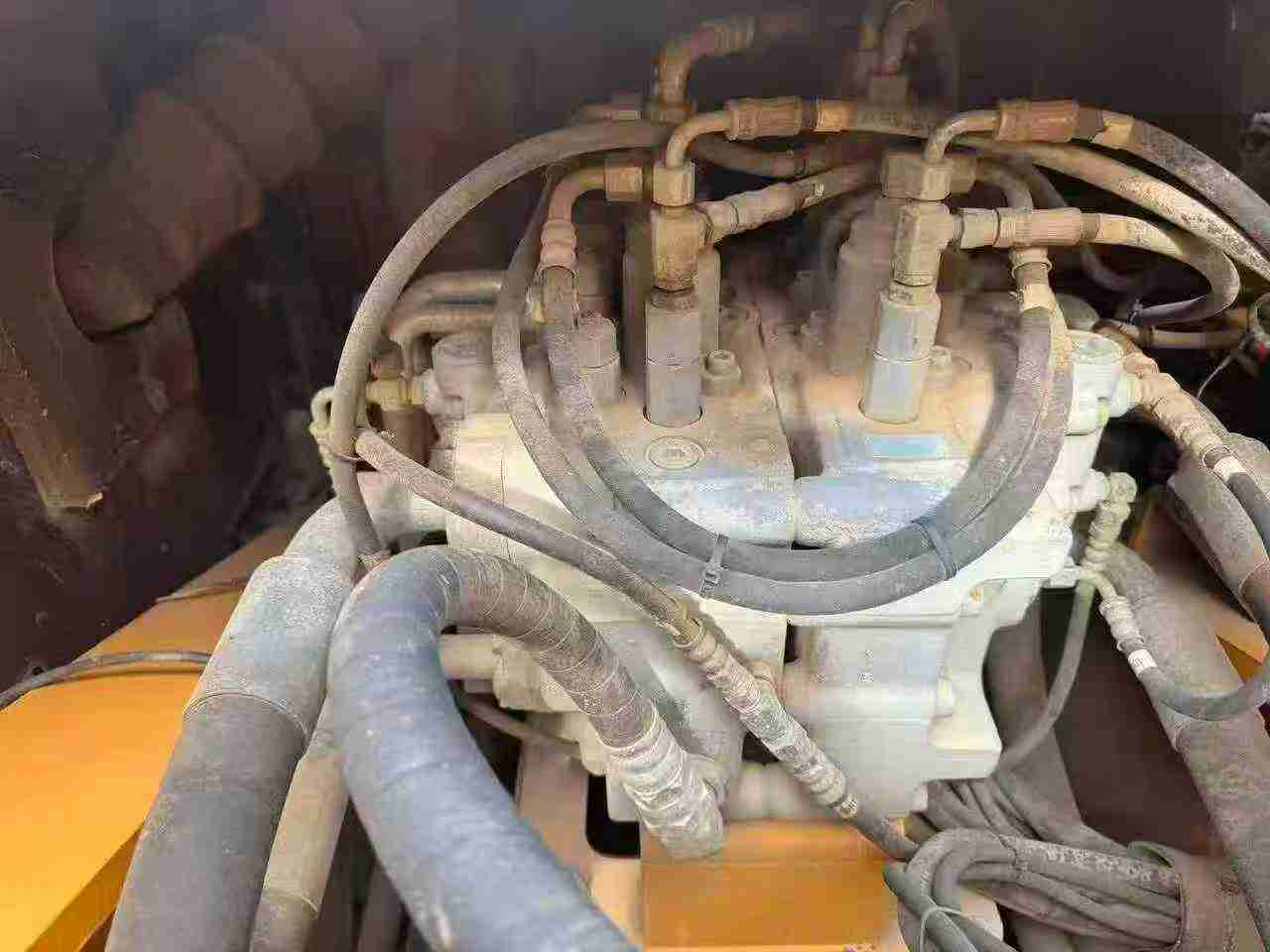

Used Kato HD1430R Excavator 2018 Model / 5

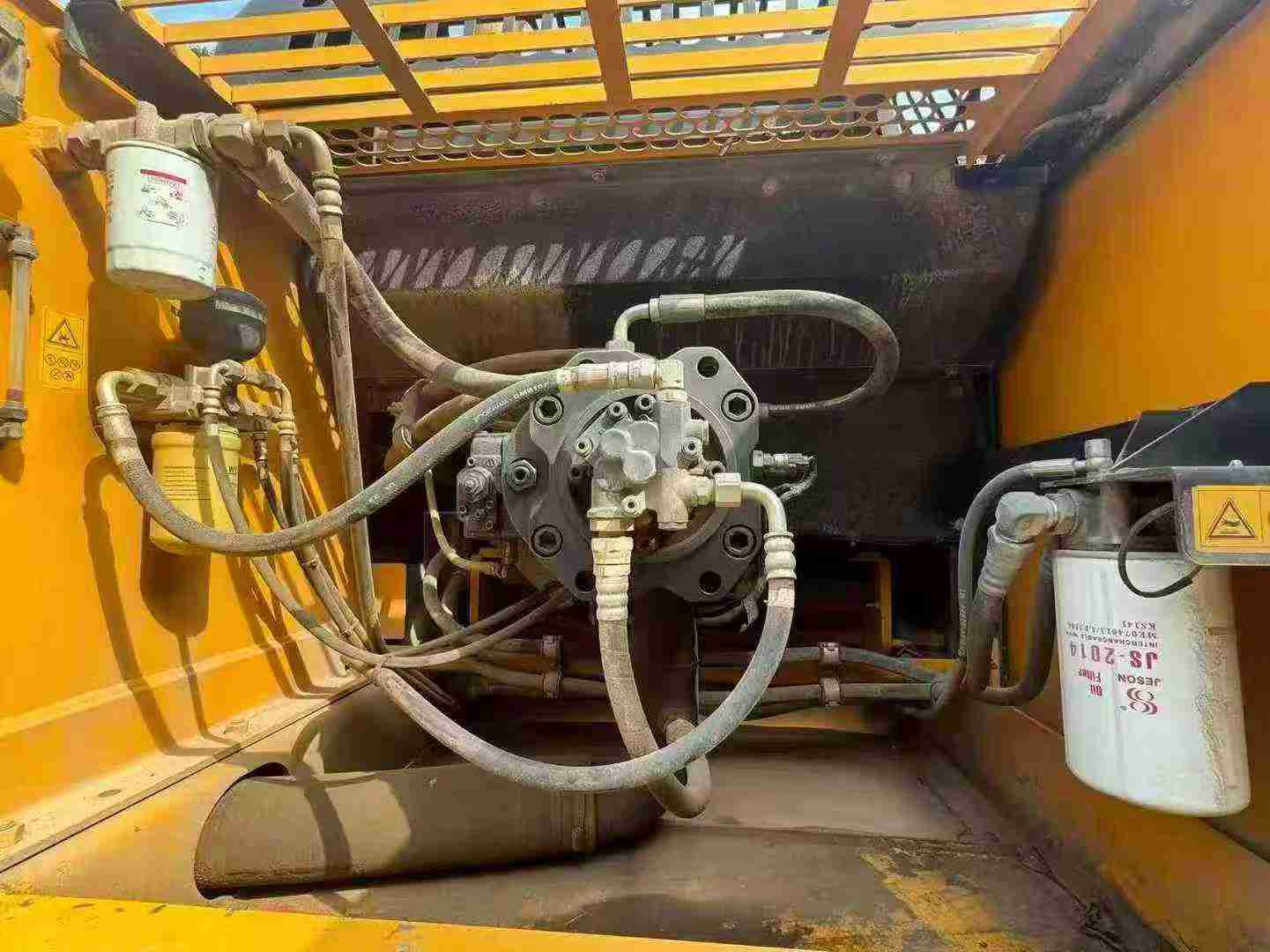

Used Kato HD1430R Excavator 2018 Model / 6

Product Description

This second-hand Kato HD1430R5 excavator from 2018, priced at over 320,000 yuan, is a very popular medium-sized excavator in the market. Its working time is only 3,500 hours, far lower than the average usage time of similar equipment. This means that its mechanical wear and tear is relatively low, and its overall performance remains at a rather high level. In terms of power, this excavator is equipped with an efficient and energy-saving engine, which not only provides strong power output but also has excellent fuel economy, enabling users to reduce operating costs while improving work efficiency. Its unique power management system can automatically adjust the engine speed according to actual working requirements, ensuring the best performance under all working conditions. The hydraulic system adopts advanced negative flow control technology, making the operation more precise and smooth, and the response speed faster. Whether it is excavation, loading or crushing operations, they can all be handled with ease. In addition, this model is also equipped with a variety of safety protection devices, such as overload protection and oil temperature alarm, which effectively extend the service life of the machine and ensure the safety of the op

SpecificationsValue
No.964513
Tonnage (tons)30
Working weight (kg)30700
Bucket capacity (m³)1.4-1.6
Boom length (mm)6480
Rod length (mm)3140
Country of originJapan
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeMitsubishi 6D16-TLC1A
Rated power (kw/rpm)183/2150
Cooling modewater-cooling
Cylinder diameter × stroke (mm)118 x 115
Number of cylinders (PCS)6
Displacement (L)7.54
Ground specific pressure (Kpa)62
Rotation speed (rpm)10
Climbing ability (%)70
Bucket digging force (kN)225 (Standard mode) /236 (Extra mode)
Rod digging force (kN)159 (Standard Mode) /167 (Power mode)
Travel speed (km/h)3.7/5.5
Rotary hydraulic motor typeConstant piston motor
Type of walking hydraulic motorVariable capacity piston motor
Maximum flow of main pump (l/min)301 x 2
Traveling Hydraulic Circuit (Mpa)32.9
Main pump typeVariable capacity piston pump ×2+ gear pump
Working Hydraulic Circuit (Mpa)31.4
Bucket cylinders - Number × diameter × stroke (mm)1-150 x 1230
Bucket rod cylinders - Number × diameter × stroke (mm)1-170 x 1840
Boom cylinders - Number × diameter × stroke (mm)2-150 x 1450
Fuel Tank (L)580
Hydraulic Tank (L)280
Engine Oil changes (L)32
Coolant (L)37
Hydraulic System (L)485
Total transport length (mm)11200
Total transport width (mm)3190
Total transport height (mm)3380
Full cab height (mm)3020
Counterweight ground clearance (mm)1130
Minimum ground clearance (mm)500
Minimum turning radius of front working device (mm)4640
Back end turning radius (mm)3460
Total track length (mm)4650
Track gauge (mm)2590
Track plate width (mm)600
Total track width (mm)3190
Track ground length (mm)3760
Maximum digging radius (mm)11160
Maximum digging depth (mm)7380
Maximum excavation height (mm)10320
Maximum unloading height (mm)7310
Maximum vertical digging depth (mm)5920
