2013 Kato HD820R

1/7
Used Kato HD820R Excavator 2013 Model / 1

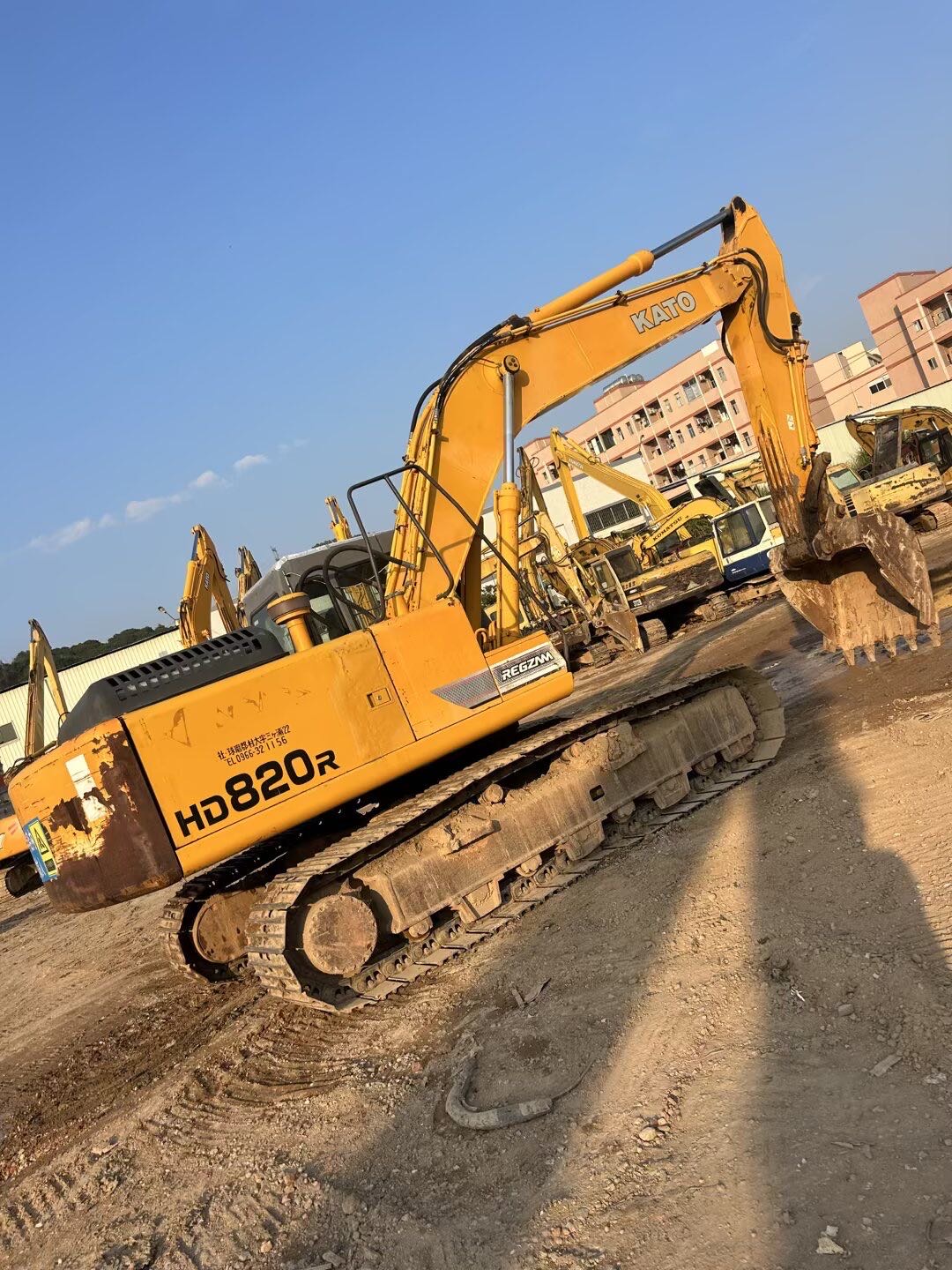

Used Kato HD820R Excavator 2013 Model / 2

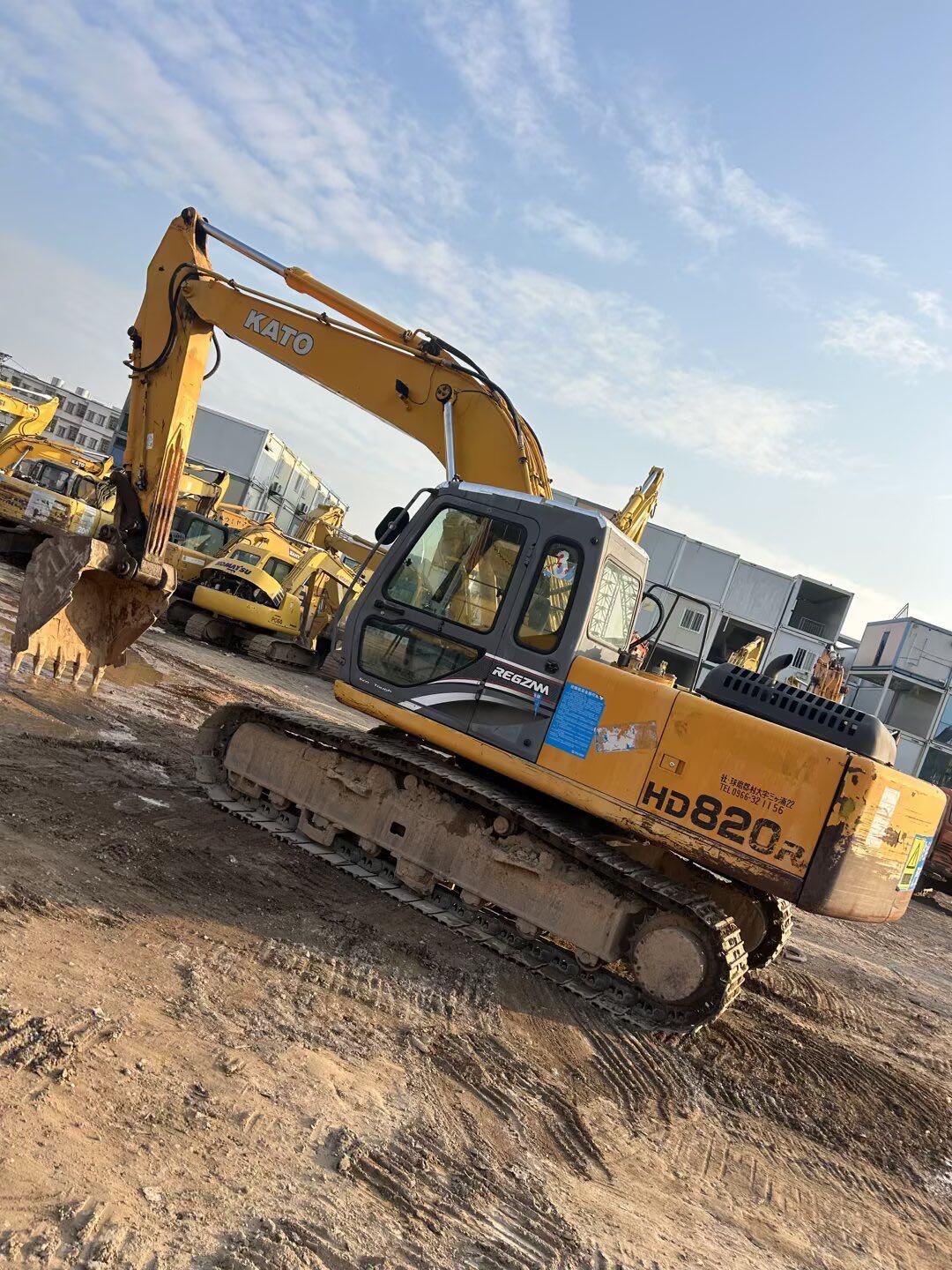

Used Kato HD820R Excavator 2013 Model / 3

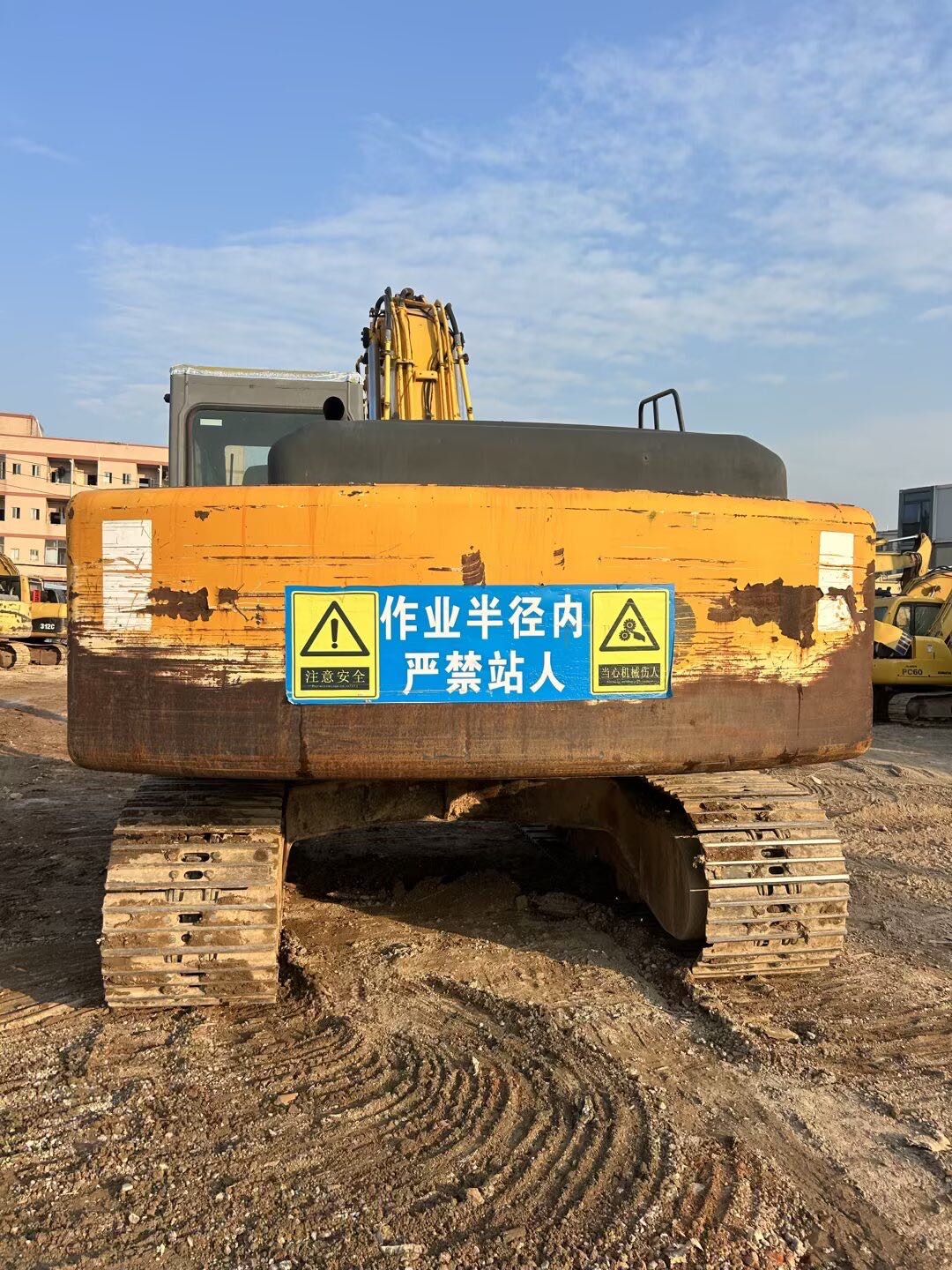

Used Kato HD820R Excavator 2013 Model / 4

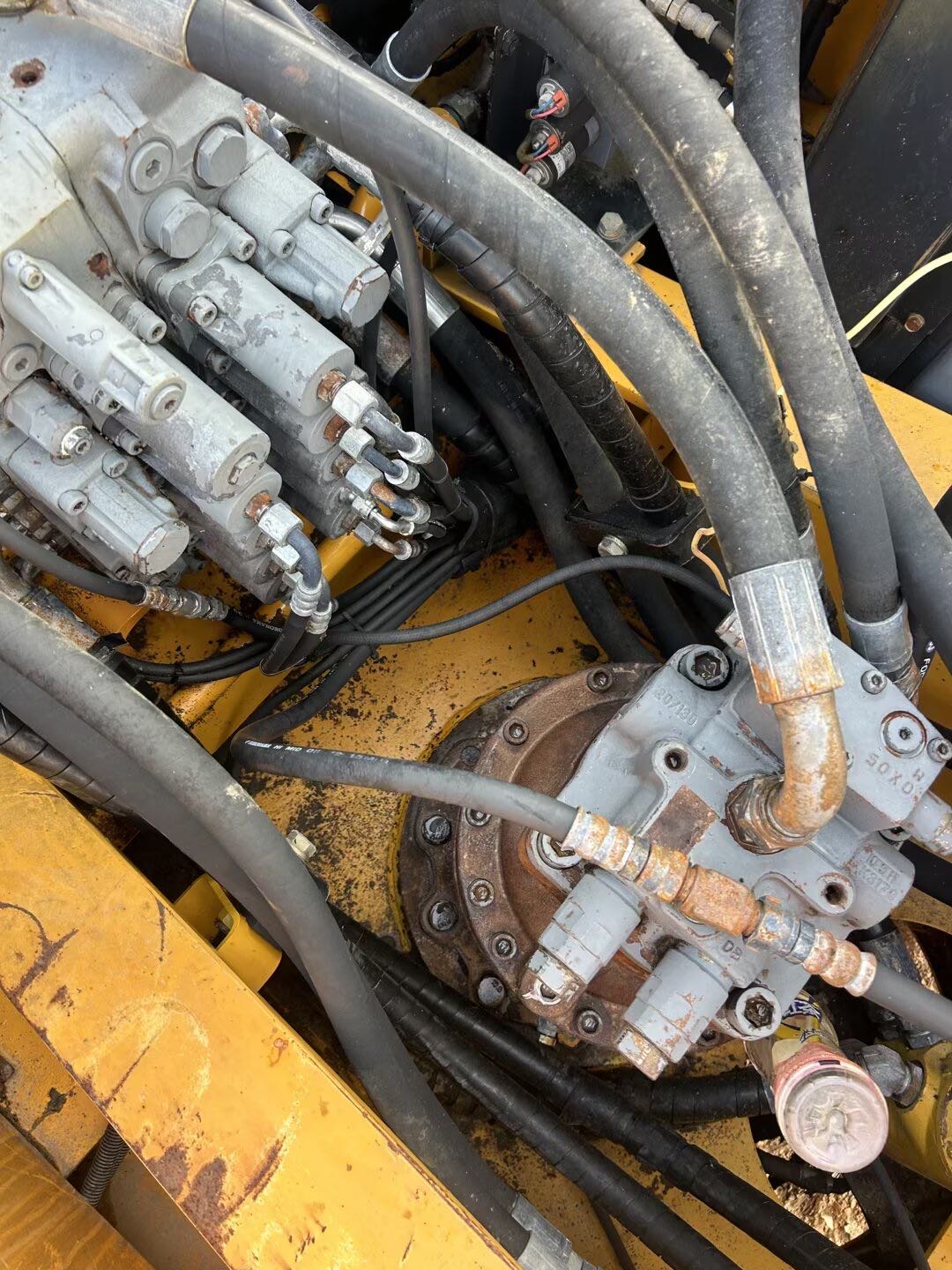

Used Kato HD820R Excavator 2013 Model / 5

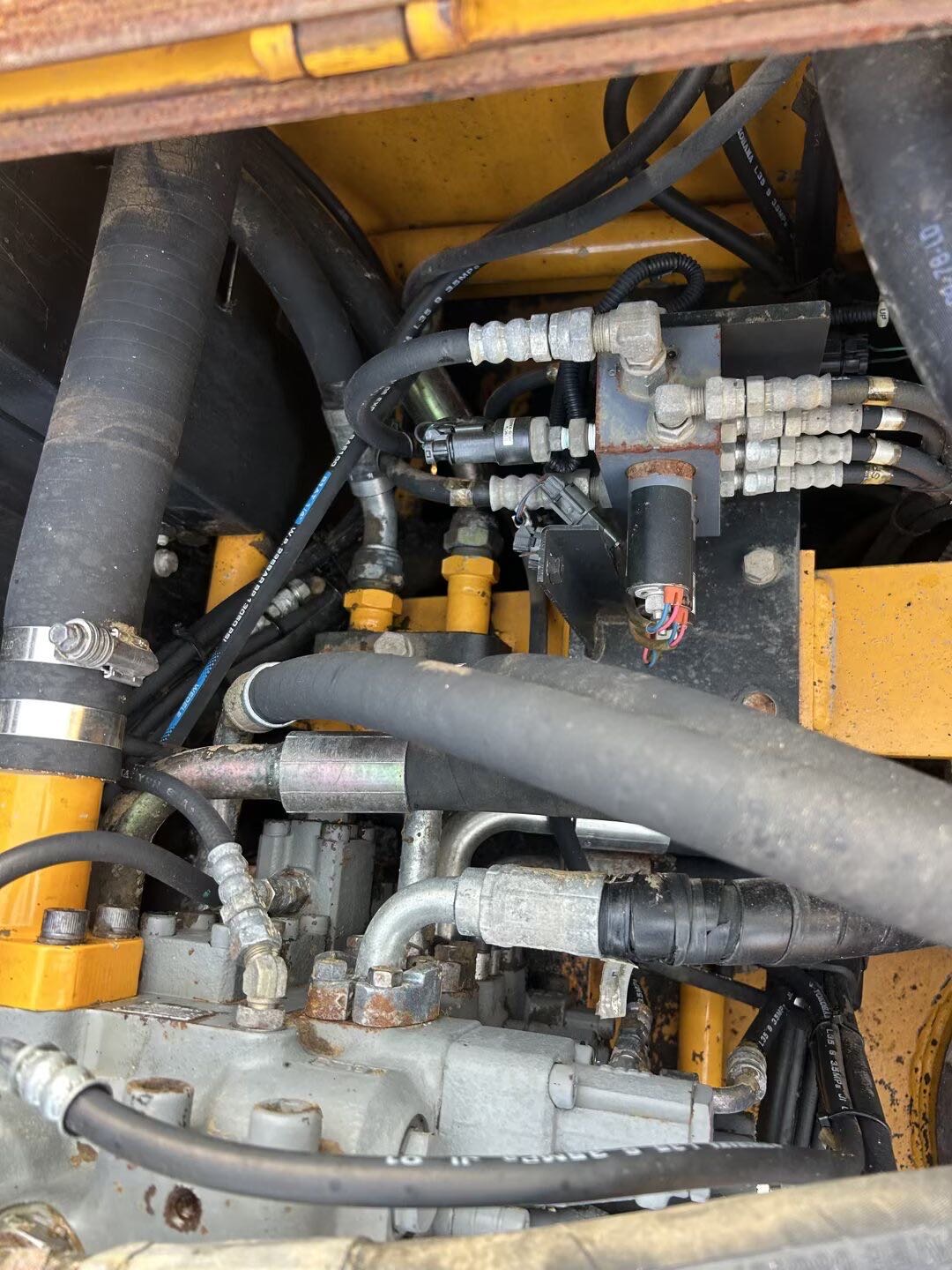

Used Kato HD820R Excavator 2013 Model / 6

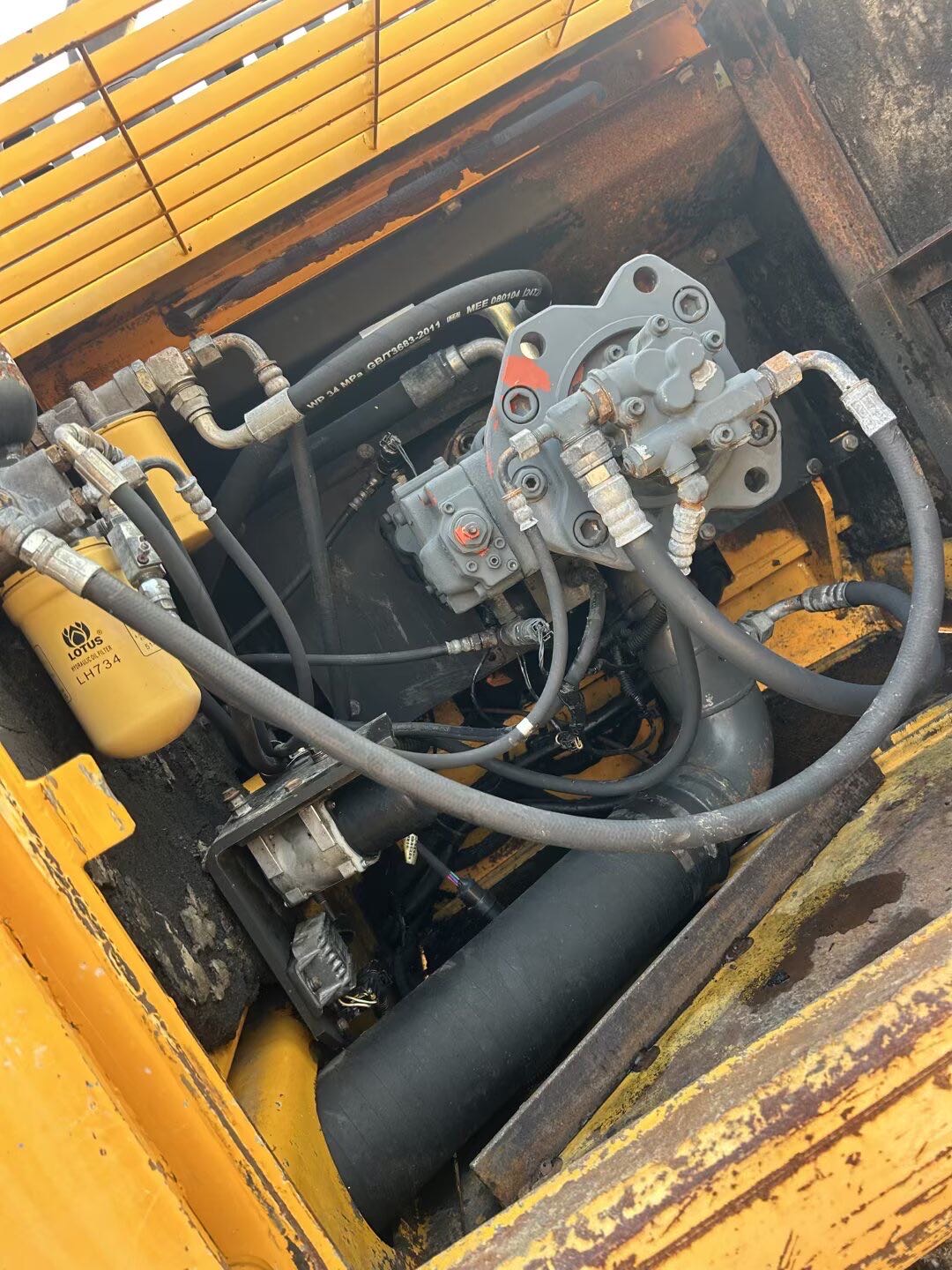

Used Kato HD820R Excavator 2013 Model / 7

Product Description

"Recommendation of Premium Second-hand Excavators This second-hand excavator is in excellent condition. Its exterior is clean and undamaged, and its internal structure is as good as new. Overall, its condition is comparable to that of a brand-new car. It is not only aesthetically pleasing in appearance, but more importantly, it has outstanding performance and can be directly put into use on construction sites without any additional maintenance or debugging, greatly saving your time and cost. The cumulative working time of this excavator is only about 2,000 hours, which is far lower than the average service life of similar equipment on the market. This means that its main components are still in the best working condition. The power system is equipped with an original imported engine, which runs smoothly and forcefully, and has good fuel economy. It can handle complex terrains and high-intensity operations with ease. The hydraulic system has undergone professional testing and maintenance, ensuring the flexibility and accuracy of operation. Whether it is excavation, loading or crushing operations, it performs outstandingly and meets various construction requirements. Currently, this machine is undergoing regular professional maintenan

SpecificationsValue
No.966073
Tonnage (tons)20
Working weight (kg)19800
Bucket capacity (m³)Standard 0.8/ Enhanced 0.9
Boom length (mm)5630
Rod length (mm)2930
Country of originJapan
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeMitsubishi 6D34-TLC1B
Rated power (kw/rpm)110/2050
Cooling modewater-cooling
Cylinder diameter × stroke (mm)104 x 115
Maximum torque (N.m)580N*m/1400
Number of cylinders (PCS)6
Displacement (L)5.86
Working formIntercooler; Turbocharged engine; Direct injection
Ground specific pressure (Kpa)44
Rotation speed (rpm)13
Climbing ability (%)70% (35°)
Bucket digging force (kN)Standard 136/ High power 144
Rod digging force (kN)Standard 99/ High Power 104
Maximum tractive force (kN)179.5
Travel speed (km/h)5.5/3.6
Rotary hydraulic motor typeConstant piston motor
Type of walking hydraulic motorVariable capacity piston motor with reducers on both sides
Maximum flow of main pump (l/min)235 x 2
Traveling Hydraulic Circuit (Mpa)32.9
Main pump typeVariable capacity piston pump ×2+ gear pump
Working Hydraulic Circuit (Mpa)31.4
Bucket cylinders - Number × diameter × stroke (mm)1-120 x 1090
Bucket rod cylinders - Number × diameter × stroke (mm)1-135 x 1630
Boom cylinders - Number × diameter × stroke (mm)2-125 x 1315
Fuel Tank (L)320
Hydraulic Tank (L)156
Engine Oil changes (L)22
Coolant (L)23
Hydraulic System (L)260
Total transport length (mm)9500
Total transport width (mm)2820
Total transport height (mm)2970 (to hose top)
Full cab height (mm)2860
Counterweight ground clearance (mm)1040
Minimum ground clearance (mm)4650
Minimum turning radius of front working device (mm)3460
Back end turning radius (mm)2750
Total track length (mm)4170
Track gauge (mm)2220
Track plate width (mm)600/700/800
Total track width (mm)2820/2920/3020
Track ground length (mm)3370
Maximum digging radius (mm)9910
Maximum digging depth (mm)6700
Maximum excavation height (mm)9760
Maximum unloading height (mm)6830
Maximum vertical digging depth (mm)6120
see more

Overview

No.966073

Brand Name:

Kato

Model Number:

HD820R

Year:

2013

Location:

Guangdong China
