2015 Kato HD820R

1/4
Used Kato HD820R Excavator 2015 Model / 1

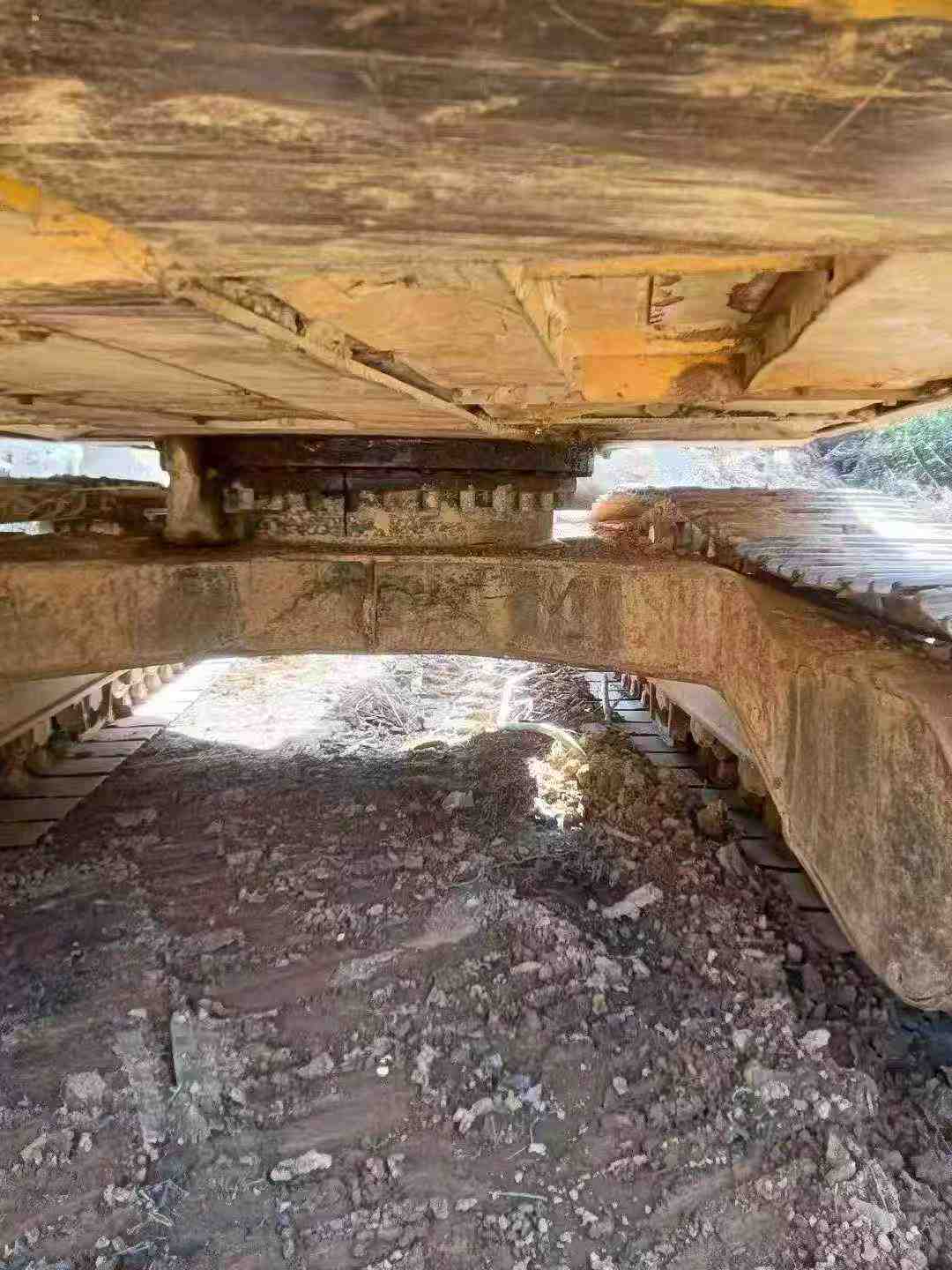

Used Kato HD820R Excavator 2015 Model / 2
Used Kato HD820R Excavator 2015 Model / 3

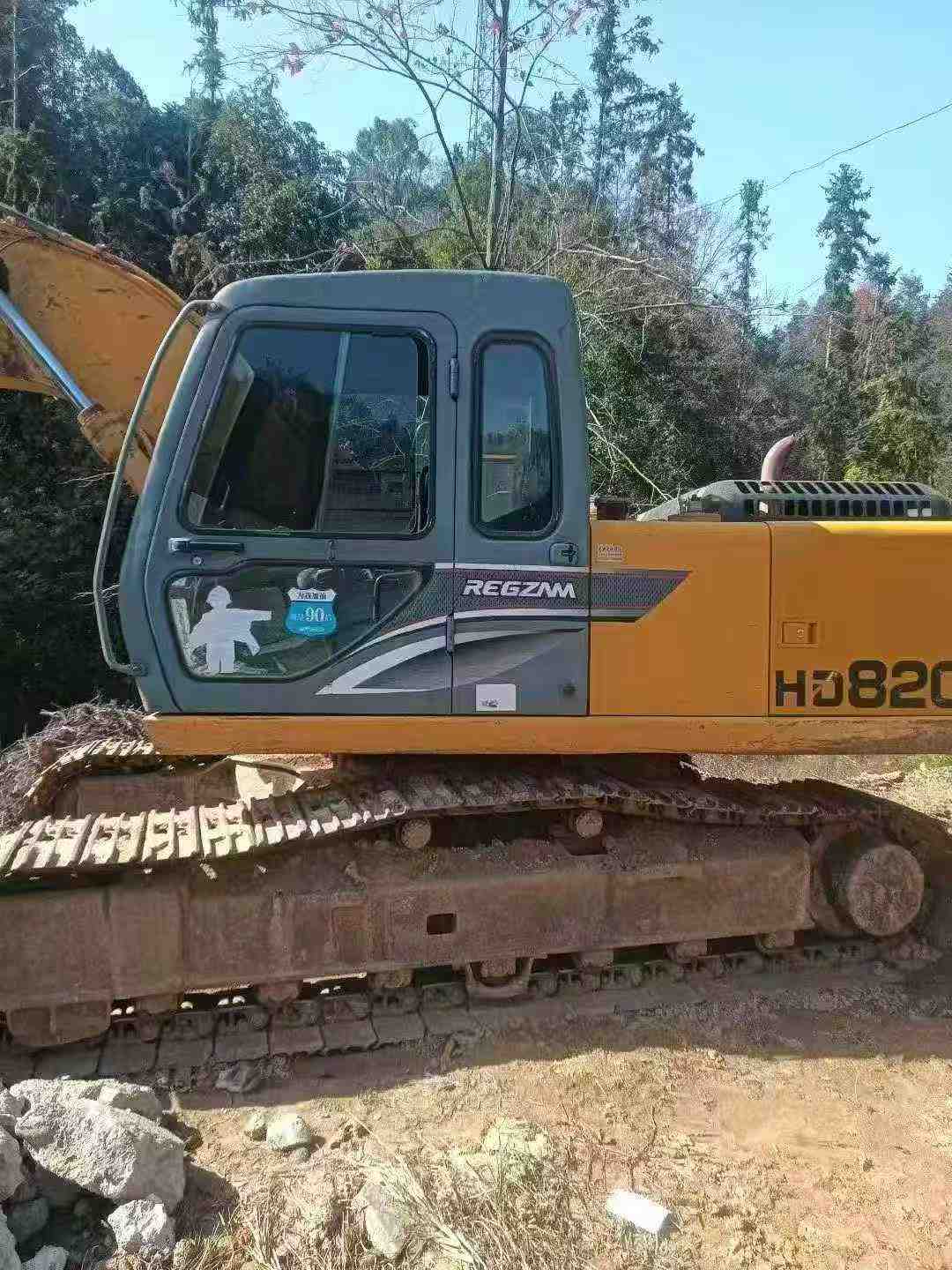

Used Kato HD820R Excavator 2015 Model / 4

Product Description

【 Premium Recommendation 】2015 Kato 820R second-hand excavator, with a working time of only 20 hours and in almost brand new condition, is your ideal choice for engineering operations. This device is manufactured with advanced Japanese technology and has won the trust of global users with its outstanding performance and reliability. In terms of the power system, the Kato 820R is equipped with an efficient and energy-saving engine, which not only provides strong power output but also effectively reduces fuel consumption and lowers operating costs. Its unique cooling system design ensures stable operation even in high-temperature environments, extending the machine's service life. The hydraulic system is a major highlight of this model. It adopts the latest generation of load sensing control system, making the operation more flexible and precise, and the response speed faster. Whether it is excavation, loading or crushing operations, they can all be handled with ease, greatly improving work efficiency. In addition, the hydraulic oil tank has a large capacity and the filtration system is complete, ensuring the cleanliness and stability of the system during long-term operation. The vehicle body structure is sturdy and durable. Key compo

SpecificationsValue
No.963883
Tonnage (tons)20
Working weight (kg)19800
Bucket capacity (m³)Standard 0.8/ Enhanced 0.9
Boom length (mm)5630
Rod length (mm)2930
Country of originJapan
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeMitsubishi 6D34-TLC1B
Rated power (kw/rpm)110/2050
Cooling modewater-cooling
Cylinder diameter × stroke (mm)104 x 115
Maximum torque (N.m)580N*m/1400
Number of cylinders (PCS)6
Displacement (L)5.86
Working formIntercooler; Turbocharged engine; Direct injection
Ground specific pressure (Kpa)44
Rotation speed (rpm)13
Climbing ability (%)70% (35°)
Bucket digging force (kN)Standard 136/ High power 144
Rod digging force (kN)Standard 99/ High Power 104
Maximum tractive force (kN)179.5
Travel speed (km/h)5.5/3.6
Rotary hydraulic motor typeConstant piston motor
Type of walking hydraulic motorVariable capacity piston motor with reducers on both sides
Maximum flow of main pump (l/min)235 x 2
Traveling Hydraulic Circuit (Mpa)32.9
Main pump typeVariable capacity piston pump ×2+ gear pump
Working Hydraulic Circuit (Mpa)31.4
Bucket cylinders - Number × diameter × stroke (mm)1-120 x 1090
Bucket rod cylinders - Number × diameter × stroke (mm)1-135 x 1630
Boom cylinders - Number × diameter × stroke (mm)2-125 x 1315
Fuel Tank (L)320
Hydraulic Tank (L)156
Engine Oil changes (L)22
Coolant (L)23
Hydraulic System (L)260
Total transport length (mm)9500
Total transport width (mm)2820
Total transport height (mm)2970 (to hose top)
Full cab height (mm)2860
Counterweight ground clearance (mm)1040
Minimum ground clearance (mm)4650
Minimum turning radius of front working device (mm)3460
Back end turning radius (mm)2750
Total track length (mm)4170
Track gauge (mm)2220
Track plate width (mm)600/700/800
Total track width (mm)2820/2920/3020
Track ground length (mm)3370
Maximum digging radius (mm)9910
Maximum digging depth (mm)6700
Maximum excavation height (mm)9760
Maximum unloading height (mm)6830
Maximum vertical digging depth (mm)6120
see more

Overview

No.963883

Brand Name:

Kato

Model Number:

HD820R

Year:

2015

Location:

Guangdong China
