2019 Kato HD820R

1/9
Used Kato HD820R Excavator 2019 Model / 1
Used Kato HD820R Excavator 2019 Model / 2
Used Kato HD820R Excavator 2019 Model / 3
Used Kato HD820R Excavator 2019 Model / 4
Used Kato HD820R Excavator 2019 Model / 5
Used Kato HD820R Excavator 2019 Model / 6
Used Kato HD820R Excavator 2019 Model / 7
Used Kato HD820R Excavator 2019 Model / 8
Used Kato HD820R Excavator 2019 Model / 9

Product Description

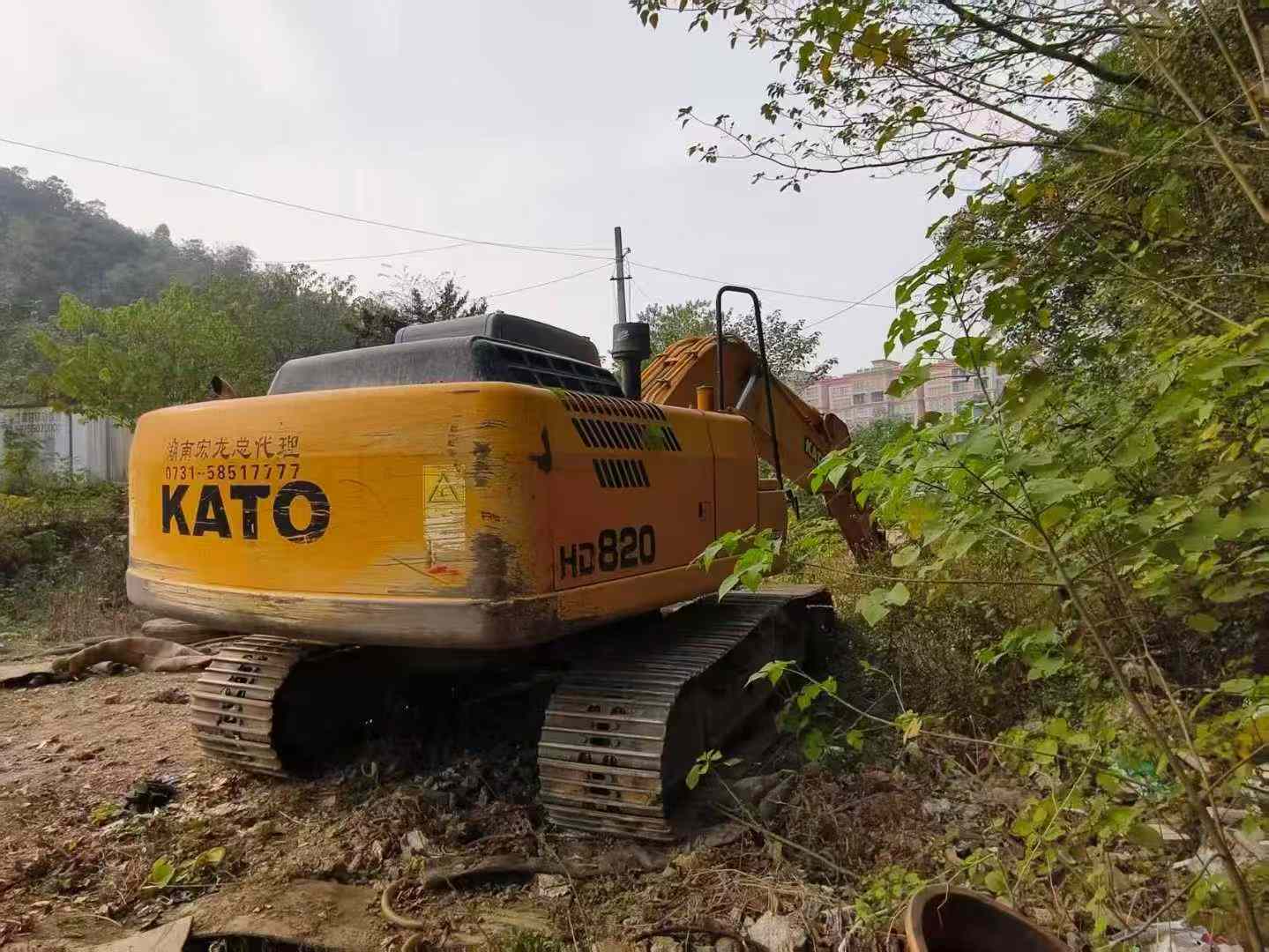

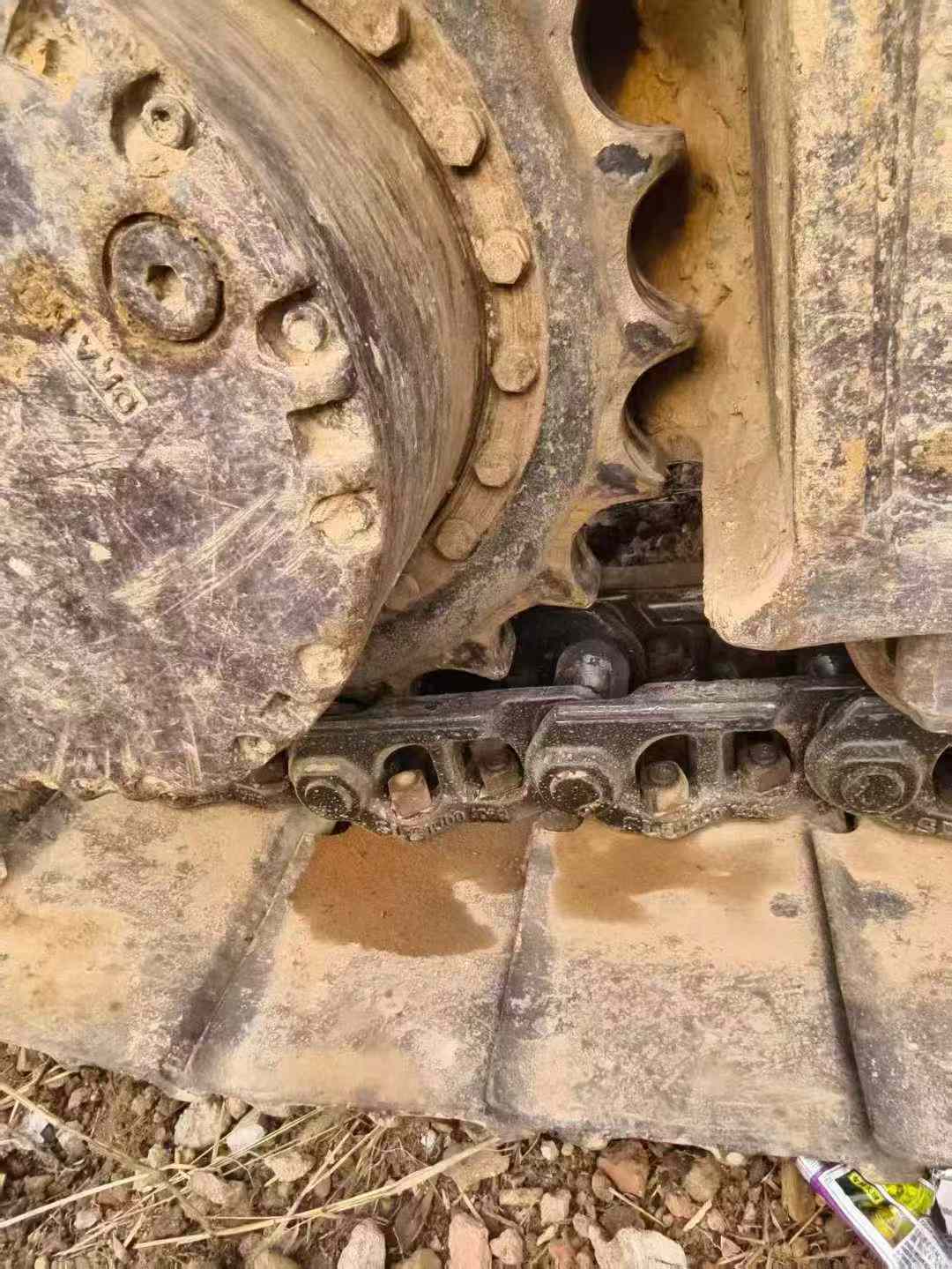

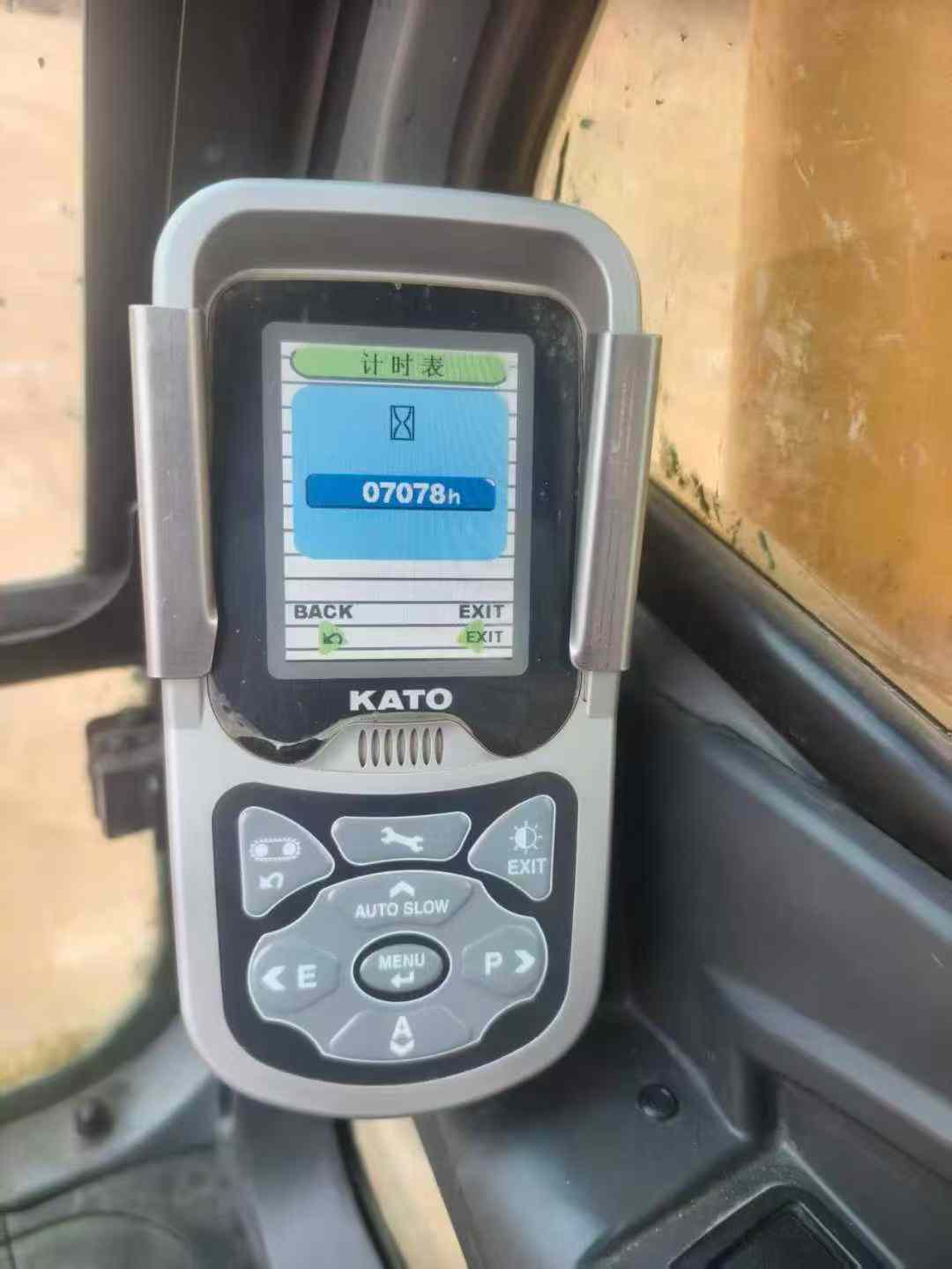

【 Premium Recommendation 】 Second-hand Kato 820R5 excavator from 2019, with outstanding performance and high cost performance! This Kato 820R5 excavator was manufactured in 2019 and has only been in operation for 7,000 hours so far. The working duration is moderate, which not only ensures the machine's maturity and stability but also avoids the risk of excessive wear. The overall condition of the equipment is excellent. The power system adopts a high-performance diesel engine, which is powerful and has low fuel consumption, and can easily meet the operation requirements under various complex working conditions. In terms of the hydraulic system, advanced load sensing technology has been adopted to ensure smooth and precise operation, significantly enhancing work efficiency and operational comfort. In addition, this machine has just been equipped with a brand-new chain and has undergone comprehensive professional maintenance services. All key components are in the best condition, ensuring that it can be put into use immediately after purchase without the need for additional maintenance costs. The vehicle has complete procedures and the transfer of ownership is convenient and fast, allowing you to purchase a car without worries. The cu

SpecificationsValue
No.964361
Tonnage (tons)20
Working weight (kg)19800
Bucket capacity (m³)Standard 0.8/ Enhanced 0.9
Boom length (mm)5630
Rod length (mm)2930
Country of originJapan
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeMitsubishi 6D34-TLC1B
Rated power (kw/rpm)110/2050
Cooling modewater-cooling
Cylinder diameter × stroke (mm)104 x 115
Maximum torque (N.m)580N*m/1400
Number of cylinders (PCS)6
Displacement (L)5.86
Working formIntercooler; Turbocharged engine; Direct injection
Ground specific pressure (Kpa)44
Rotation speed (rpm)13
Climbing ability (%)70% (35°)
Bucket digging force (kN)Standard 136/ High power 144
Rod digging force (kN)Standard 99/ High Power 104
Maximum tractive force (kN)179.5
Travel speed (km/h)5.5/3.6
Rotary hydraulic motor typeConstant piston motor
Type of walking hydraulic motorVariable capacity piston motor with reducers on both sides
Maximum flow of main pump (l/min)235 x 2
Traveling Hydraulic Circuit (Mpa)32.9
Main pump typeVariable capacity piston pump ×2+ gear pump
Working Hydraulic Circuit (Mpa)31.4
Bucket cylinders - Number × diameter × stroke (mm)1-120 x 1090
Bucket rod cylinders - Number × diameter × stroke (mm)1-135 x 1630
Boom cylinders - Number × diameter × stroke (mm)2-125 x 1315
Fuel Tank (L)320
Hydraulic Tank (L)156
Engine Oil changes (L)22
Coolant (L)23
Hydraulic System (L)260
Total transport length (mm)9500
Total transport width (mm)2820
Total transport height (mm)2970 (to hose top)
Full cab height (mm)2860
Counterweight ground clearance (mm)1040
Minimum ground clearance (mm)4650
Minimum turning radius of front working device (mm)3460
Back end turning radius (mm)2750
Total track length (mm)4170
Track gauge (mm)2220
Track plate width (mm)600/700/800
Total track width (mm)2820/2920/3020
Track ground length (mm)3370
Maximum digging radius (mm)9910
Maximum digging depth (mm)6700
Maximum excavation height (mm)9760
Maximum unloading height (mm)6830
Maximum vertical digging depth (mm)6120
see more

Overview

No.964361

Brand Name:

Kato

Model Number:

HD820R

Year:

2019

Location:

Hunan China
