2016 Kato HD820V

1/9
Used Kato HD820V Excavator 2016 Model / 1
Used Kato HD820V Excavator 2016 Model / 2
Used Kato HD820V Excavator 2016 Model / 3

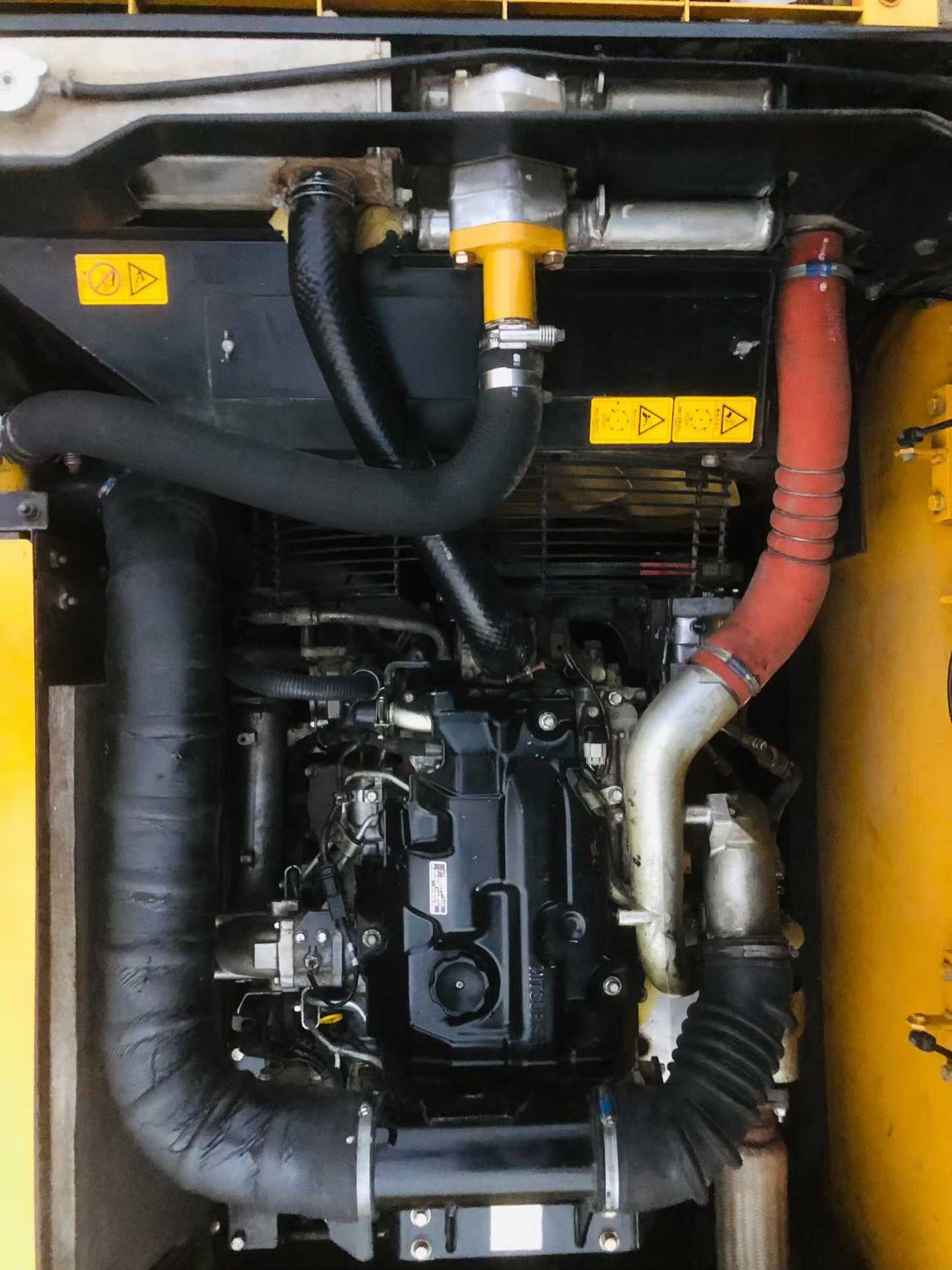

Used Kato HD820V Excavator 2016 Model / 4

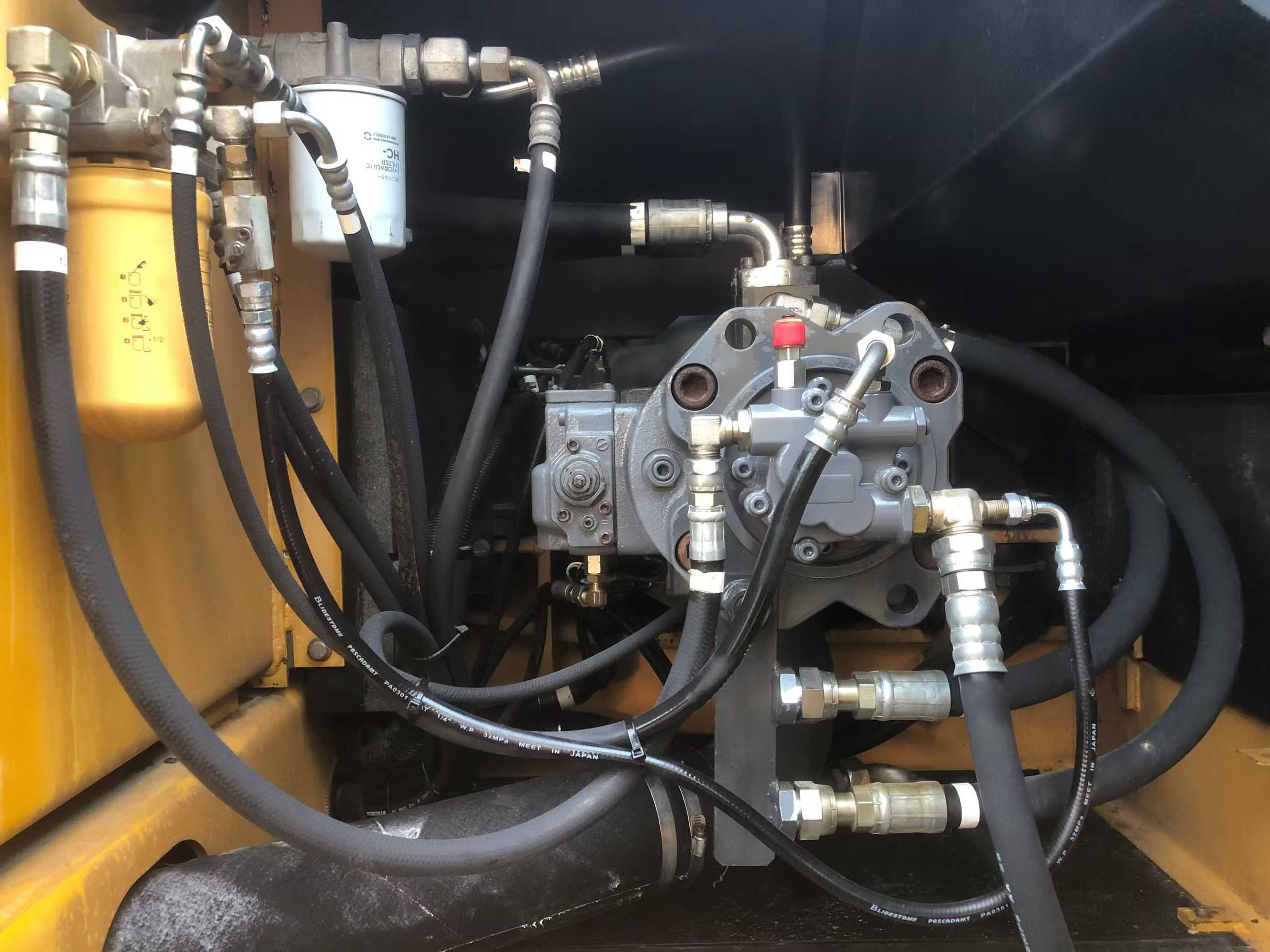

Used Kato HD820V Excavator 2016 Model / 5

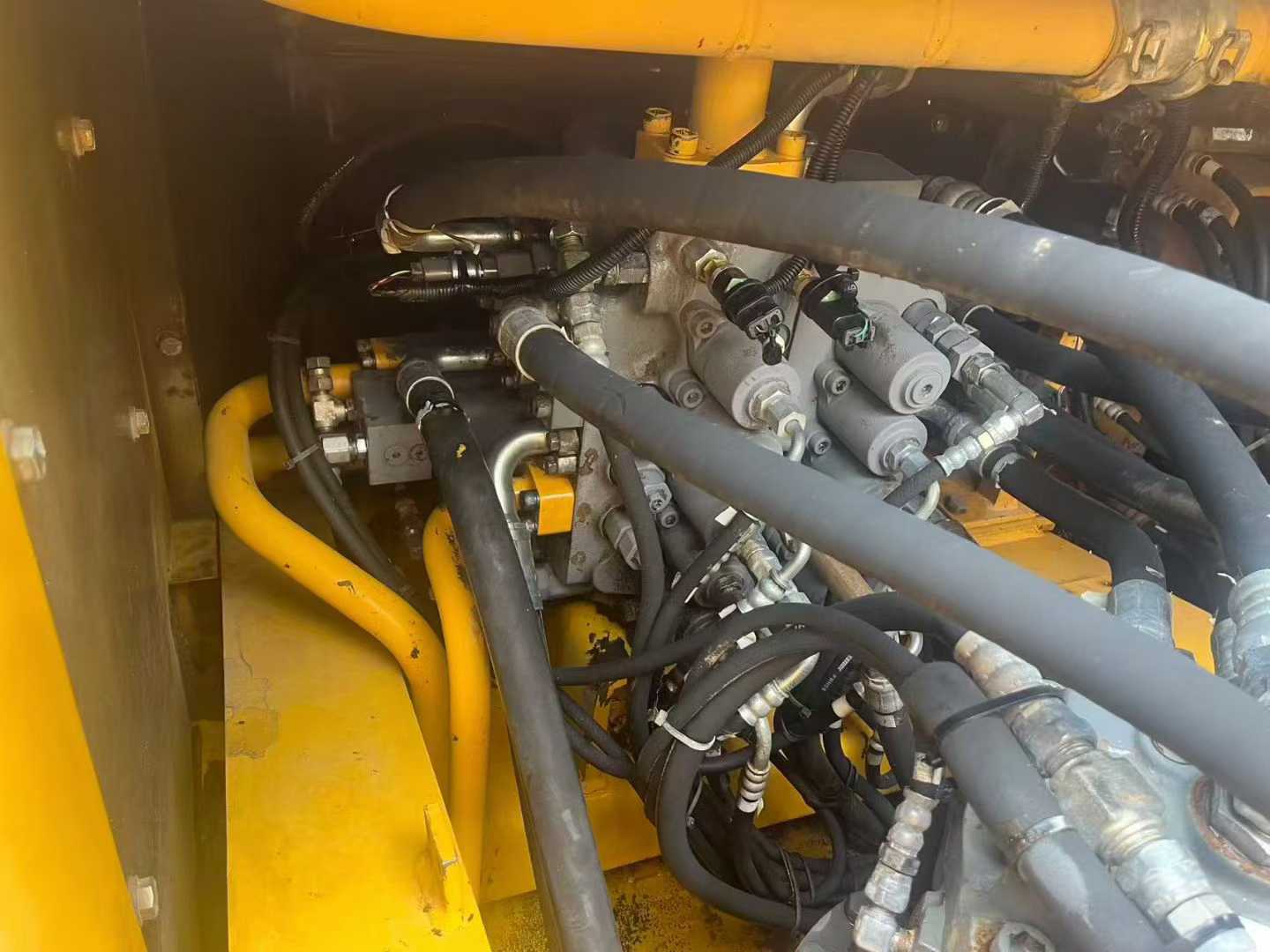

Used Kato HD820V Excavator 2016 Model / 6

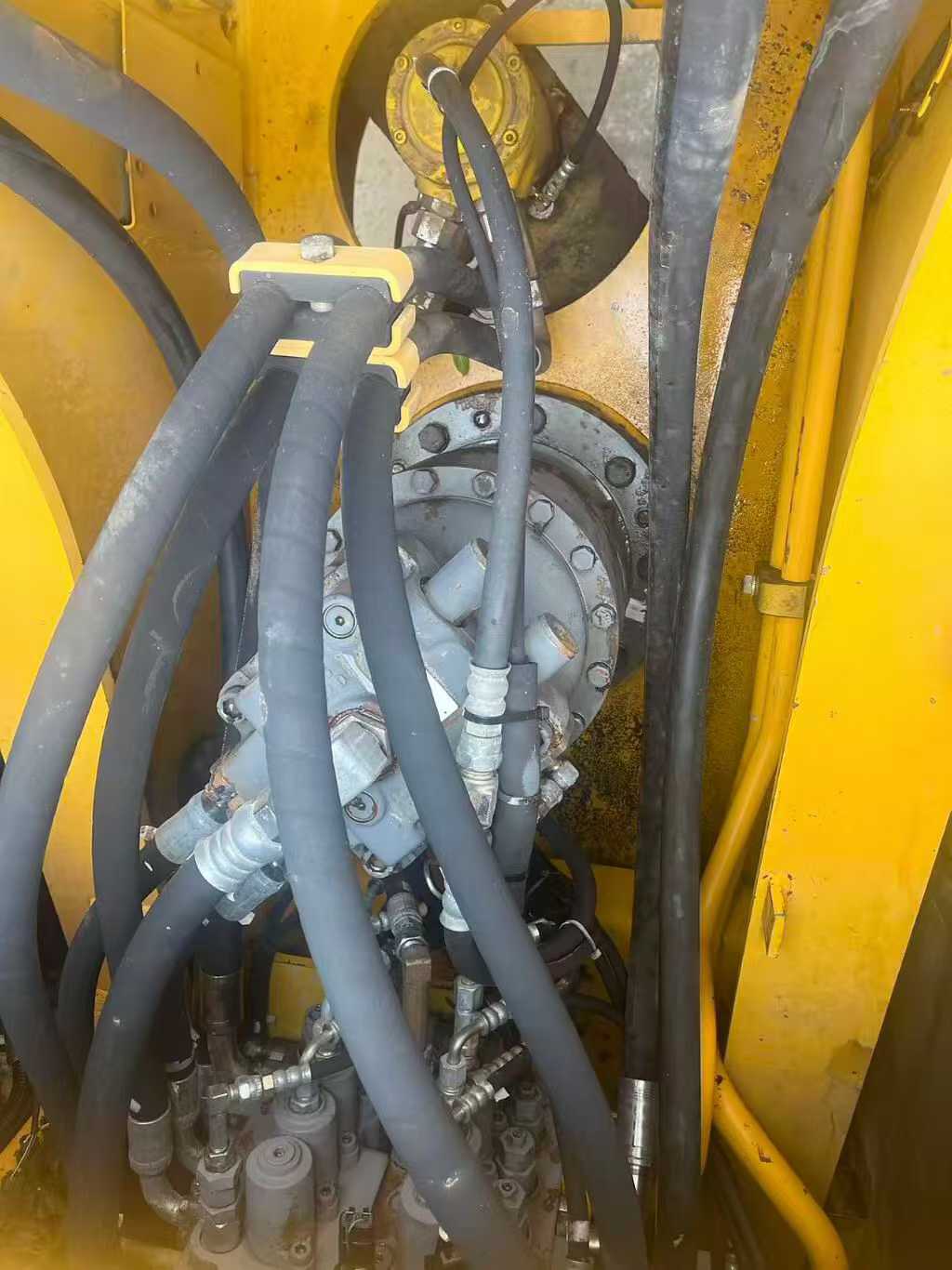

Used Kato HD820V Excavator 2016 Model / 7

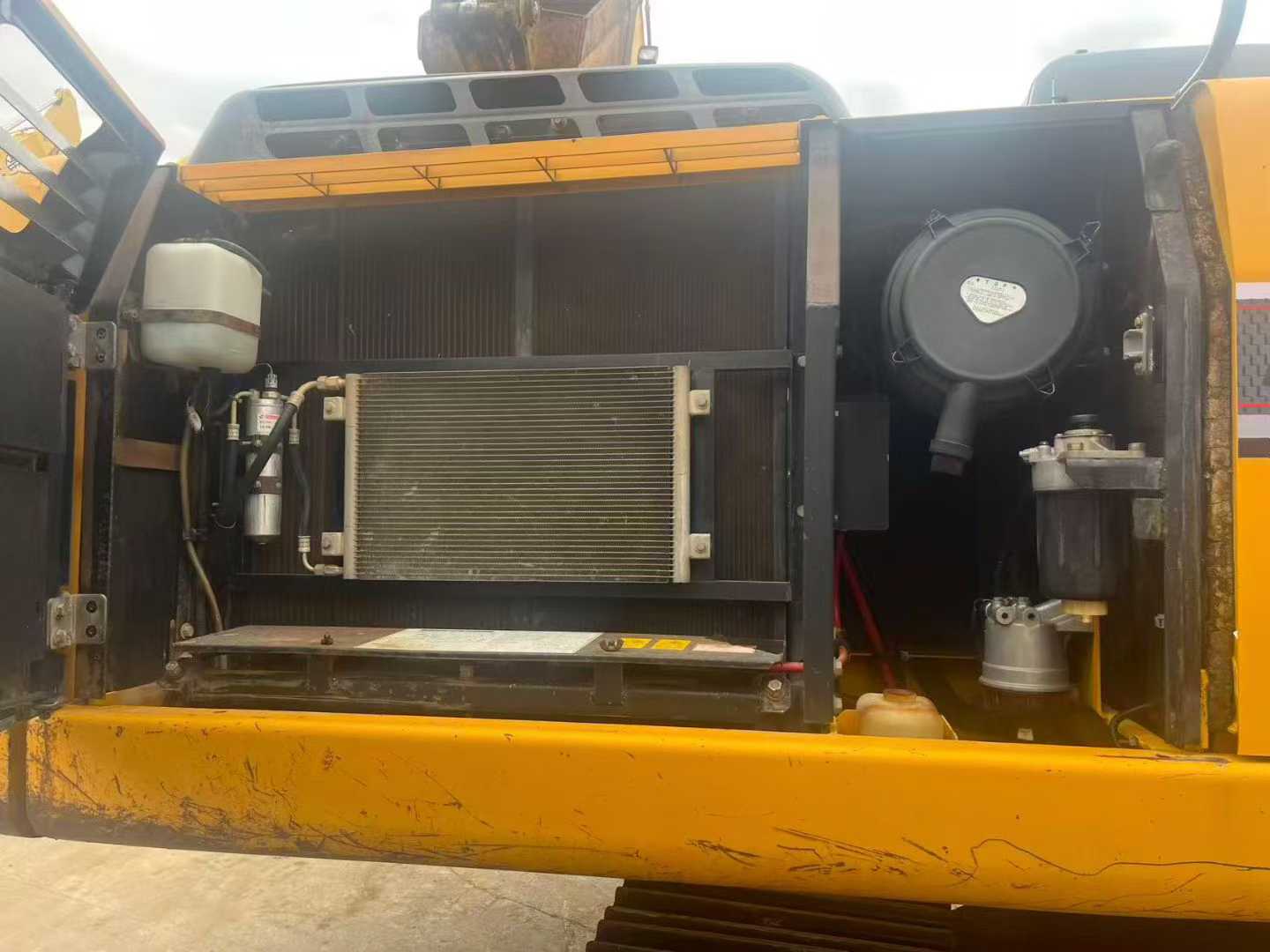

Used Kato HD820V Excavator 2016 Model / 8

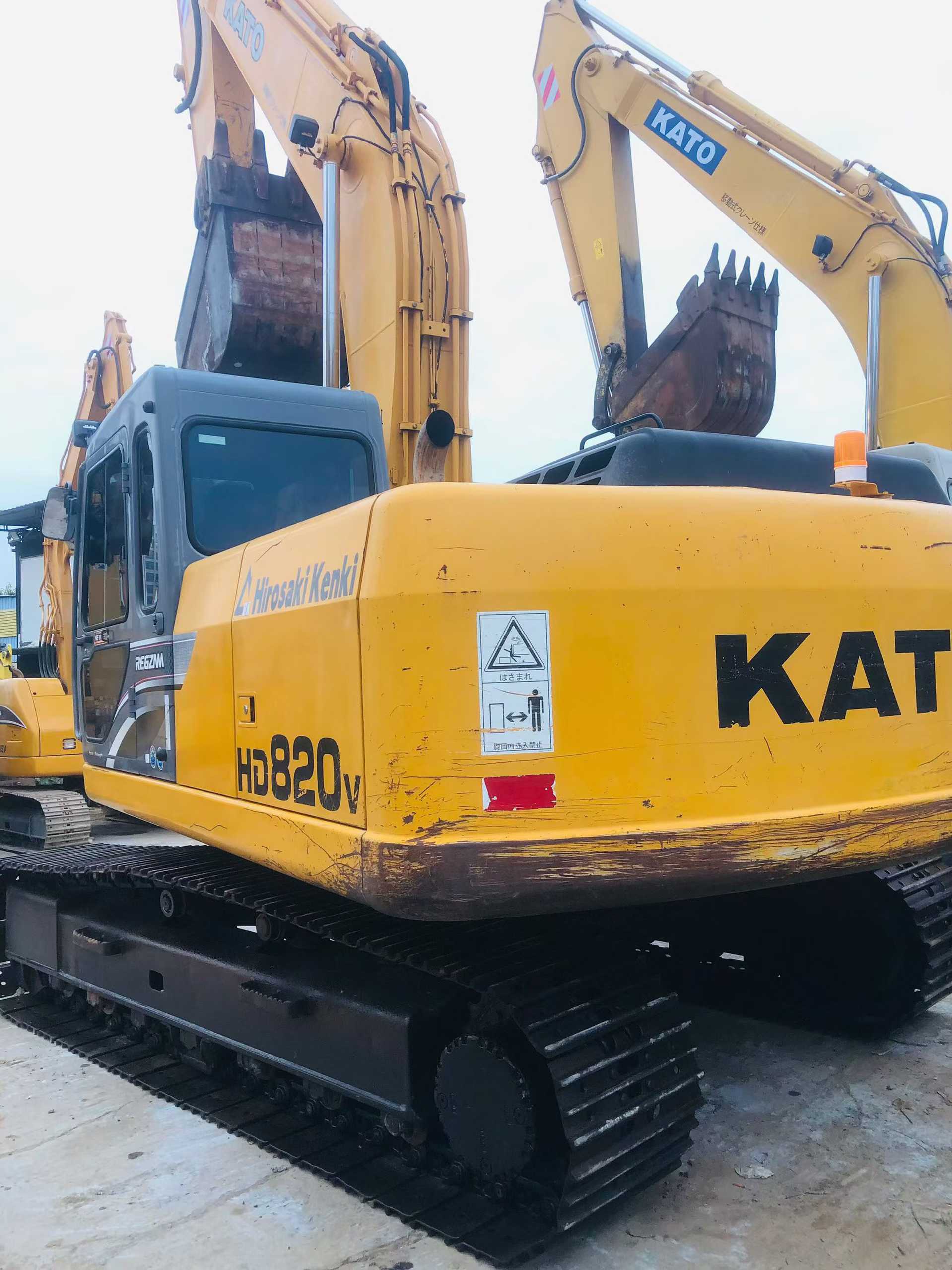

Used Kato HD820V Excavator 2016 Model / 9

Product Description

【 Product Name 】 : Original imported Kato HD820V second-hand excavator 【 Basic Information 】 - Brand: Kato Model: HD820V - Working time: The cumulative working time of this machine is 4,500 hours, and it is in good condition. - Year of manufacture: 2015 【 Power System 】 The engine is equipped with a high-performance original Japanese imported engine, ensuring strong power output and excellent fuel economy. It can maintain stable operation even under harsh working conditions, reducing maintenance costs and downtime. 【 Hydraulic System 】 It adopts an advanced closed center load sensing hydraulic system, featuring fast response speed and precise operation. Whether it is meticulous operation or heavy-load excavation, it can handle it with ease, improving work efficiency while reducing energy consumption. 【 Features and Highlights 】 - Electronic clock design: Equipped with a high-precision electronic clock, it is not only elegant and stylish but also convenient for the driver to check the current time at any time, enhancing the technological feel of the cockpit. - Comfortable driving experience: The spacious and comfortable cab is equipped with adjustable seats and an air conditioning system, so you won't feel tired even after long hour

SpecificationsValue
No.965842
Tonnage (tons)20
Working weight (kg)19900
Bucket capacity (m³)0.45-1.1
Boom length (mm)5630
Rod length (mm)2930
Country of originJapan
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeMitsubishi 4M50-TLE3A
Rated power (kw/rpm)112.5/2000
Cooling modewater-cooling
Cylinder diameter × stroke (mm)114 x 120
Number of cylinders (PCS)4
Displacement (L)4.9
Ground specific pressure (Kpa)45
Rotation speed (rpm)13.5
Climbing ability (%)70
Bucket digging force (kN)150 (Standard mode) /159 (Extra mode)
Rod digging force (kN)109 (Standard mode) /115 (Extra mode)
Travel speed (km/h)3.6/5.5
Rotary hydraulic motor typeConstant piston motor
Type of walking hydraulic motorVariable capacity piston motor
Maximum flow of main pump (l/min)235 x 2
Traveling Hydraulic Circuit (Mpa)36.3
Main pump typeVariable axial piston pump ×2+ gear pump
Working Hydraulic Circuit (Mpa)34.3
Bucket cylinders - Number × diameter × stroke (mm)1-120 x 1090
Bucket rod cylinders - Number × diameter × stroke (mm)1-135 x 1630
Boom cylinders - Number × diameter × stroke (mm)2-125 x 1315
Fuel Tank (L)420
Hydraulic Tank (L)165
Engine Oil changes (L)20.5
Coolant (L)25
Hydraulic System (L)260
Total transport length (mm)9450
Total transport width (mm)2820
Total transport height (mm)2960
Full cab height (mm)2910
Counterweight ground clearance (mm)1010
Minimum ground clearance (mm)465
Minimum turning radius of front working device (mm)3460
Back end turning radius (mm)2750
Total track length (mm)4170
Track gauge (mm)2220
Track plate width (mm)600
Total track width (mm)2820
Track ground length (mm)3370
Maximum digging radius (mm)9910
Maximum digging depth (mm)6700
Maximum excavation height (mm)9760
Maximum unloading height (mm)6830
Maximum vertical digging depth (mm)5870
see more

Overview

No.965842

Brand Name:

Kato

Model Number:

HD820V

Year:

2016

Location:

Guangdong China
