2016 Kobelco SK200-8

1/7
Used Kobelco SK200-8 Excavator 2016 Model / 1

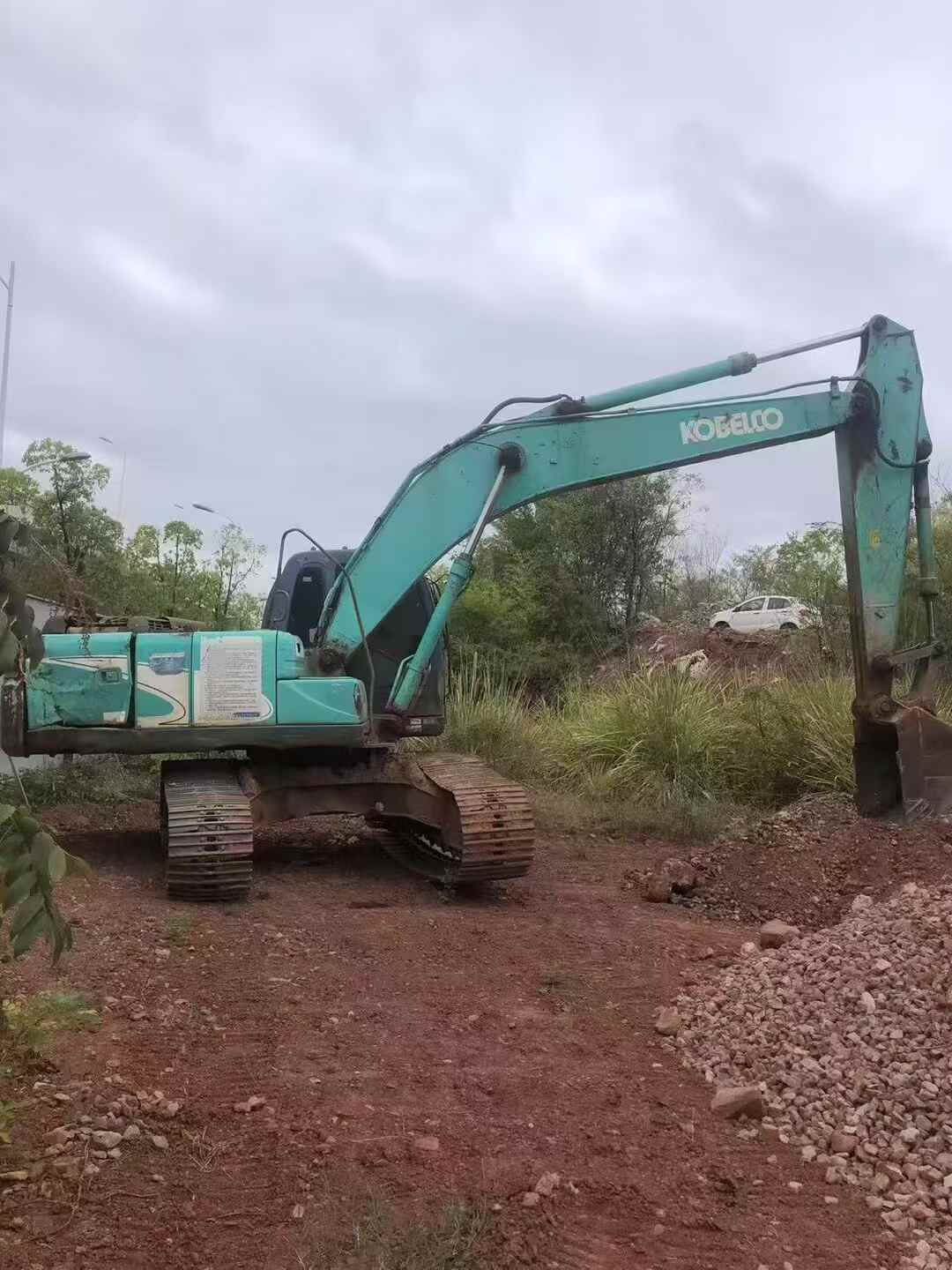

Used Kobelco SK200-8 Excavator 2016 Model / 2

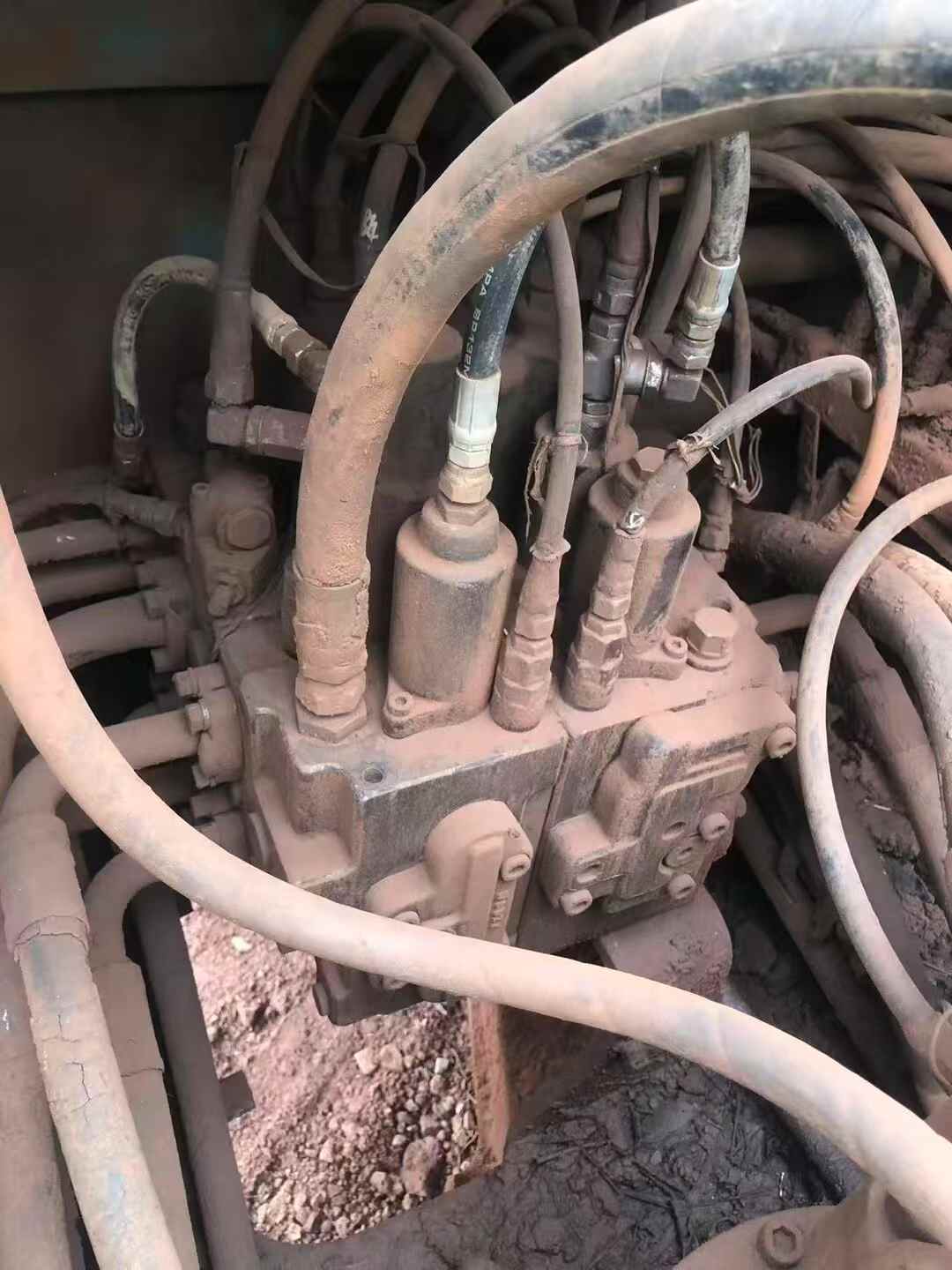

Used Kobelco SK200-8 Excavator 2016 Model / 3
Used Kobelco SK200-8 Excavator 2016 Model / 4

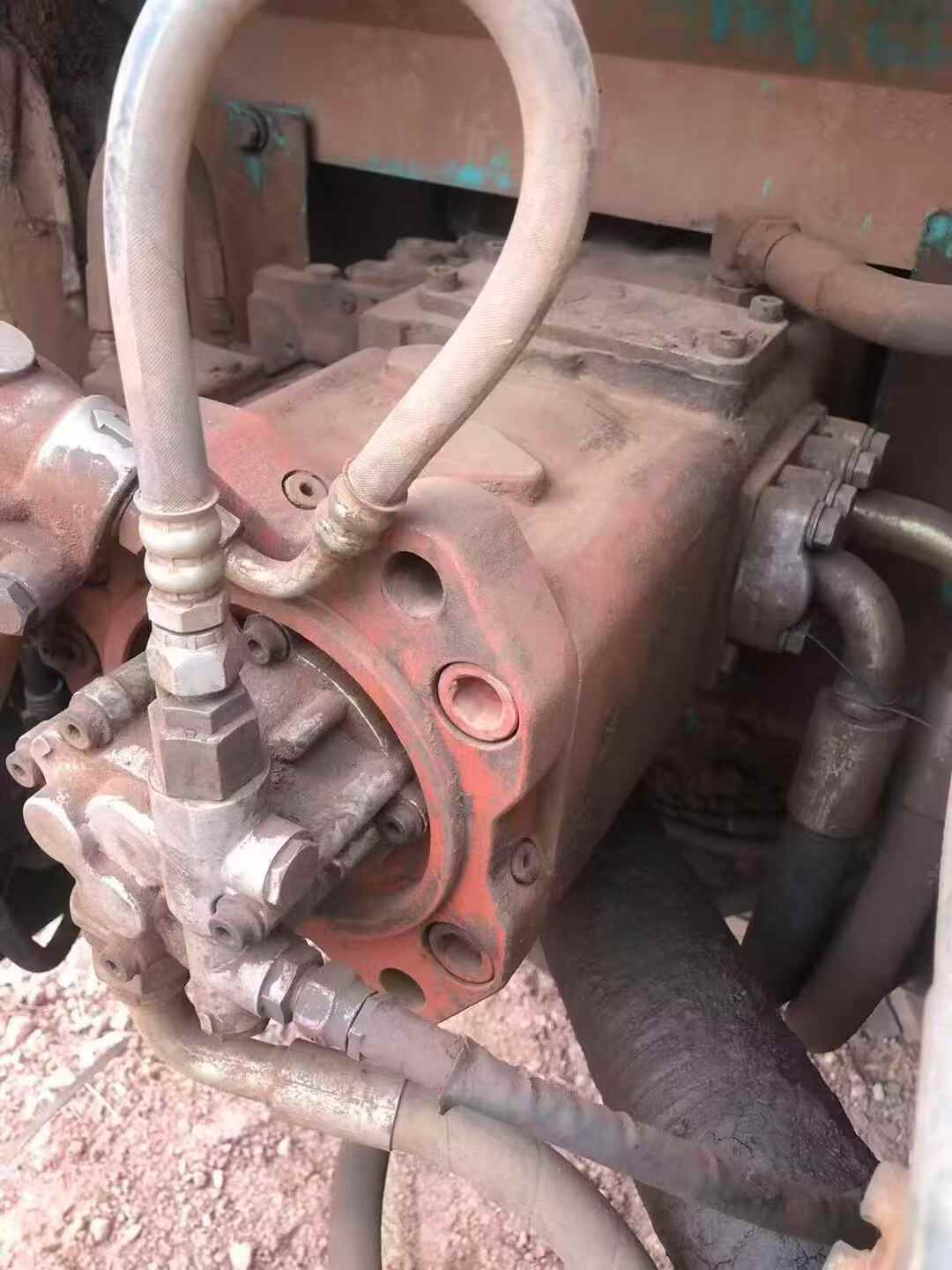

Used Kobelco SK200-8 Excavator 2016 Model / 5
Used Kobelco SK200-8 Excavator 2016 Model / 6

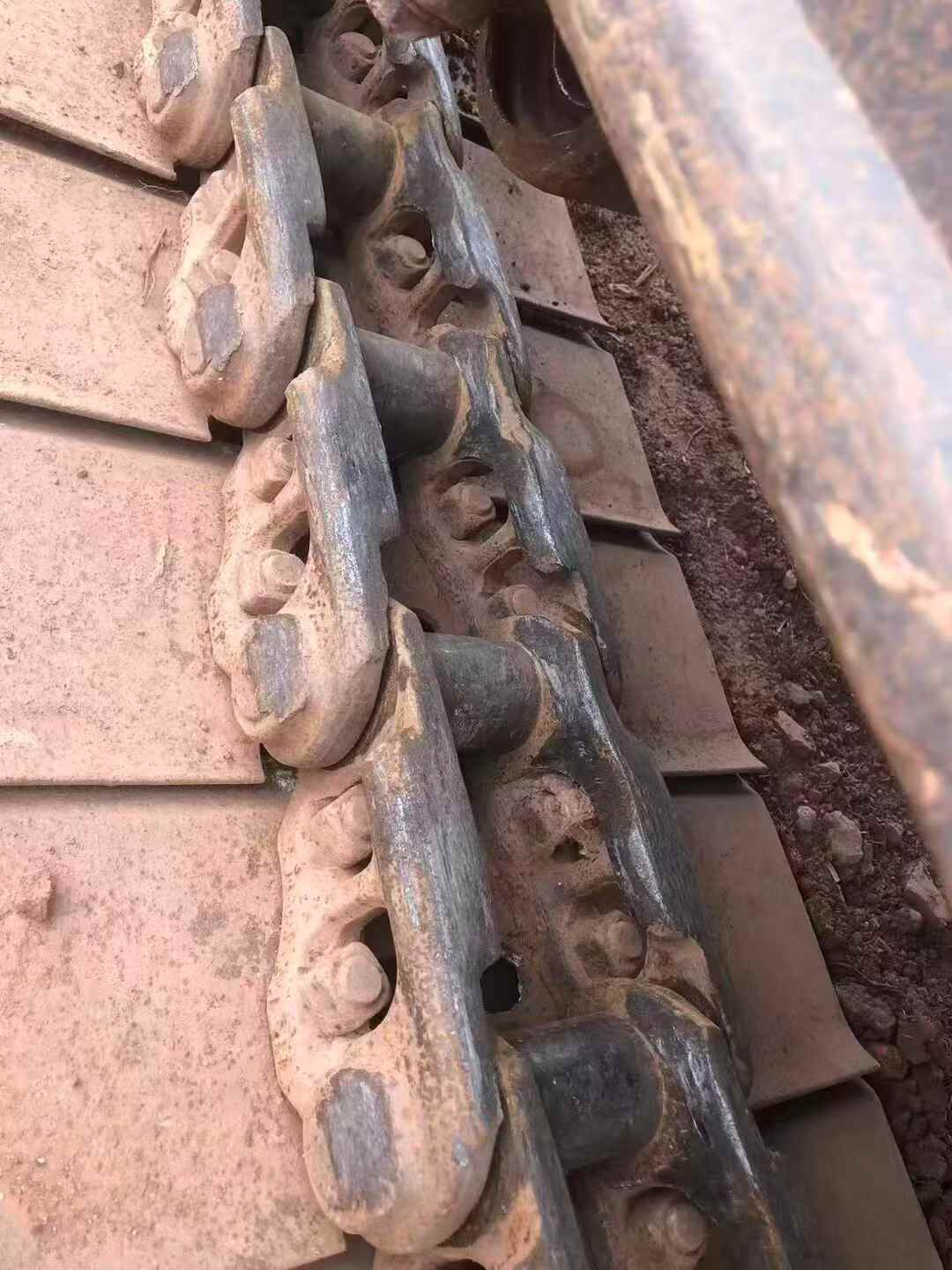

Used Kobelco SK200-8 Excavator 2016 Model / 7

Product Description

【 Premium Recommendation 】 The second-hand Kobelco SK200-8 excavator has a well-maintained appearance and an excellent overall condition. It is definitely a high-quality second-hand excavator with high cost performance. This Kobelco 200-8 has been well maintained and serviced from beginning to end, with a working time of only 3,500 hours. For a second-hand excavator, this usage period is very short, indicating that it still has a long service life. In terms of the power system, this Kobelco 200-8 is equipped with an original imported engine from Japan, which is powerful, stable and reliable, and can easily meet the operation requirements under various complex working conditions. It can maintain efficient operation even in harsh environments, with excellent fuel economy performance, significantly reducing operating costs. Meanwhile, this model is equipped with an advanced electronic control system that can automatically adjust the rotational speed according to the actual load to achieve the best performance output. The hydraulic system is a major highlight of this excavator. It adopts the latest generation of high-pressure common rail technology, which not only improves work efficiency but also enhances operational flexibility and smo

SpecificationsValue
No.964155
Tonnage (tons)20
Working weight (kg)20600
Bucket capacity (m³)0.8
Rod length (mm)2.94
Country of originHangzhou
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeHino J05E
Rated power (kw/rpm)114/2000
Cooling modewater-cooling
Cylinder diameter × stroke (mm)112 x 130
Number of cylinders (PCS)4
Displacement (L)5.123
Working formDirect injection, four stroke, turbocharged, built-in intercooling
Ground specific pressure (Kpa)46
Rotation speed (rpm)12.5
Climbing ability (%)70/35 °
Bucket digging force (kN)143
Rod digging force (kN)102
Travel speed (km/h)3.6/6.0
Maximum flow of main pump (l/min)2 x 220
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)29
Control Hydraulic Circuit (Mpa)5
Hydraulic crushing pipeline is standardis
Main pump typeDual variable displacement axial piston pump ×2+ pilot gear pump ×1
Working Hydraulic Circuit (Mpa)34.3
Bucket cylinders - Number × diameter × stroke (mm)120 x 1080
Bucket rod cylinders - Number × diameter × stroke (mm)135 x 1558
Boom cylinders - Number × diameter × stroke (mm)120 x 1355
Fuel Tank (L)370
Hydraulic Tank (L)146
Engine Oil changes (L)22
Coolant (L)22
Total transport length (mm)9450
Total transport width (mm)2800
Total transport height (mm)2980
Counterweight ground clearance (mm)1060
Minimum ground clearance (mm)450
Minimum turning radius of front working device (mm)3540
Back end turning radius (mm)2750
Total track length (mm)4170
Track gauge (mm)2200
Track plate width (mm)600/700/800
Total track width (mm)2800
Track ground length (mm)3370
Maximum digging radius (mm)9900
Maximum digging depth (mm)6700
Maximum excavation height (mm)9720
Maximum unloading height (mm)6910
Maximum vertical digging depth (mm)6100
Bulldozer lift or depth (mm)No bulldozer
Dodging plate width × height (mm)No bulldozer
Maximum excavation radius of stop surface (mm)9730
Maximum effective digging depth (mm)6520
see more

Overview

No.964155

Brand Name:

Kobelco

Model Number:

SK200-8

Year:

2016

Location:

Fujian China
