2016 Kobelco SK200-8

1/7
Used Kobelco SK200-8 Excavator 2016 Model / 1

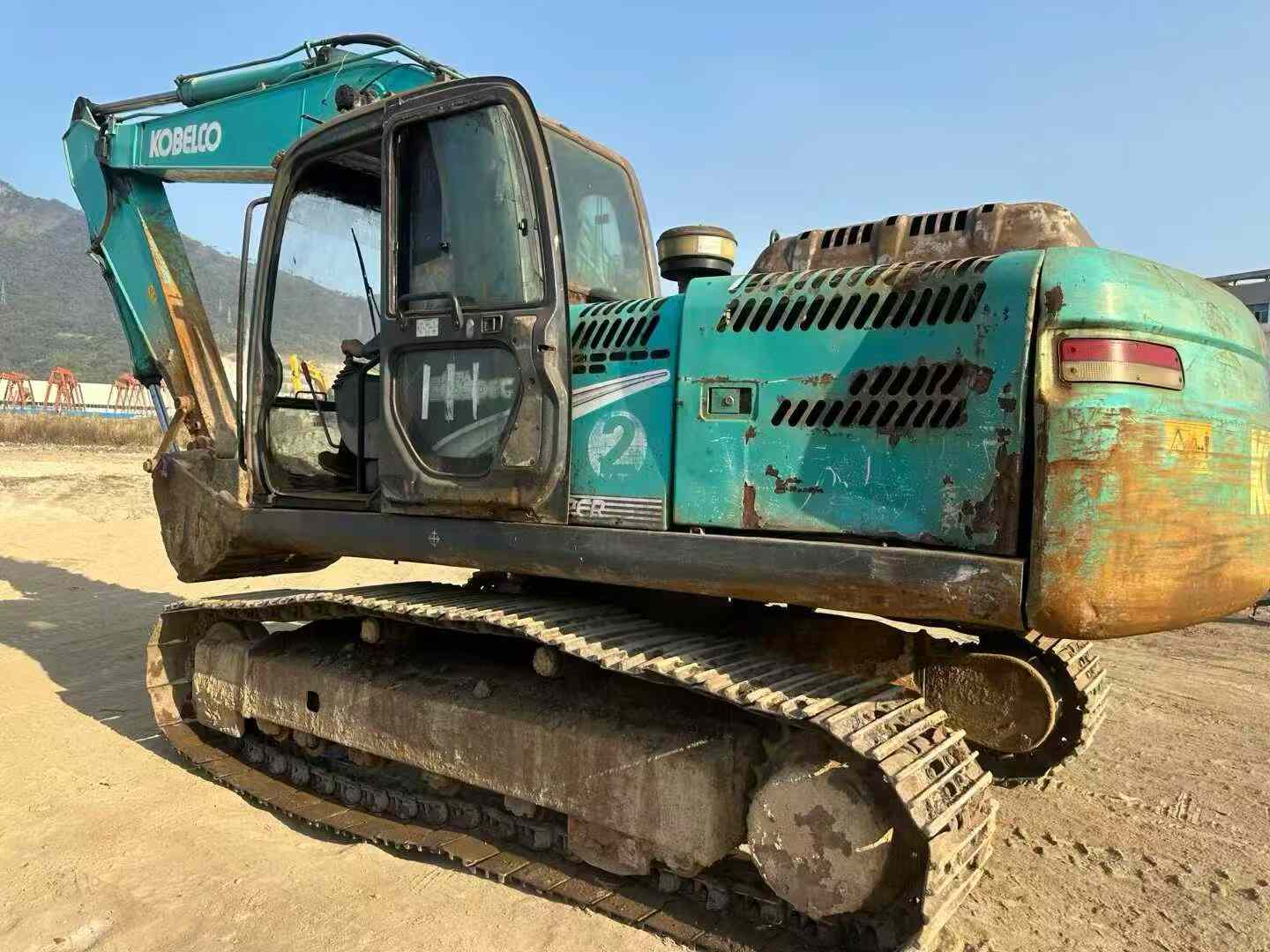

Used Kobelco SK200-8 Excavator 2016 Model / 2
Used Kobelco SK200-8 Excavator 2016 Model / 3

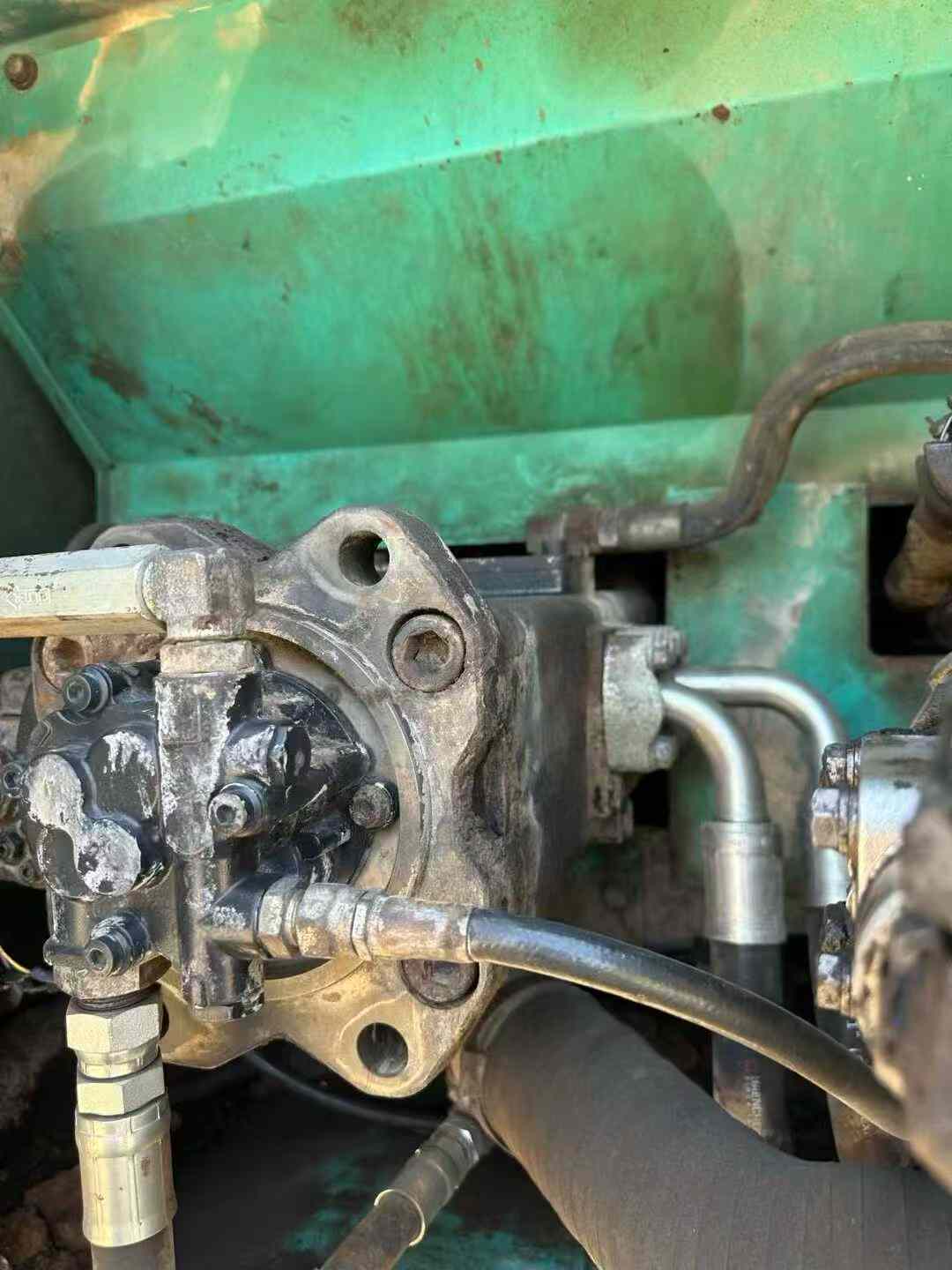

Used Kobelco SK200-8 Excavator 2016 Model / 4

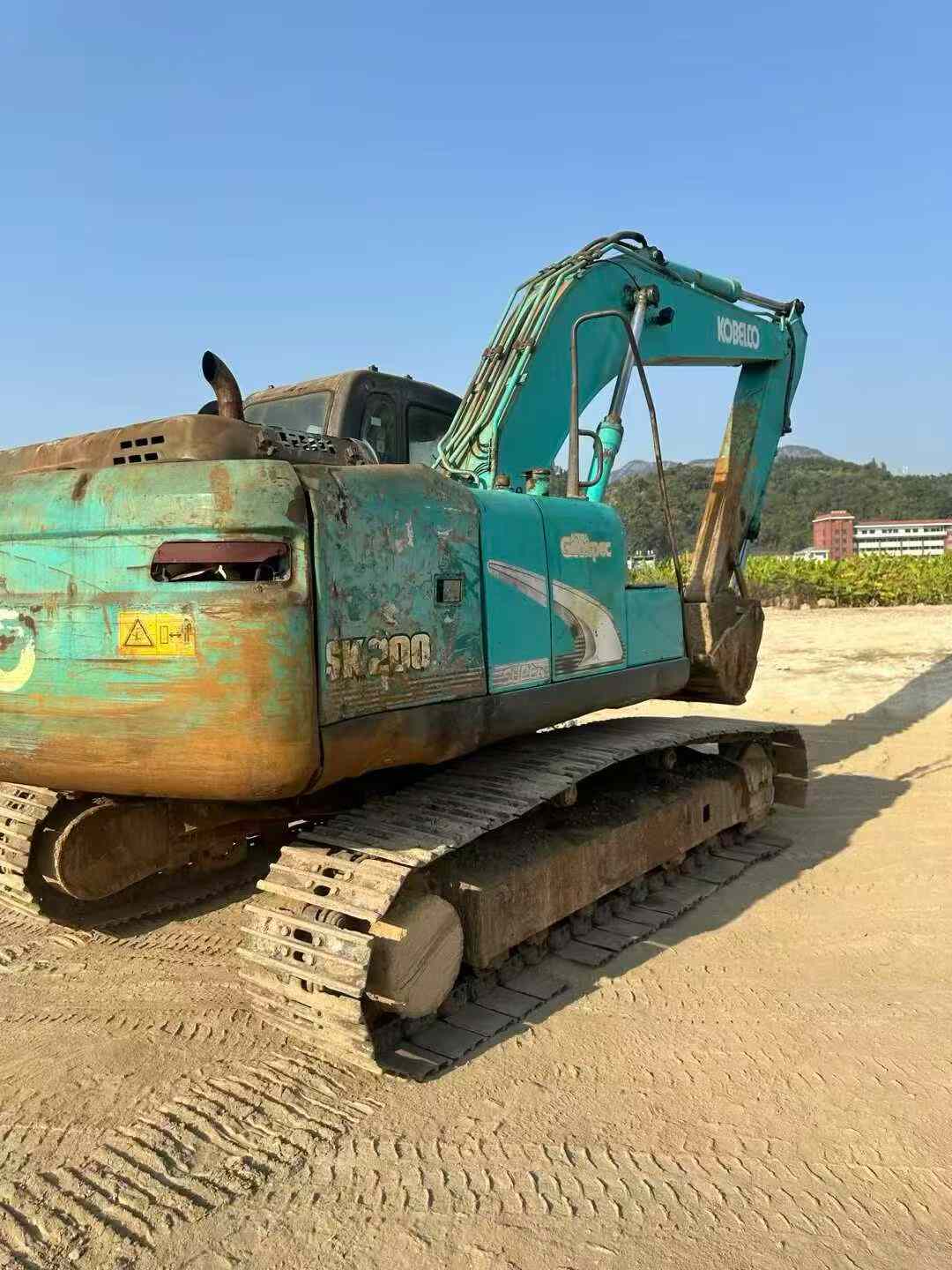

Used Kobelco SK200-8 Excavator 2016 Model / 5

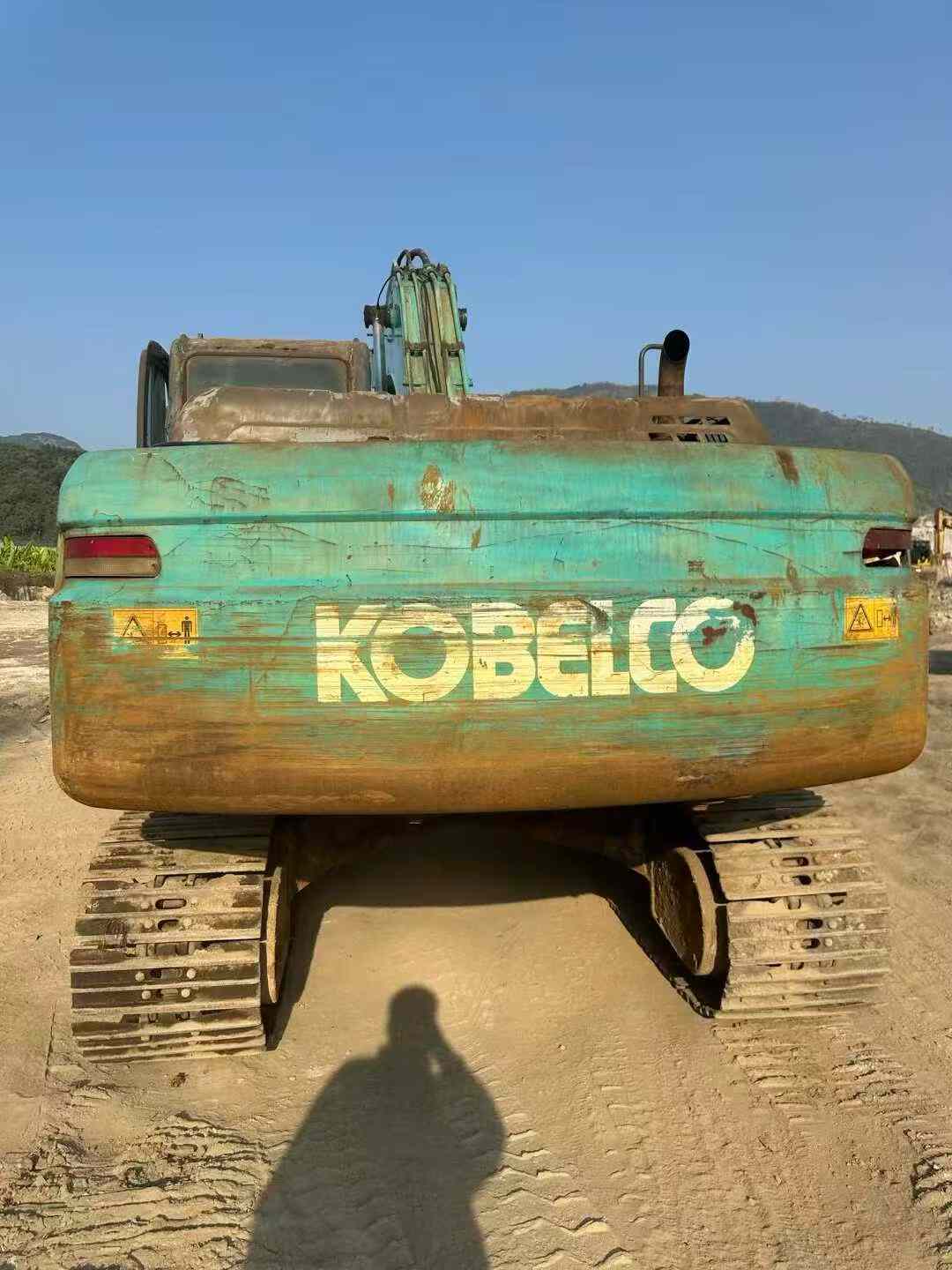

Used Kobelco SK200-8 Excavator 2016 Model / 6

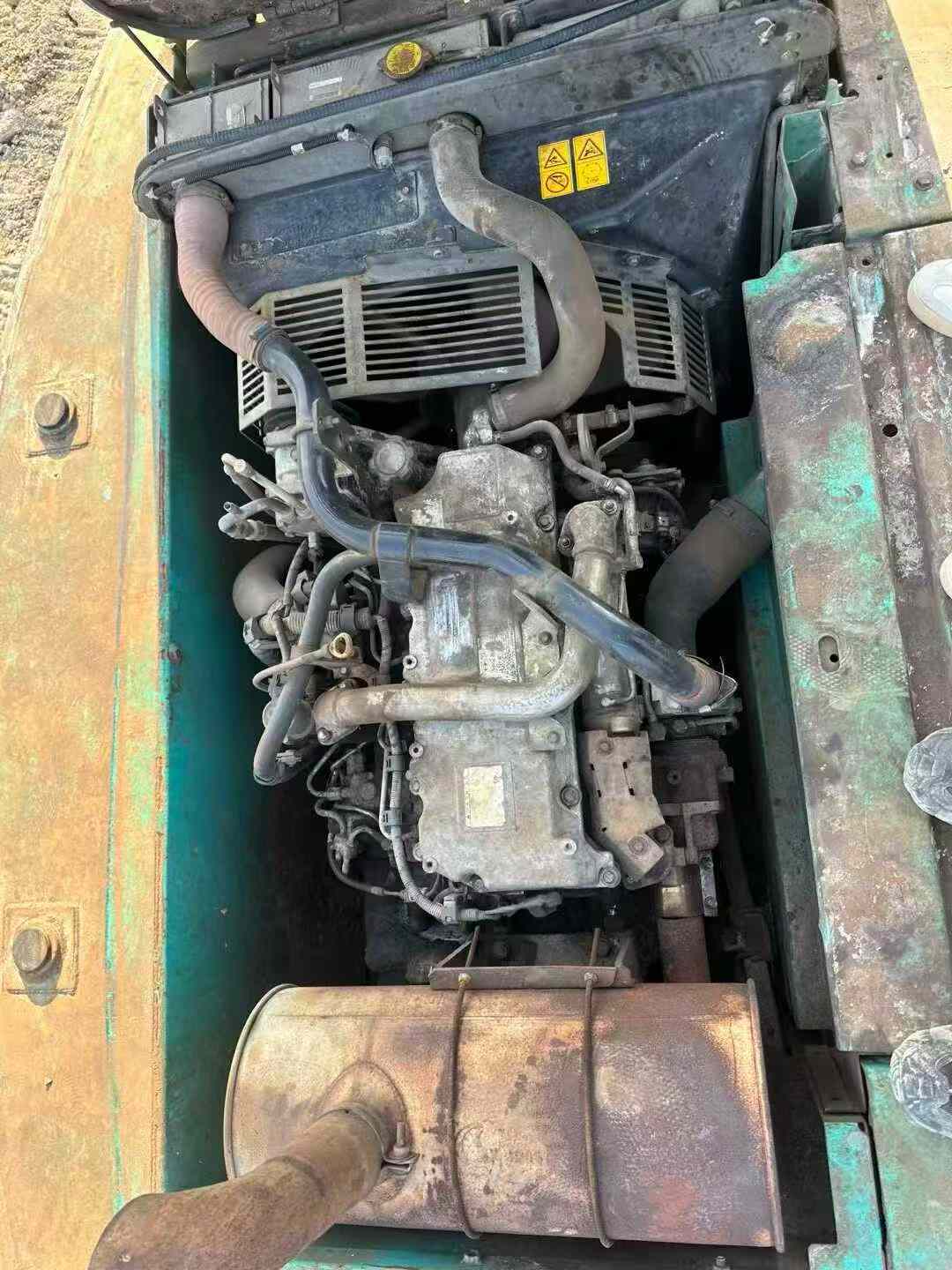

Used Kobelco SK200-8 Excavator 2016 Model / 7

Product Description

"Recommendation of Premium Second-hand Excavators This Kobelco 200-8 excavator is one of the highly praised models in the market. The equipment is currently on sale at the construction site and in good condition. It is ready for on-site inspection and trial operation at any time. The working time of this excavator is only over 6,000 hours. For a medium-sized excavator, this usage period is very ideal, indicating that it still has a long service life. In terms of the power system, the Kobelco 200-8 is equipped with a high-performance engine, ensuring strong and stable power output. It can handle both hard rocks and soft soil with ease. More importantly, this engine has excellent fuel economy, which can effectively reduce operating costs and improve work efficiency. The hydraulic system adopts advanced technology, ensuring smoothness and accuracy during the operation process. The fast-response control system enables drivers to control the movements of the robotic arm more flexibly, allowing them to handle complex working environments with ease. In addition, its highly efficient cooling system can effectively prevent overheating problems and extend the service life of the entire system. In conclusion, this is a second-hand excavator wi

SpecificationsValue
No.966740
Tonnage (tons)20
Working weight (kg)20600
Bucket capacity (m³)0.8
Rod length (mm)2.94
Country of originHangzhou
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeHino J05E
Rated power (kw/rpm)114/2000
Cooling modewater-cooling
Cylinder diameter × stroke (mm)112 x 130
Number of cylinders (PCS)4
Displacement (L)5.123
Working formDirect injection, four stroke, turbocharged, built-in intercooling
Ground specific pressure (Kpa)46
Rotation speed (rpm)12.5
Climbing ability (%)70/35 °
Bucket digging force (kN)143
Rod digging force (kN)102
Travel speed (km/h)3.6/6.0
Maximum flow of main pump (l/min)2 x 220
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)29
Control Hydraulic Circuit (Mpa)5
Hydraulic crushing pipeline is standardis
Main pump typeDual variable displacement axial piston pump ×2+ pilot gear pump ×1
Working Hydraulic Circuit (Mpa)34.3
Bucket cylinders - Number × diameter × stroke (mm)120 x 1080
Bucket rod cylinders - Number × diameter × stroke (mm)135 x 1558
Boom cylinders - Number × diameter × stroke (mm)120 x 1355
Fuel Tank (L)370
Hydraulic Tank (L)146
Engine Oil changes (L)22
Coolant (L)22
Total transport length (mm)9450
Total transport width (mm)2800
Total transport height (mm)2980
Counterweight ground clearance (mm)1060
Minimum ground clearance (mm)450
Minimum turning radius of front working device (mm)3540
Back end turning radius (mm)2750
Total track length (mm)4170
Track gauge (mm)2200
Track plate width (mm)600/700/800
Total track width (mm)2800
Track ground length (mm)3370
Maximum digging radius (mm)9900
Maximum digging depth (mm)6700
Maximum excavation height (mm)9720
Maximum unloading height (mm)6910
Maximum vertical digging depth (mm)6100
Bulldozer lift or depth (mm)No bulldozer
Dodging plate width × height (mm)No bulldozer
Maximum excavation radius of stop surface (mm)9730
Maximum effective digging depth (mm)6520
see more

Overview

No.966740

Brand Name:

Kobelco

Model Number:

SK200-8

Year:

2016

Location:

Fujian China
