Product Description

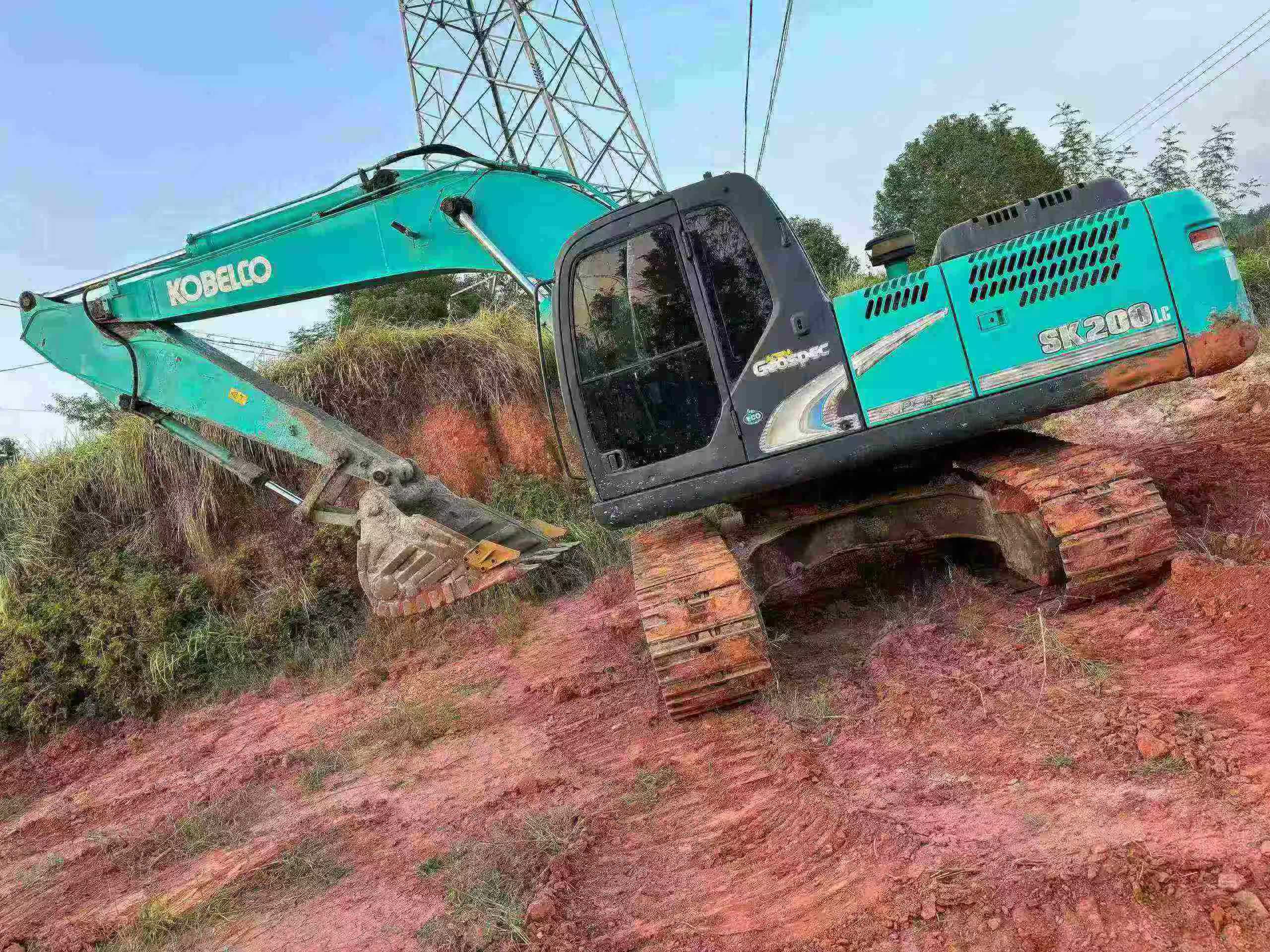

The 2014 Kobelco 200 super 8 black large frame, pure earthmoving truck, the three major components are in their original state without a single screw being moved, looking very beautiful. All the chassis parts are firm, and the newly replaced chains on both sides are still in good paint. It's in an extremely good condition. Even experienced drivers who fly fast find it hard to handle. Let's not talk about the machine condition but only the price
| Specifications | Value |
|---|---|
| No. | 932114 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20600 |
| Bucket capacity (m³) | 0.8 |
| Rod length (mm) | 2.94(Standard) |
| Country of origin | Hangzhou |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Hino J05E |
| Rated power (kw/rpm) | 114/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 112 x 130 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.123 |
| Working form | Direct injection, four stroke, turbocharged, built-in intercooling |
| Ground specific pressure (Kpa) | 46 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 143 |
| Rod digging force (kN) | 102 |
| Travel speed (km/h) | 3.6/6.0 |
| Maximum flow of main pump (l/min) | 2 x 220 + 20 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 29 |
| Control Hydraulic Circuit (Mpa) | 5 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Dual variable displacement axial piston pump ×2+ pilot gear pump ×1 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 120 x 1080 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 135 x 1558 |
| Boom cylinders - Number × diameter × stroke (mm) | 120 x 1355 |
| Fuel Tank (L) | 370 |
| Hydraulic Tank (L) | 146 |
| Engine Oil changes (L) | 22 |
| Coolant (L) | 22 |
| Total transport length (mm) | 9450 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2980 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum ground clearance (mm) | 450 |
| Minimum turning radius of front working device (mm) | 3540 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4170 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3370 |
| Maximum digging radius (mm) | 9900 |
| Maximum digging depth (mm) | 6700 |
| Maximum excavation height (mm) | 9720 |
| Maximum unloading height (mm) | 6910 |
| Maximum vertical digging depth (mm) | 6100 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 9730 |
| Maximum effective digging depth (mm) | 6520 |
