2016 Kobelco SK2008

1/3
Used Kobelco SK2008 Excavator 2016 Model / 1

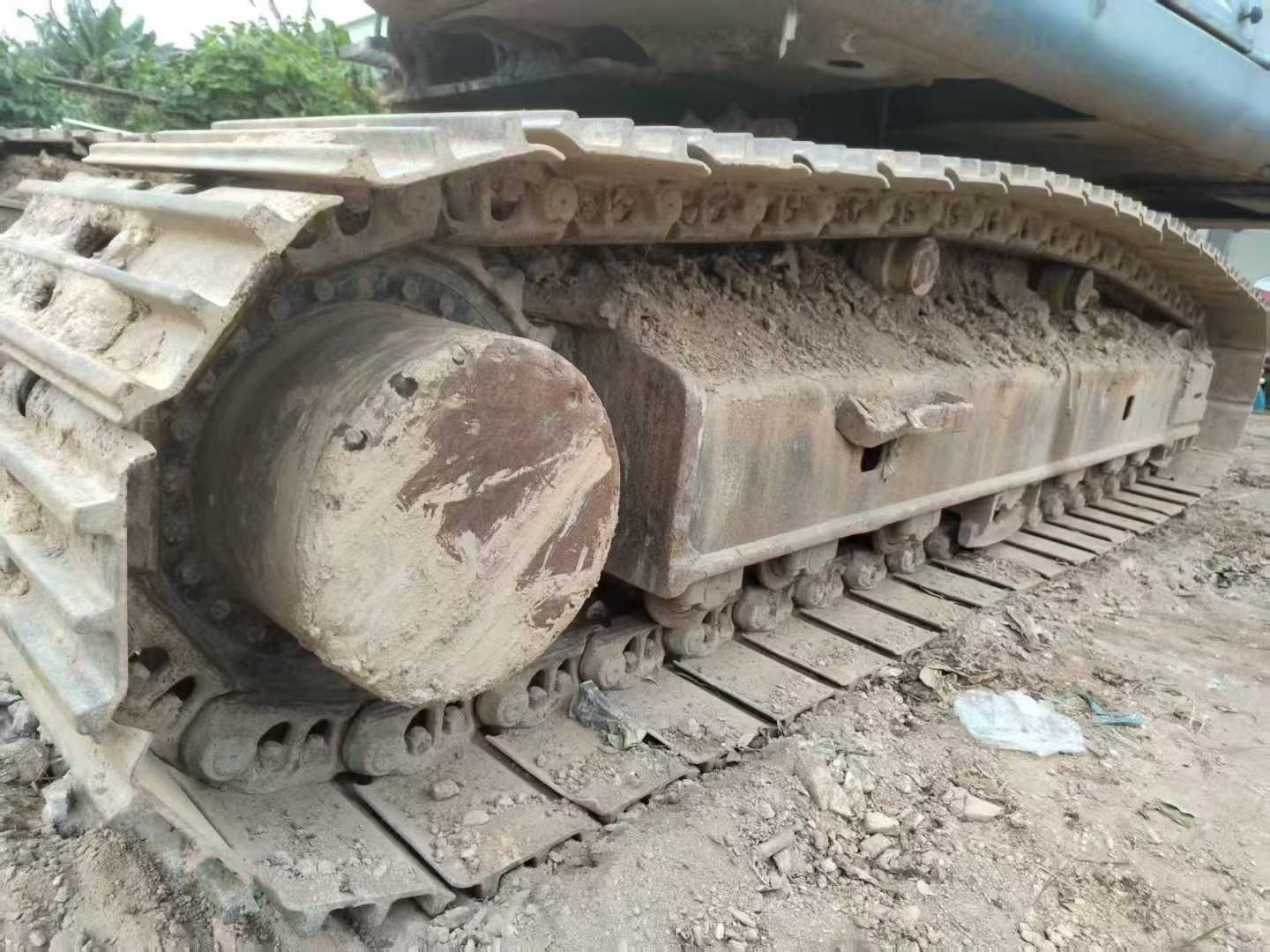

Used Kobelco SK2008 Excavator 2016 Model / 2

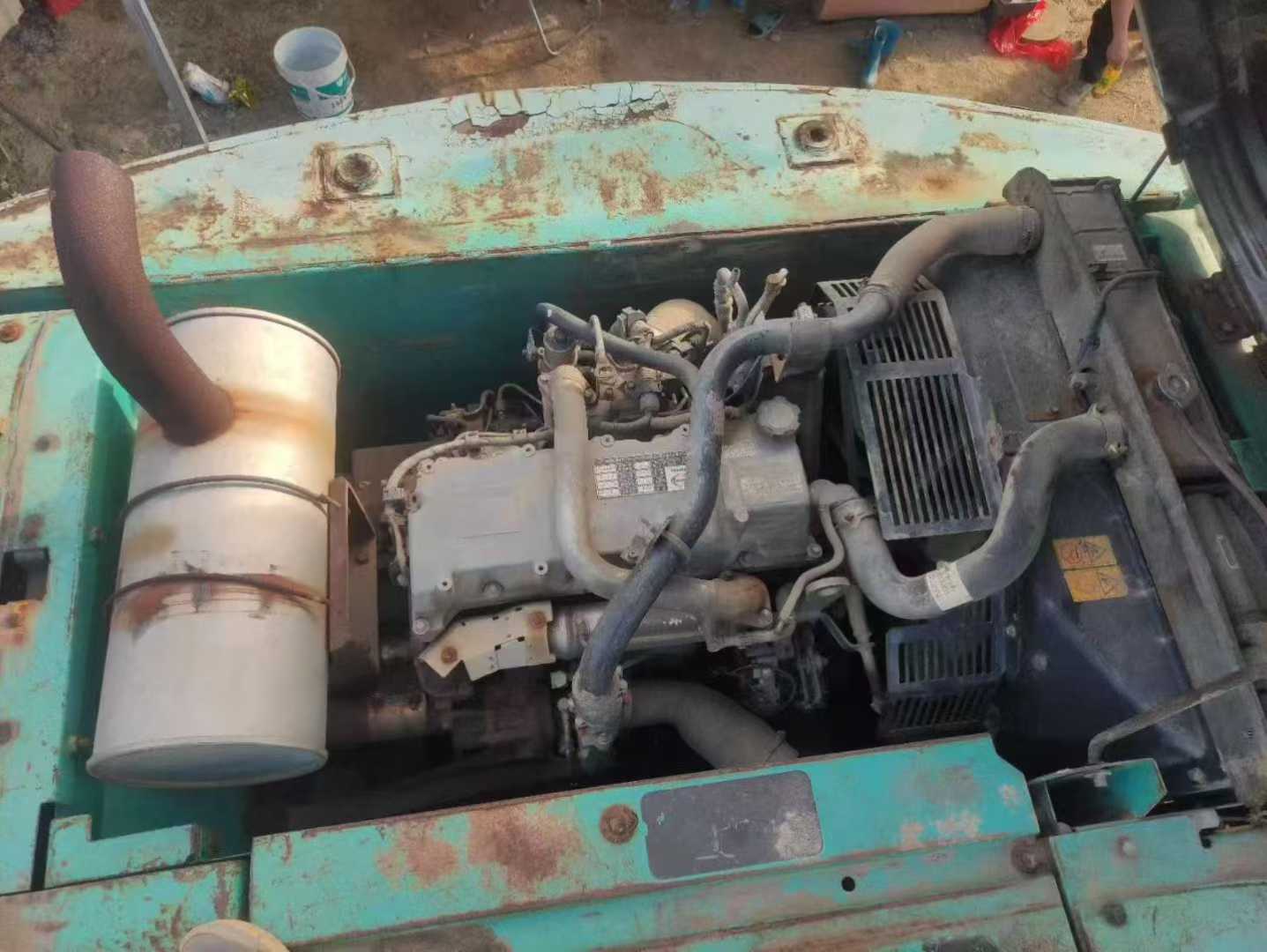

Used Kobelco SK2008 Excavator 2016 Model / 3

Product Description

【 Second-hand Kobelco SK200-8 excavator 】 This second-hand Kobelco SK200-8 excavator is one of the highly praised medium-sized excavators in the market. It features outstanding performance and excellent durability, making it highly suitable for various engineering operations. This machine has a working time of 3,500 hours and is in good working condition. It is well maintained overall and has no record of major repairs. The mechanical condition is very ideal. In terms of the power system, this machine is equipped with an original imported Cummins 6-cylinder in-line water-cooled turbocharged engine, with a maximum power output of 127kW at 2000rpm. It not only has strong power but also good fuel economy, which can meet the needs of long-term continuous operation. Meanwhile, this engine also features low noise and low emissions, meeting environmental protection requirements. The hydraulic system adopts advanced negative flow control technology, ensuring smooth operation and response speed. It can handle both excavation and loading with ease. In addition, this model is equipped with an efficient cooling system, which can maintain stable working performance even in high-temperature environments. It is worth mentioning that the price of

SpecificationsValue
No.961357
Tonnage (tons)20
Working weight (kg)20600
Bucket capacity (m³)0.8
Rod length (mm)2.94(Standard)
Country of originHangzhou
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeHino J05E
Rated power (kw/rpm)114/2000
Cooling modewater-cooling
Cylinder diameter × stroke (mm)112 x 130
Number of cylinders (PCS)4
Displacement (L)5.123
Working formDirect injection, four stroke, turbocharged, built-in intercooling
Ground specific pressure (Kpa)46
Rotation speed (rpm)12.5
Climbing ability (%)70/35 °
Bucket digging force (kN)143
Rod digging force (kN)102
Travel speed (km/h)3.6/6.0
Maximum flow of main pump (l/min)2 x 220 + 20
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)29
Control Hydraulic Circuit (Mpa)5
Hydraulic crushing pipeline is standardis
Main pump typeDual variable displacement axial piston pump ×2+ pilot gear pump ×1
Working Hydraulic Circuit (Mpa)34.3
Bucket cylinders - Number × diameter × stroke (mm)120 x 1080
Bucket rod cylinders - Number × diameter × stroke (mm)135 x 1558
Boom cylinders - Number × diameter × stroke (mm)120 x 1355
Fuel Tank (L)370
Hydraulic Tank (L)146
Engine Oil changes (L)22
Coolant (L)22
Total transport length (mm)9450
Total transport width (mm)2800
Total transport height (mm)2980
Counterweight ground clearance (mm)1060
Minimum ground clearance (mm)450
Minimum turning radius of front working device (mm)3540
Back end turning radius (mm)2750
Total track length (mm)4170
Track gauge (mm)2200
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3370
Maximum digging radius (mm)9900
Maximum digging depth (mm)6700
Maximum excavation height (mm)9720
Maximum unloading height (mm)6910
Maximum vertical digging depth (mm)6100
Bulldozer lift or depth (mm)No bulldozer
Dodging plate width × height (mm)No bulldozer
Maximum excavation radius of stop surface (mm)9730
Maximum effective digging depth (mm)6520
see more

Overview

No.961357

Brand Name:

Kobelco

Model Number:

SK2008

Year:

2016

Location:

Guangdong China
