2016 Kobelco SK2008

1/3
Used Kobelco SK2008 Excavator 2016 Model / 1
Used Kobelco SK2008 Excavator 2016 Model / 2

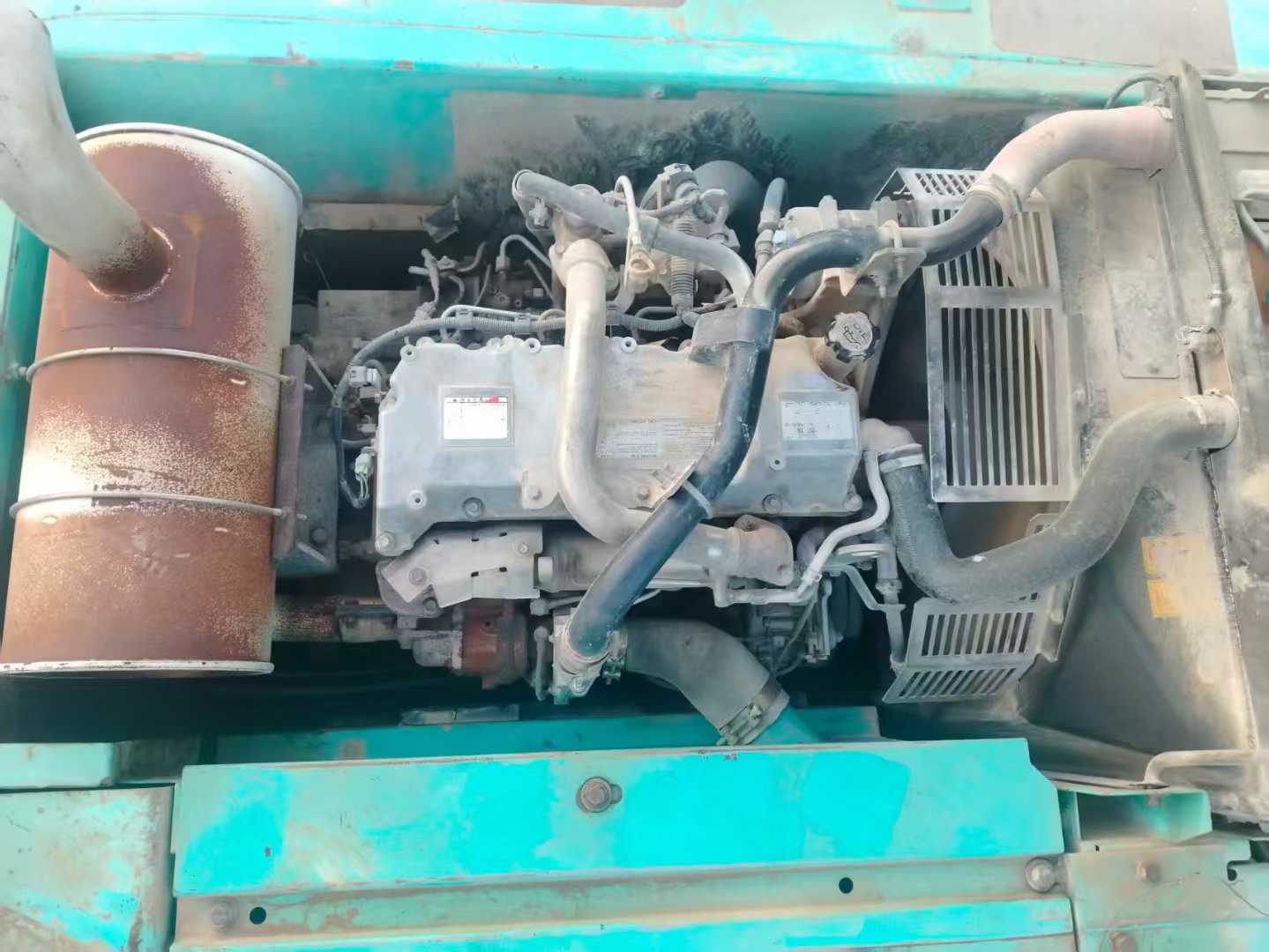

Used Kobelco SK2008 Excavator 2016 Model / 3

Product Description

【 Premium Recommendation 】 Second-hand Kobelco SK200-8 excavator, as fast as an airplane, affordable price! This Kobelco SK200-8 excavator is a highly praised medium-sized excavator in the market. Its working time is only 3,500 hours, equivalent to a nearly brand new device, making it highly suitable for buyers who are seeking high cost performance. This machine is equipped with the well-tested Isuzu 4HK1X engine, which is powerful, stable and reliable. It can provide a maximum power output of up to 102kW, ensuring efficient operation under various complex working conditions. Meanwhile, thanks to its advanced fuel injection technology and optimized combustion chamber design, it has lower fuel consumption and less emissions, meeting the latest national environmental protection standards. In terms of the hydraulic system, the Kobelco SK200-8 adopts its self-developed intelligent hydraulic control system, which not only has a fast response speed but also extremely high operational accuracy. Whether it is excavation, loading or crushing operations, they can all be handled with ease. In addition, this model is also equipped with an automatic idle function, which can automatically reduce the speed when there is no load, further saving fuel

SpecificationsValue
No.962847
Tonnage (tons)20
Working weight (kg)20600
Bucket capacity (m³)0.8
Rod length (mm)2.94(Standard)
Country of originHangzhou
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeHino J05E
Rated power (kw/rpm)114/2000
Cooling modewater-cooling
Cylinder diameter × stroke (mm)112 x 130
Number of cylinders (PCS)4
Displacement (L)5.123
Working formDirect injection, four stroke, turbocharged, built-in intercooling
Ground specific pressure (Kpa)46
Rotation speed (rpm)12.5
Climbing ability (%)70/35 °
Bucket digging force (kN)143
Rod digging force (kN)102
Travel speed (km/h)3.6/6.0
Maximum flow of main pump (l/min)2 x 220 + 20
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)29
Control Hydraulic Circuit (Mpa)5
Hydraulic crushing pipeline is standardis
Main pump typeDual variable displacement axial piston pump ×2+ pilot gear pump ×1
Working Hydraulic Circuit (Mpa)34.3
Bucket cylinders - Number × diameter × stroke (mm)120 x 1080
Bucket rod cylinders - Number × diameter × stroke (mm)135 x 1558
Boom cylinders - Number × diameter × stroke (mm)120 x 1355
Fuel Tank (L)370
Hydraulic Tank (L)146
Engine Oil changes (L)22
Coolant (L)22
Total transport length (mm)9450
Total transport width (mm)2800
Total transport height (mm)2980
Counterweight ground clearance (mm)1060
Minimum ground clearance (mm)450
Minimum turning radius of front working device (mm)3540
Back end turning radius (mm)2750
Total track length (mm)4170
Track gauge (mm)2200
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3370
Maximum digging radius (mm)9900
Maximum digging depth (mm)6700
Maximum excavation height (mm)9720
Maximum unloading height (mm)6910
Maximum vertical digging depth (mm)6100
Bulldozer lift or depth (mm)No bulldozer
Dodging plate width × height (mm)No bulldozer
Maximum excavation radius of stop surface (mm)9730
Maximum effective digging depth (mm)6520
see more

Overview

No.962847

Brand Name:

Kobelco

Model Number:

SK2008

Year:

2016

Location:

Fujian China
