Product Description

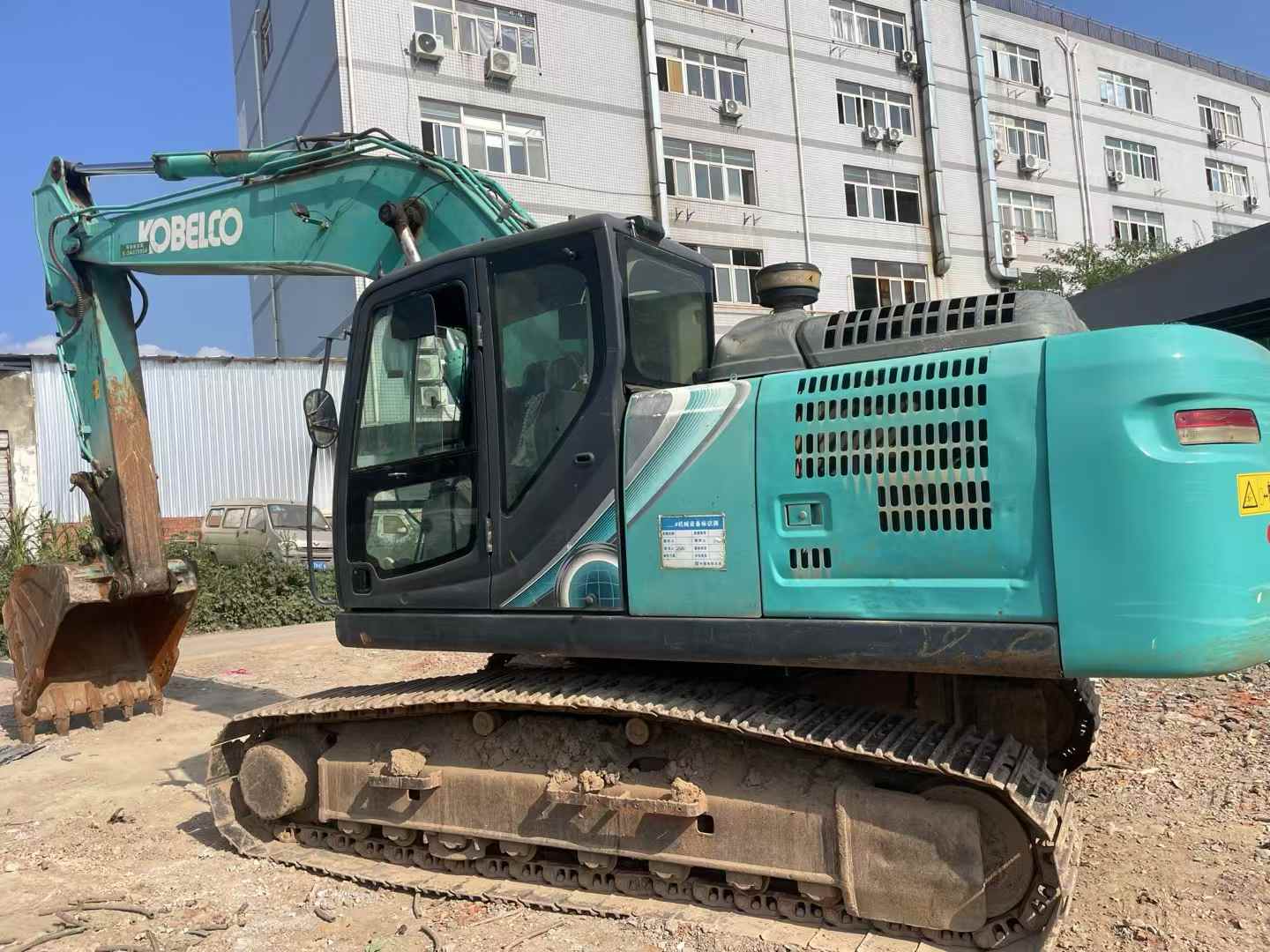

The Kobelco 250-10 working machine from the end of 2017 is exempt from performance inspection, has a fast speed and retains its value for 260,000
| Specifications | Value |
|---|---|
| No. | 901149 |
| Tonnage (tons) | 25 |
| Working weight (kg) | 25600 |
| Bucket capacity (m³) | 1.1 |
| Bucket width (mm) | 1250 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

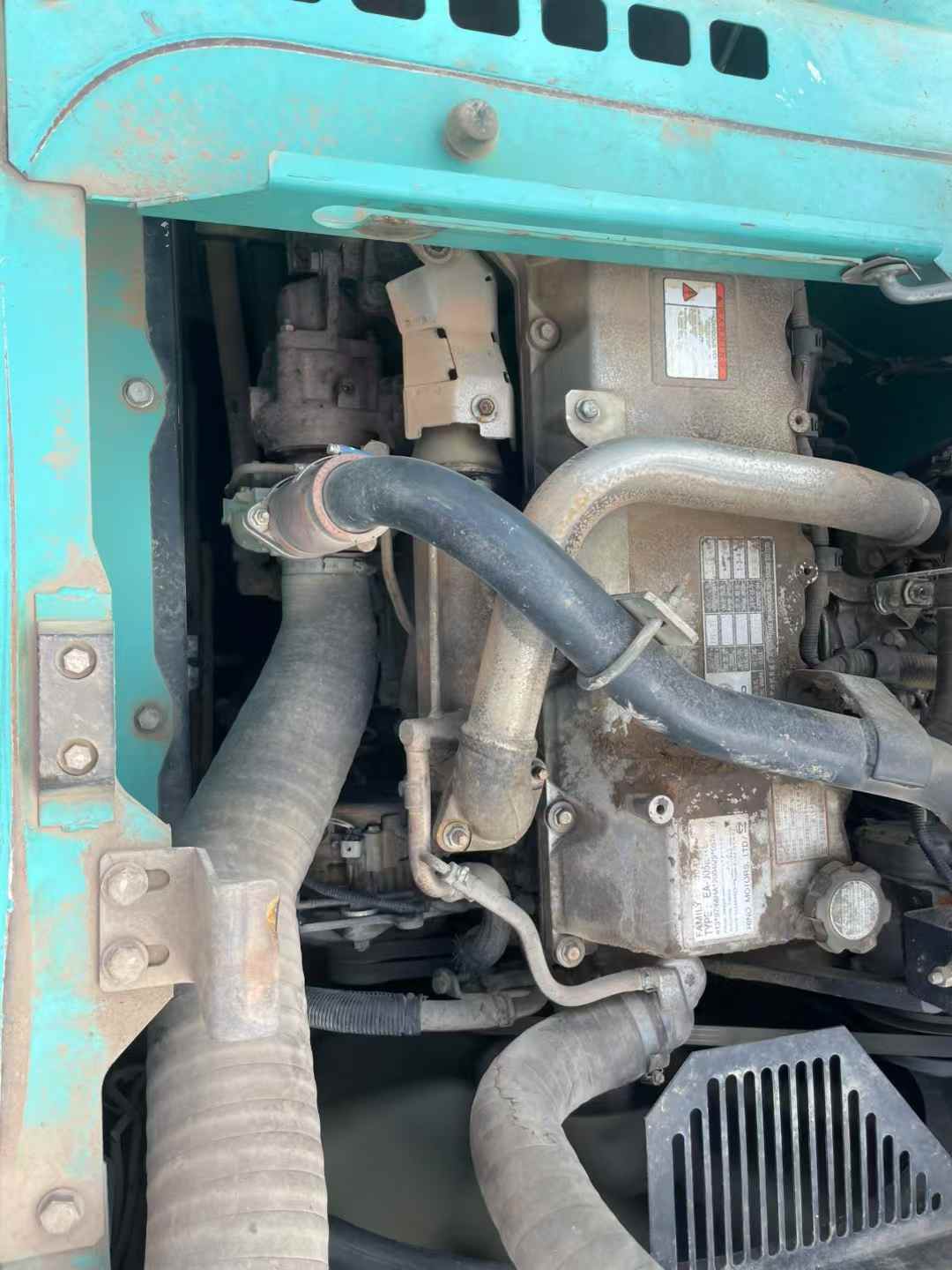

| Engine type | Hino J05ETB |
| Rated power (kw/rpm) | 137/2100 |
| Cylinder diameter × stroke (mm) | 112 x 130 |
| Maximum torque (N.m) | 654/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.123 |
| Rotation speed (rpm) | 10.8 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 170 |
| Maximum tractive force (kN) | 245 |
| Travel speed (km/h) | 6.1/3.8 |

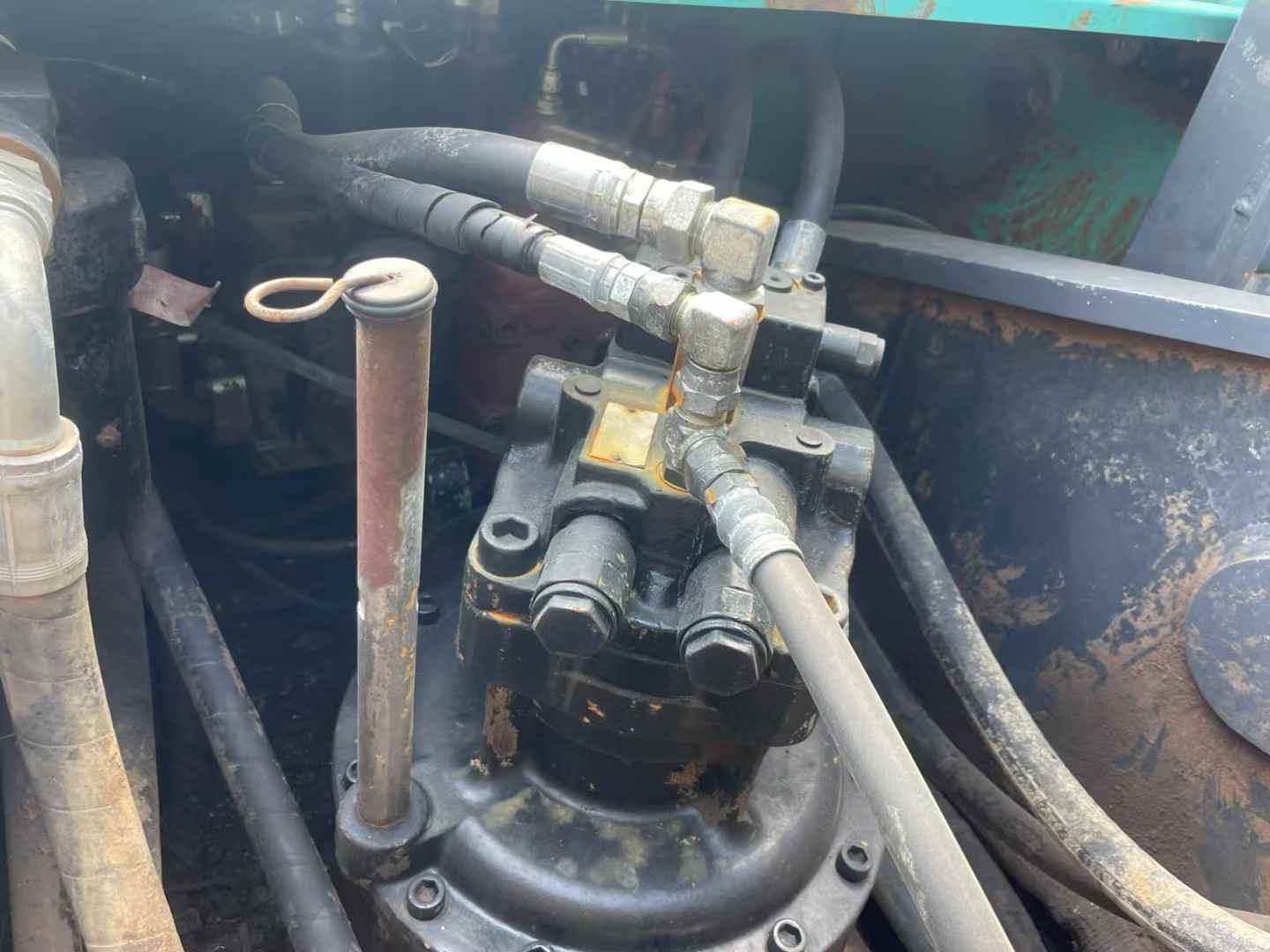

| Rotary hydraulic motor type | Axial piston pump motor |
| Type of walking hydraulic motor | Variable capacity axial piston motor |

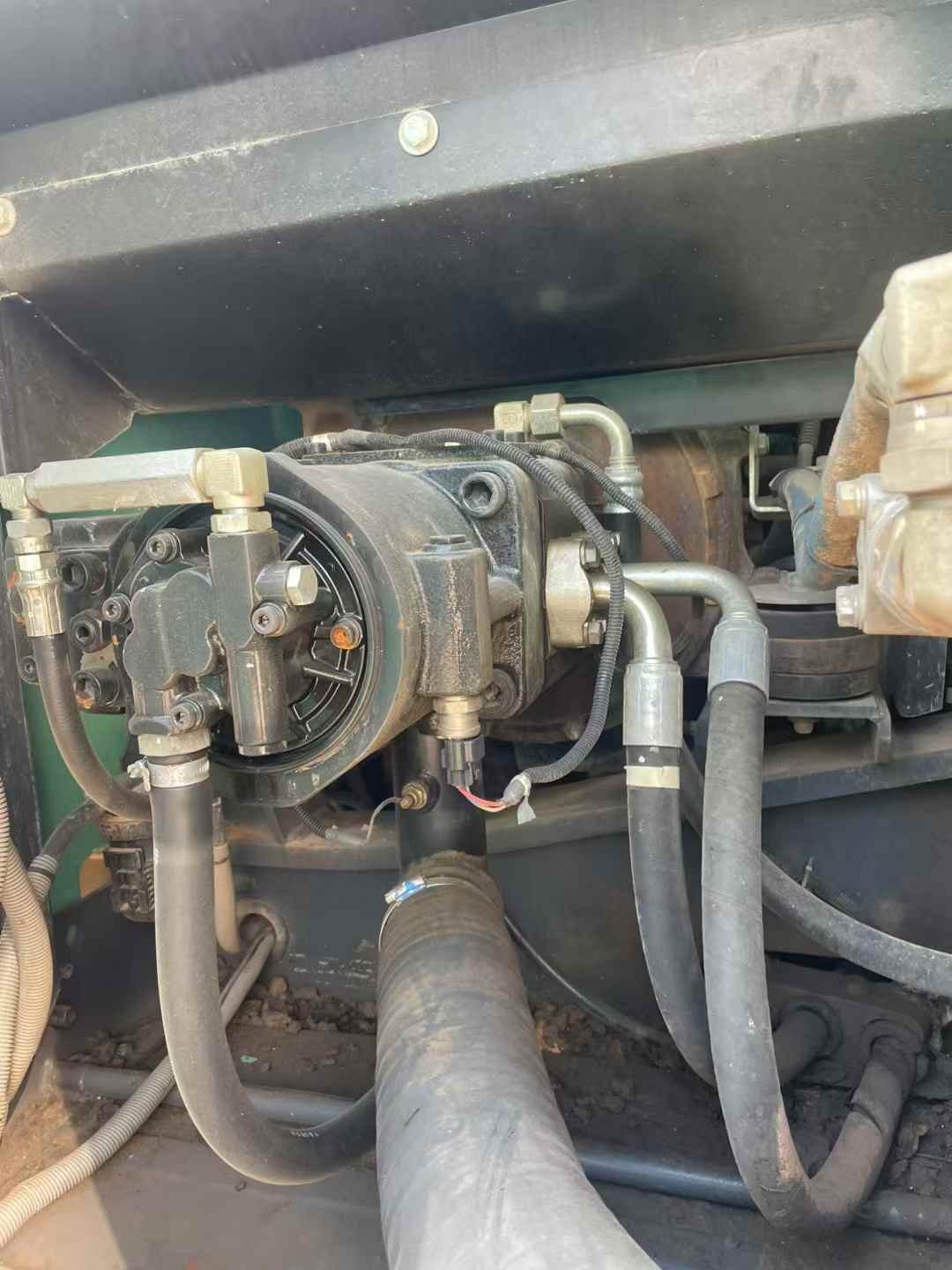

| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 34.3/37.8 |
| Fuel Tank (L) | 403 |
| Hydraulic Tank (L) | 165 |
| Hydraulic System (L) | 273 |
| Total transport length (mm) | 10210 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3180 |
| Full cab height (mm) | 3040 |
| Counterweight ground clearance (mm) | 1090 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 3120 |
| Onboard width (mm) | 2980 |
| Total track length (mm) | 4260 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600/800 |
| Total track width (mm) | 2990 |
| Track ground length (mm) | 3470 |
| Maximum digging radius (mm) | 10310 |
| Maximum digging depth (mm) | 7000 |
| Maximum excavation height (mm) | 9740 |
| Maximum unloading height (mm) | 6870 |
| Maximum vertical digging depth (mm) | 5990 |
| Maximum excavation radius of stop surface (mm) | 10140 |
| Maximum effective digging depth (mm) | 6520 |
