2016 Kobelco SK250-8

1/9
Used Kobelco SK250-8 Excavator 2016 Model / 1
Used Kobelco SK250-8 Excavator 2016 Model / 2
Used Kobelco SK250-8 Excavator 2016 Model / 3
Used Kobelco SK250-8 Excavator 2016 Model / 4
Used Kobelco SK250-8 Excavator 2016 Model / 5
Used Kobelco SK250-8 Excavator 2016 Model / 6
Used Kobelco SK250-8 Excavator 2016 Model / 7
Used Kobelco SK250-8 Excavator 2016 Model / 8
Used Kobelco SK250-8 Excavator 2016 Model / 9

Product Description

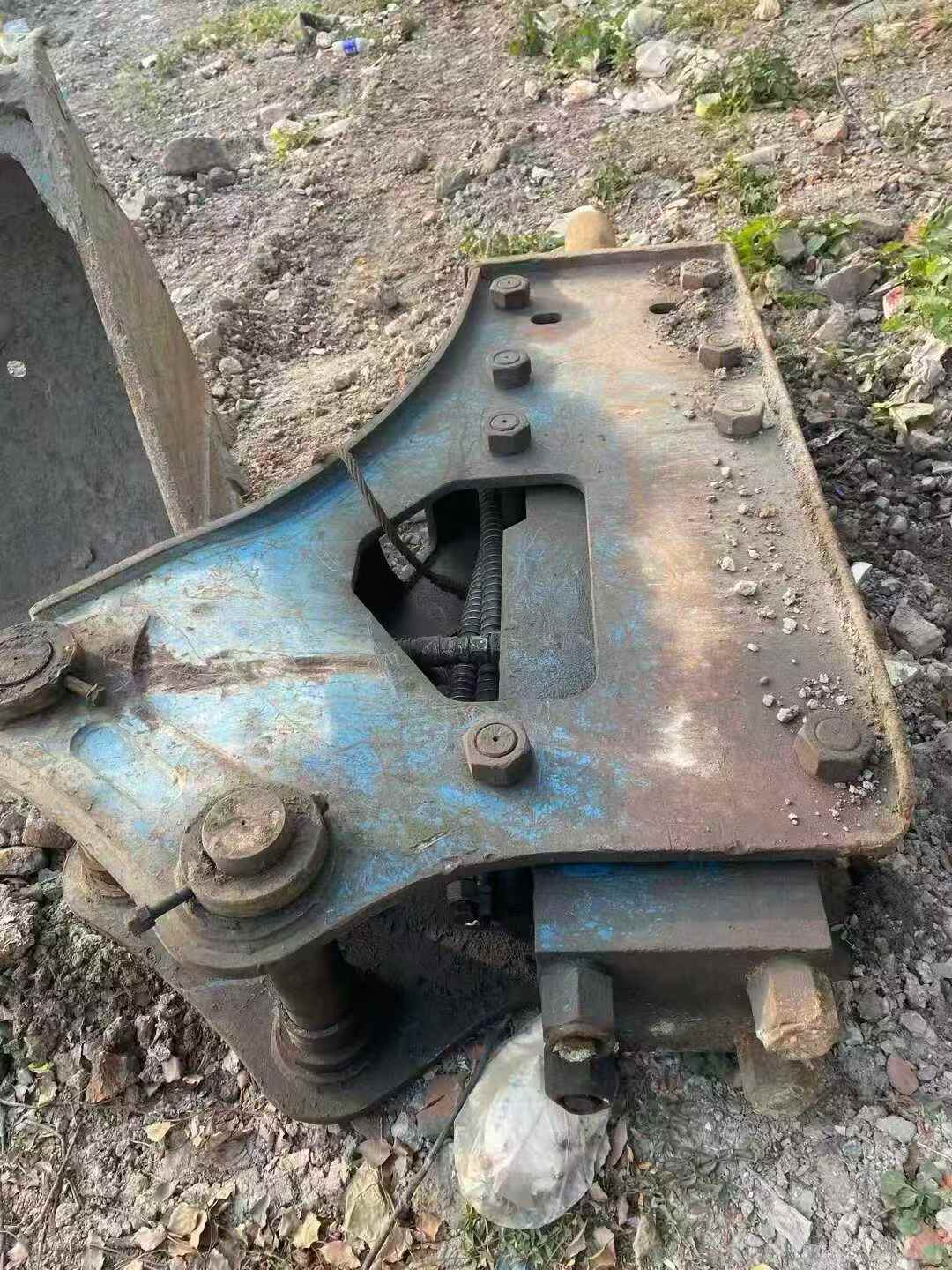

【 Second-hand Kobelco 250-8 excavator with Hammer This is a second-hand Kobelco 250-8 excavator with outstanding performance and extremely high cost performance, equipped with a breaker, which is very suitable for various complex terrains and high-intensity working environments. This equipment has a cumulative working time of 6,000 hours, is in good condition, has a moderate service life, low mechanical wear, proper maintenance, and overall stable and reliable performance. In terms of the power system, this excavator is equipped with a Cummins QSB6.7 engine, with a maximum power output of up to 140kW. It is powerful and has good fuel economy, maintaining efficient operation even under heavy load conditions. Meanwhile, its advanced electronic control injection technology makes the emissions more environmentally friendly and meets the National III emission standards. The hydraulic system is Kobelco's unique CLSS closed center load sensing system, featuring fast response speed and flexible operation. It can achieve precise control and rapid response, and is particularly suitable for fine operation scenarios that require frequent adjustment of actions. In addition, it is also equipped with an automatic idle function, which can automatic

SpecificationsValue
No.965673
Tonnage (tons)25
Working weight (kg)25000
Bucket capacity (m³)1.1
Rod length (mm)2980
Country of originChengdu/Hangzhou
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe

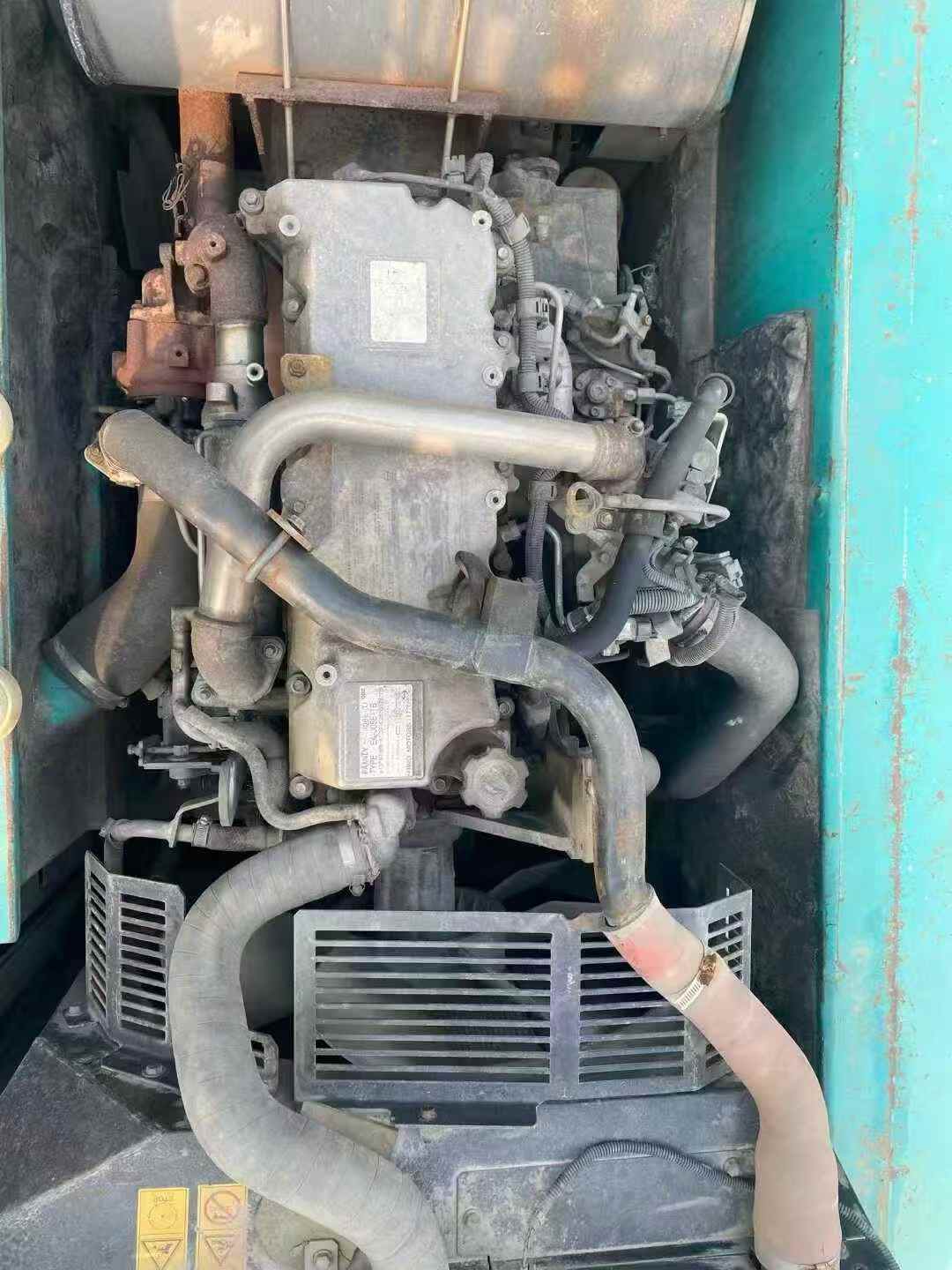

Engine typeHino J05E
Rated power (kw/rpm)131/2100
Cooling modewater-cooling
Cylinder diameter × stroke (mm)112 x 130
Number of cylinders (PCS)4
Displacement (L)5.123
Working formDirect injection, four stroke, turbocharged, built-in intercooling
Ground specific pressure (Kpa)54
Rotation speed (rpm)11
Climbing ability (%)70/35 °
Bucket digging force (kN)170
Rod digging force (kN)119
Travel speed (km/h)3.6/5.8
Maximum flow of main pump (l/min)2 x 246 + 20
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)28.5
Control Hydraulic Circuit (Mpa)5
Hydraulic crushing pipeline is standardis

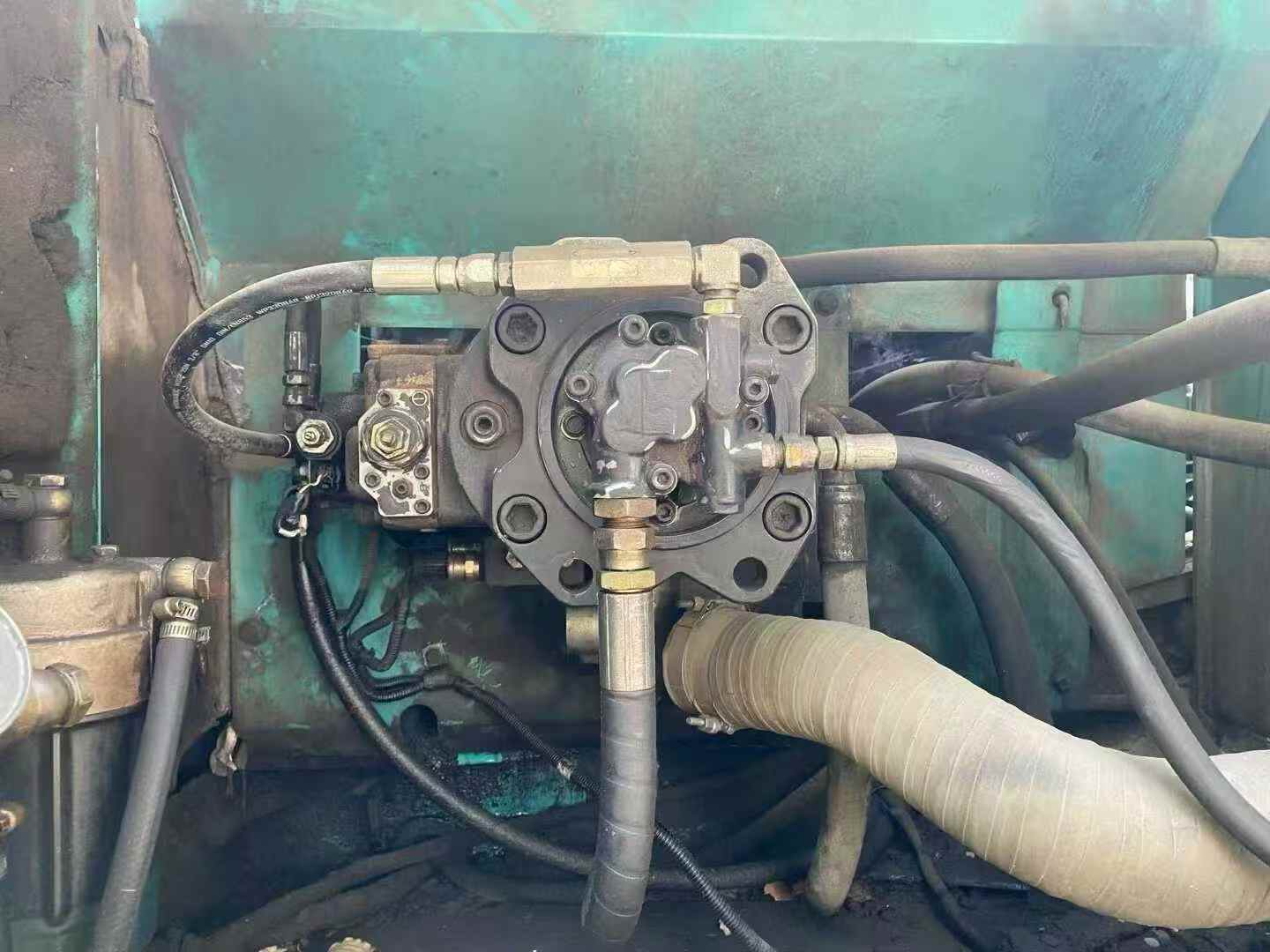

Main pump typeDual variable displacement axial piston pump ×2+ pilot gear pump ×1
Working Hydraulic Circuit (Mpa)34.3
Bucket cylinders - Number × diameter × stroke (mm)125 x 1200
Bucket rod cylinders - Number × diameter × stroke (mm)145 x 1635
Boom cylinders - Number × diameter × stroke (mm)135 x 1235
Fuel Tank (L)460
Hydraulic Tank (L)170
Engine Oil changes (L)21
Coolant (L)20
Total transport length (mm)10120
Total transport width (mm)2990
Total transport height (mm)3200
Counterweight ground clearance (mm)1090
Minimum ground clearance (mm)460
Minimum turning radius of front working device (mm)3910
Back end turning radius (mm)3020
Total track length (mm)4260
Track gauge (mm)2390
Track plate width (mm)600
Total track width (mm)2990
Track ground length (mm)3470
Maximum digging radius (mm)10310
Maximum digging depth (mm)7000
Maximum excavation height (mm)9800
Maximum unloading height (mm)6880
Maximum vertical digging depth (mm)6150
Bulldozer lift or depth (mm)No bulldozer
Dodging plate width × height (mm)No bulldozer
Maximum excavation radius of stop surface (mm)10140
Maximum effective digging depth (mm)6820
see more

Overview

No.965673

Brand Name:

Kobelco

Model Number:

SK250-8

Year:

2016

Location:

Zhejiang China
