HOME>>Brands>>Kobelco SK330-10

2016 Kobelco SK330-10

1/4
Used Kobelco SK330-10 Excavator 2016 Model / 1
Used Kobelco SK330-10 Excavator 2016 Model / 2

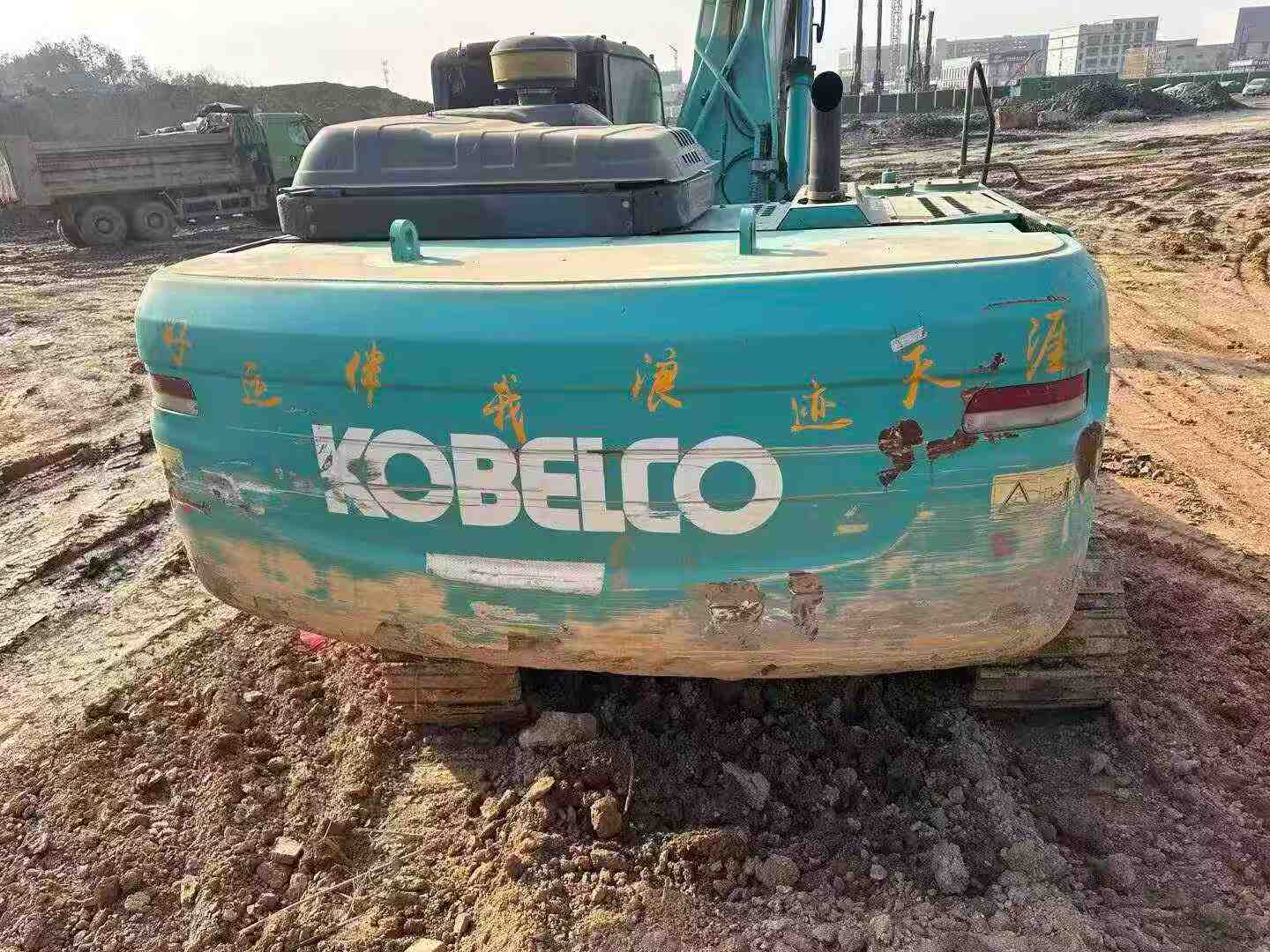

Used Kobelco SK330-10 Excavator 2016 Model / 3
Used Kobelco SK330-10 Excavator 2016 Model / 4

Product Description

【 Second-hand Kobelco SK330-10 excavator 】 This second-hand Kobelco SK330-10 excavator is priced at only 230,000 RMB, offering an extremely high cost performance. It not only boasts powerful performance and excellent durability, but also features outstanding working efficiency. It is your ideal choice for various earthwork projects, mining or infrastructure construction. 【 Working Hours This excavator has accumulated 8,000 hours of operation and is in a medium service life. It is in good overall condition and well-maintained, capable of meeting the demands of long-term high-intensity operations. Its core components such as the engine and hydraulic pump have all undergone strict testing to ensure there are no potential faults and that it can operate stably. "Power System This device is equipped with a high-performance Isuzu 6BG1 inline six-cylinder water-cooled turbocharged diesel engine, with a maximum output power of up to 202kW at 1900rpm. It has abundant torque and can maintain strong power output even under harsh working conditions. Meanwhile, the efficient fuel injection system leads to lower fuel consumption and better economy. "Hydraulic System By adopting advanced negative flow control technology and integrating with an int

SpecificationsValue
No.967454
Tonnage (tons)33
Working weight (kg)34500
Bucket capacity (m³)1.5
Rod length (mm)3300
Bucket width (mm)1390
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeHino J08ETM-KSDL
Rated power (kw/rpm)209/2100
Cooling modewater-cooling
Maximum torque (N.m)998/1600
Working formDirect injection, water-cooled, four-stroke, turbocharged, built-in intercooling
Ground specific pressure (Kpa)70
Rotation speed (rpm)10.0
Climbing ability (%)70
Bucket digging force (kN)229
Rod digging force (kN)165
Maximum tractive force (kN)333
Travel speed (km/h)5.6/3.3
Main overflow set pressure (Mpa)34.3
Rotary hydraulic motor typeAxial piston pump motor ×1
Type of walking hydraulic motorVariable capacity axial piston motor x 2
Main pump typeDouble variable displacement axial piston pump + pilot gear pump
Fuel Tank (L)503
Hydraulic Tank (L)245
Hydraulic System (L)410
Total transport length (mm)11300
Total transport width (mm)3190
Total transport height (mm)3430
Full cab height (mm)3150
Counterweight ground clearance (mm)1190
Minimum ground clearance (mm)500
Onboard width (mm)2980
Total track length (mm)4630
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3720
Maximum digging radius (mm)11260
Maximum digging depth (mm)7560
Maximum excavation height (mm)10540
Maximum unloading height (mm)7370
Maximum vertical digging depth (mm)6480
Maximum excavation radius of stop surface (mm)11060
see more

Overview

No.967454

Brand Name:

Kobelco

Model Number:

SK330-10

Year:

2016

Location:

Sichuan China
