Product Description
【 Premium Recommendation 】 Kobelco SK330-10 excavator from 2017, in stock and in excellent condition! This Kobelco SK330-10 excavator is a model from 2017, with a working time of only 8,000 hours, and is in the best condition for use. This model is renowned for its outstanding performance and excellent durability, making it highly suitable for various complex working conditions. "Power System: This excavator is equipped with a high-performance engine, ensuring strong power output and a smooth operating experience. Its efficient fuel management system can effectively reduce fuel consumption, improve work efficiency and significantly lower operating costs. In addition, after regular maintenance and upkeep, the engine is operating well without any abnormal conditions and can fully meet the requirements of high-intensity operations. "Hydraulic system: The adoption of advanced hydraulic technology makes the operation of the entire machine more flexible and precise. It can handle tasks such as digging, loading and crushing with ease. The stability and response speed of the hydraulic system have received wide acclaim from users, especially in long-term continuous operation. All key components have undergone strict inspections and necessary
| Specifications | Value |
|---|---|
| No. | 962547 |
| Tonnage (tons) | 33 |
| Working weight (kg) | 34500 |
| Bucket capacity (m³) | 1.5 |
| Rod length (mm) | 3300 |
| Bucket width (mm) | 1390 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

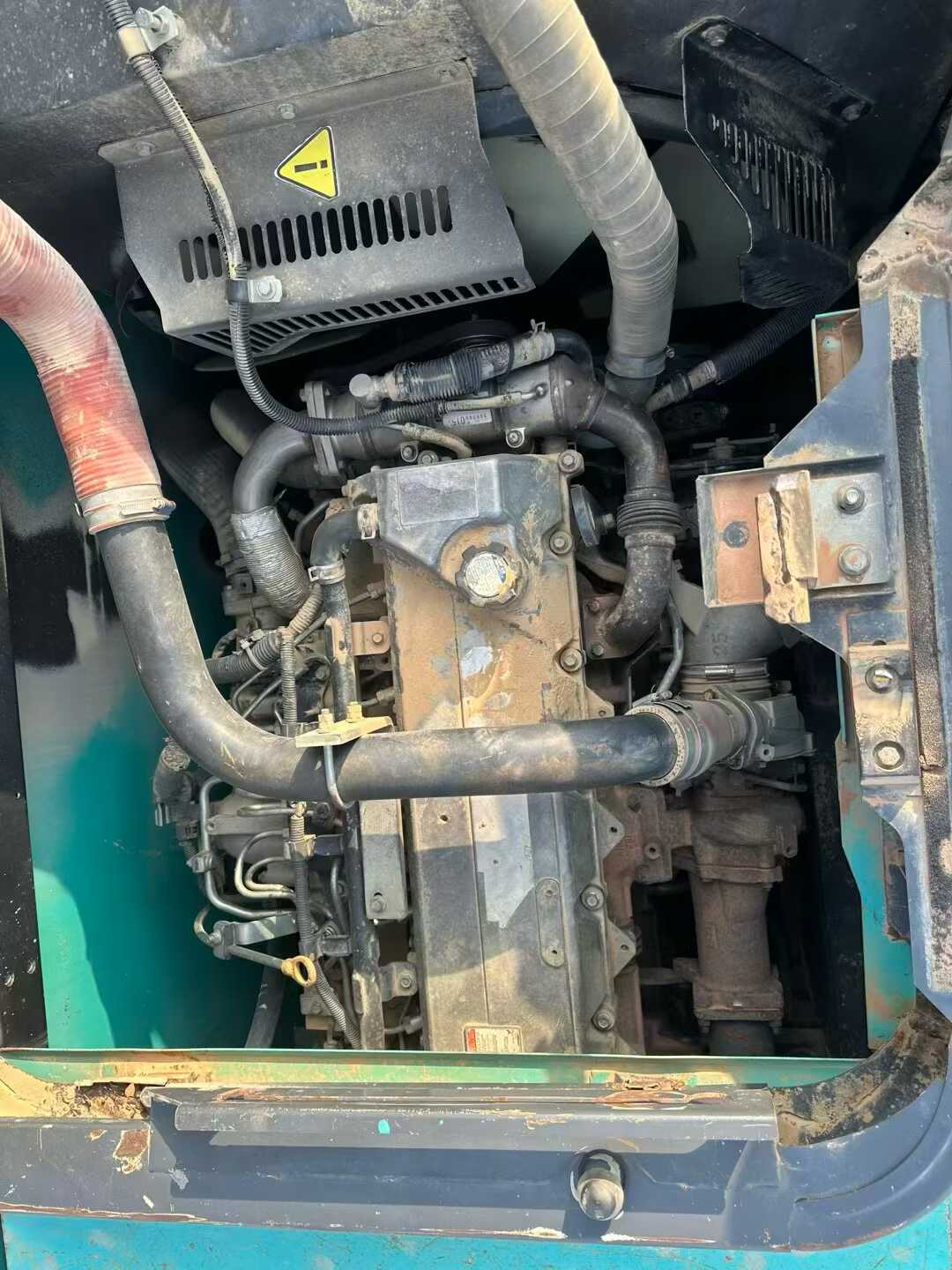

| Engine type | Hino J08ETM-KSDL |
| Rated power (kw/rpm) | 209/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 998/1600 |
| Working form | Direct injection, water-cooled, four-stroke, turbocharged, built-in intercooling |
| Ground specific pressure (Kpa) | 70 |
| Rotation speed (rpm) | 10.0 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 229 |
| Rod digging force (kN) | 165 |
| Maximum tractive force (kN) | 333 |
| Travel speed (km/h) | 5.6/3.3 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Axial piston pump motor ×1 |
| Type of walking hydraulic motor | Variable capacity axial piston motor x 2 |
| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Fuel Tank (L) | 503 |
| Hydraulic Tank (L) | 245 |
| Hydraulic System (L) | 410 |
| Total transport length (mm) | 11300 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3430 |
| Full cab height (mm) | 3150 |
| Counterweight ground clearance (mm) | 1190 |
| Minimum ground clearance (mm) | 500 |
| Onboard width (mm) | 2980 |
| Total track length (mm) | 4630 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3720 |
| Maximum digging radius (mm) | 11260 |
| Maximum digging depth (mm) | 7560 |
| Maximum excavation height (mm) | 10540 |
| Maximum unloading height (mm) | 7370 |
| Maximum vertical digging depth (mm) | 6480 |
| Maximum excavation radius of stop surface (mm) | 11060 |
