Product Description

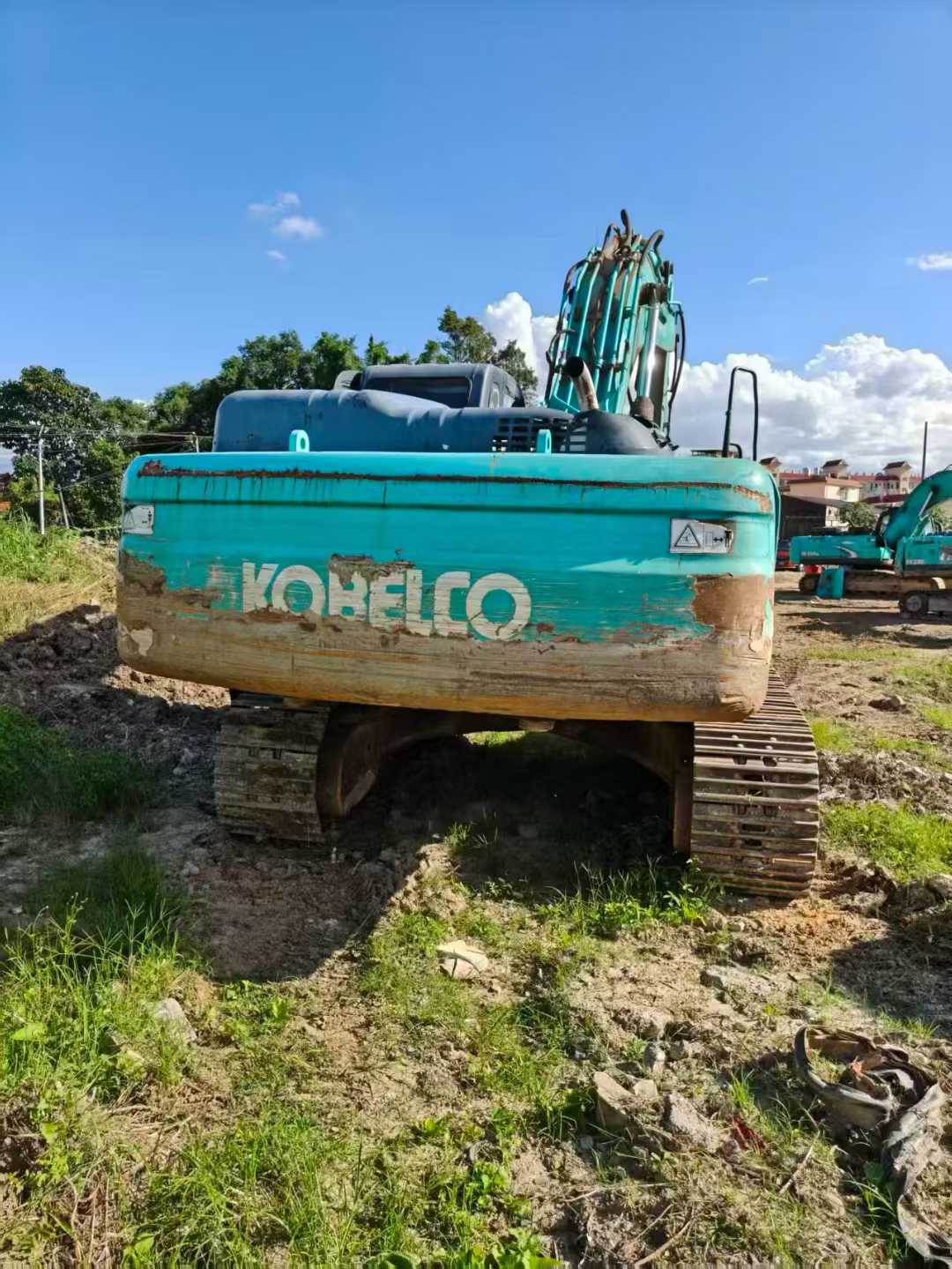

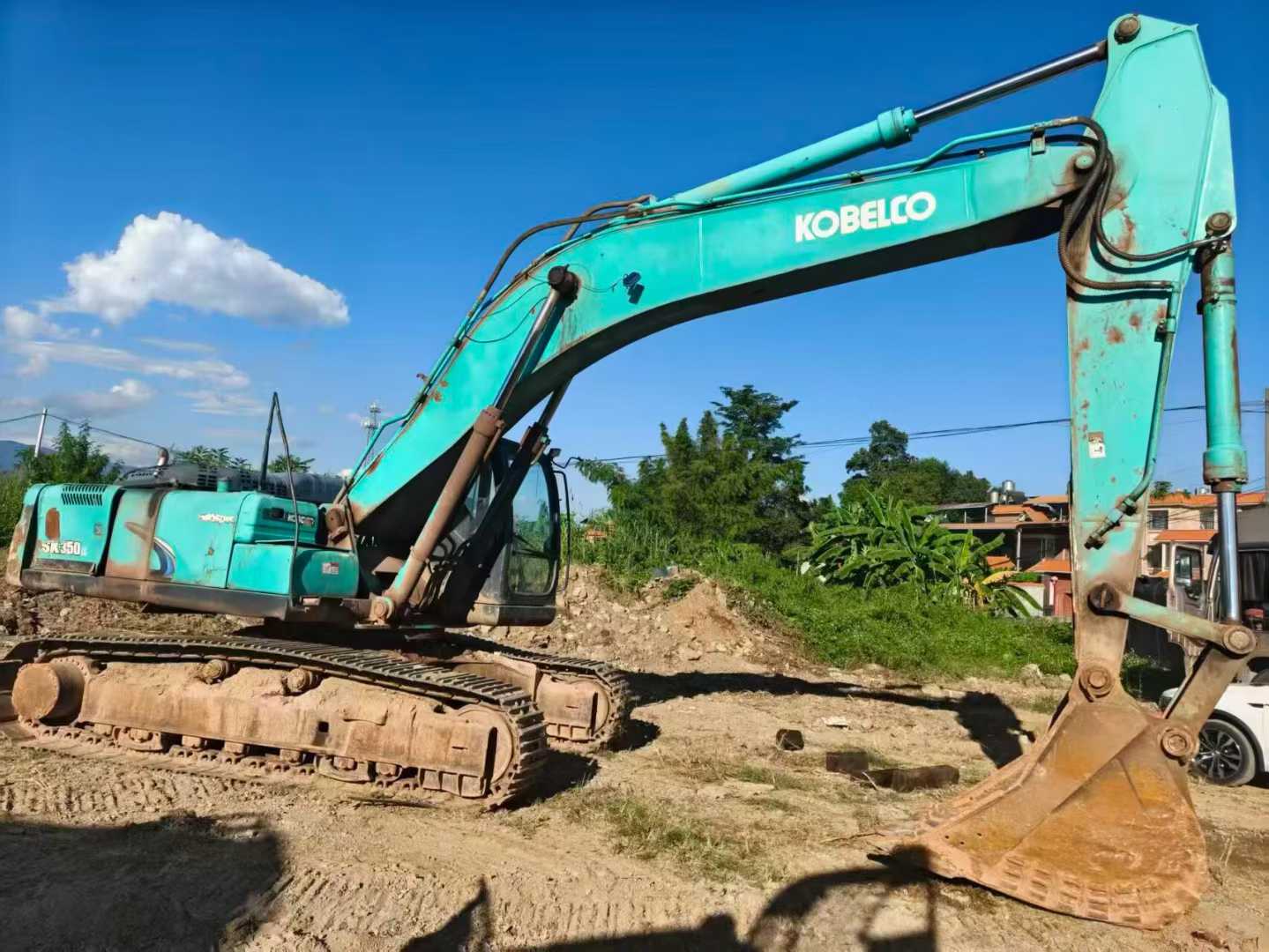

Kobe Steel 330-8 has detailed pictures and videos worth 103,000
| Specifications | Value |
|---|---|
| No. | 946430 |
| Tonnage (tons) | 33 |
| Working weight (kg) | 34100 |
| Bucket capacity (m³) | 1.5 |
| Country of origin | Chengdu/Hangzhou |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

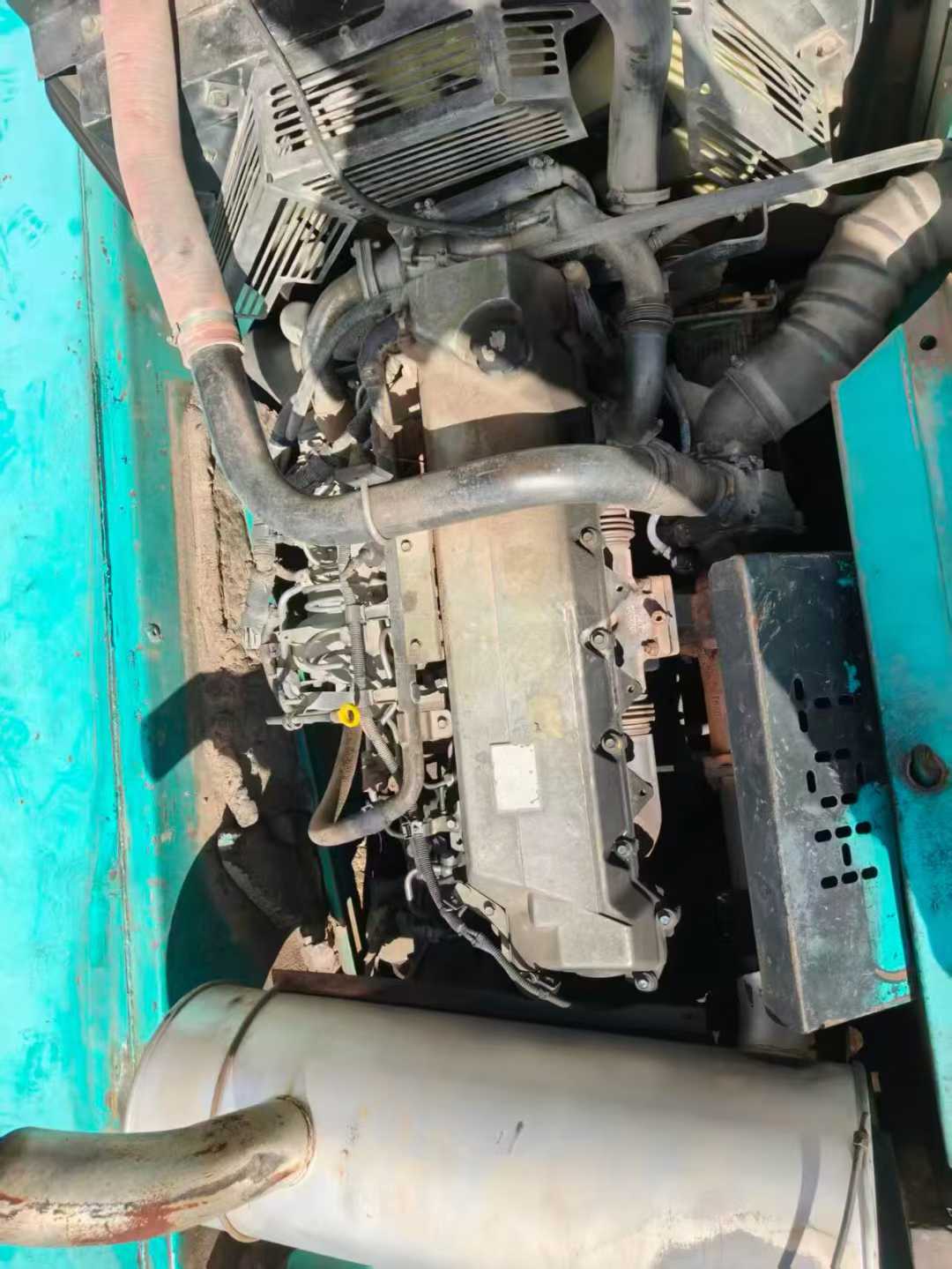

| Engine type | Hino J08E |
| Rated power (kw/rpm) | 197/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 112*130 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.684 |
| Working form | Direct injection, turbocharged, built-in intercooling |
| Ground specific pressure (Kpa) | 68 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 222 |
| Rod digging force (kN) | 165 |
| Travel speed (km/h) | 5.6/3.3 |
| Type of walking hydraulic motor | Two sets of two-speed plunger motors |
| Maximum flow of main pump (l/min) | 2*294 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 29 |
| Control Hydraulic Circuit (Mpa) | 5 |
| Main pump type | Double variable displacement axial piston pump, pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 150*1193 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 170*1788 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*140*1550 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 280 |
| Engine Oil changes (L) | 28.5 |
| Coolant (L) | 31.1 |
| Hydraulic System (L) | 353 |
| Total transport length (mm) | 11200 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3420 |
| Full cab height (mm) | 3160 |
| Counterweight ground clearance (mm) | 1190 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4370 |
| Back end turning radius (mm) | 3500 |
| Total track length (mm) | 4650 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600 |
| Maximum digging radius (mm) | 11260 |
| Maximum digging depth (mm) | 7560 |
| Maximum excavation height (mm) | 10580 |
| Maximum unloading height (mm) | 7370 |
| Maximum vertical digging depth (mm) | 6610 |
| Maximum excavation radius of stop surface (mm) | 11060 |
| Maximum effective digging depth (mm) | 7400 |
