Product Description

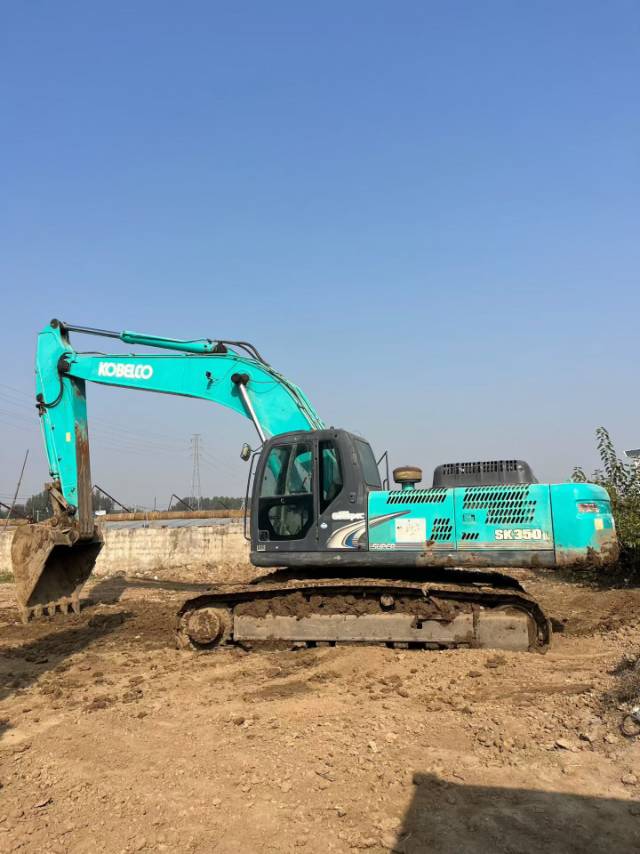

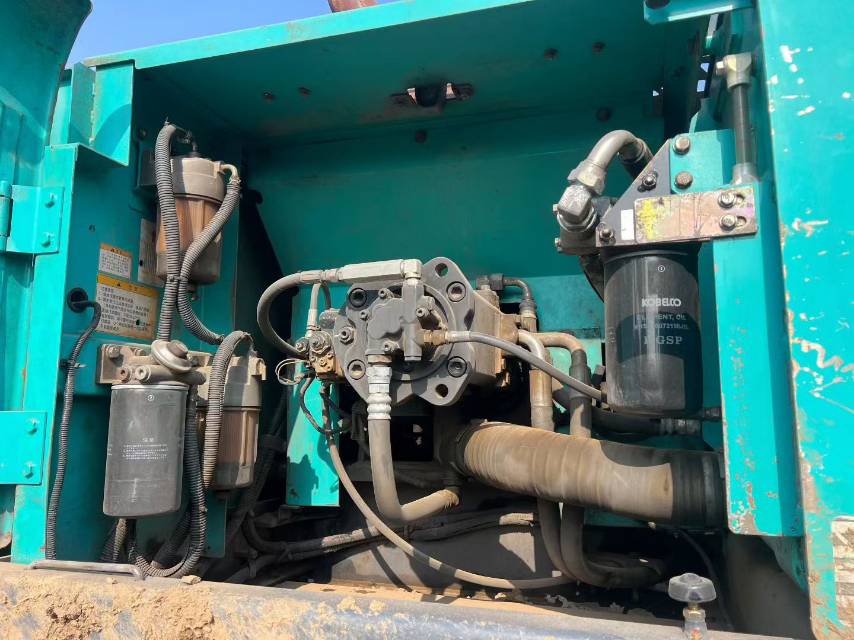

Top-quality SK Kobelco 350 black large frame, the vehicle is in good condition and close to a pure earthmoving truck. The three major components are beautiful and leak-proofing. The hydraulic system is smooth and effective. The chassis is almost as good as new. Bosses who like good vehicles, hurry up ☎️
| Specifications | Value |
|---|---|
| No. | 958545 |
| Tonnage (tons) | 35 |
| Working weight (kg) | 36100 |
| Bucket capacity (m³) | 1.4/0.67/2.1 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Hino JO8E-TM |
| Rated power (kw/rpm) | 196.9/2100 |
| Displacement (L) | 7.7 |
| Ground specific pressure (Kpa) | 50.5 |
| Bucket digging force (kN) | 322 |
| Travel speed (km/h) | 5.6 |
| Fuel Tank (L) | 580 |
| Engine Oil changes (L) | 28.5 |
| Coolant (L) | 31 |
| Hydraulic System (L) | 353 |
| Total transport length (mm) | 11200 |
| Total transport width (mm) | 3400 |
| Total transport height (mm) | 3420 |
| Full cab height (mm) | 3160 |
| Counterweight ground clearance (mm) | 1200 |
| Minimum ground clearance (mm) | 500 |
| Back end turning radius (mm) | 3500 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 800 |
| Track ground length (mm) | 4050 |
| Maximum digging depth (mm) | 7560 |
| Maximum excavation height (mm) | 10580 |
| Maximum unloading height (mm) | 7370 |
| Maximum vertical digging depth (mm) | 6610 |
| Maximum excavation radius of stop surface (mm) | 11060 |
