2016 Kobelco SK380D

1/6
Used Kobelco SK380D Excavator 2016 Model / 1
Used Kobelco SK380D Excavator 2016 Model / 2

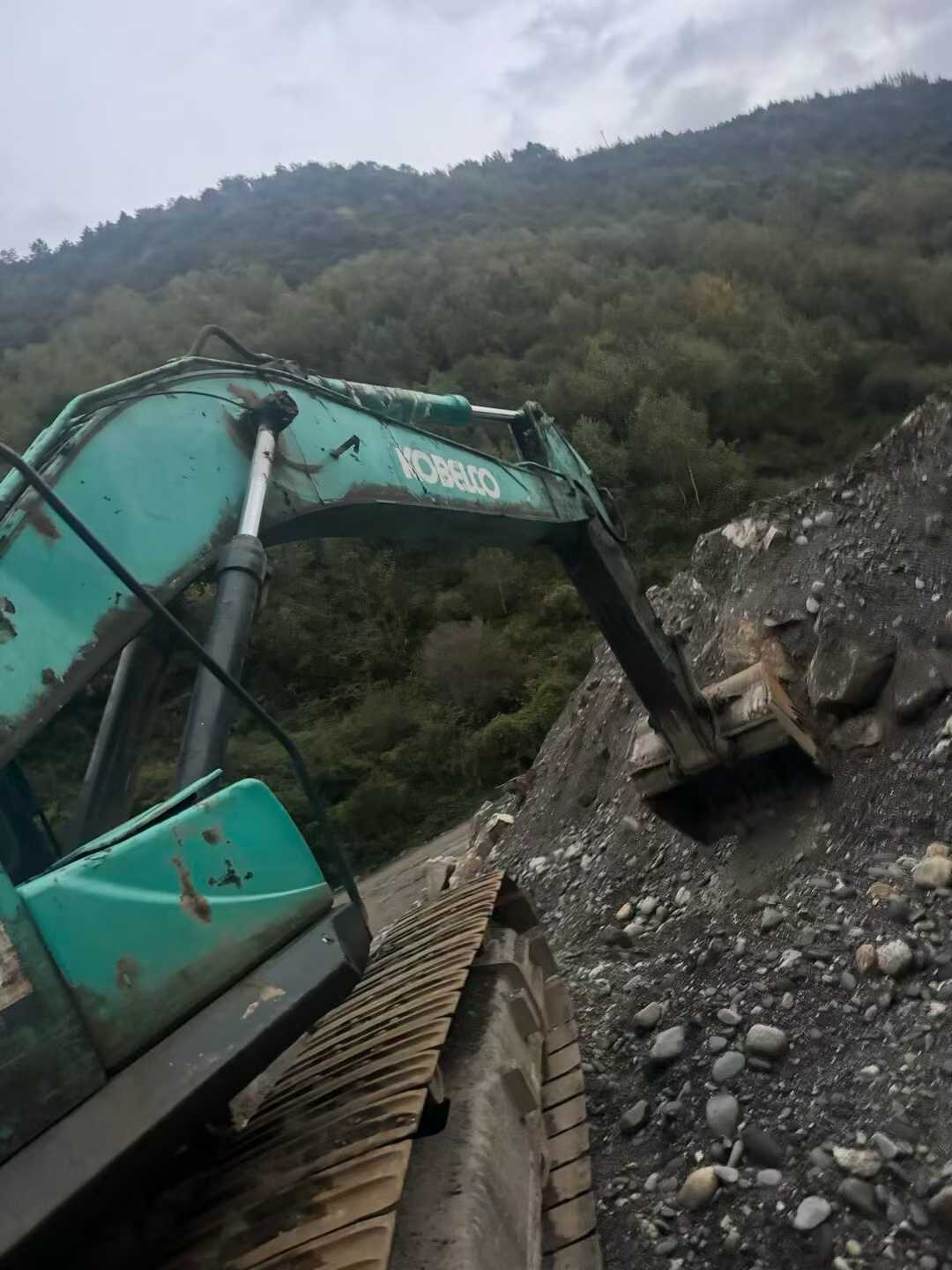

Used Kobelco SK380D Excavator 2016 Model / 3

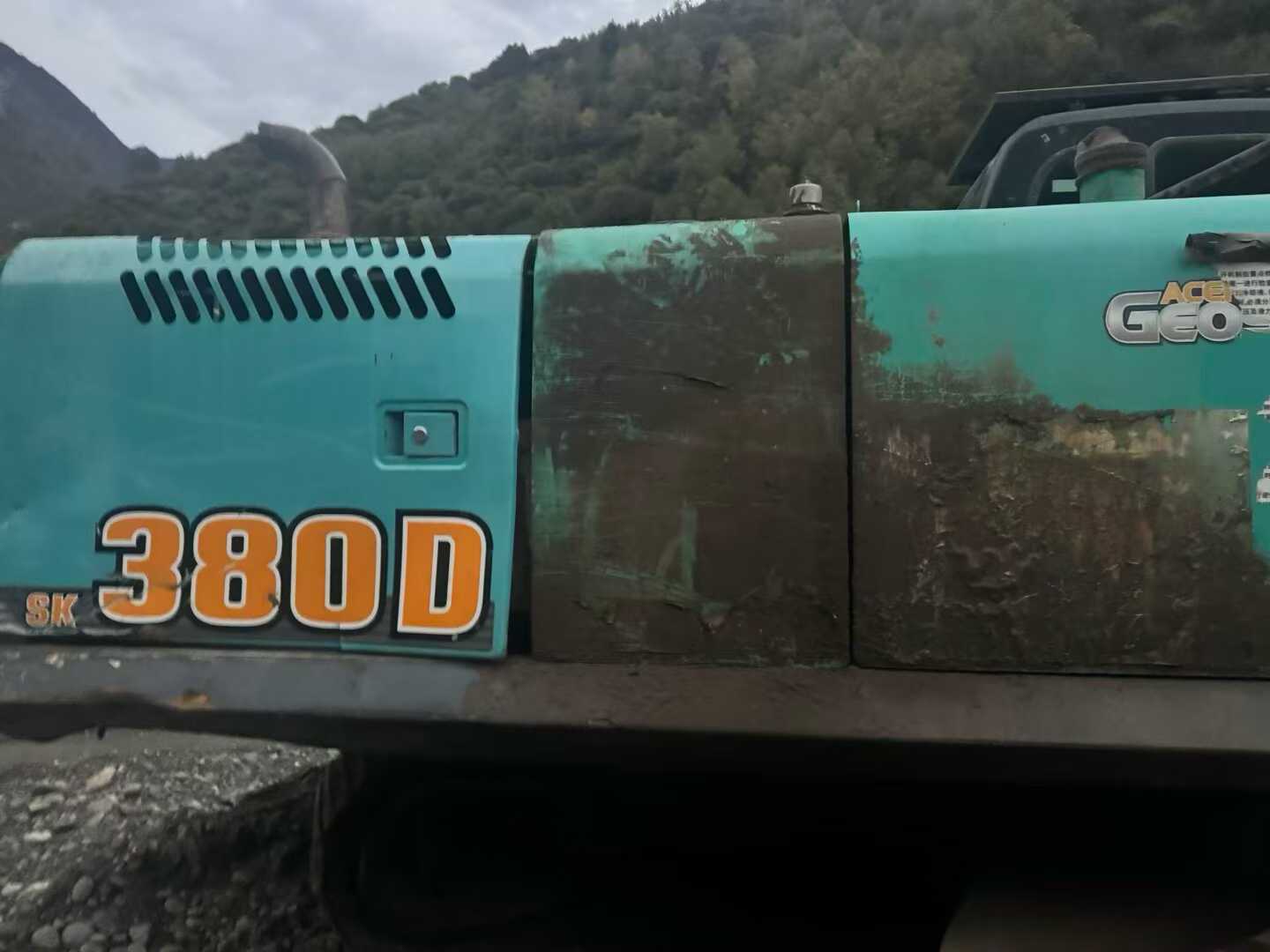

Used Kobelco SK380D Excavator 2016 Model / 4
Used Kobelco SK380D Excavator 2016 Model / 5
Used Kobelco SK380D Excavator 2016 Model / 6

Product Description

【 Kobelco SK380 Second-hand Excavator Sales Information 】 Dear customer, hello! We currently have a second-hand Kobelco SK380 excavator with outstanding performance and in good condition, waiting for your favor. Since its commissioning, this equipment has accumulated a working time of only 6,500 hours, which is far lower than the average service life of machines of the same model. This indicates that it still has a long service life and high residual value. This machine is equipped with a highly efficient and reliable original Japanese imported engine, which is powerful and has excellent fuel economy. It can maintain stable output under various complex working conditions. Its advanced electronic control system can intelligently adjust the speed and torque matching, ensuring the best working efficiency while effectively reducing fuel consumption and saving operating costs for users. In addition, after meticulous maintenance and upkeep by a professional team, the engine is operating well without any abnormal noise or leakage. In terms of the hydraulic system, the industry-leading negative flow control technology is adopted, which responds quickly and sensitively, and operates smoothly and naturally. Both the digging force and the rota

SpecificationsValue
No.963005
Tonnage (tons)38
Working weight (kg)36900
Bucket capacity (m³)1.9
Rod length (mm)Short forearm 2600/ Ultra short 2250
Country of originChengdu
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeHino J08E
Rated power (kw/rpm)209/2100
Cylinder diameter × stroke (mm)112 x 130
Maximum torque (N.m)998/1600
Number of cylinders (PCS)6
Displacement (L)7.684
Working formDirect injection; Turbocharging; Built-in intercooling
Rotation speed (rpm)10
Climbing ability (%)70%/35 degrees
Bucket digging force (kN)221/ Supercharged 244
Rod digging force (kN)205/ Supercharged 225
Maximum tractive force (kN)322
Travel speed (km/h)5.6/3.3
Type of walking hydraulic motorTwo sets of two-speed plunger motors
Maximum flow of main pump (l/min)2 x 294-20
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)29
Control Hydraulic Circuit (Mpa)5
Main pump typeDouble variable axial piston pump + pilot gear pump
Working Hydraulic Circuit (Mpa)34.3/ Supercharging 37.8
Pilot pump flow (L/min)20
Bucket cylinders - Number × diameter × stroke (mm)1 x 125 x 1200
Bucket rod cylinders - Number × diameter × stroke (mm)1 x 145 x 1635
Boom cylinders - Number × diameter × stroke (mm)2 x 135 x 1235
Fuel Tank (L)580
Hydraulic Tank (L)280
Engine Oil changes (L)28.5
Coolant (L)31.1
Hydraulic System (L)353
Total transport length (mm)11280
Total transport width (mm)3270
Total transport height (mm)3640 (to top of boom)
Full cab height (mm)3233
Counterweight ground clearance (mm)1190
Minimum ground clearance (mm)500
Minimum turning radius of front working device (mm)4450
Back end turning radius (mm)3500
Onboard width (mm)3080
Total track length (mm)4980
Track gauge (mm)2600
Track plate width (mm)600/800
Total track width (mm)3270
Maximum digging radius (mm)10610
Maximum digging depth (mm)6860
Maximum excavation height (mm)10260
Maximum unloading height (mm)7005
Maximum vertical digging depth (mm)5840
Maximum excavation radius of stop surface (mm)10400
Maximum effective digging depth (mm)6670
see more

Overview

No.963005

Brand Name:

Kobelco

Model Number:

SK380D

Year:

2016

Location:

Sichuan China
