2016 Kobelco SK380D

1/4
Used Kobelco SK380D Excavator 2016 Model / 1

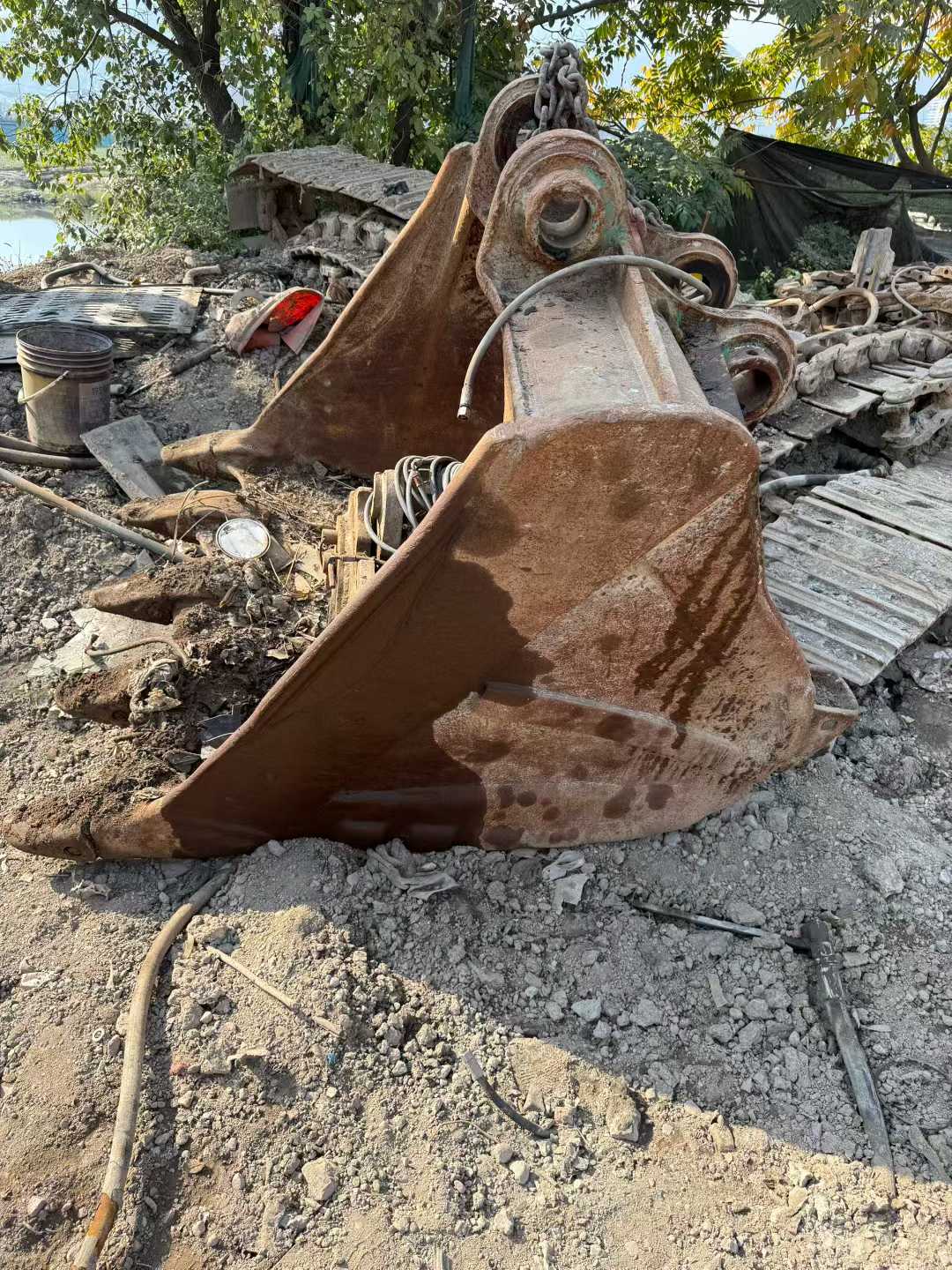

Used Kobelco SK380D Excavator 2016 Model / 2

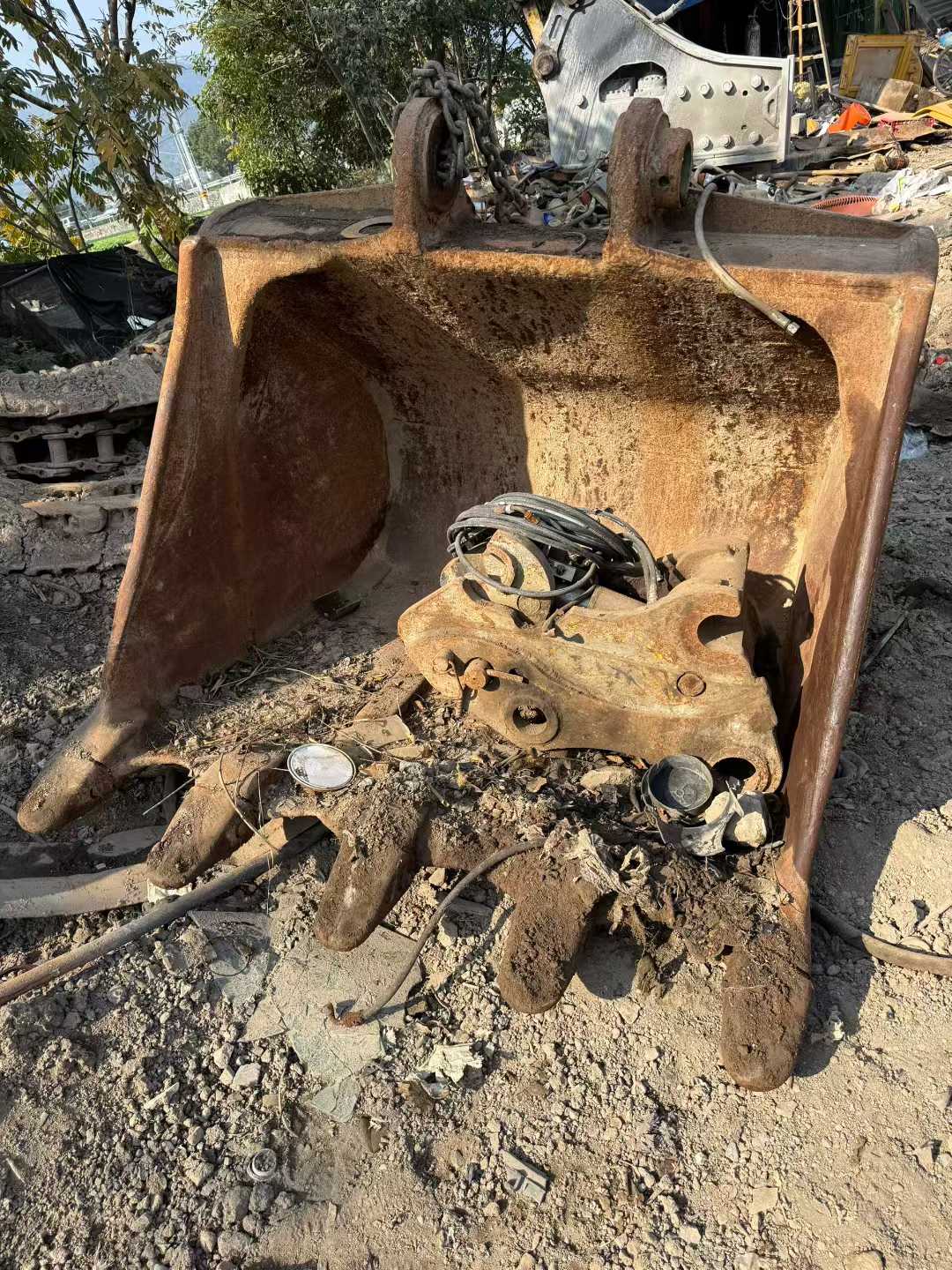

Used Kobelco SK380D Excavator 2016 Model / 3

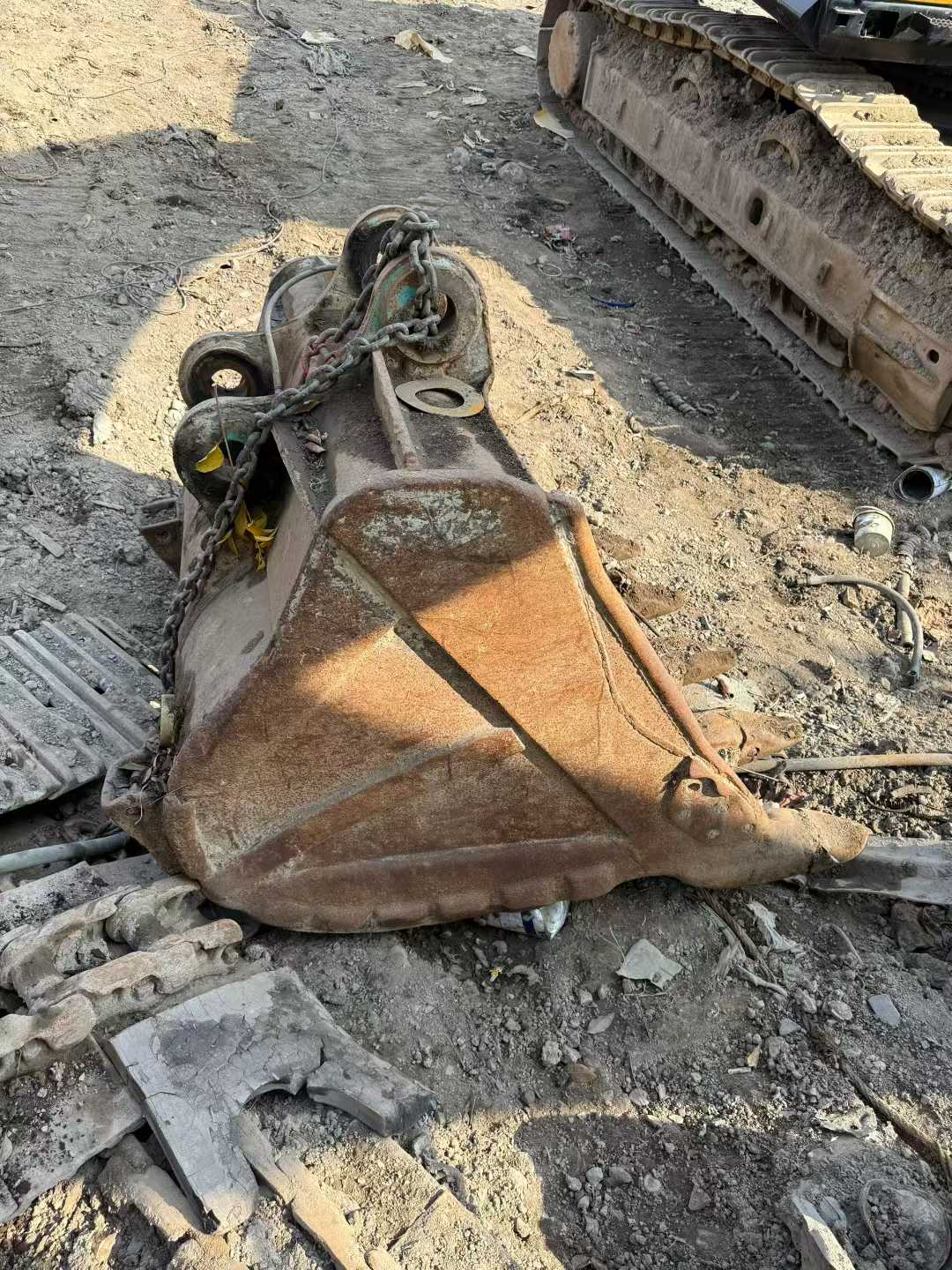

Used Kobelco SK380D Excavator 2016 Model / 4

Product Description

【 Kosteel SK380LC-8 original bucket Second-hand Excavator 】 This second-hand Kobelco SK380LC-8 excavator features outstanding performance and reliable quality. Its working time is only 4,500 hours. For a heavy machine, such a working duration means it is still in the best working condition. This model is equipped with an original imported high-quality engine, which is powerful and stable, and can easily meet the excavation operation requirements under various complex working conditions. Its advanced electronic fuel injection system not only enhances fuel efficiency but also effectively reduces emission pollution, meeting the latest environmental protection standards. In terms of the hydraulic system, the Kobelco SK380LC-8 is equipped with high-performance negative flow control technology, ensuring smoothness and accuracy during operation. Whether it is for meticulous excavation or rapid loading operations, it can demonstrate outstanding performance. In addition, this excavator also particularly emphasizes the design of driver comfort and safety. The spacious cab, humanized control layout and all-round vision optimization make long-term operation more relaxed and enjoyable. Most notably, this machine is equipped with an original buck

SpecificationsValue
No.969001
Tonnage (tons)38
Working weight (kg)36900
Bucket capacity (m³)1.9
Rod length (mm)Short forearm 2600/ Ultra short 2250
Country of originChengdu
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeHino J08E
Rated power (kw/rpm)209/2100
Cylinder diameter × stroke (mm)112 x 130
Maximum torque (N.m)998/1600
Number of cylinders (PCS)6
Displacement (L)7.684
Working formDirect injection; Turbocharging; Built-in intercooling
Rotation speed (rpm)10
Climbing ability (%)70%/35 degrees
Bucket digging force (kN)221/ Supercharged 244
Rod digging force (kN)205/ Supercharged 225
Maximum tractive force (kN)322
Travel speed (km/h)5.6/3.3
Type of walking hydraulic motorTwo sets of two-speed plunger motors
Maximum flow of main pump (l/min)2 x 294-20
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)29
Control Hydraulic Circuit (Mpa)5
Main pump typeDouble variable axial piston pump + pilot gear pump
Working Hydraulic Circuit (Mpa)34.3/ Supercharging 37.8
Pilot pump flow (L/min)20
Bucket cylinders - Number × diameter × stroke (mm)1 x 125 x 1200
Bucket rod cylinders - Number × diameter × stroke (mm)1 x 145 x 1635
Boom cylinders - Number × diameter × stroke (mm)2 x 135 x 1235
Fuel Tank (L)580
Hydraulic Tank (L)280
Engine Oil changes (L)28.5
Coolant (L)31.1
Hydraulic System (L)353
Total transport length (mm)11280
Total transport width (mm)3270
Total transport height (mm)3640 (to top of boom)
Full cab height (mm)3233
Counterweight ground clearance (mm)1190
Minimum ground clearance (mm)500
Minimum turning radius of front working device (mm)4450
Back end turning radius (mm)3500
Onboard width (mm)3080
Total track length (mm)4980
Track gauge (mm)2600
Track plate width (mm)600/800
Total track width (mm)3270
Maximum digging radius (mm)10610
Maximum digging depth (mm)6860
Maximum excavation height (mm)10260
Maximum unloading height (mm)7005
Maximum vertical digging depth (mm)5840
Maximum excavation radius of stop surface (mm)10400
Maximum effective digging depth (mm)6670
see more

Overview

No.969001

Brand Name:

Kobelco

Model Number:

SK380D

Year:

2016

Location:

Zhejiang China
