Product Description

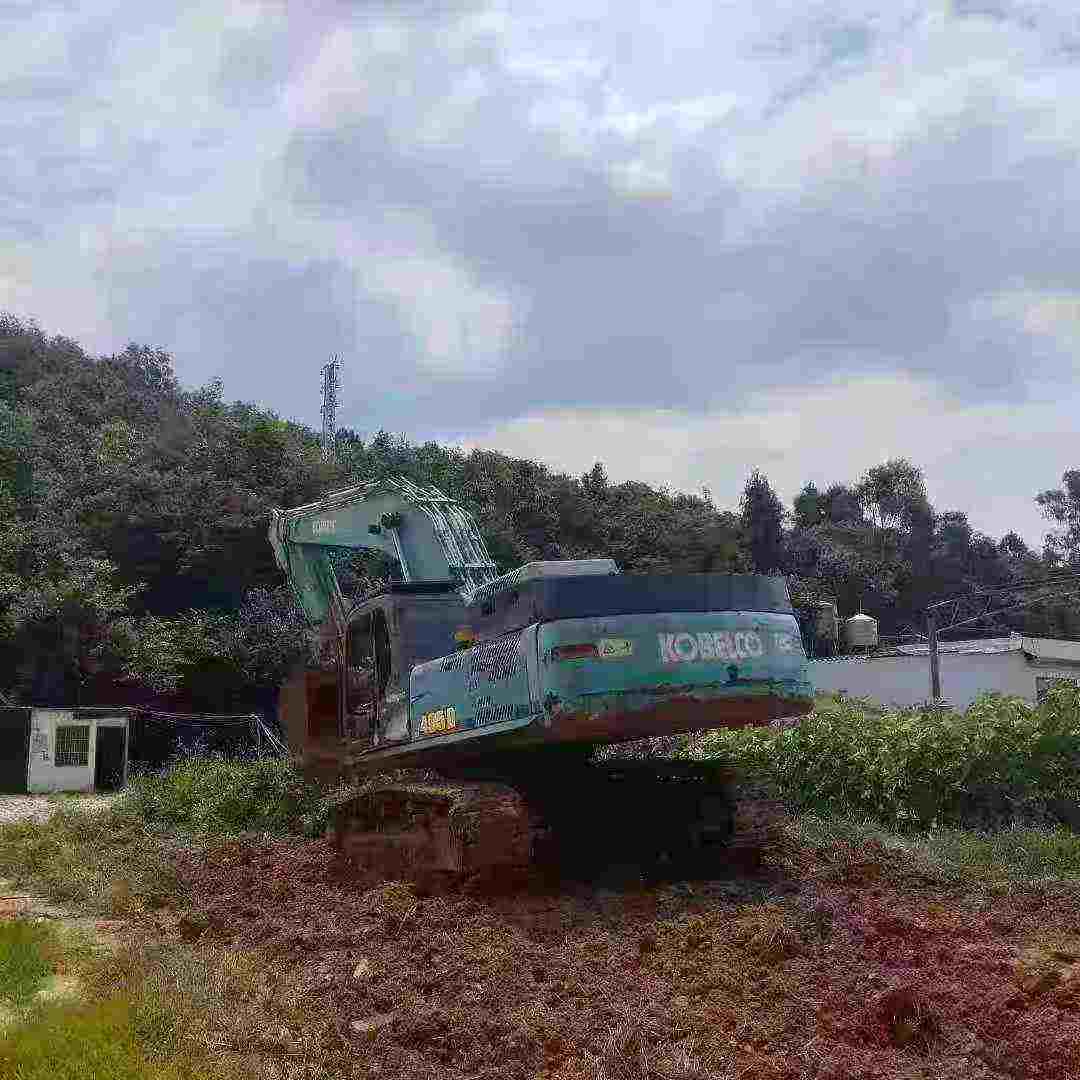

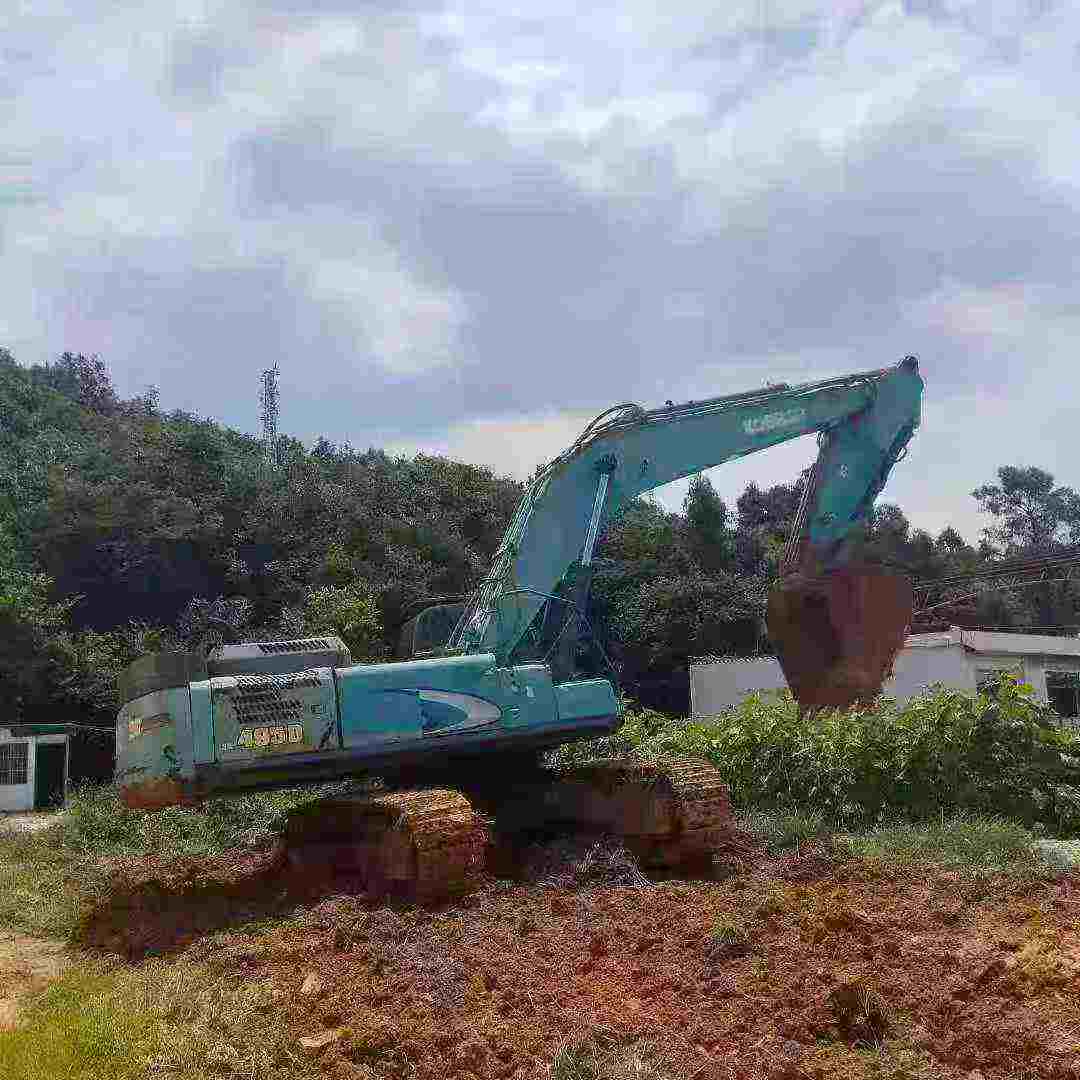

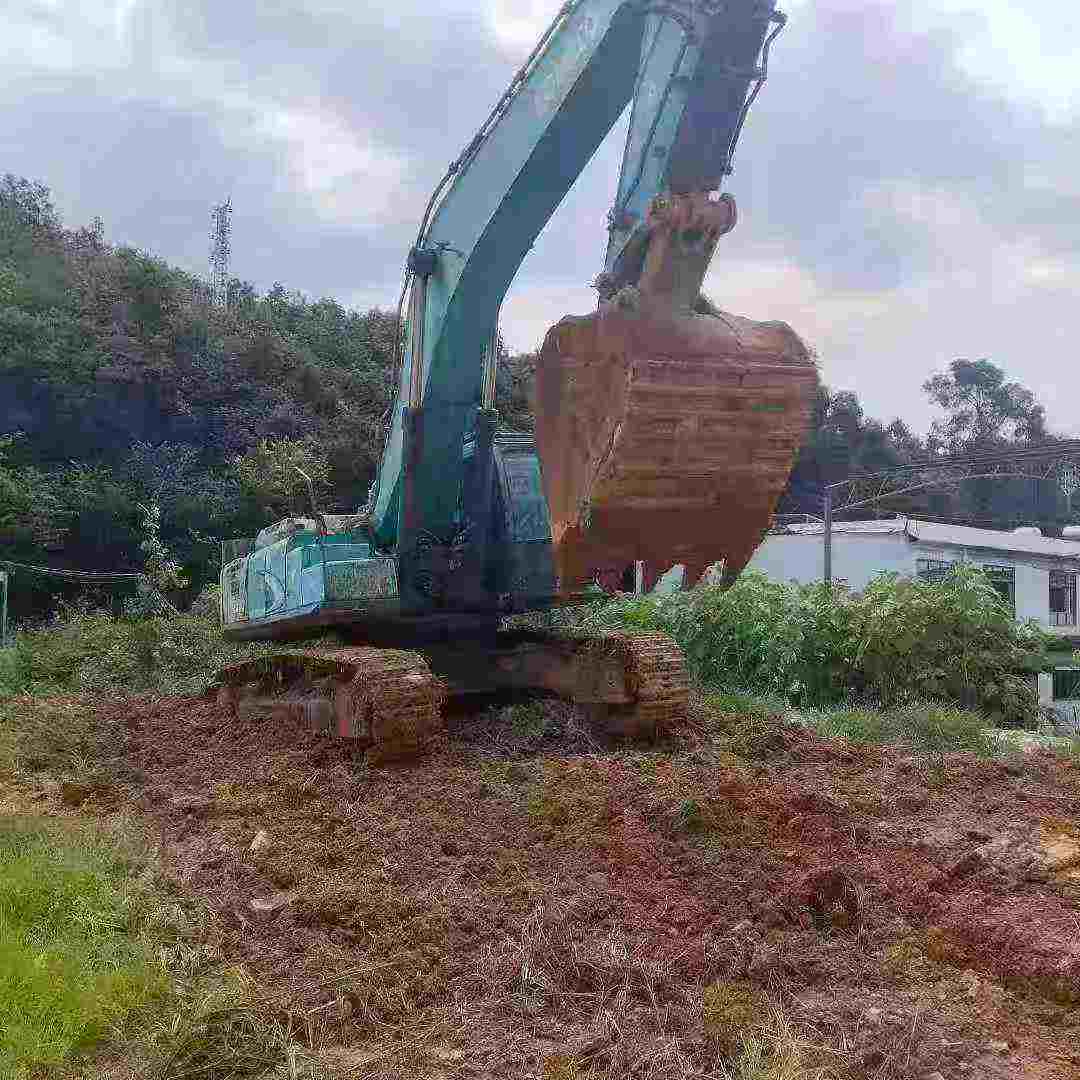

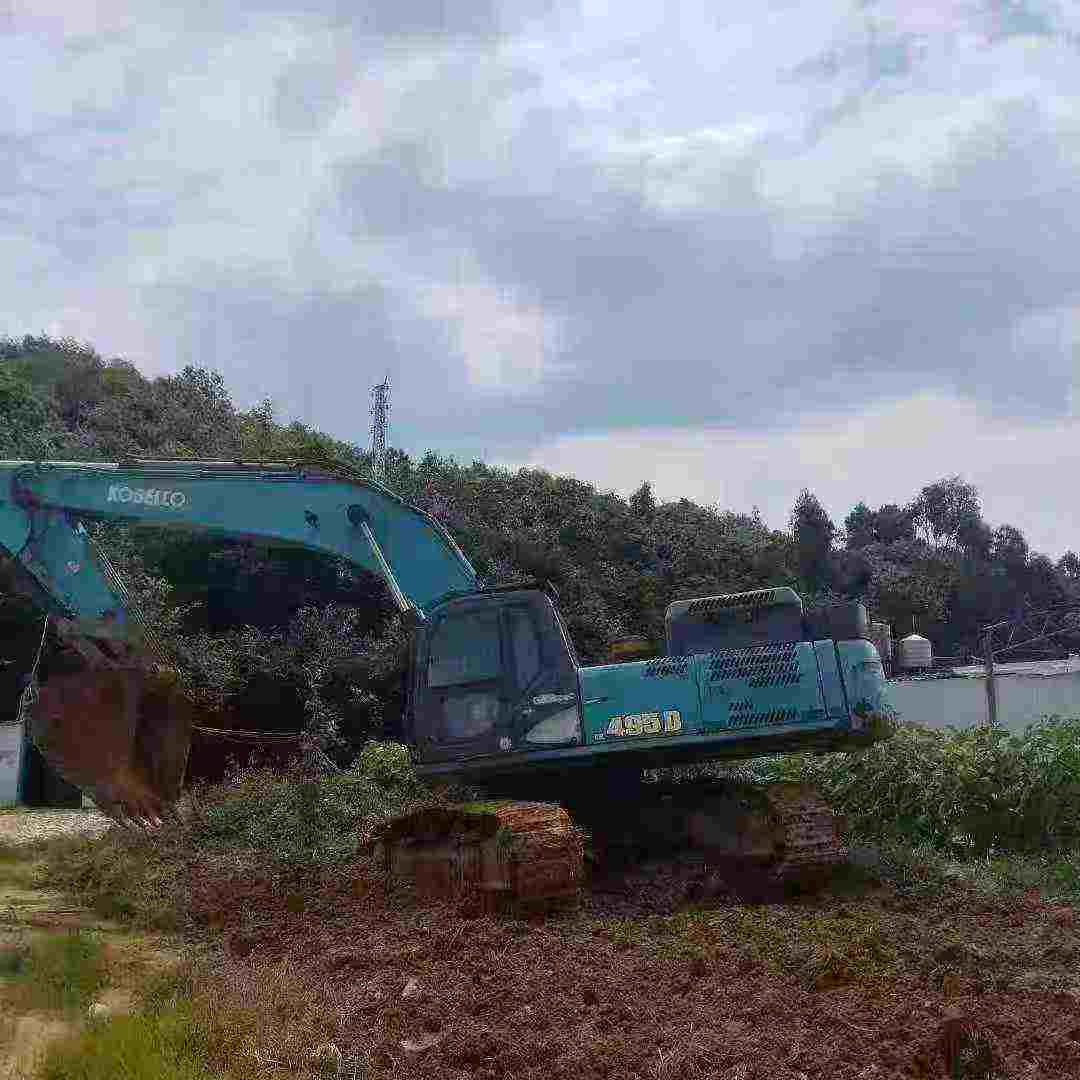

In 2019, the Kobelco 495D cost over 180,000 yuan, an ultimate work cart
| Specifications | Value |
|---|---|
| No. | 951946 |
| Tonnage (tons) | 49 |
| Working weight (kg) | 52700 |
| Bucket capacity (m³) | 2.3 |
| Boom length (mm) | 7000 |
| Rod length (mm) | 3000 |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

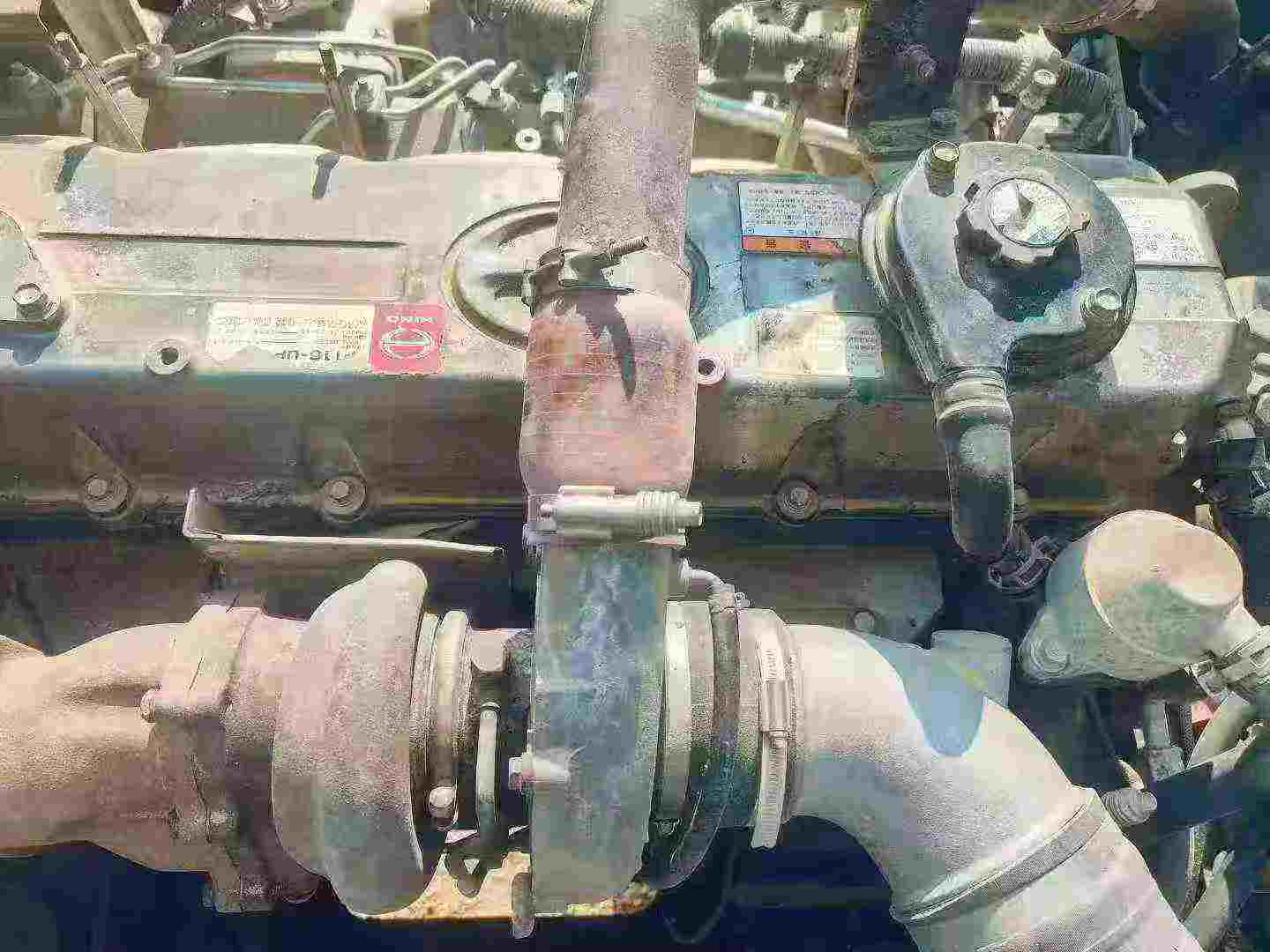

| Engine type | Hino P11C |
| Rated power (kw/rpm) | 257/1850 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 122 x 150 |
| Maximum torque (N.m) | 1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 10.52 |
| Working form | Direct injection, water-cooled, four-stroke, turbocharged, built-in intercooling |
| Rotation speed (rpm) | 7.8 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 266 |
| Rod digging force (kN) | 223 |
| Maximum tractive force (kN) | 417 |
| Travel speed (km/h) | 5.4/3.4 |
| Maximum flow of main pump (l/min) | 2 x 370 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Control Hydraulic Circuit (Mpa) | 5 |
| Main pump type | Dual variable displacement axial piston pump |
| Working Hydraulic Circuit (Mpa) | 31.4 |
| Fuel Tank (L) | 650 |
| Hydraulic Tank (L) | 300 |
| Engine Oil changes (L) | 50 |
| Coolant (L) | 41 |
| Hydraulic System (L) | 555 |
| Total transport length (mm) | 12080 |
| Total transport width (mm) | 3570 |
| Total transport height (mm) | 3800 |
| Minimum ground clearance (mm) | 510 |
| Minimum turning radius of front working device (mm) | 5270 |
| Back end turning radius (mm) | 3670 |
| Total track length (mm) | 5460 |
| Total track width (mm) | 3130 |
| Maximum height at minimum turning radius (mm) | 9003 |
| Maximum digging radius (mm) | 11770 |
| Maximum digging depth (mm) | 7360 |
| Maximum excavation height (mm) | 11160 |
| Maximum unloading height (mm) | 7720 |
| Maximum vertical digging depth (mm) | 6680 |
| Maximum excavation radius of stop surface (mm) | 11540 |
