Product Description

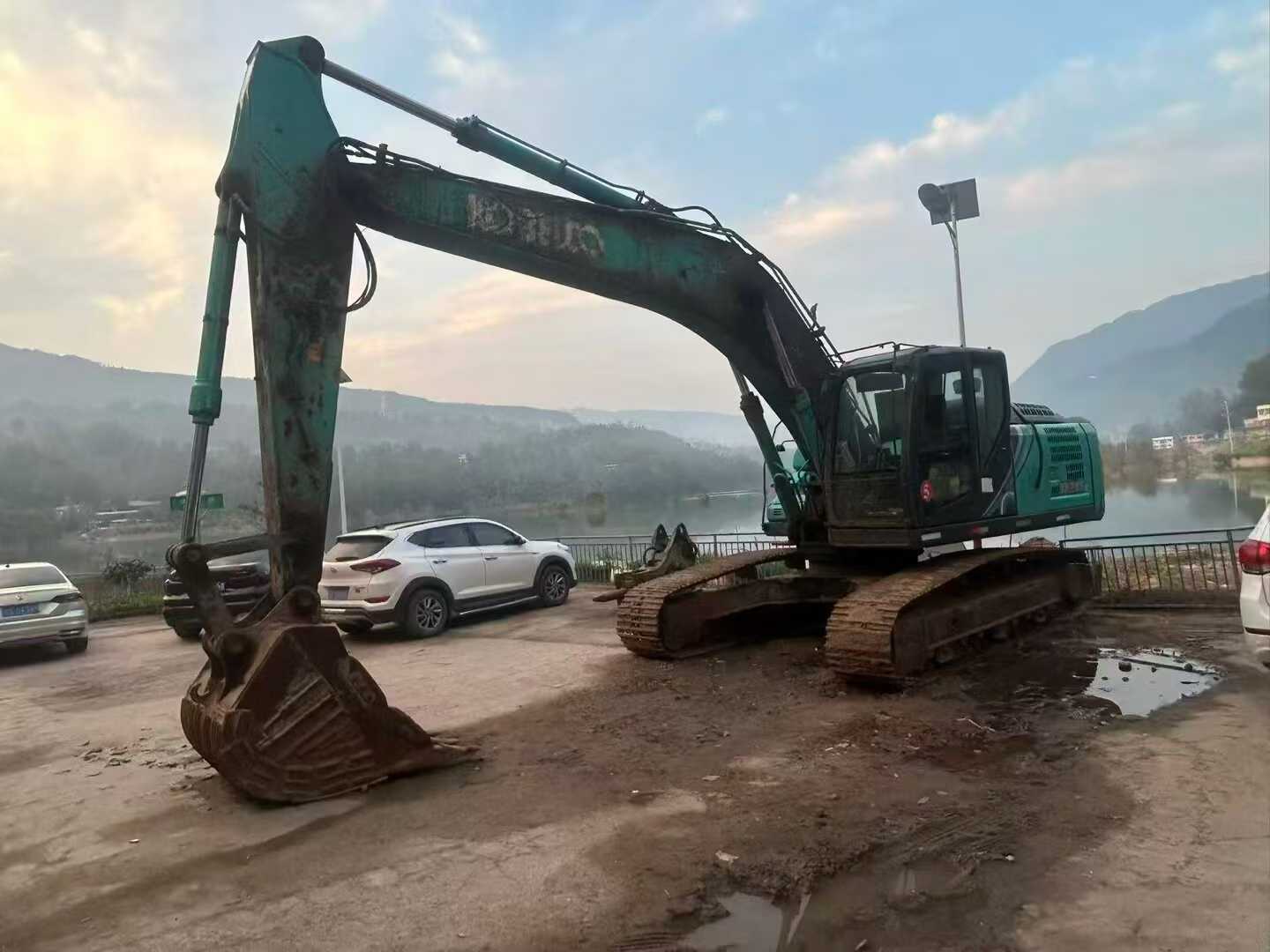

The top-quality Kobelco 260-10 from 2018 is worth over 200,000 yuan. For those who know the quality, come here. There are detailed pictures and videos. It just arrived at the scene this afternoon. Vehicle condition and performance are not taken into account. First-hand information
| Specifications | Value |
|---|---|
| No. | 955603 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5770 |
| Bucket capacity (m³) | 0.22 |
| Rod length (mm) | 1660 |
| Bucket width (mm) | 760 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

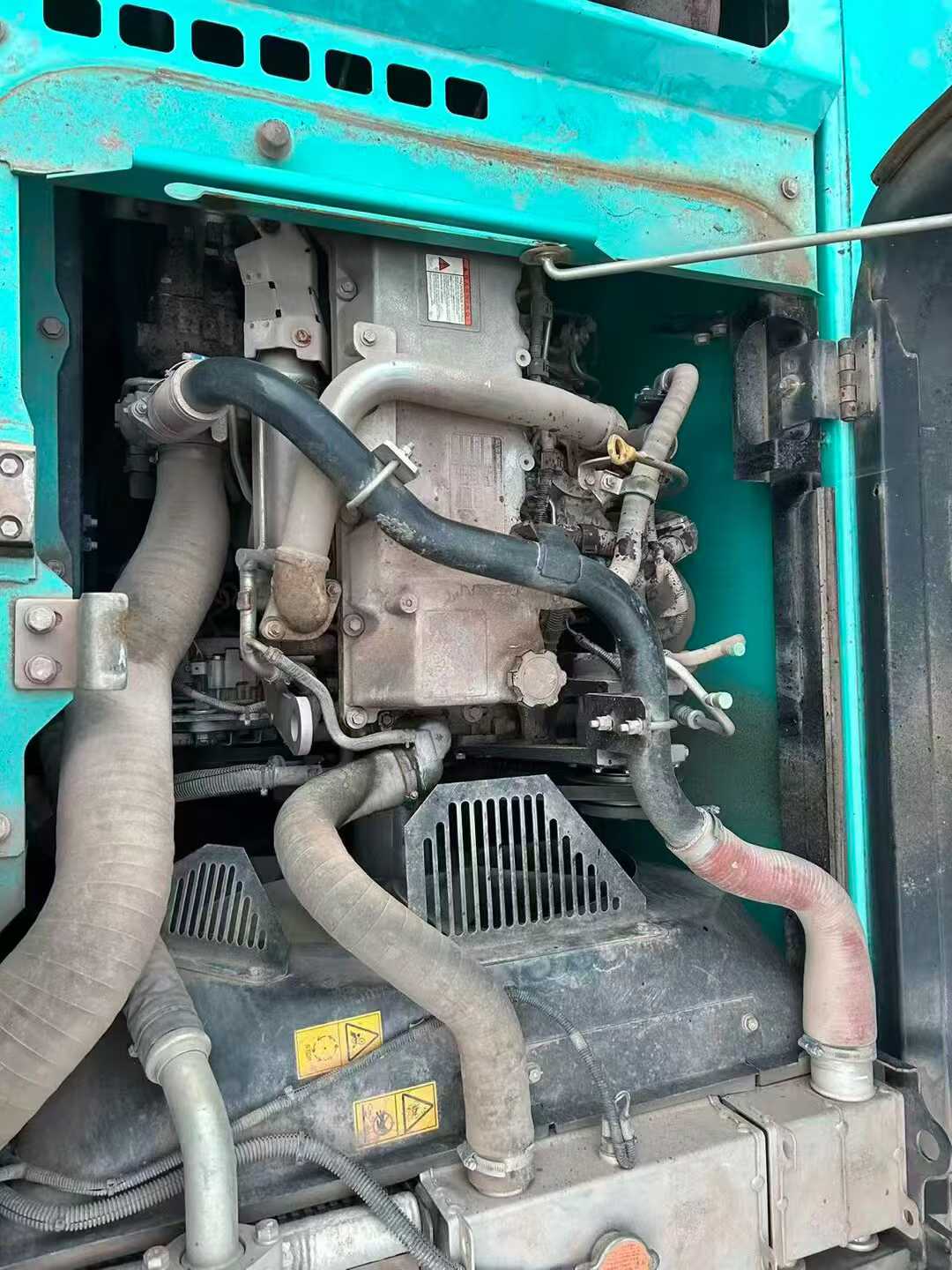

| Engine type | Yanmar 4TNV94L-ZCP |
| Rated power (kw/rpm) | 35.5/2400 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 202 / 1,450 |
| Displacement (L) | 3.053 |
| Working form | Vertical in-line water-cooled four-stroke diesel engine (Direct injection) |
| Ground specific pressure (Kpa) | 33.7 |
| Rotation speed (rpm) | 8.9 |
| Climbing ability (%) | 58 |
| Bucket digging force (kN) | 40.5 |
| Rod digging force (kN) | 25.1 |
| Travel speed (km/h) | 4.2 / 2.5 |
| Maximum flow of main pump (l/min) | 57.1 x 2, 33.8 x 1 |

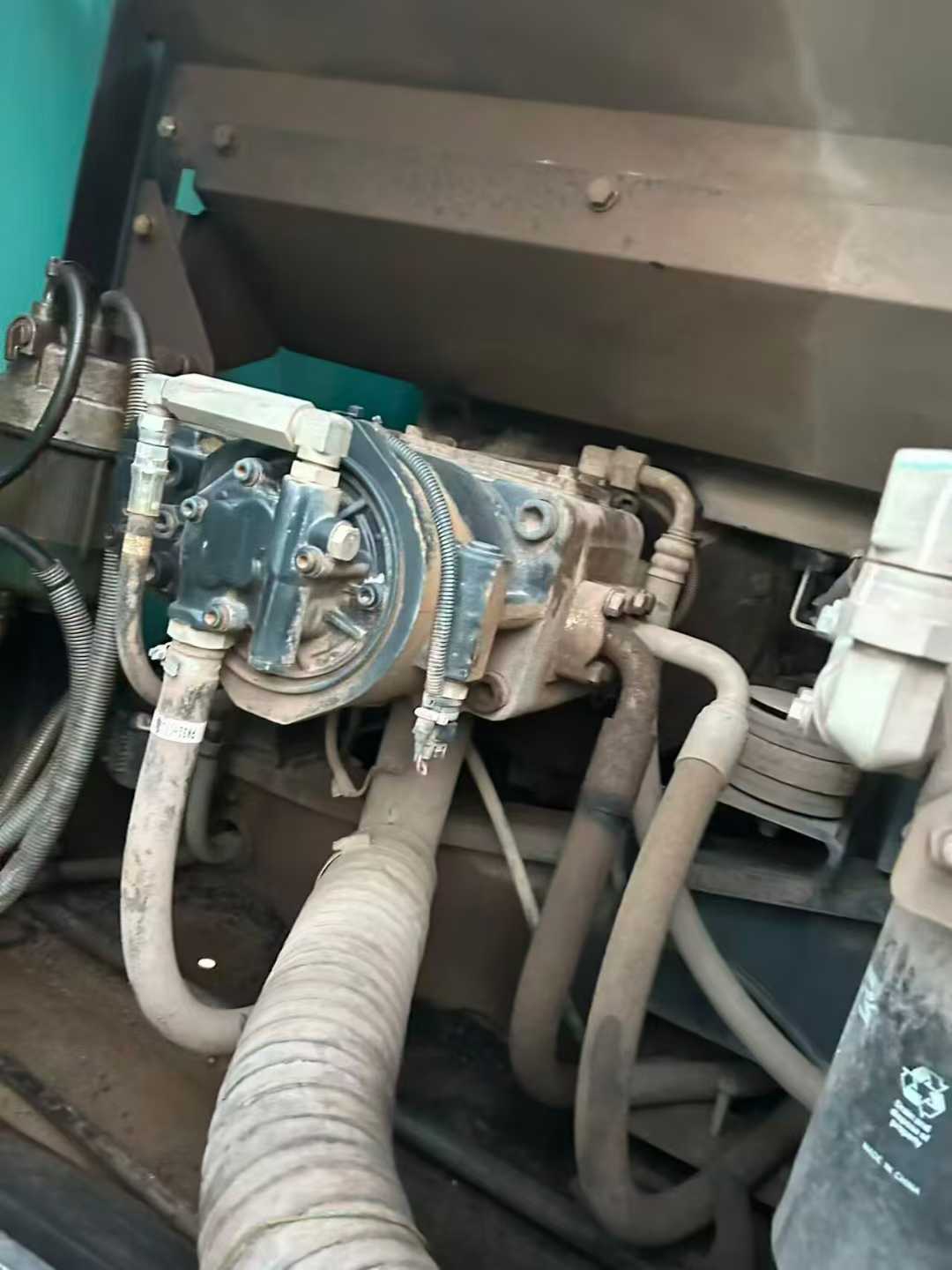

| Main pump type | Variable displacement axial piston pump 2 + gear pump 2 |
| Pilot pump flow (L/min) | 12.2 x 1 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 41 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1900 |
| Total transport height (mm) | 2550 |
| Track plate width (mm) | 400 |
| Maximum digging radius (mm) | 6200 |
| Maximum digging depth (mm) | 3910 |
| Bulldozer lift or depth (mm) | 470/380 |
| Dodging plate width × height (mm) | 1,960 times 345 |
