2016 Kobelco SK75

1/8
Used Kobelco SK75 Excavator 2016 Model / 1

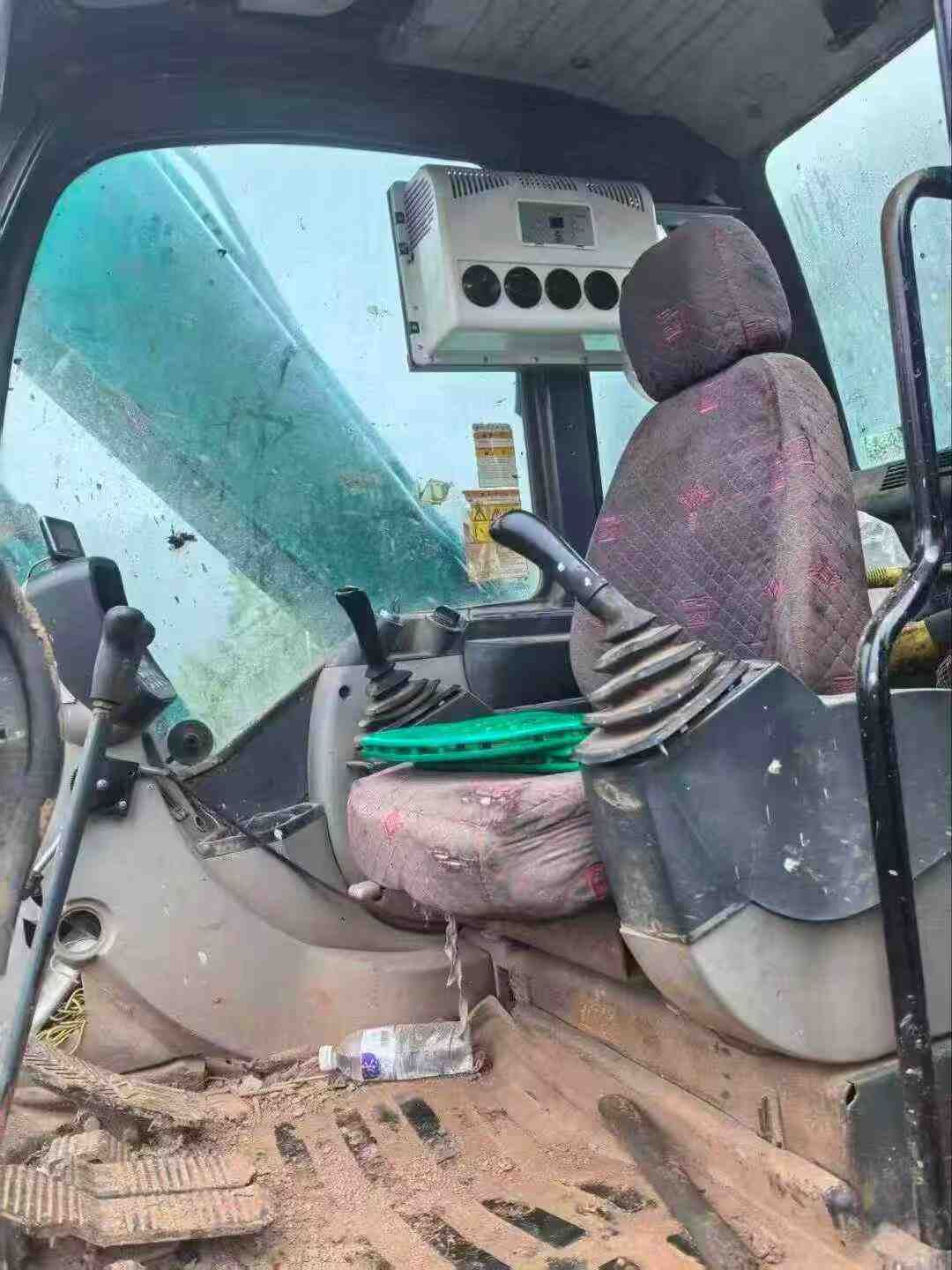

Used Kobelco SK75 Excavator 2016 Model / 2

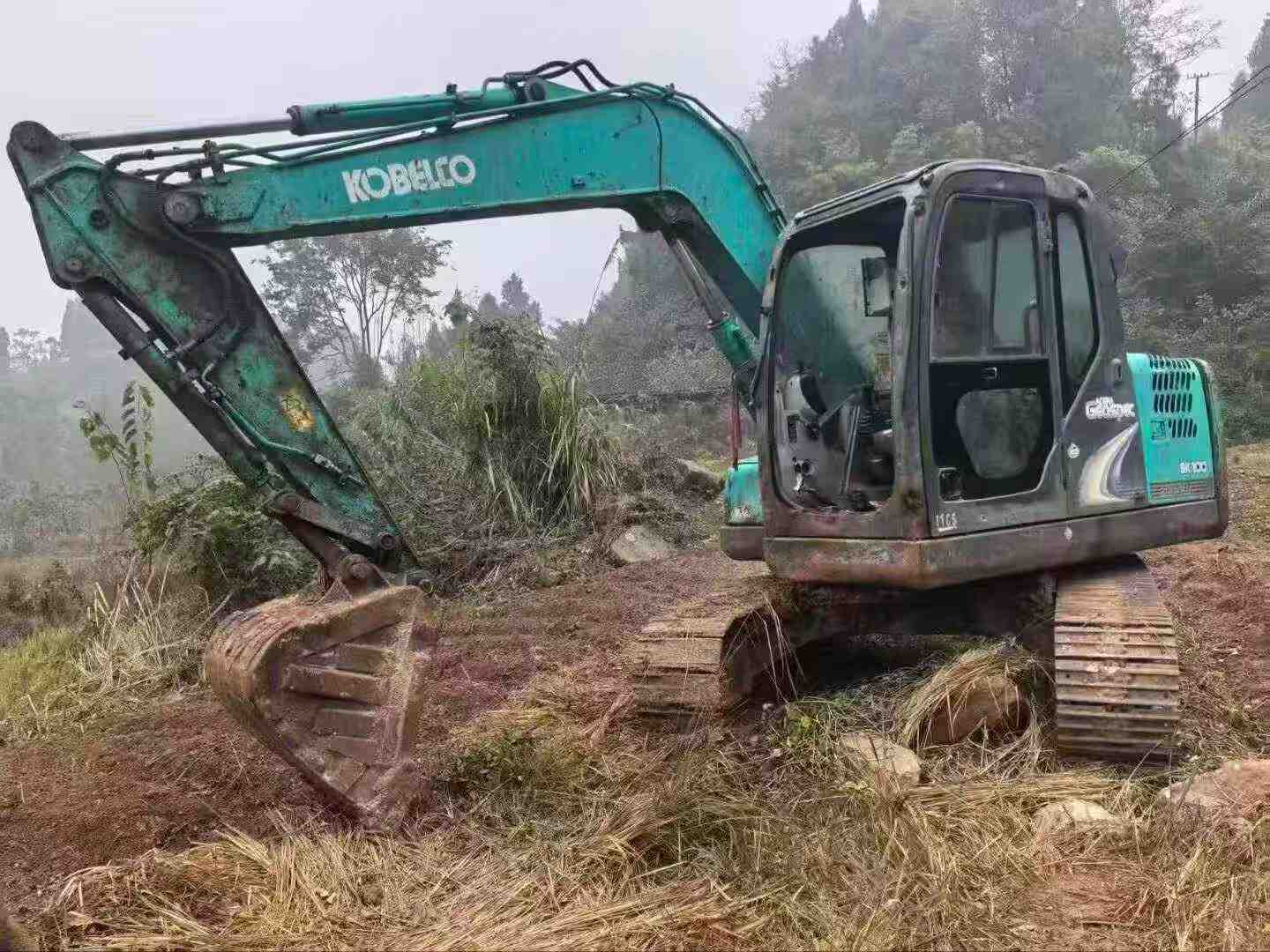

Used Kobelco SK75 Excavator 2016 Model / 3

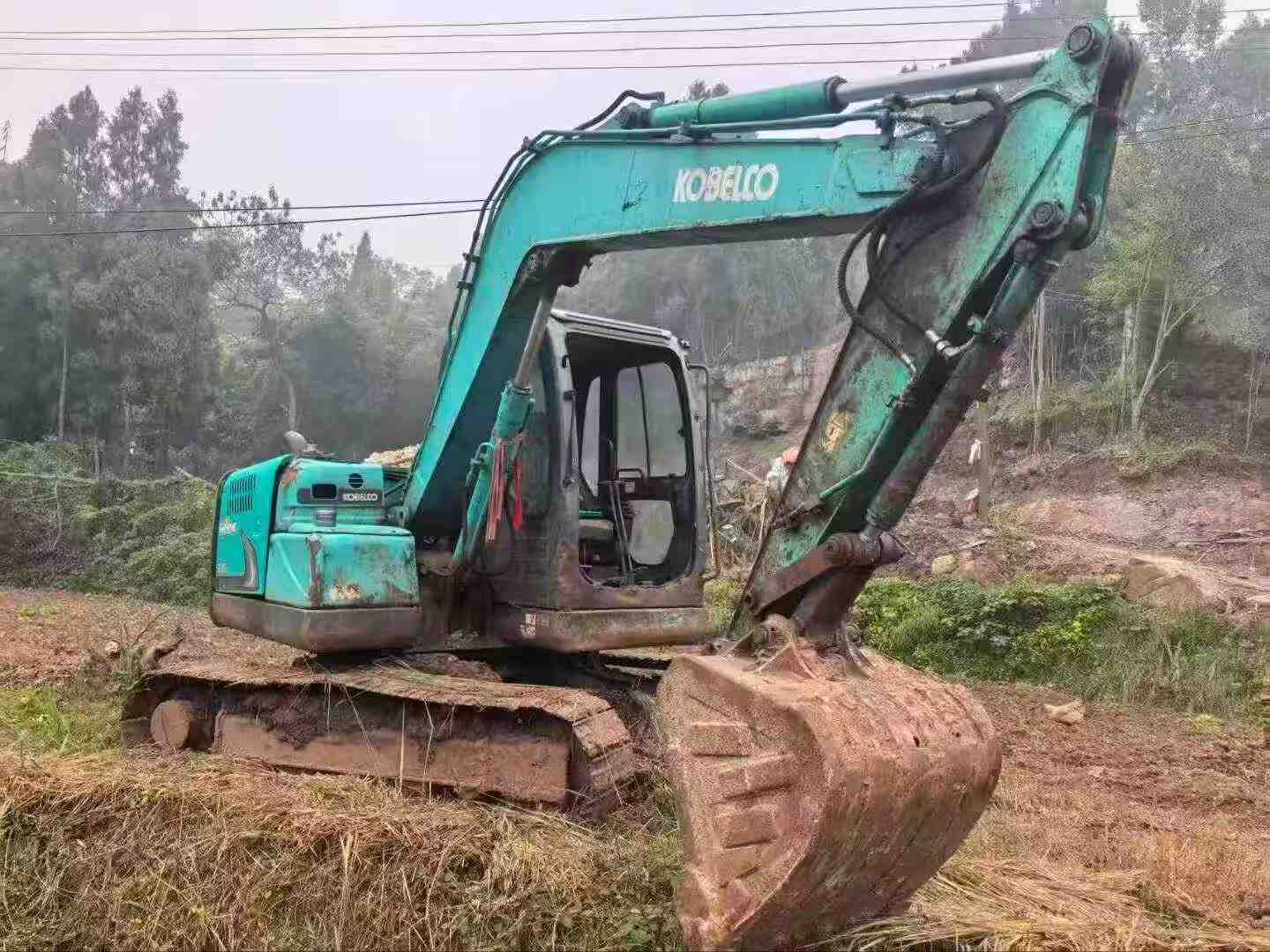

Used Kobelco SK75 Excavator 2016 Model / 4
Used Kobelco SK75 Excavator 2016 Model / 5

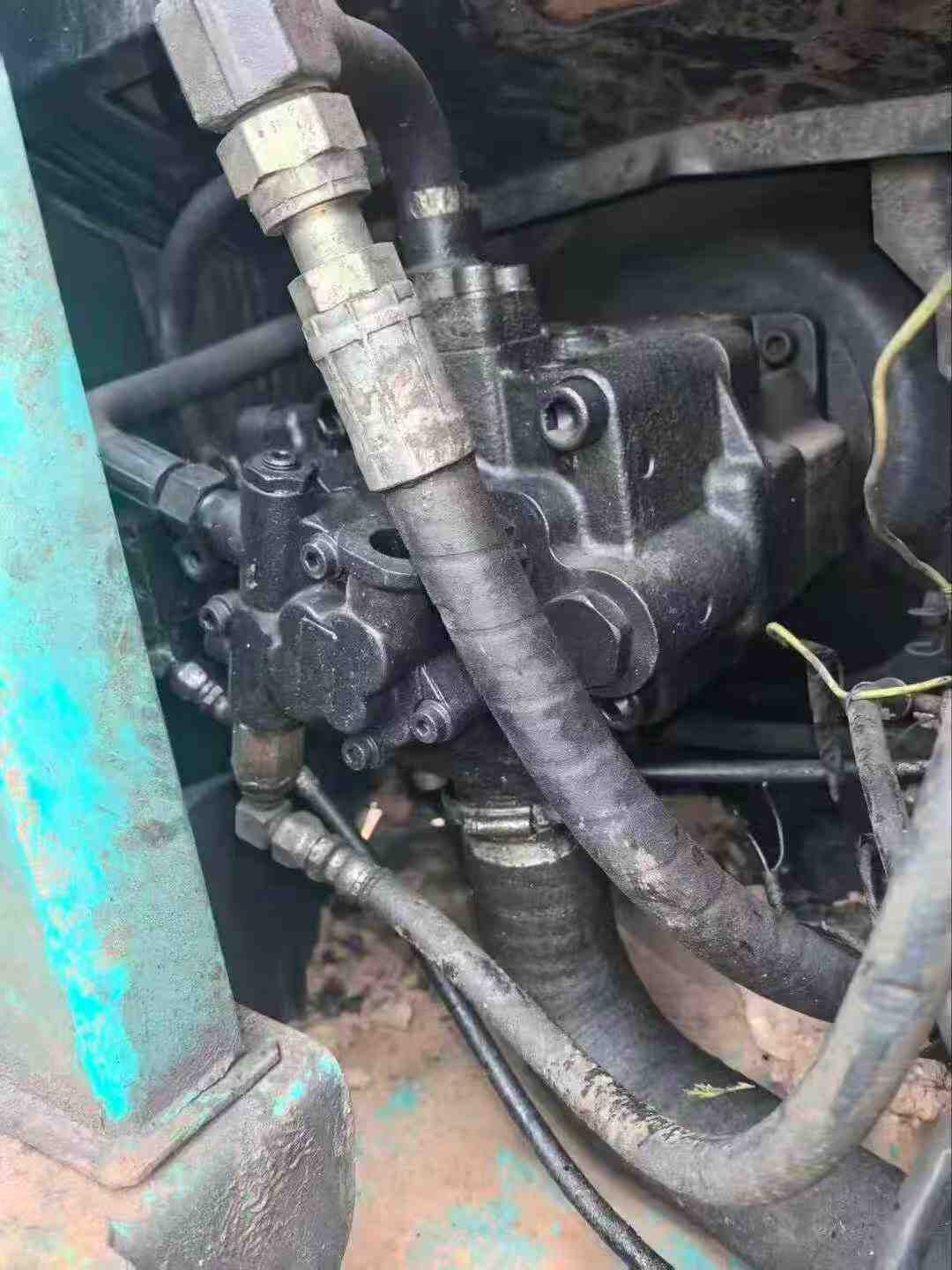

Used Kobelco SK75 Excavator 2016 Model / 6

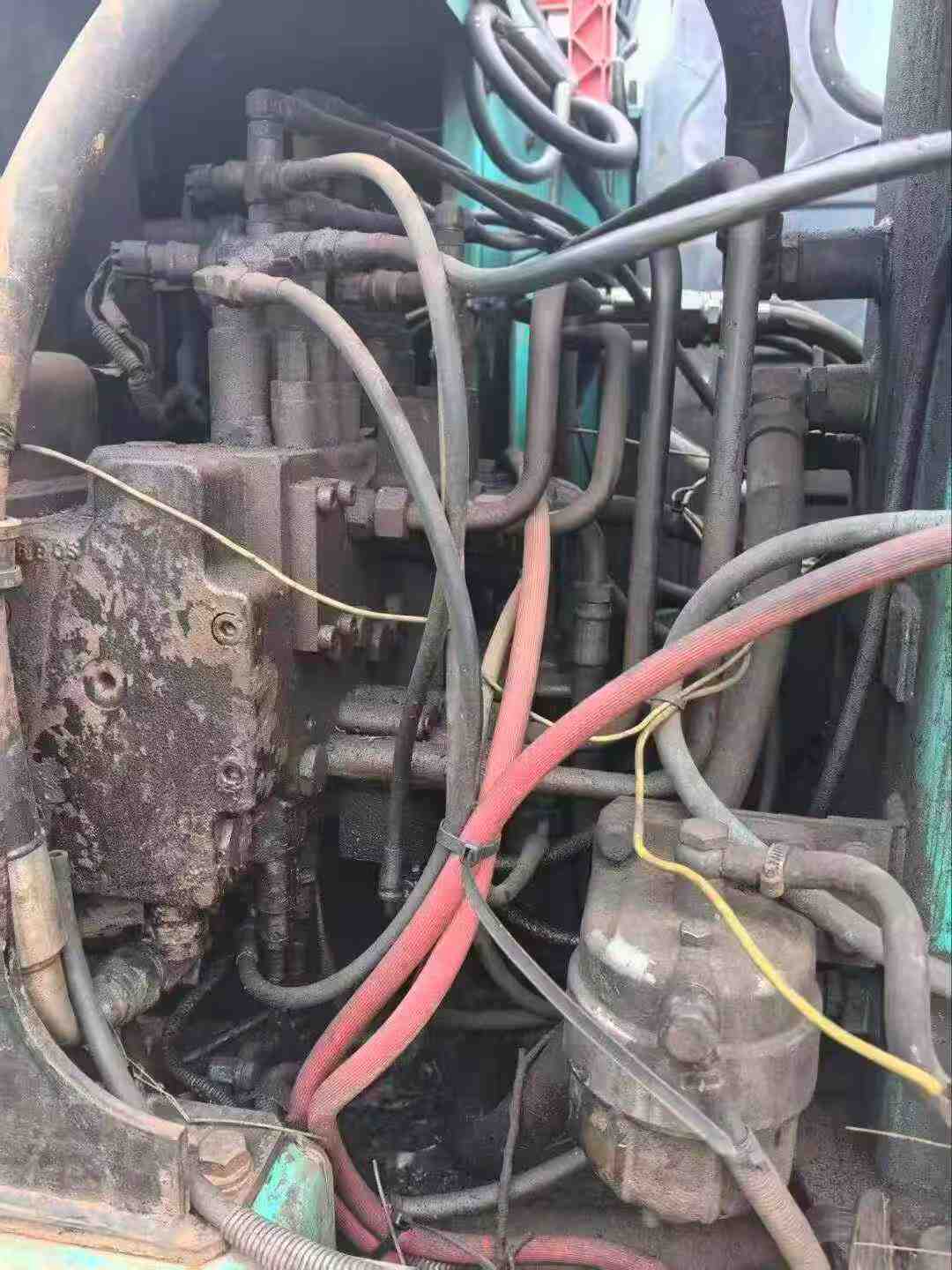

Used Kobelco SK75 Excavator 2016 Model / 7

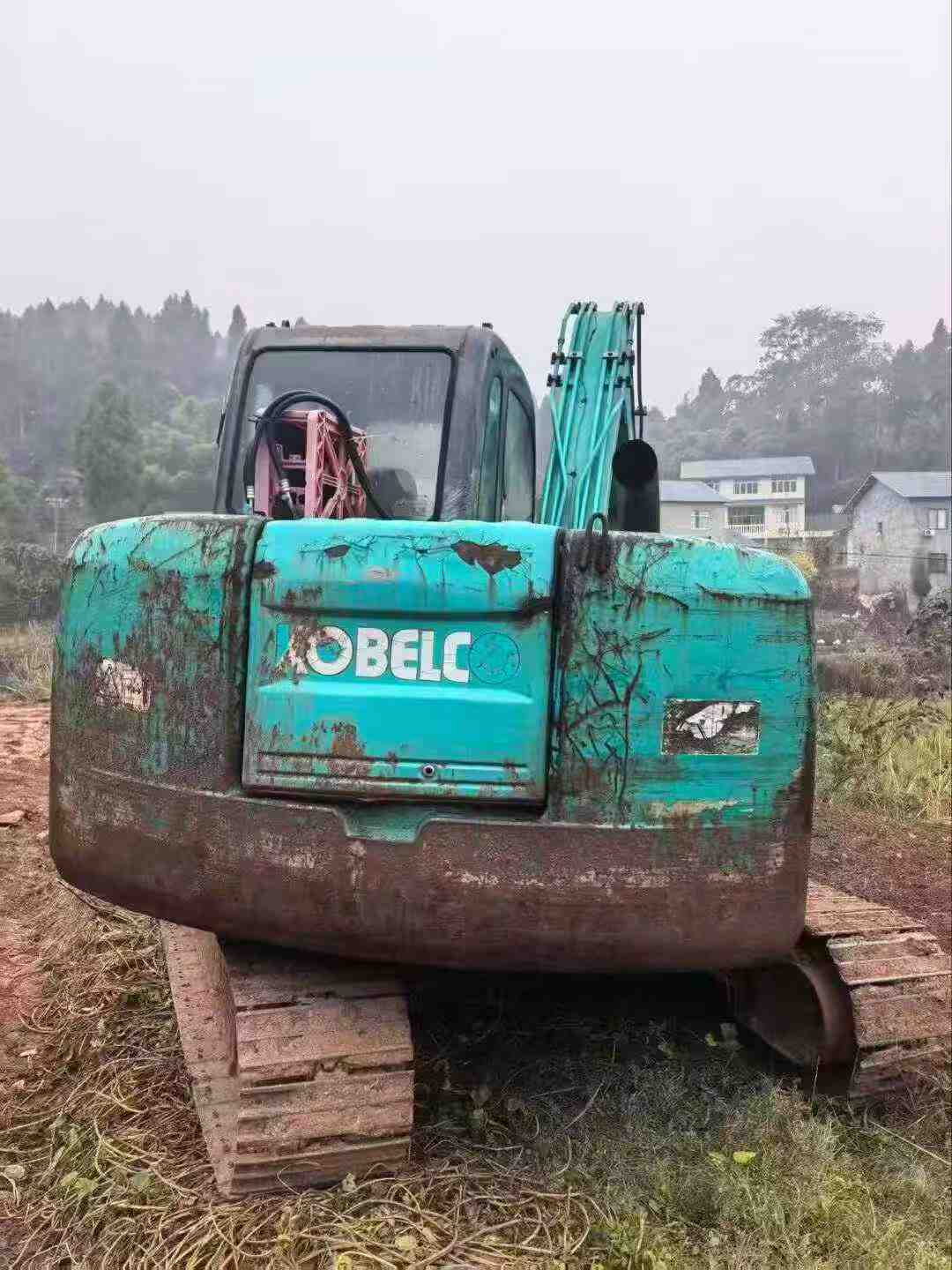

Used Kobelco SK75 Excavator 2016 Model / 8

Product Description

【 Second-hand Kobelco SK75 Excavator This second-hand Kobelco SK75 excavator is currently priced at around 50,000 yuan and is an extremely cost-effective choice. The overall working time of the machine is approximately 4,000 hours. For a medium-sized excavator, this usage period is in its prime. It not only ensures the stability and durability of the equipment but also leaves sufficient service life for the new owner to continue creating value. In terms of power, this model is equipped with a well-tested Cummins engine, which not only offers strong performance but also has excellent fuel economy, maintaining efficient operation even under complex working conditions. In addition, its advanced electronic control system can achieve precise control, ensuring that the engine is always in the best working condition, extending its service life while reducing maintenance costs. In terms of the hydraulic system, high-performance hydraulic pumps and control valve groups independently developed by Kobelco are adopted. They feature fast response speed and high operational smoothness. Both the excavation force and the rotation speed have reached the leading level in the industry. Especially in meticulous operations, this hydraulic system can off

SpecificationsValue
No.961107
Tonnage (tons)7
Working weight (kg)7000(approx)
Country of originChengdu
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeISUZU AU4LE2X
Rated power (kw/rpm)41/2200
Cooling modewater-cooling
Cylinder diameter × stroke (mm)85 x 96
Number of cylinders (PCS)4
Displacement (L)2.179
Rotary hydraulic motor typeAxial piston motor
Traveling Hydraulic Circuit (Mpa)27.5
Rotary Hydraulic Circuit (Mpa)14.5
Control Hydraulic Circuit (Mpa)3.5
Main pump typeDouble variable displacement axial piston pump + pilot gear pump
Working Hydraulic Circuit (Mpa)29.4
Fuel Tank (L)120
Hydraulic Tank (L)72
Engine Oil changes (L)11
Coolant (L)8.5
Hydraulic System (L)120
Total transport height (mm)2630
Full cab height (mm)2630
Minimum turning radius of front working device (mm)1760
Back end turning radius (mm)1290
Maximum digging radius (mm)6460
Maximum digging depth (mm)4160
Maximum excavation height (mm)7390
Maximum unloading height (mm)5330
Maximum vertical digging depth (mm)3450
Maximum excavation radius of stop surface (mm)6300
Maximum effective digging depth (mm)3800
Travel speed (km/h)2.8/5.3
see more

Overview

No.961107

Brand Name:

Kobelco

Model Number:

SK75

Year:

2016

Location:

Sichuan China
