2016 Kobelco SK75

1/9
Used Kobelco SK75 Excavator 2016 Model / 1

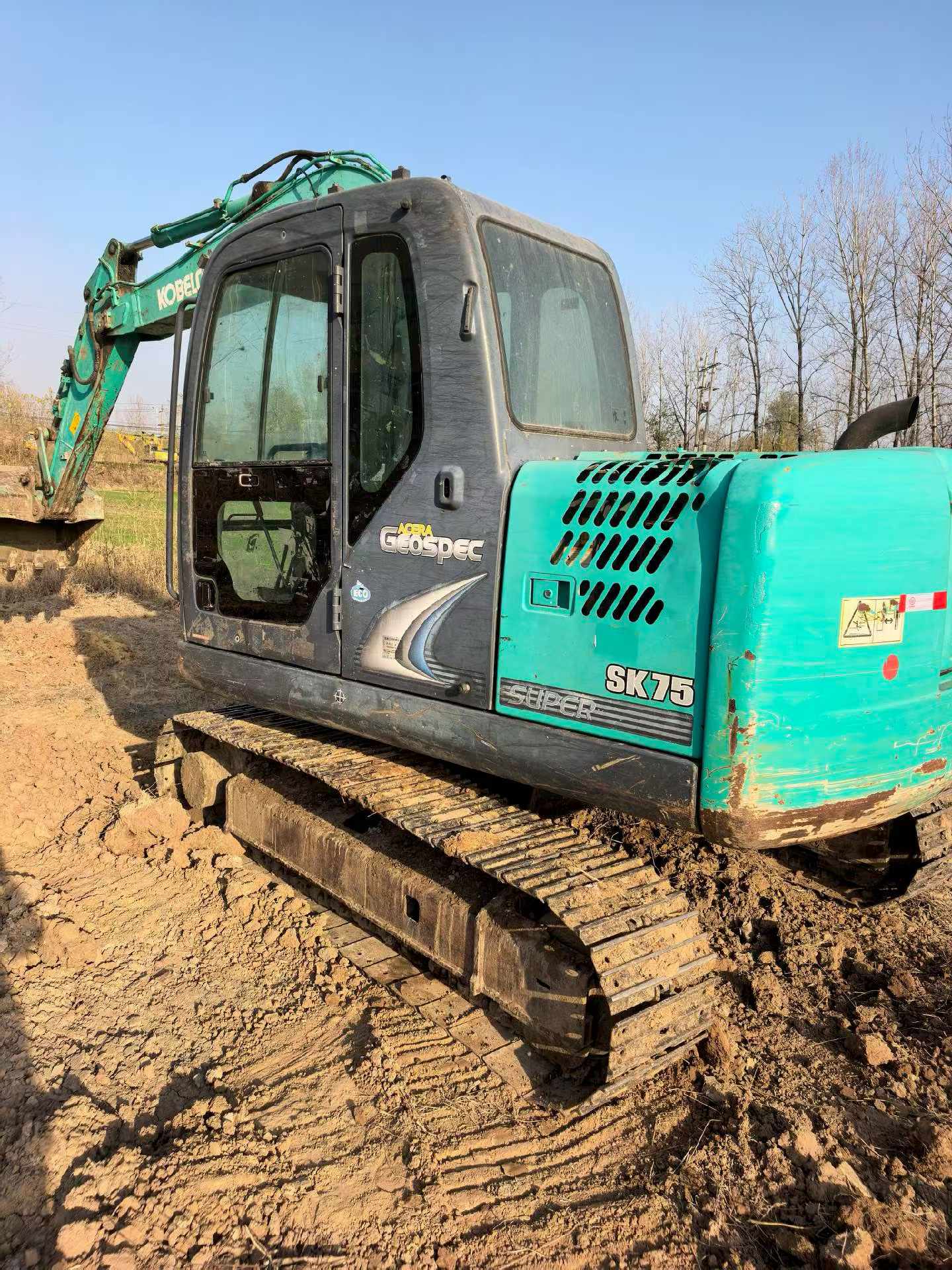

Used Kobelco SK75 Excavator 2016 Model / 2

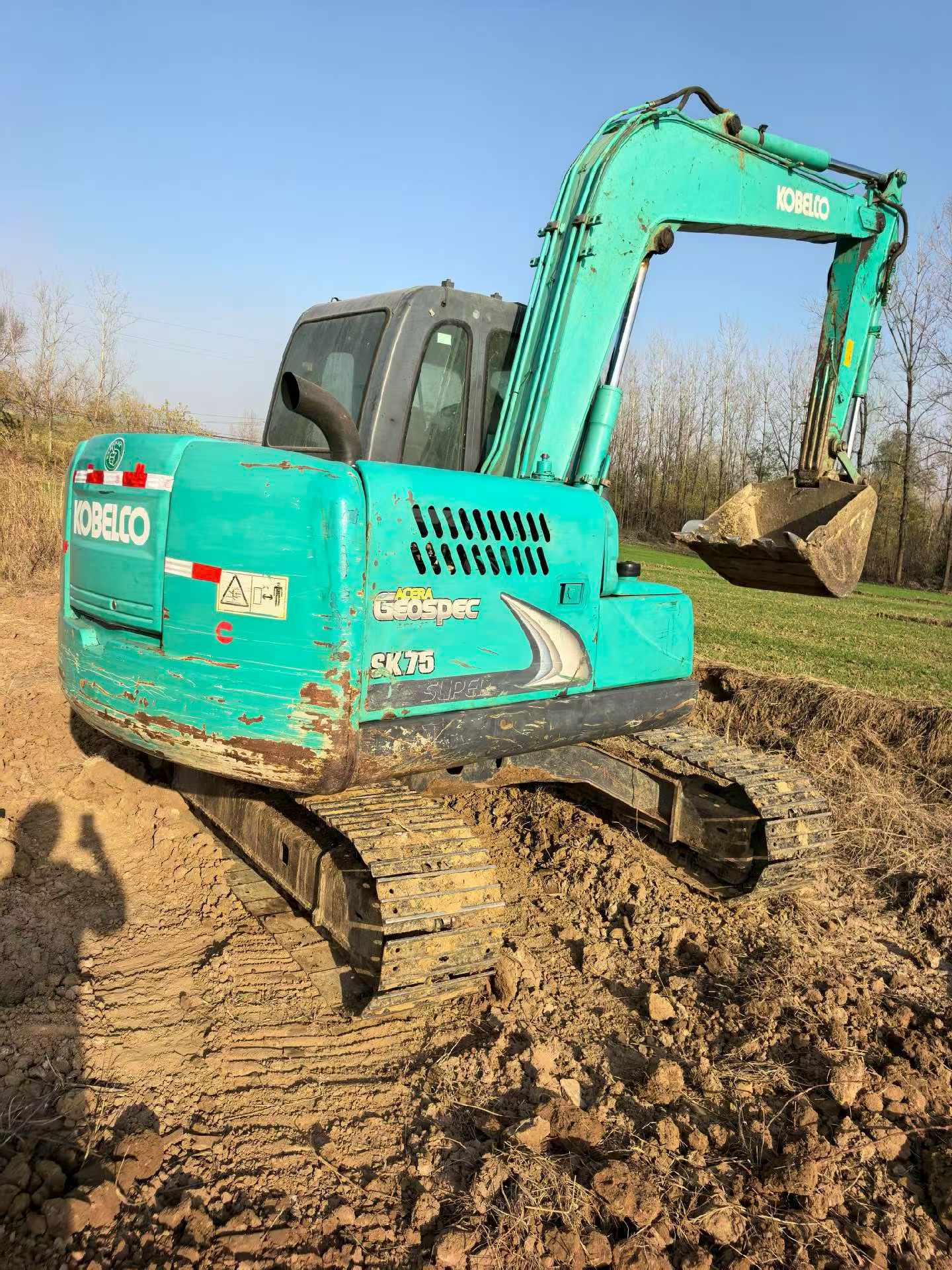

Used Kobelco SK75 Excavator 2016 Model / 3
Used Kobelco SK75 Excavator 2016 Model / 4

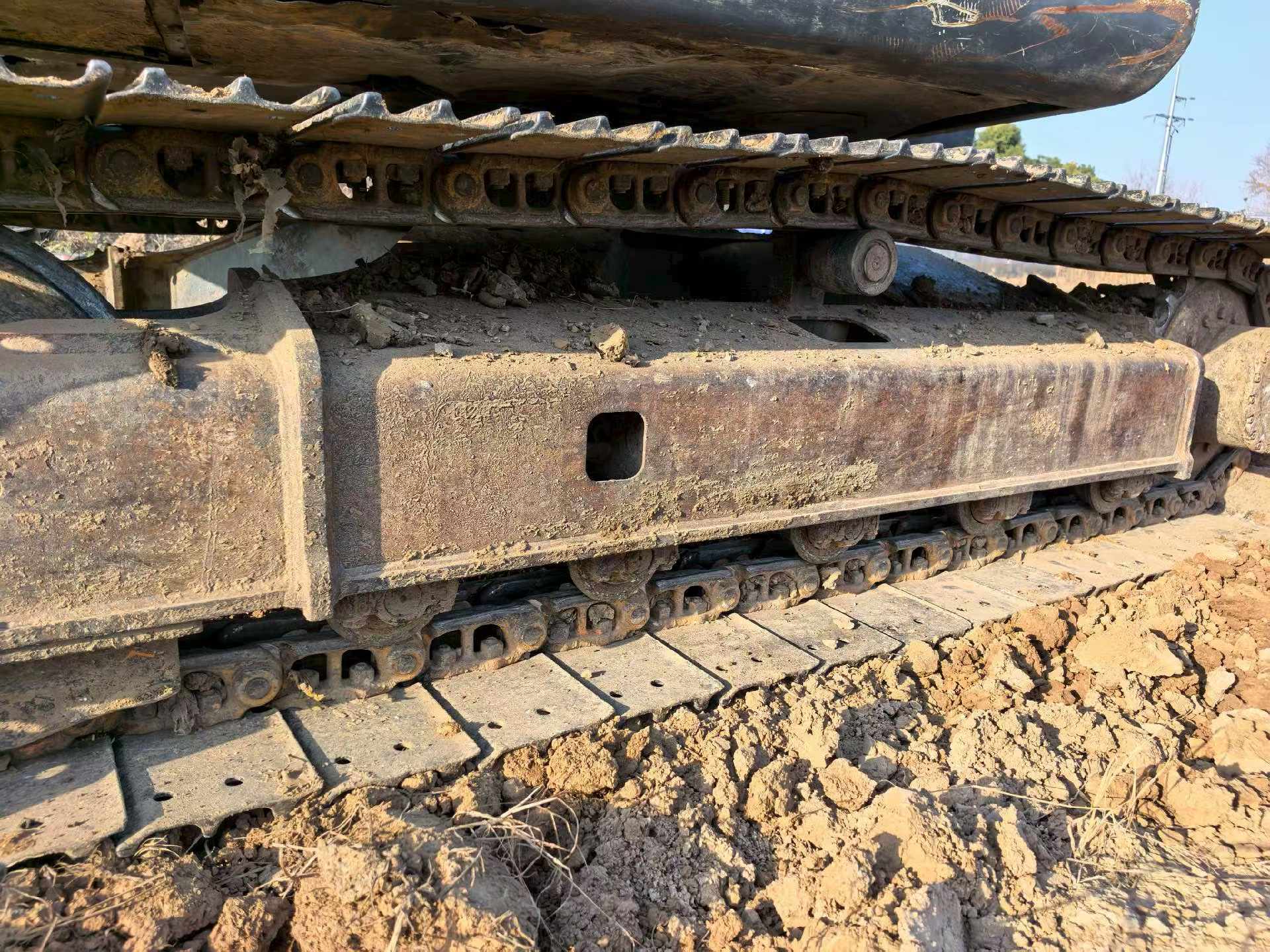

Used Kobelco SK75 Excavator 2016 Model / 5

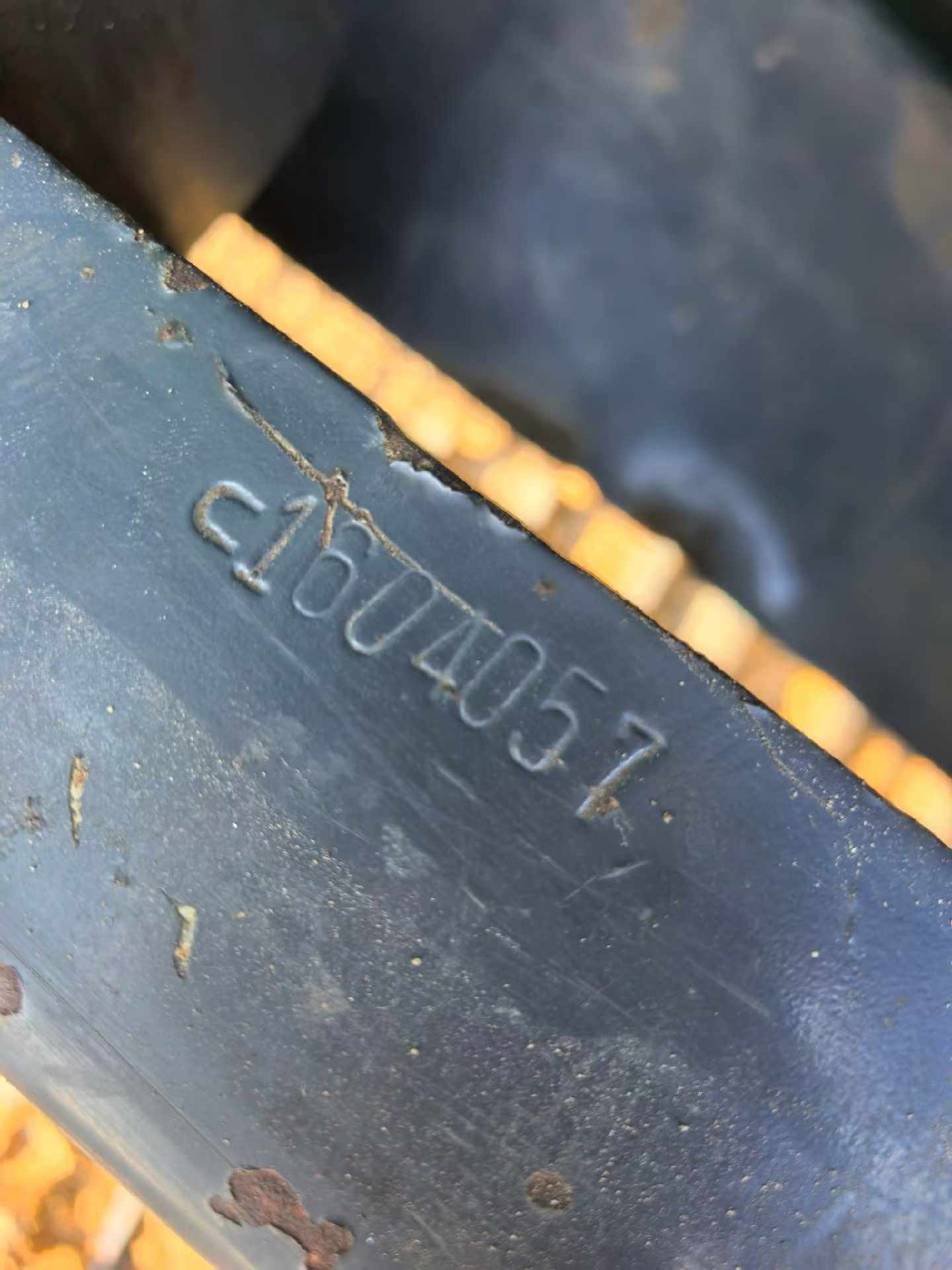

Used Kobelco SK75 Excavator 2016 Model / 6

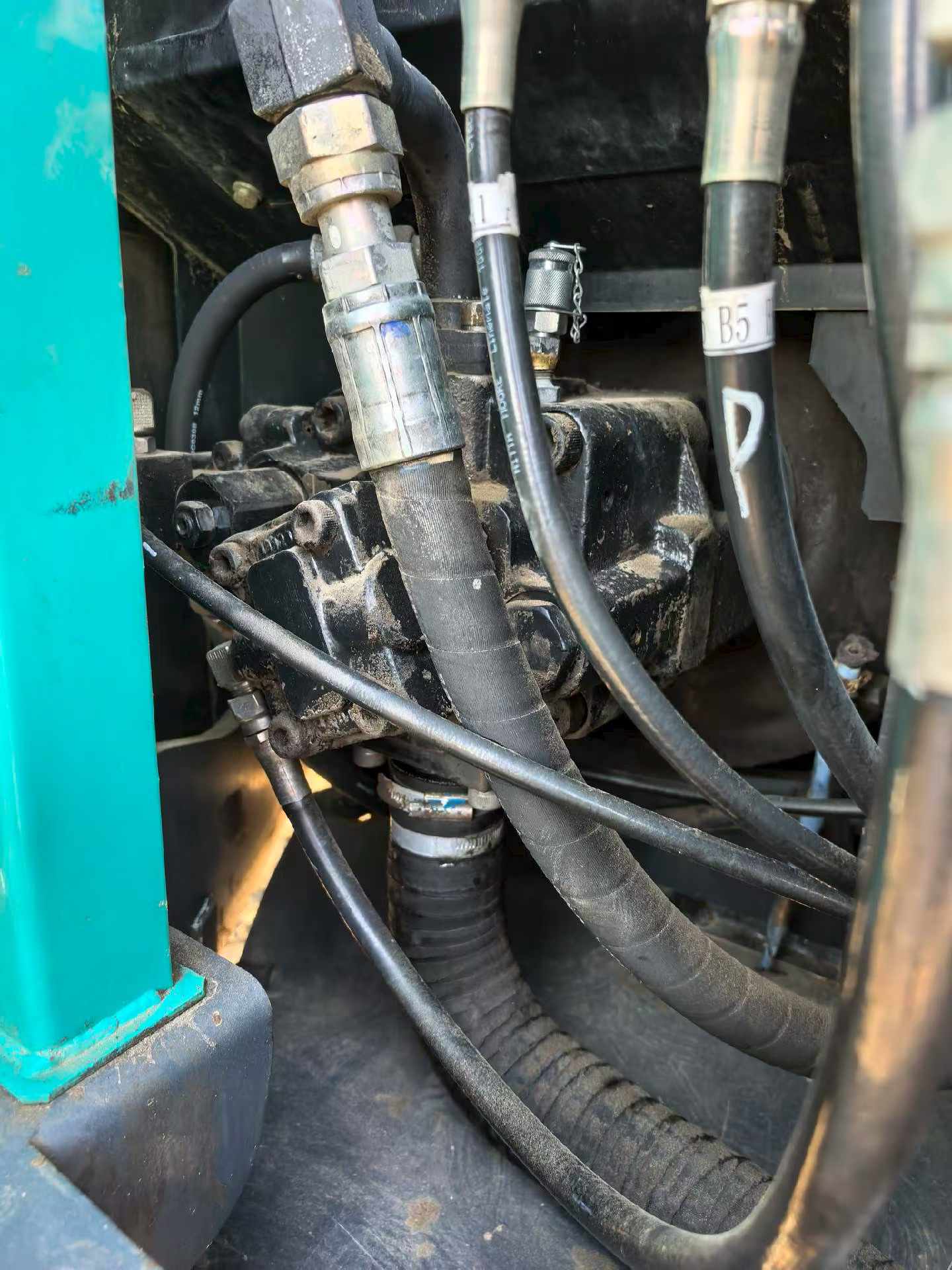

Used Kobelco SK75 Excavator 2016 Model / 7

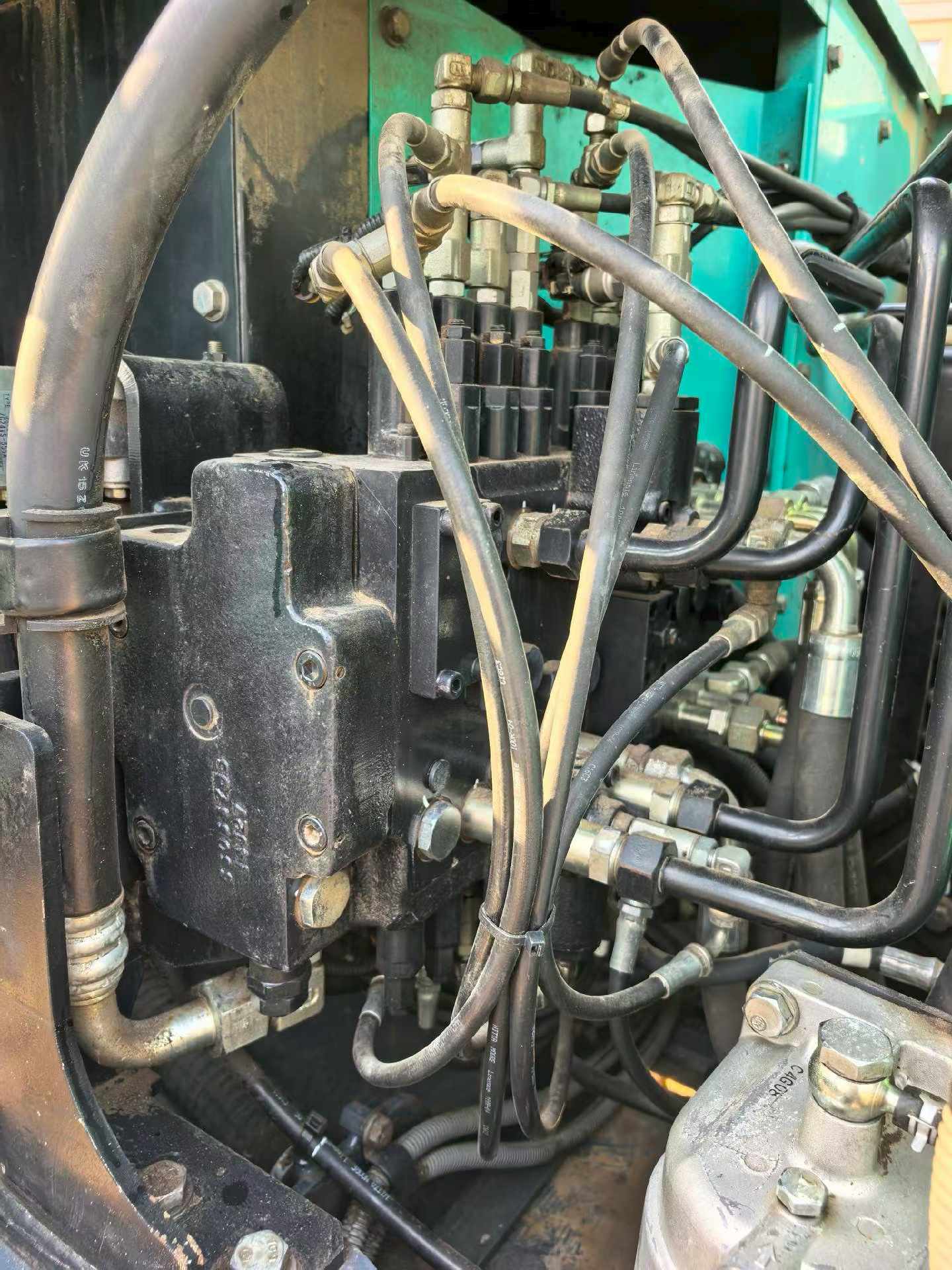

Used Kobelco SK75 Excavator 2016 Model / 8

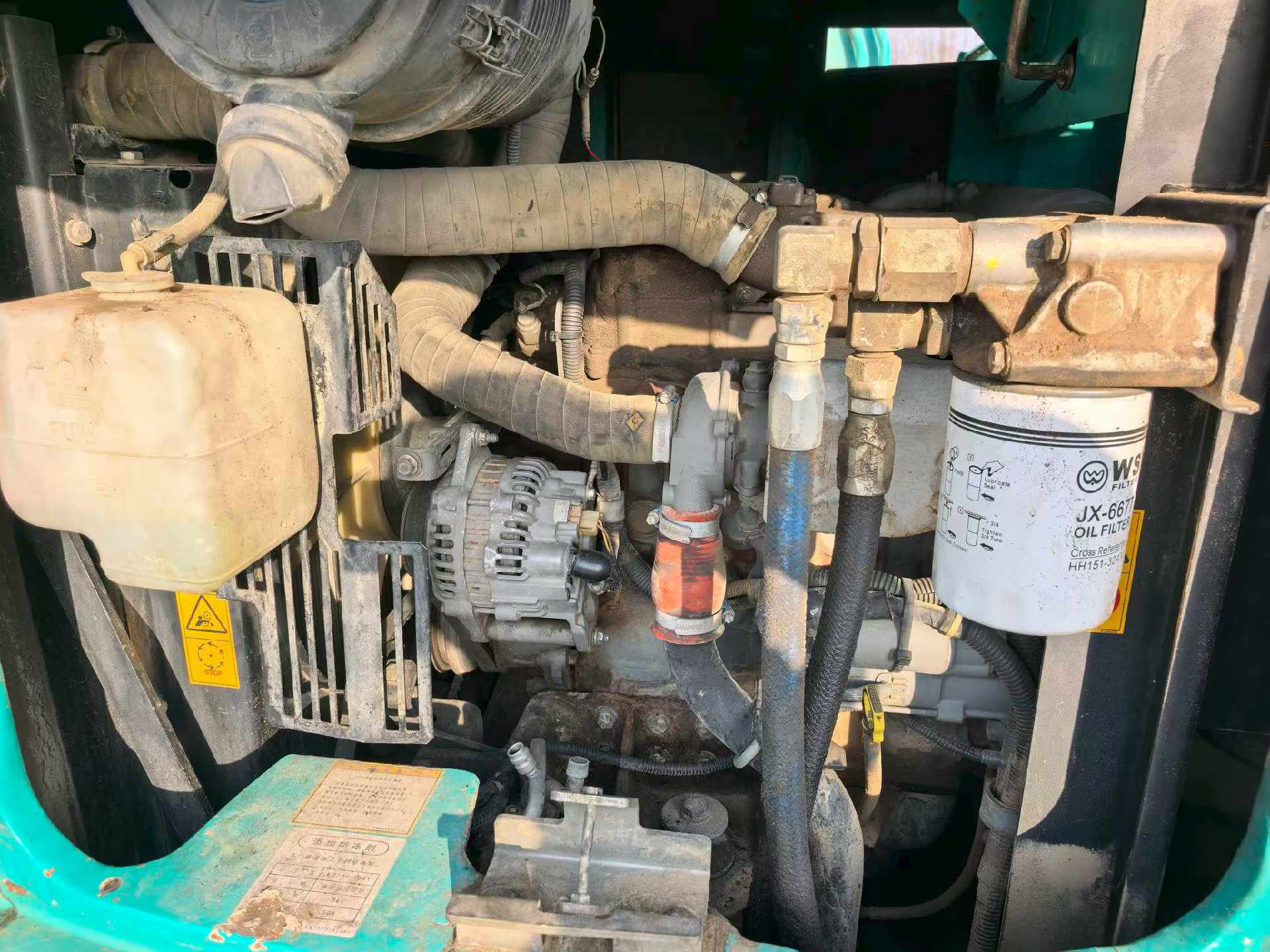

Used Kobelco SK75 Excavator 2016 Model / 9

Product Description

【 Premium Recommendation 】 Second-hand Kobelco SK75 excavator from 2016, full vehicle original paint, new chain, major parts untouched, outstanding performance, a rare opportunity! This 2016 Kobelco SK75 excavator is a rare top-quality model in the market. Its working time is only 3,500 hours. With moderate usage frequency and proper maintenance, its overall condition is excellent. The entire vehicle retains its original paint, with no obvious scratches or damages on the exterior. It looks almost indistinguishable from a brand-new car. In terms of the power system, this excavator is equipped with a high-performance engine, which is powerful and stable. It can handle both hard rocks and soft soil with ease. More importantly, due to proper maintenance, the engine runs smoothly, with low noise and economical fuel consumption, significantly reducing operating costs. In terms of the hydraulic system, this Kobelco SK75 adopts advanced hydraulic technology, featuring flexible and precise operation and prompt response. Key components such as hydraulic pumps and motors have all undergone strict testing to ensure reliability during long-term operation. In addition, we have also replaced the track chain of this excavator with a brand-new one,

SpecificationsValue
No.963768
Tonnage (tons)7
Working weight (kg)7000(approx)
Country of originChengdu
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeISUZU AU4LE2X
Rated power (kw/rpm)41/2200
Cooling modewater-cooling
Cylinder diameter × stroke (mm)85 x 96
Number of cylinders (PCS)4
Displacement (L)2.179
Rotary hydraulic motor typeAxial piston motor
Traveling Hydraulic Circuit (Mpa)27.5
Rotary Hydraulic Circuit (Mpa)14.5
Control Hydraulic Circuit (Mpa)3.5
Main pump typeDouble variable displacement axial piston pump + pilot gear pump
Working Hydraulic Circuit (Mpa)29.4
Fuel Tank (L)120
Hydraulic Tank (L)72
Engine Oil changes (L)11
Coolant (L)8.5
Hydraulic System (L)120
Total transport height (mm)2630
Full cab height (mm)2630
Minimum turning radius of front working device (mm)1760
Back end turning radius (mm)1290
Maximum digging radius (mm)6460
Maximum digging depth (mm)4160
Maximum excavation height (mm)7390
Maximum unloading height (mm)5330
Maximum vertical digging depth (mm)3450
Maximum excavation radius of stop surface (mm)6300
Maximum effective digging depth (mm)3800
Travel speed (km/h)2.8/5.3
see more

Overview

No.963768

Brand Name:

Kobelco

Model Number:

SK75

Year:

2016

Location:

Anhui China
