2017 Kobelco SK75

1/9
Used Kobelco SK75 Excavator 2017 Model / 1
Used Kobelco SK75 Excavator 2017 Model / 2

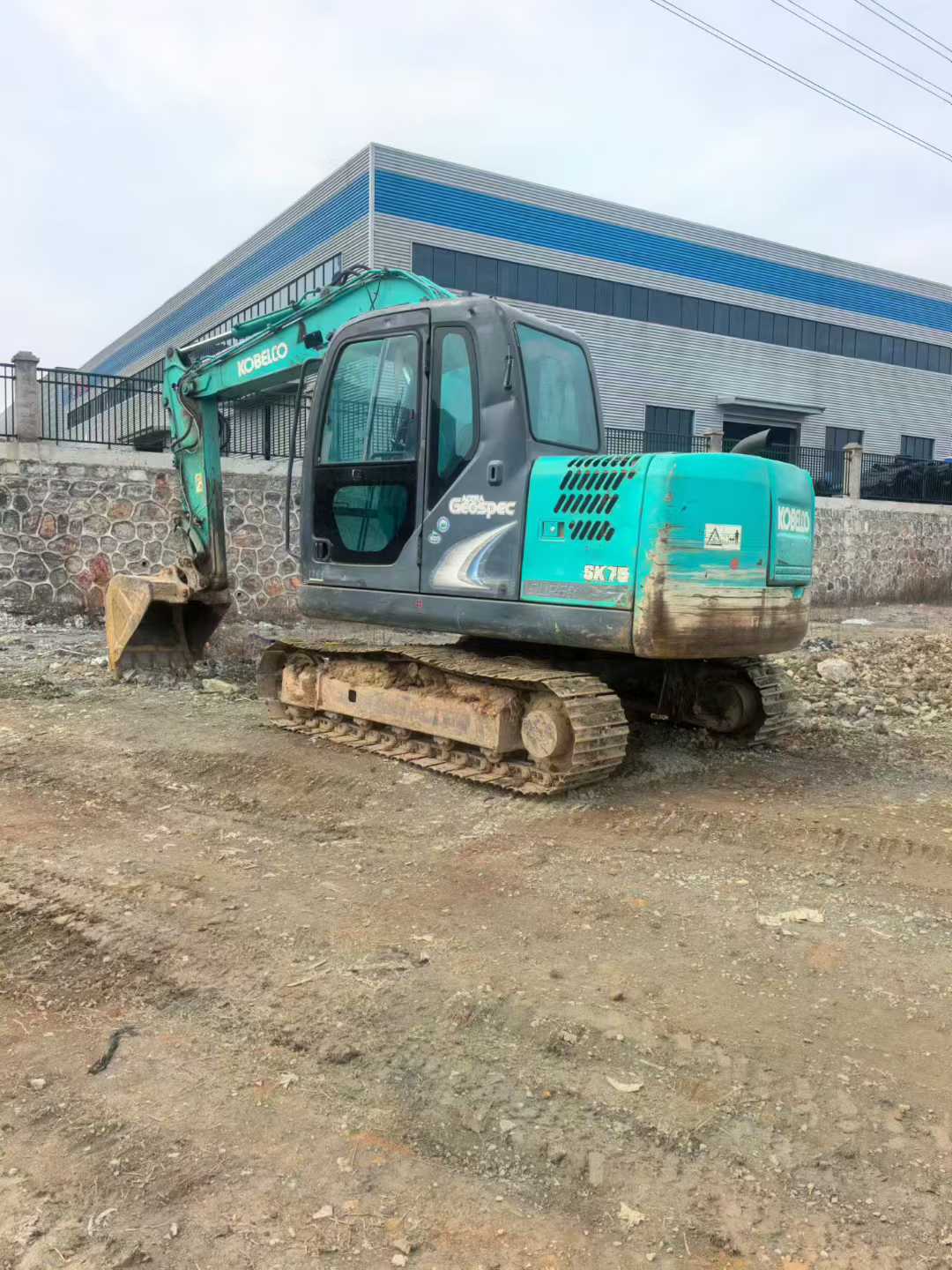

Used Kobelco SK75 Excavator 2017 Model / 3

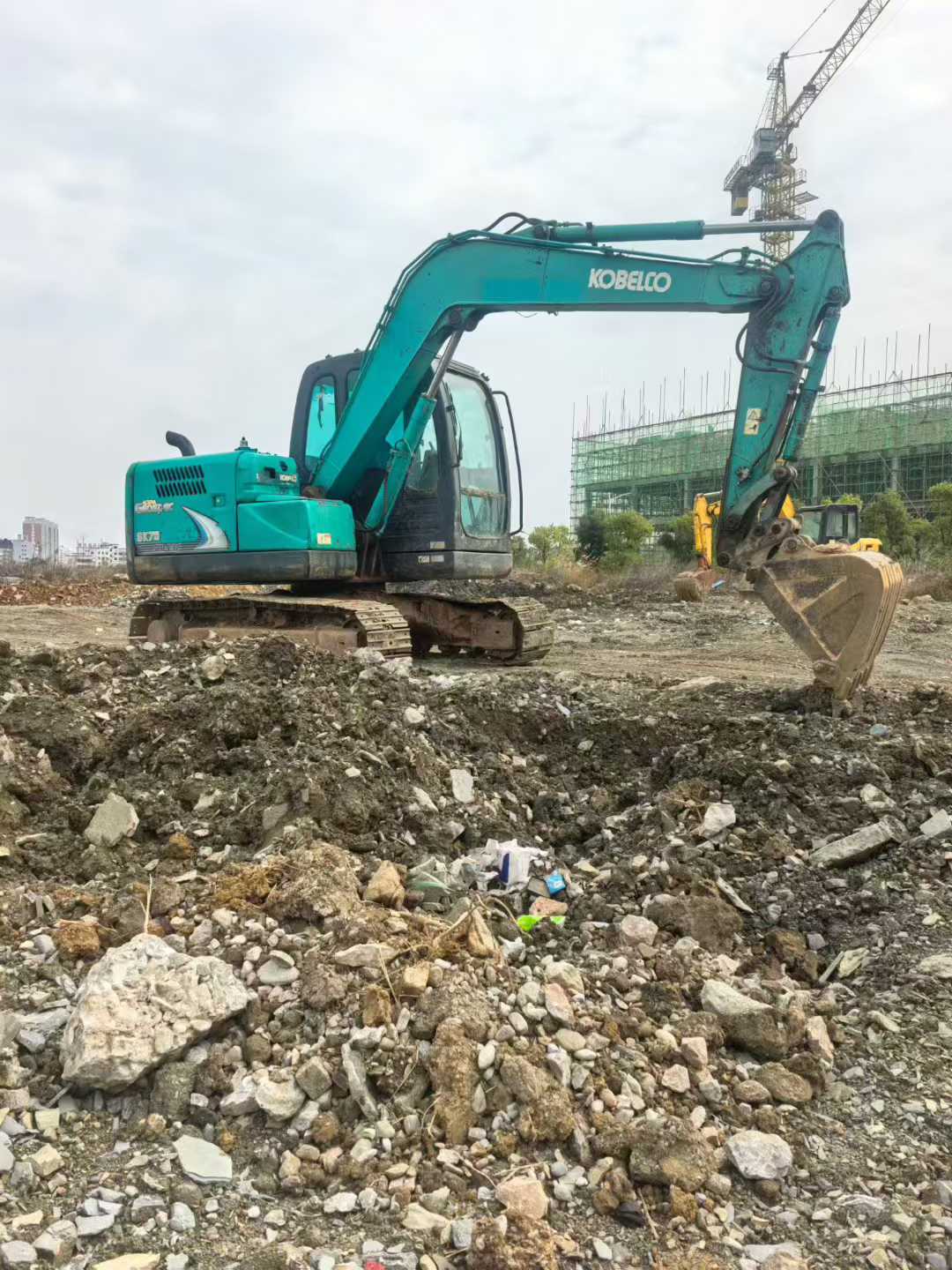

Used Kobelco SK75 Excavator 2017 Model / 4

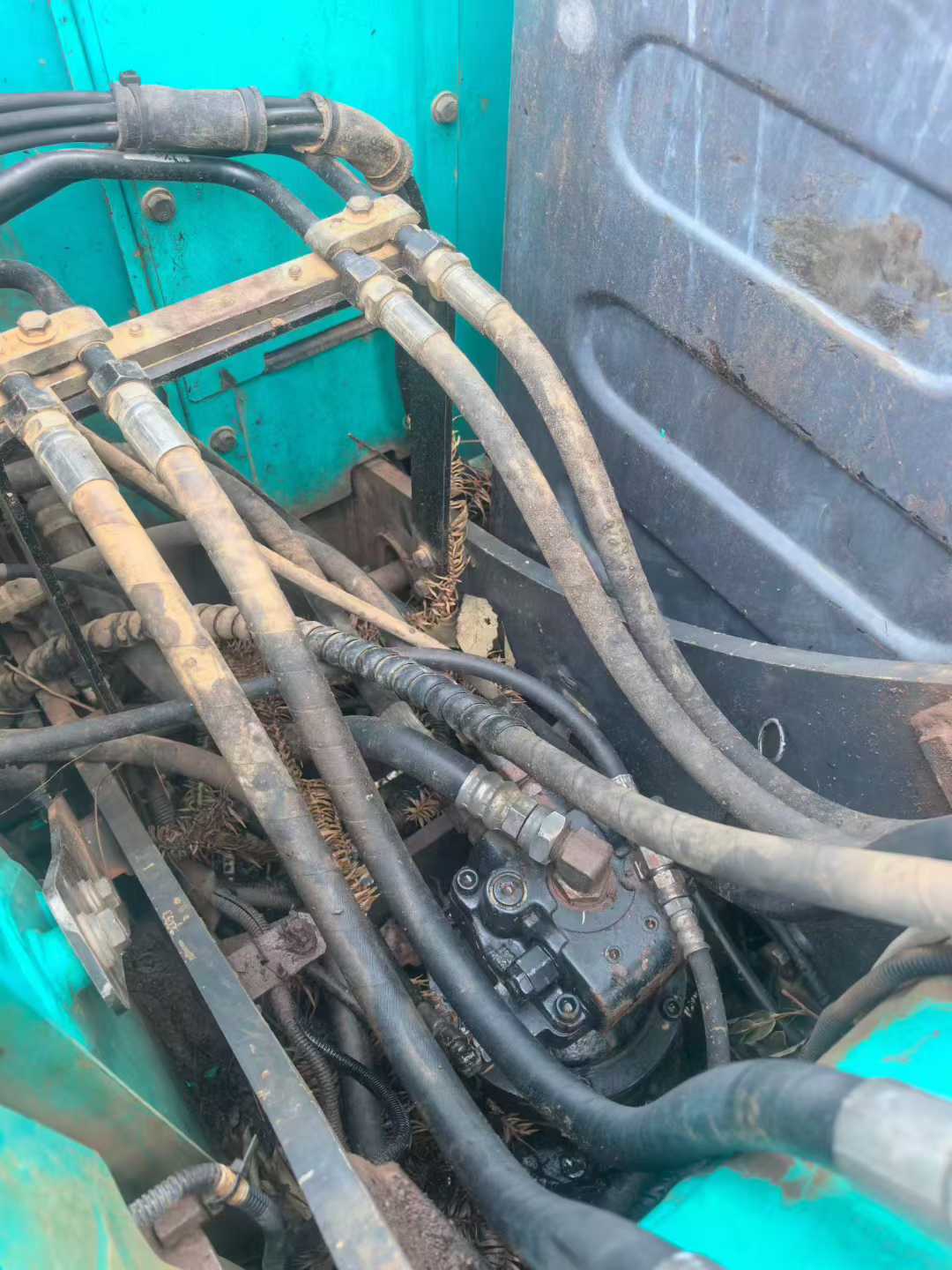

Used Kobelco SK75 Excavator 2017 Model / 5

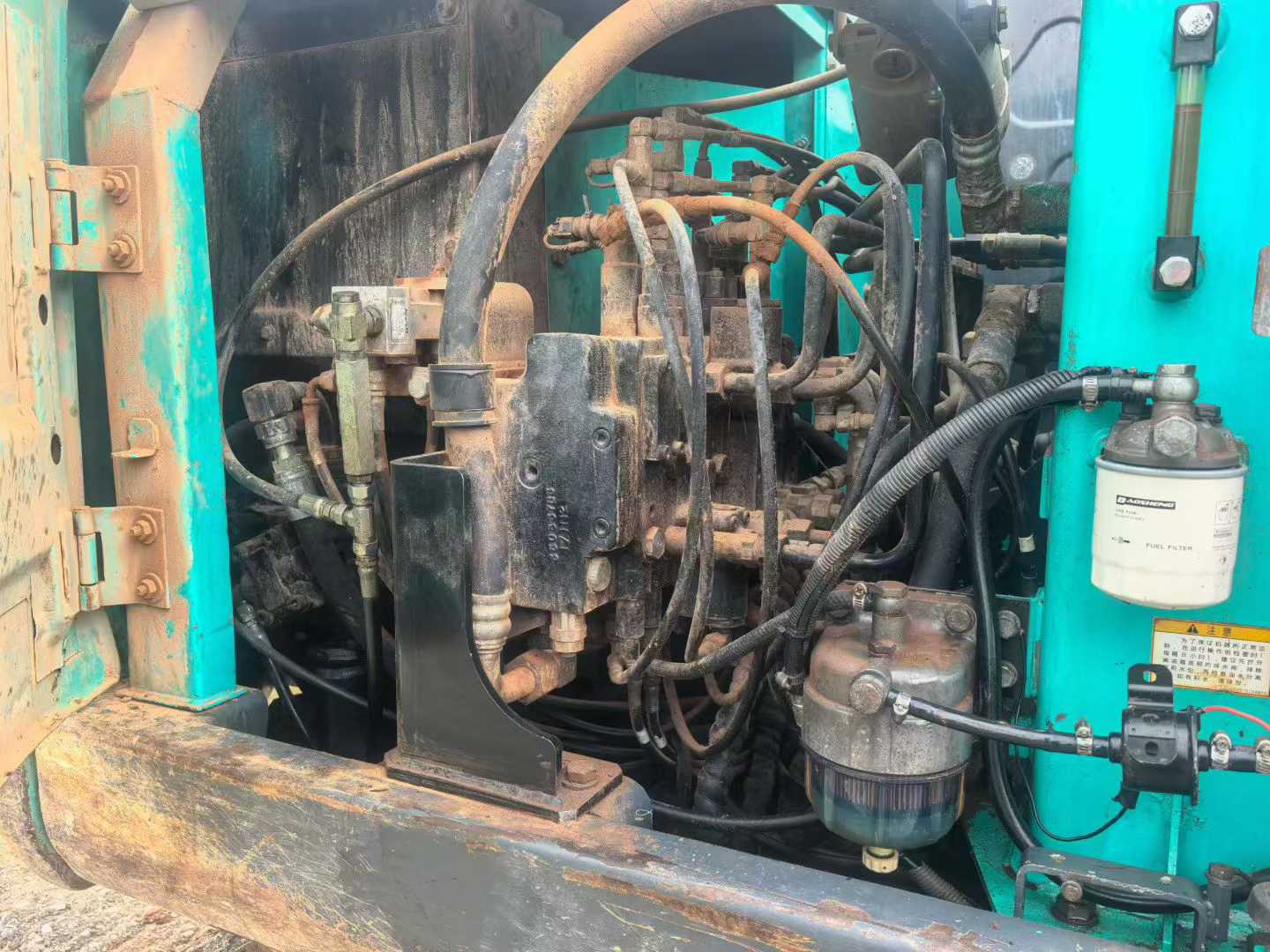

Used Kobelco SK75 Excavator 2017 Model / 6

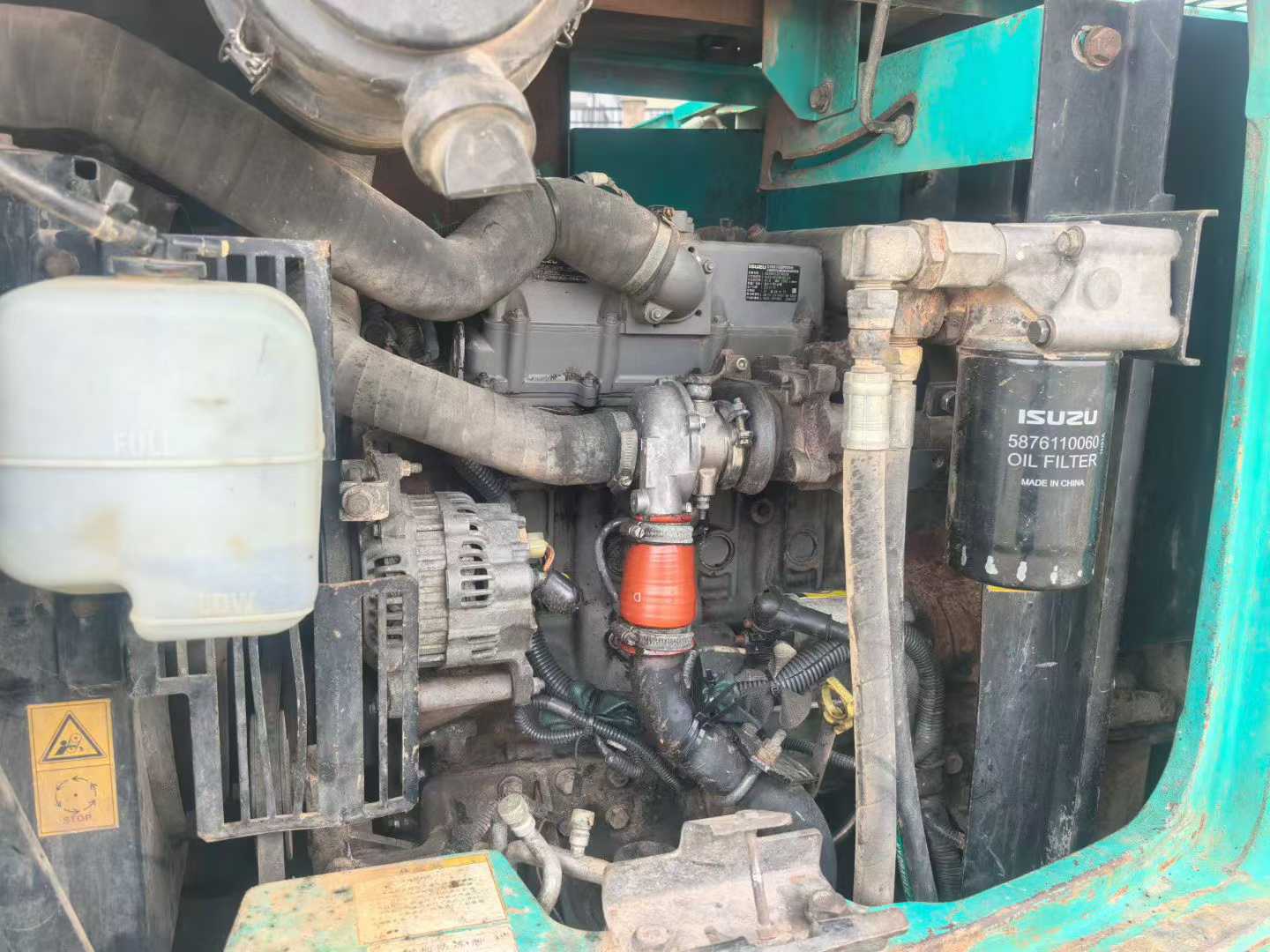

Used Kobelco SK75 Excavator 2017 Model / 7

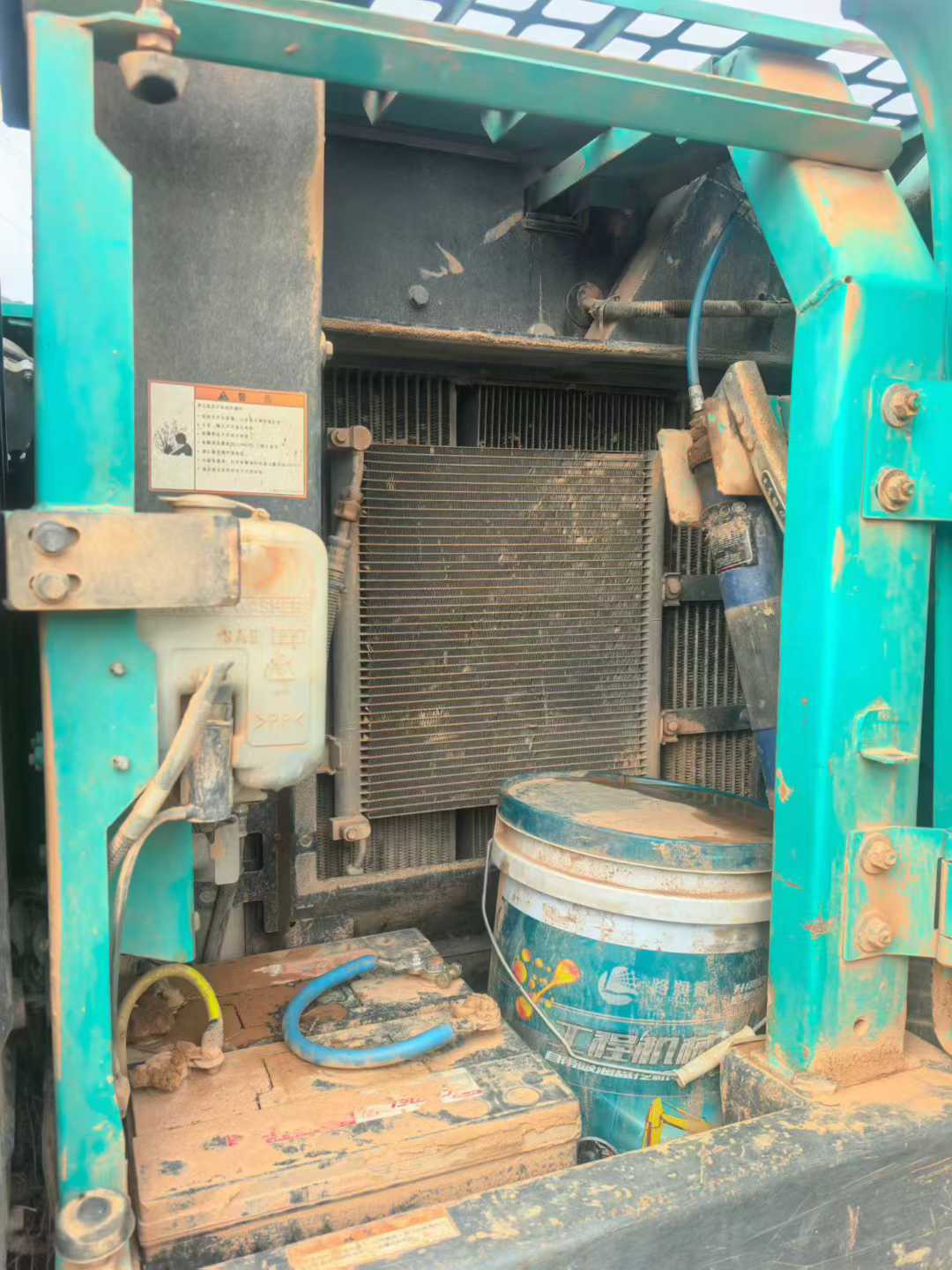

Used Kobelco SK75 Excavator 2017 Model / 8
Used Kobelco SK75 Excavator 2017 Model / 9

Product Description

This Kobelco SK75 excavator, which was manufactured at the end of 2017 and is equipped with a wooden clamp, is an excellent choice for you in the second-hand construction machinery market. This model is renowned for its outstanding working performance and durability, and enjoys an extremely high reputation in the market. The total working hours of this machine are only about 3,000 hours, which is far lower than the average service life of similar equipment. This means that it still has a long service life waiting for a new owner to discover. In terms of the power system, it adopts a highly efficient and energy-saving engine, which can provide strong and stable output power, ensuring good working efficiency even under harsh working conditions. Meanwhile, thanks to advanced fuel injection technology, this excavator not only ensures strong driving force but also has excellent fuel economy, significantly reducing operating costs. The hydraulic system adopts a precise control valve group design, combined with high-precision sensors, to achieve precise regulation of the actions of each actuator. Whether it is excavation, loading or crushing operations, it can complete tasks with ease. In addition, this system is equipped with a self-diagno

SpecificationsValue
No.968413
Tonnage (tons)7
Working weight (kg)7000(approx)
Country of originChengdu
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeISUZU AU4LE2X
Rated power (kw/rpm)41/2200
Cooling modewater-cooling
Cylinder diameter × stroke (mm)85 x 96
Number of cylinders (PCS)4
Displacement (L)2.179
Rotary hydraulic motor typeAxial piston motor
Traveling Hydraulic Circuit (Mpa)27.5
Rotary Hydraulic Circuit (Mpa)14.5
Control Hydraulic Circuit (Mpa)3.5
Main pump typeDouble variable displacement axial piston pump + pilot gear pump
Working Hydraulic Circuit (Mpa)29.4
Fuel Tank (L)120
Hydraulic Tank (L)72
Engine Oil changes (L)11
Coolant (L)8.5
Hydraulic System (L)120
Total transport height (mm)2630
Full cab height (mm)2630
Minimum turning radius of front working device (mm)1760
Back end turning radius (mm)1290
Maximum digging radius (mm)6460
Maximum digging depth (mm)4160
Maximum excavation height (mm)7390
Maximum unloading height (mm)5330
Maximum vertical digging depth (mm)3450
Maximum excavation radius of stop surface (mm)6300
Maximum effective digging depth (mm)3800
Travel speed (km/h)2.8/5.3
see more

Overview

No.968413

Brand Name:

Kobelco

Model Number:

SK75

Year:

2017

Location:

Hunan China
