2011 Kobelco SK75-8

1/9
Used Kobelco SK75-8 Excavator 2011 Model / 1

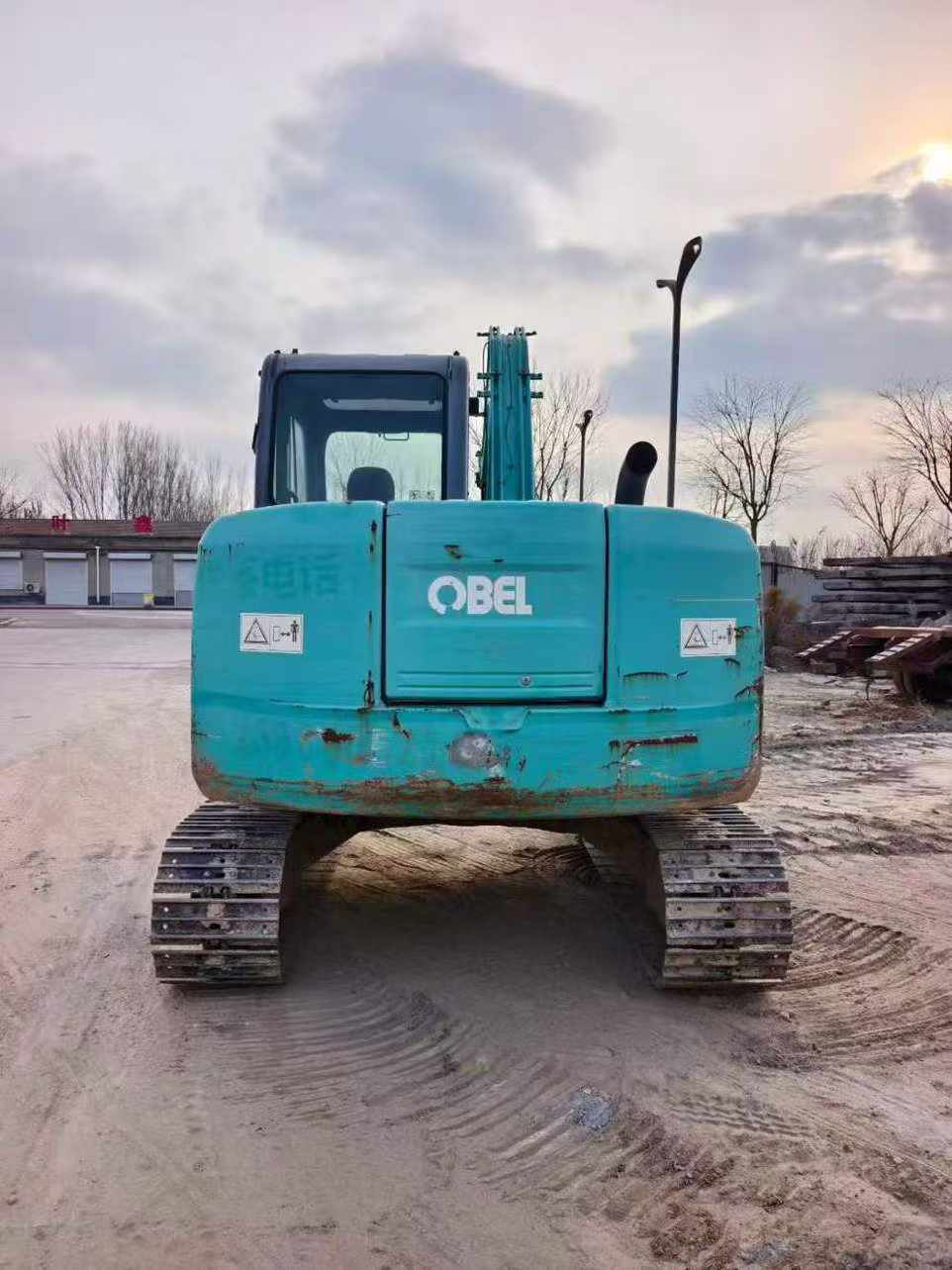

Used Kobelco SK75-8 Excavator 2011 Model / 2
Used Kobelco SK75-8 Excavator 2011 Model / 3

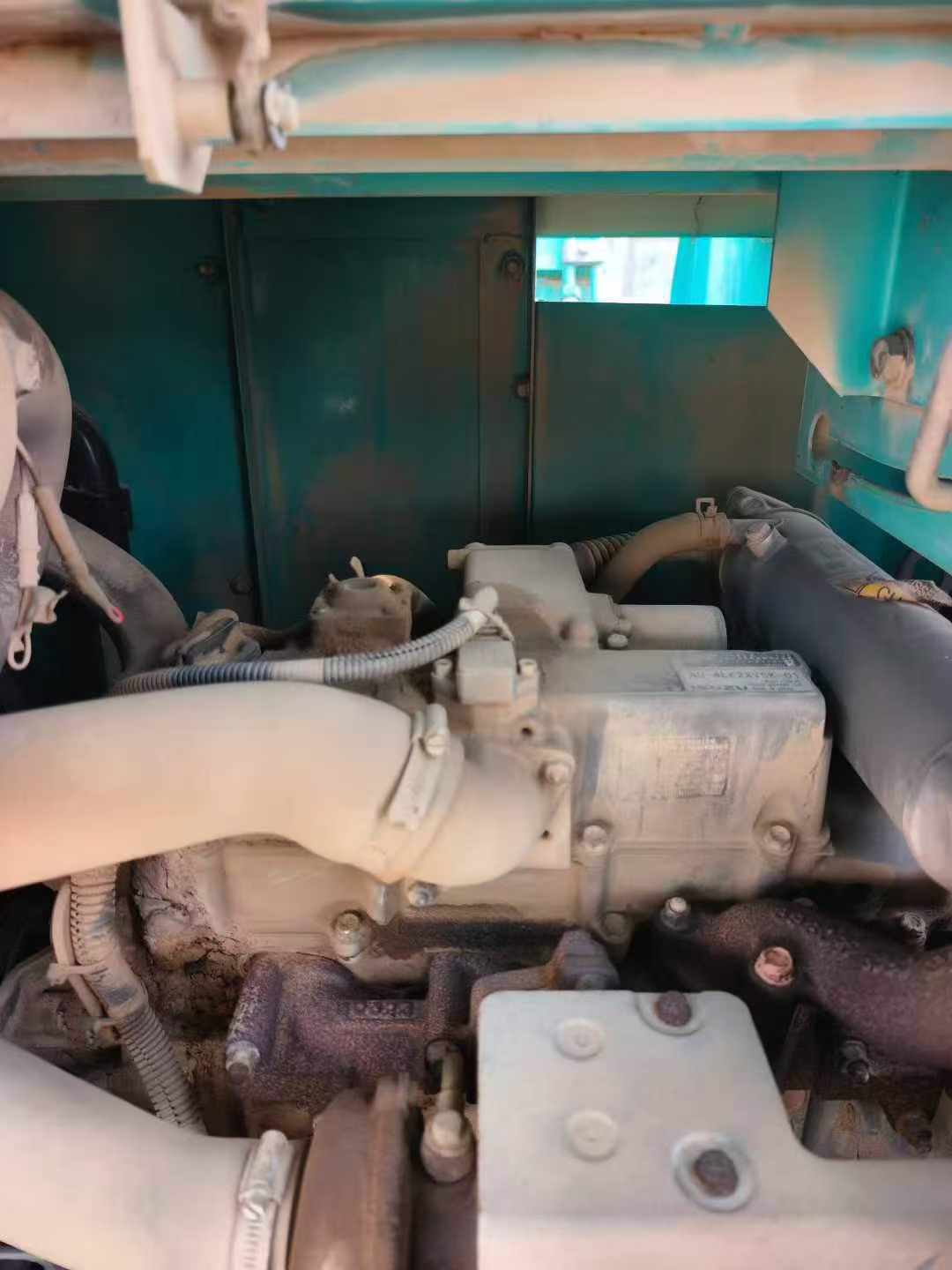

Used Kobelco SK75-8 Excavator 2011 Model / 4

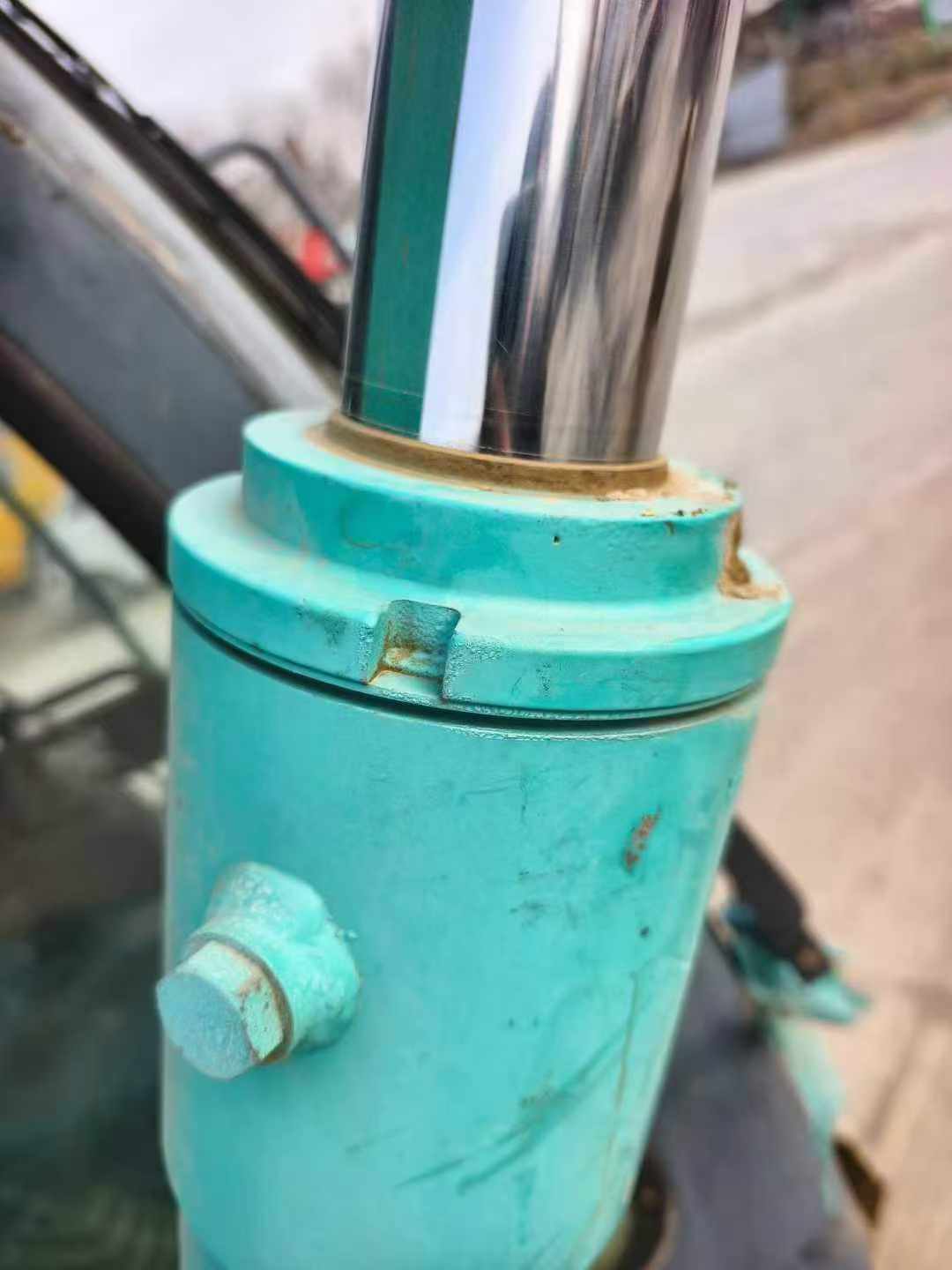

Used Kobelco SK75-8 Excavator 2011 Model / 5

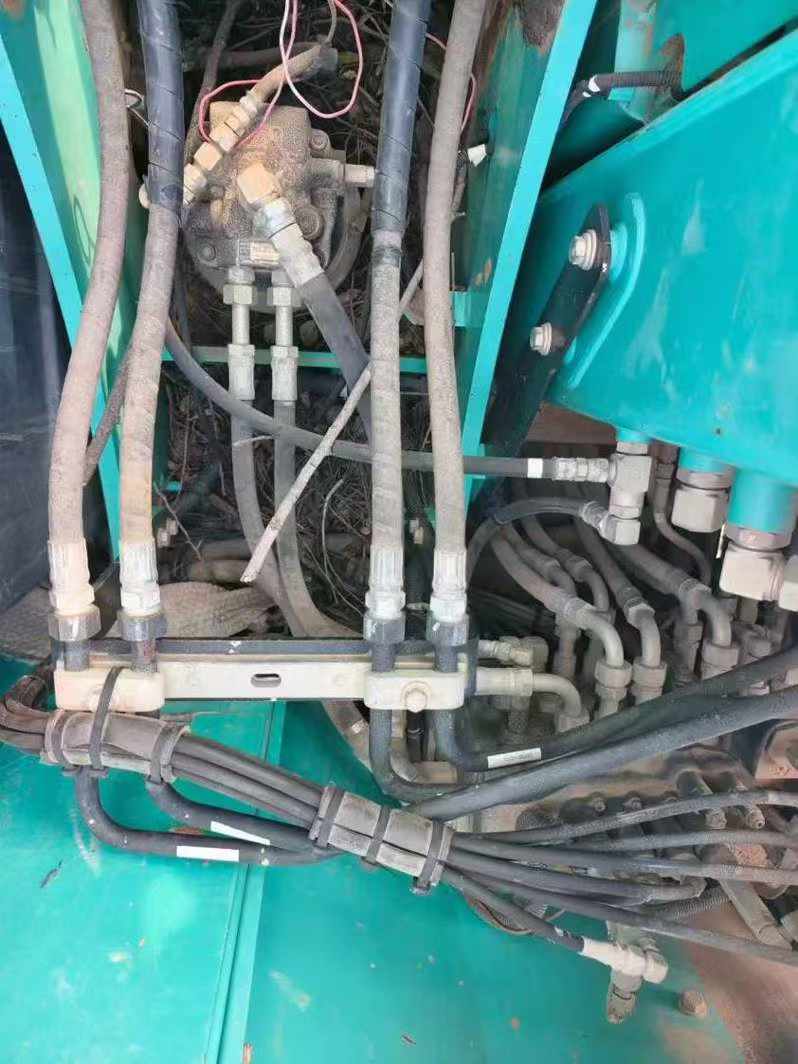

Used Kobelco SK75-8 Excavator 2011 Model / 6

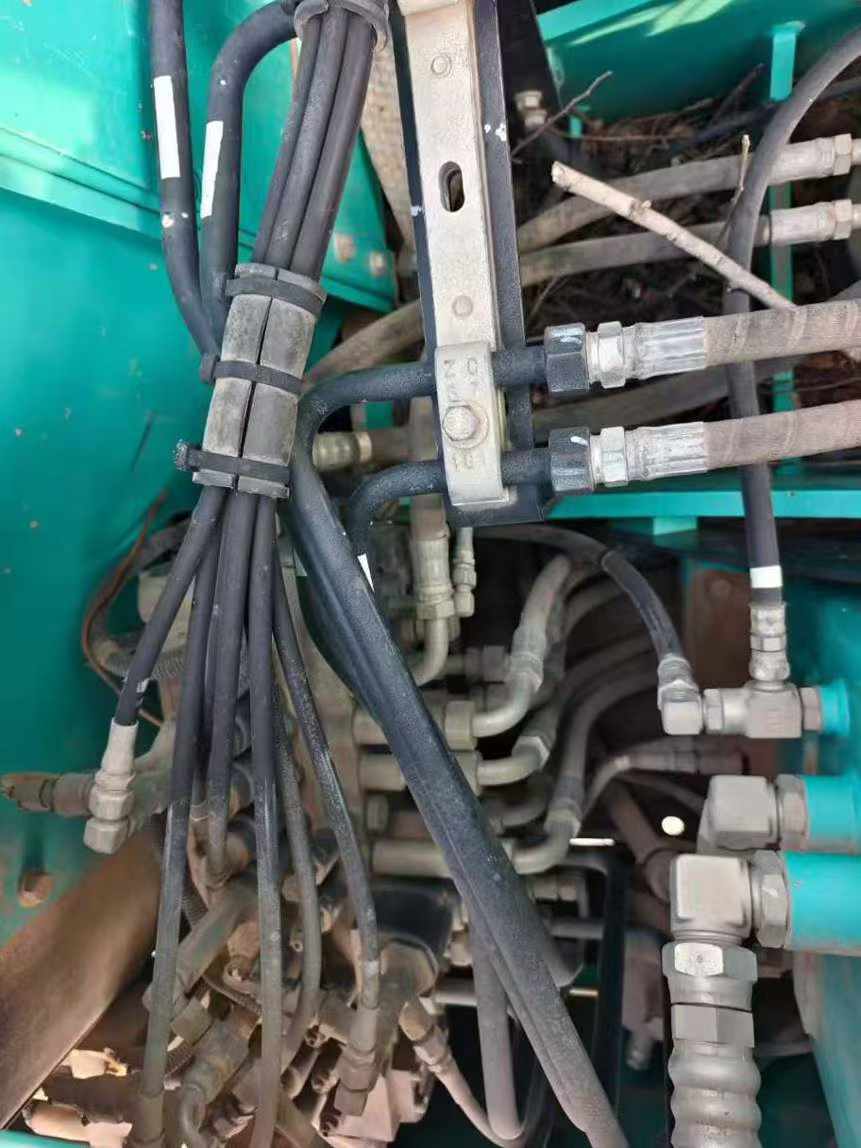

Used Kobelco SK75-8 Excavator 2011 Model / 7

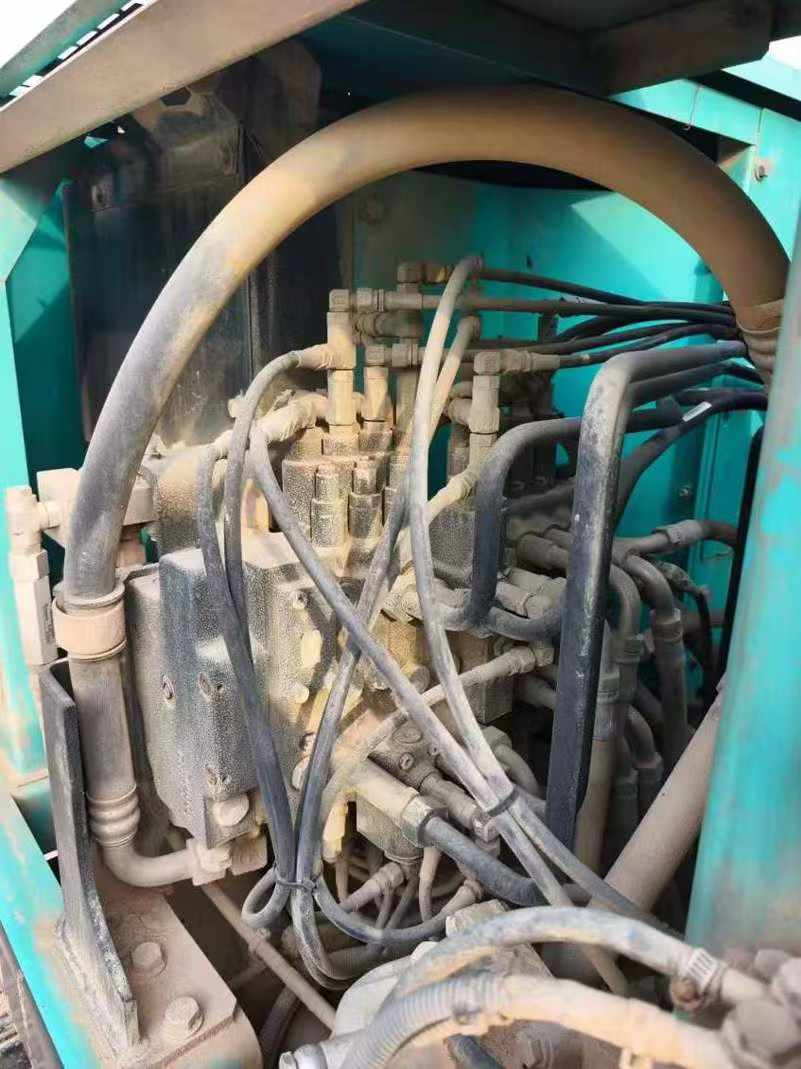

Used Kobelco SK75-8 Excavator 2011 Model / 8

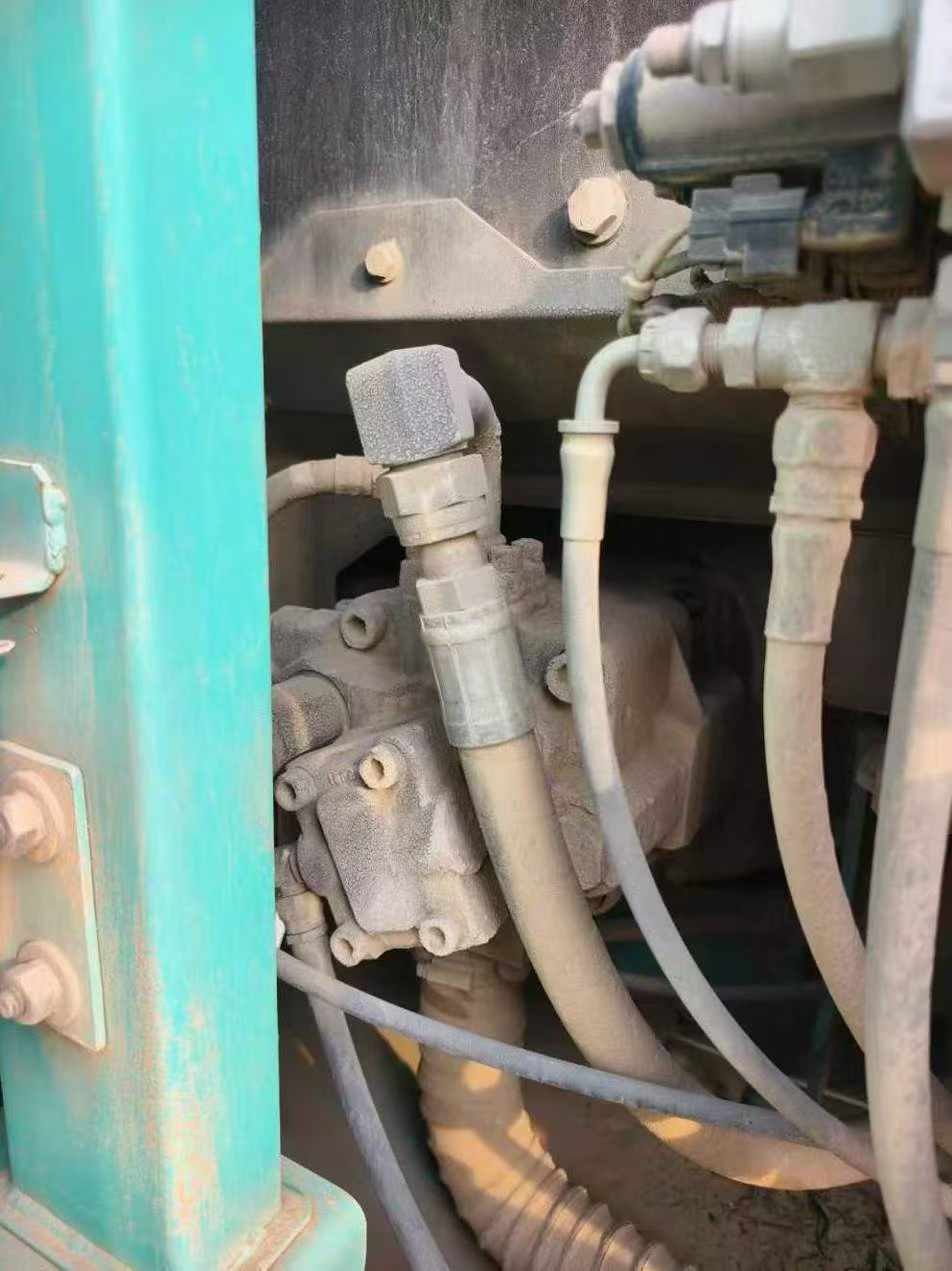

Used Kobelco SK75-8 Excavator 2011 Model / 9

Product Description

【 Premium Recommendation 】 Second-hand Kobelco SK75-8 excavator from 2011, an absolute rare and top-quality item in the market! This excavator has been used by only one owner from the very beginning and has never been hammered. It is well maintained and in excellent condition. The total working time is only 4,300 hours, which is far lower than the average usage time of similar equipment. This means that it still has a long service life waiting for you. In terms of the power system, it adopts the well-tested Isuzu engine, which is renowned for its high efficiency and energy conservation. While ensuring powerful output, it can also effectively reduce fuel consumption, making it highly suitable for users who pursue economic benefits. After professional testing, the engine operates smoothly without abnormal noise, with abundant power. It can handle both flat ground excavation and slope operations with ease. The hydraulic system is one of the key indicators for evaluating the performance of an excavator. This Kobelco 75-8 model is equipped with an advanced negative flow control system, which can automatically adjust the oil distribution according to the actual load, ensuring that each action is precise and in place, while significantly im

SpecificationsValue
No.965667
Tonnage (tons)7
Working weight (kg)6850
Bucket capacity (m³)0.4
Rod length (mm)1710
Country of originChengdu
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeAn ISUZU
Rated power (kw/rpm)42/2200
Cooling modewater-cooling
Cylinder diameter × stroke (mm)85*96
Maximum torque (N.m)211/1600
Number of cylinders (PCS)4
Displacement (L)2.179
Working formDirect injection, turbocharged, built-in intercooling
Ground specific pressure (Kpa)30.8
Rotation speed (rpm)11.5
Climbing ability (%)70
Bucket digging force (kN)52.7
Rod digging force (kN)39.4
Maximum tractive force (kN)72.2
Travel speed (km/h)5.3/2.8
Maximum flow of main pump (l/min)1*132
Traveling Hydraulic Circuit (Mpa)29.4
Rotary Hydraulic Circuit (Mpa)24.5
Main pump typeVariable displacement axial piston pump
Pilot pump flow (L/min)1*18
Bucket cylinders - Number × diameter × stroke (mm)1*80*735
Bucket rod cylinders - Number × diameter × stroke (mm)1*95*833
Boom cylinders - Number × diameter × stroke (mm)1*110*916
Fuel Tank (L)140
Hydraulic Tank (L)67
Engine Oil changes (L)11
Coolant (L)8.5
Hydraulic System (L)107
Total transport length (mm)6200
Total transport width (mm)2320
Total transport height (mm)2650
Minimum ground clearance (mm)375
Minimum turning radius of front working device (mm)1760
Back end turning radius (mm)1750
Total track length (mm)2830
Track gauge (mm)1870
Track plate width (mm)450
Number of track plates (single side) (PCS)39
Maximum digging radius (mm)6460
Maximum digging depth (mm)4170
Maximum excavation height (mm)7400
Maximum unloading height (mm)5330
Maximum vertical digging depth (mm)3480
Bulldozer lift or depth (mm)475/305
Dodging plate width × height (mm)2320*460
Maximum excavation radius of stop surface (mm)6310
Maximum effective digging depth (mm)3810
see more

Overview

No.965667

Brand Name:

Kobelco

Model Number:

SK75-8

Year:

2011

Location:

Shandong China
