Product Description

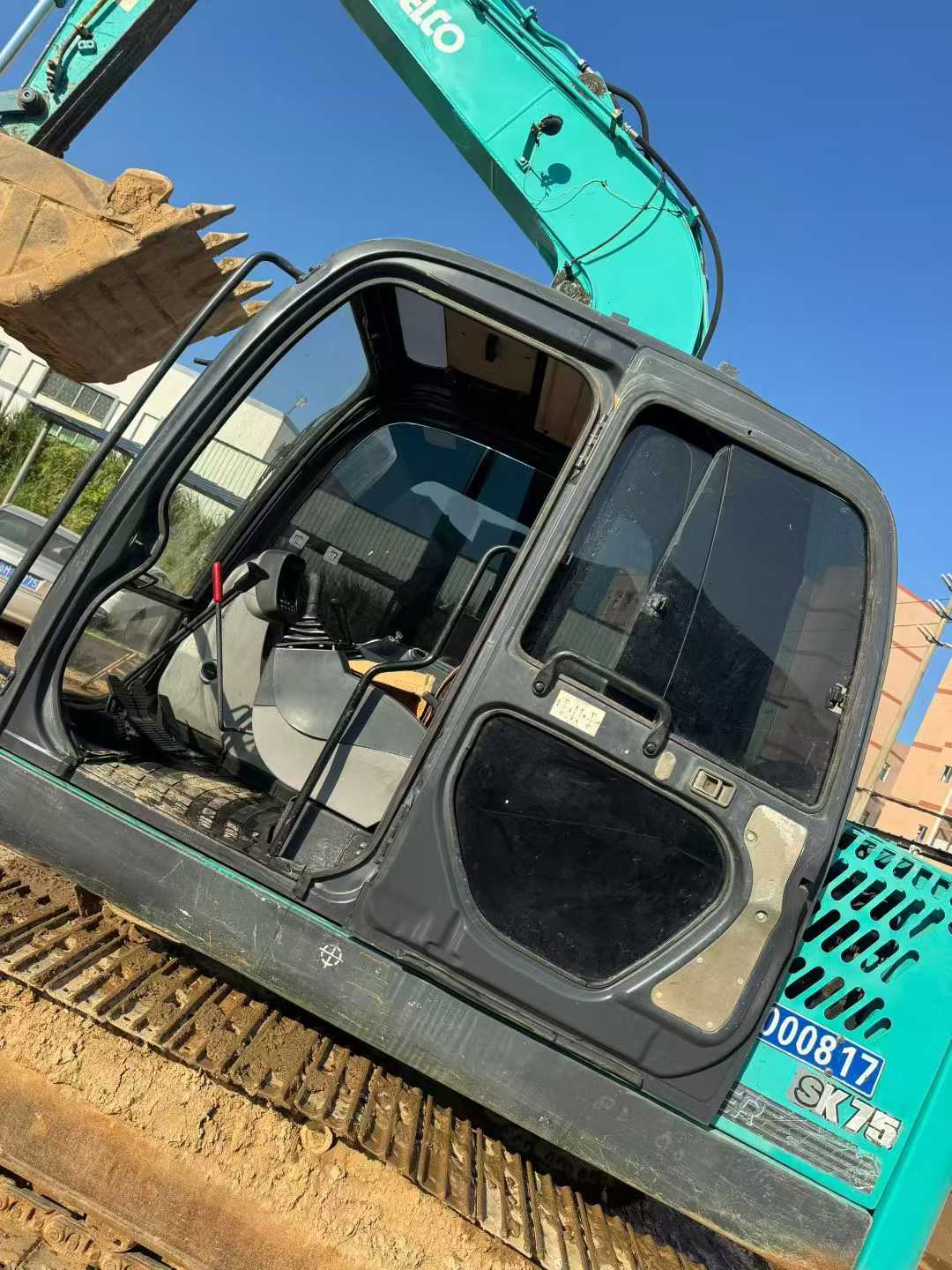

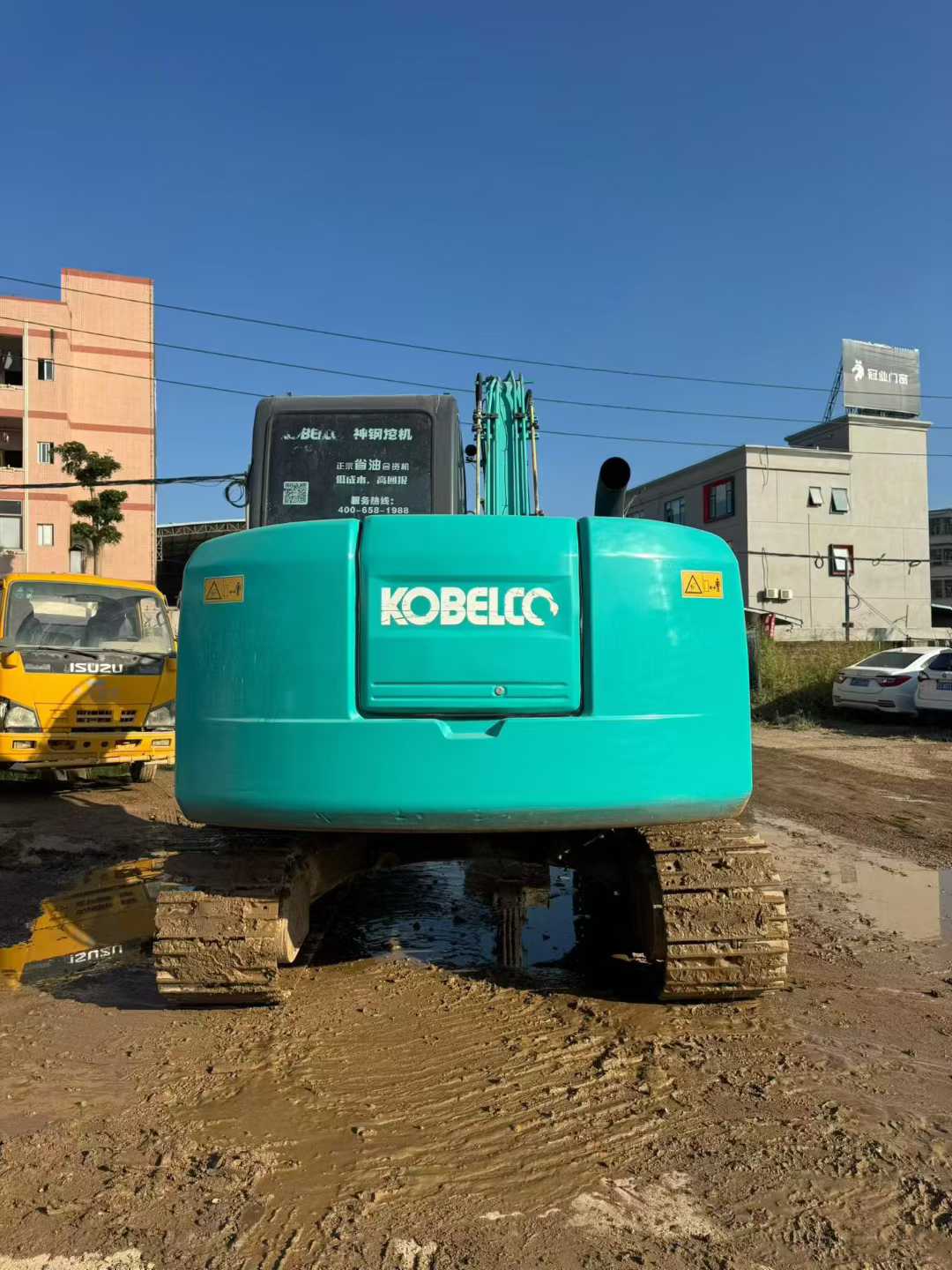

Top-quality Kobe Steel 75-8
| Specifications | Value |
|---|---|
| No. | 955095 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6850 |
| Bucket capacity (m³) | 0.4 |
| Rod length (mm) | 1710 |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

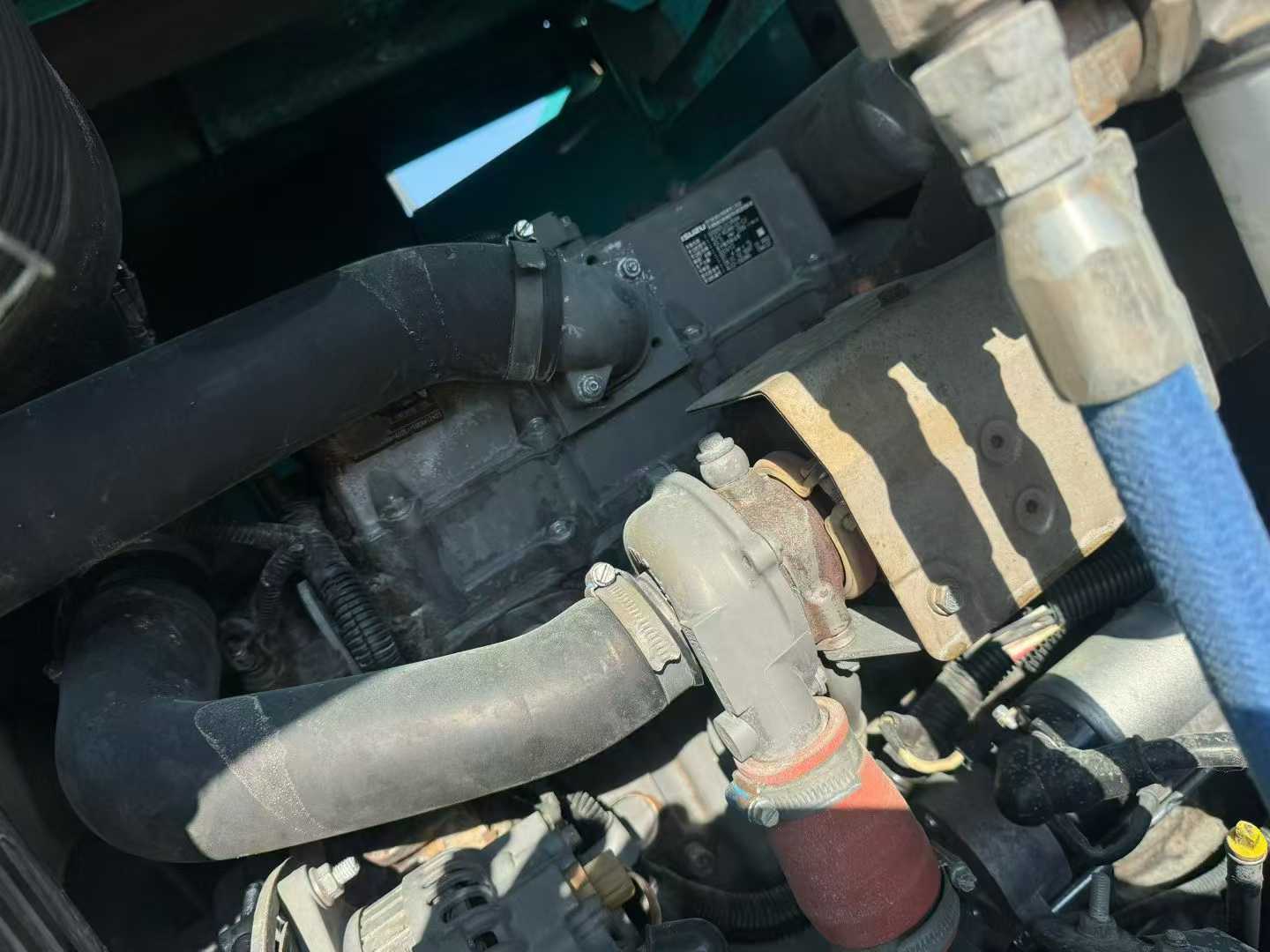

| Engine type | An ISUZU |
| Rated power (kw/rpm) | 42/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85*96 |
| Maximum torque (N.m) | 211/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Working form | Direct injection, turbocharged, built-in intercooling |
| Ground specific pressure (Kpa) | 30.8 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 52.7 |
| Rod digging force (kN) | 39.4 |
| Maximum tractive force (kN) | 72.2 |
| Travel speed (km/h) | 5.3/2.8 |
| Maximum flow of main pump (l/min) | 1*132 |
| Traveling Hydraulic Circuit (Mpa) | 29.4 |
| Rotary Hydraulic Circuit (Mpa) | 24.5 |

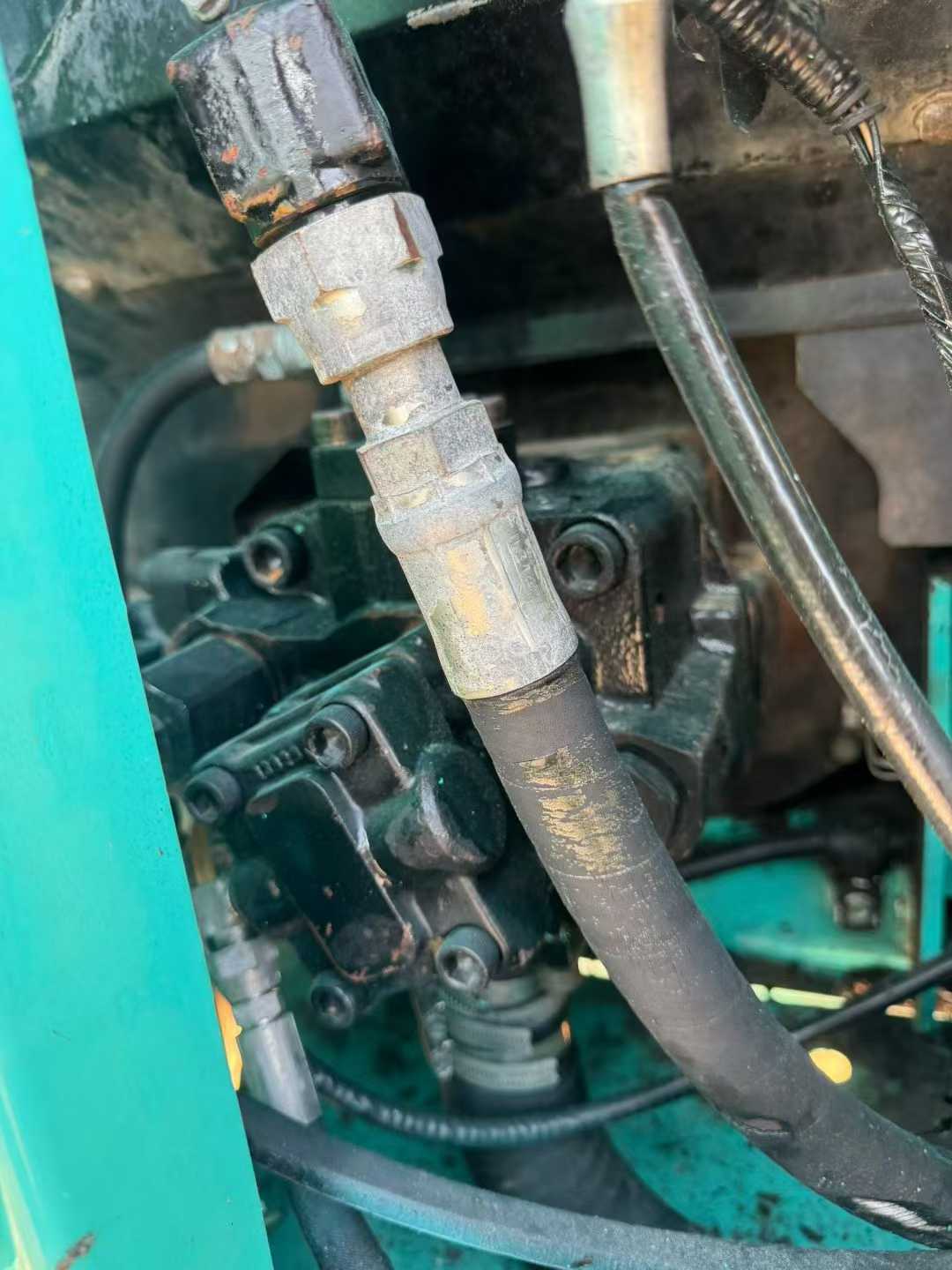

| Main pump type | Variable displacement axial piston pump |
| Pilot pump flow (L/min) | 1*18 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*80*735 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*95*833 |
| Boom cylinders - Number × diameter × stroke (mm) | 1*110*916 |
| Fuel Tank (L) | 140 |
| Hydraulic Tank (L) | 67 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 8.5 |
| Hydraulic System (L) | 107 |
| Total transport length (mm) | 6200 |
| Total transport width (mm) | 2320 |
| Total transport height (mm) | 2650 |
| Minimum ground clearance (mm) | 375 |
| Minimum turning radius of front working device (mm) | 1760 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2830 |
| Track gauge (mm) | 1870 |
| Track plate width (mm) | 450 |
| Number of track plates (single side) (PCS) | 39 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4170 |
| Maximum excavation height (mm) | 7400 |
| Maximum unloading height (mm) | 5330 |
| Maximum vertical digging depth (mm) | 3480 |
| Bulldozer lift or depth (mm) | 475/305 |
| Dodging plate width × height (mm) | 2320*460 |
| Maximum excavation radius of stop surface (mm) | 6310 |
| Maximum effective digging depth (mm) | 3810 |
