Product Description

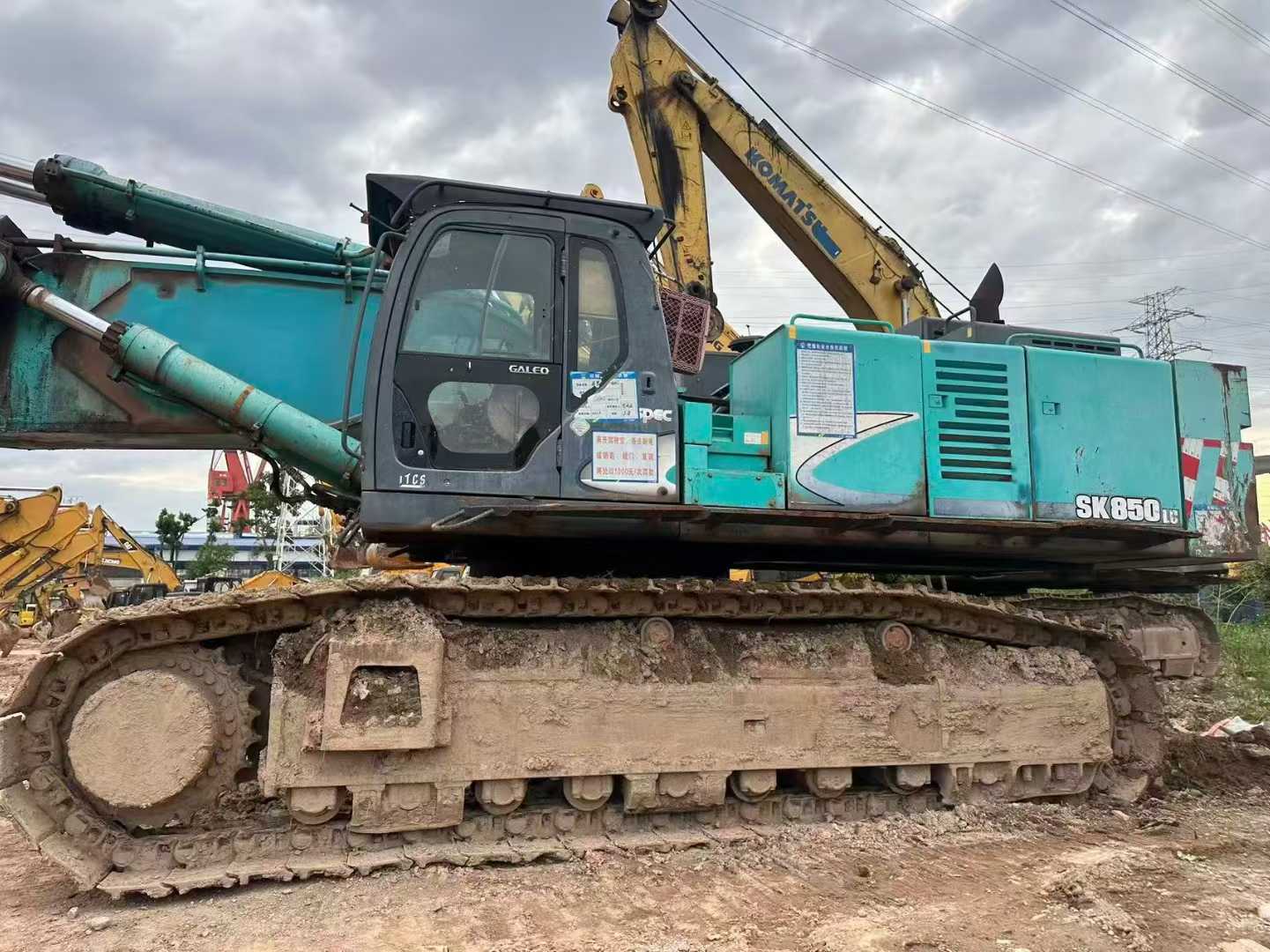

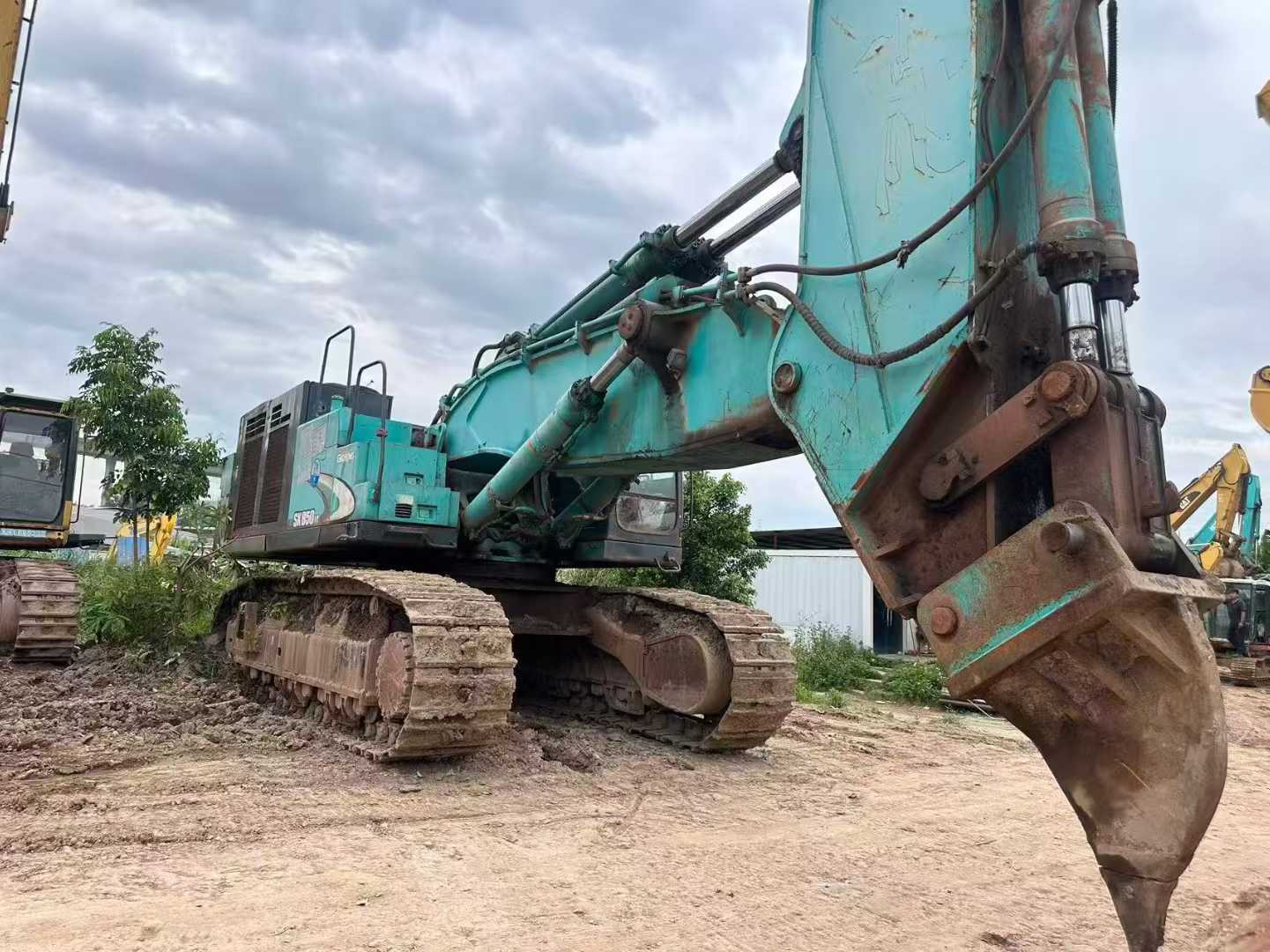

Kobelco 850, Mantis arm + with original arm
| Specifications | Value |
|---|---|
| No. | 929762 |
| Tonnage (tons) | 85 |
| Working weight (kg) | 78200-80500 |
| Bucket capacity (m³) | 2.8-5.4 |
| Rod length (mm) | 3600 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu Komatsu SAA6D140E-5 |
| Rated power (kw/rpm) | 370/1800 |
| Rotation speed (rpm) | 8.4 |
| Climbing ability (%) | 70/35 ° |
| Travel speed (km/h) | 2.7/4.2 |
| Main overflow set pressure (Mpa) | 33 |
| Fuel Tank (L) | 960 |
| Hydraulic Tank (L) | 473 |
| Hydraulic System (L) | 856 |
| Total transport length (mm) | 14530 |
| Total transport width (mm) | 4440 |
| Total transport height (mm) | 4760 |
| Full cab height (mm) | 3940 |
| Counterweight ground clearance (mm) | 1560 |
| Minimum ground clearance (mm) | 580 |
| Total track length (mm) | 6370 |
| Track gauge (mm) | 4300 |
| Track plate width (mm) | 650/750/900 |
| Total track width (mm) | 4440 |
| Track ground length (mm) | 5140 |
| Maximum digging radius (mm) | 13830 |
| Maximum digging depth (mm) | 8900 |
| Maximum excavation height (mm) | 12110 |
| Maximum unloading height (mm) | 8340 |
| Maximum vertical digging depth (mm) | 6740 |
| Maximum excavation radius of stop surface (mm) | 13550 |
| Maximum effective digging depth (mm) | 8750 |
