Product Description

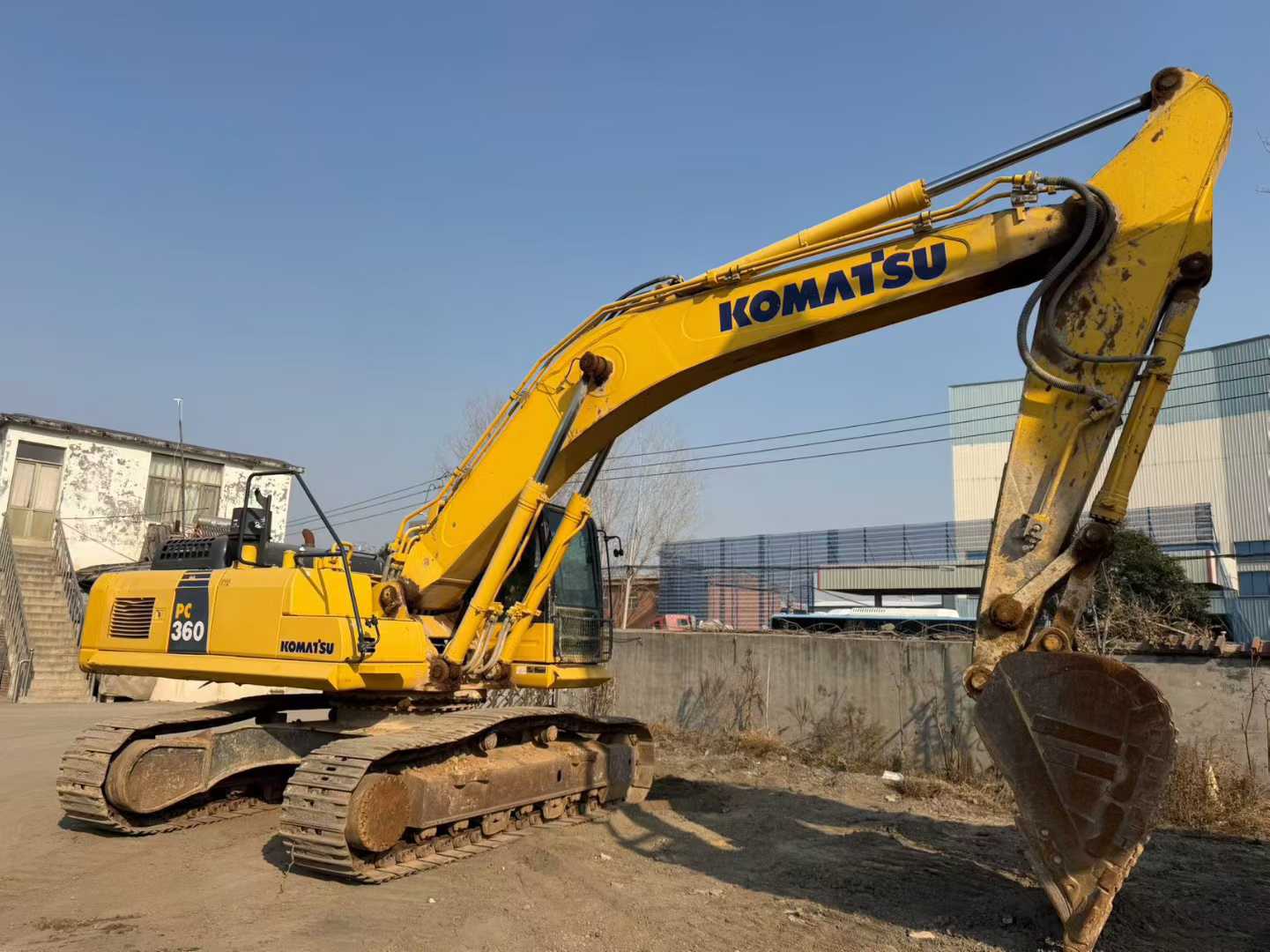

【 Premium Recommendation 】 Second-hand Komatsu PC300-8M0 standard arm excavator from October 2019 is now in hot supply! This excavator has a working time of only over 4,000 hours and is in excellent condition. It is a capable assistant for your engineering operations. With the same configuration as Komatsu PC360, it offers an extremely high cost performance and is very suitable for users who pursue high efficiency and low cost. This machine is equipped with an original imported Komatsu engine, which is powerful and stable. It performs well both in heavy-load excavation and precise operations. It has good fuel economy and can effectively reduce your operating costs. In addition, the advanced hydraulic system ensures the smooth operation and response speed of the equipment. Whether it is rapid movement or precise control, it can be handled with ease, greatly improving work efficiency. It is worth mentioning that this excavator retains the original factory pipeline design, ensuring the compatibility and reliability of the system and reducing the cost and trouble of later maintenance. As a device that has been personally used, it not only has complete procedures but also is exempt from performance inspection, allowing you to purchase wit
| Specifications | Value |
|---|---|
| No. | 961975 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 32000 |
| Bucket capacity (m³) | 1.4-1.6 |
| Boom length (mm) | 6470 |
| Rod length (mm) | 3185 |
| Country of origin | Changzhou |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

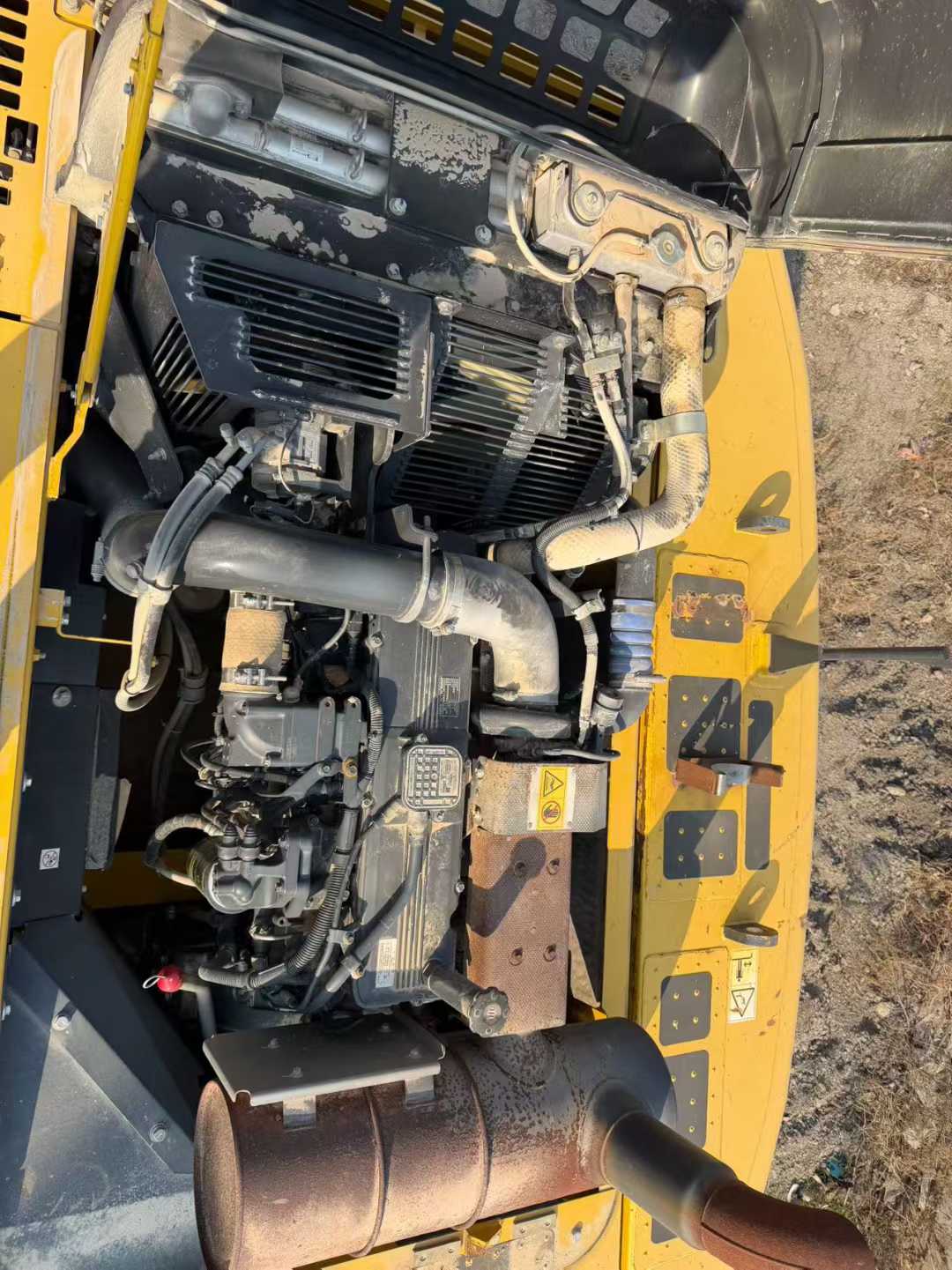

| Engine type | Komatsu SAA6D114E-3 |
| Rated power (kw/rpm) | 187/1950 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 114 x 135 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.27 |
| Working form | Six-cylinder four-stroke turbocharged intercooled direct injection engine |
| Ground specific pressure (Kpa) | 65.3 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 212 |
| Rod digging force (kN) | 160 |
| Maximum tractive force (kN) | 264 |
| Travel speed (km/h) | 3.2-5.5 |
| Main overflow set pressure (Mpa) | 37.3 |
| Rotary hydraulic motor type | 27.9 |
| Type of walking hydraulic motor | 37.3 |
| Maximum flow of main pump (l/min) | 535 |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |

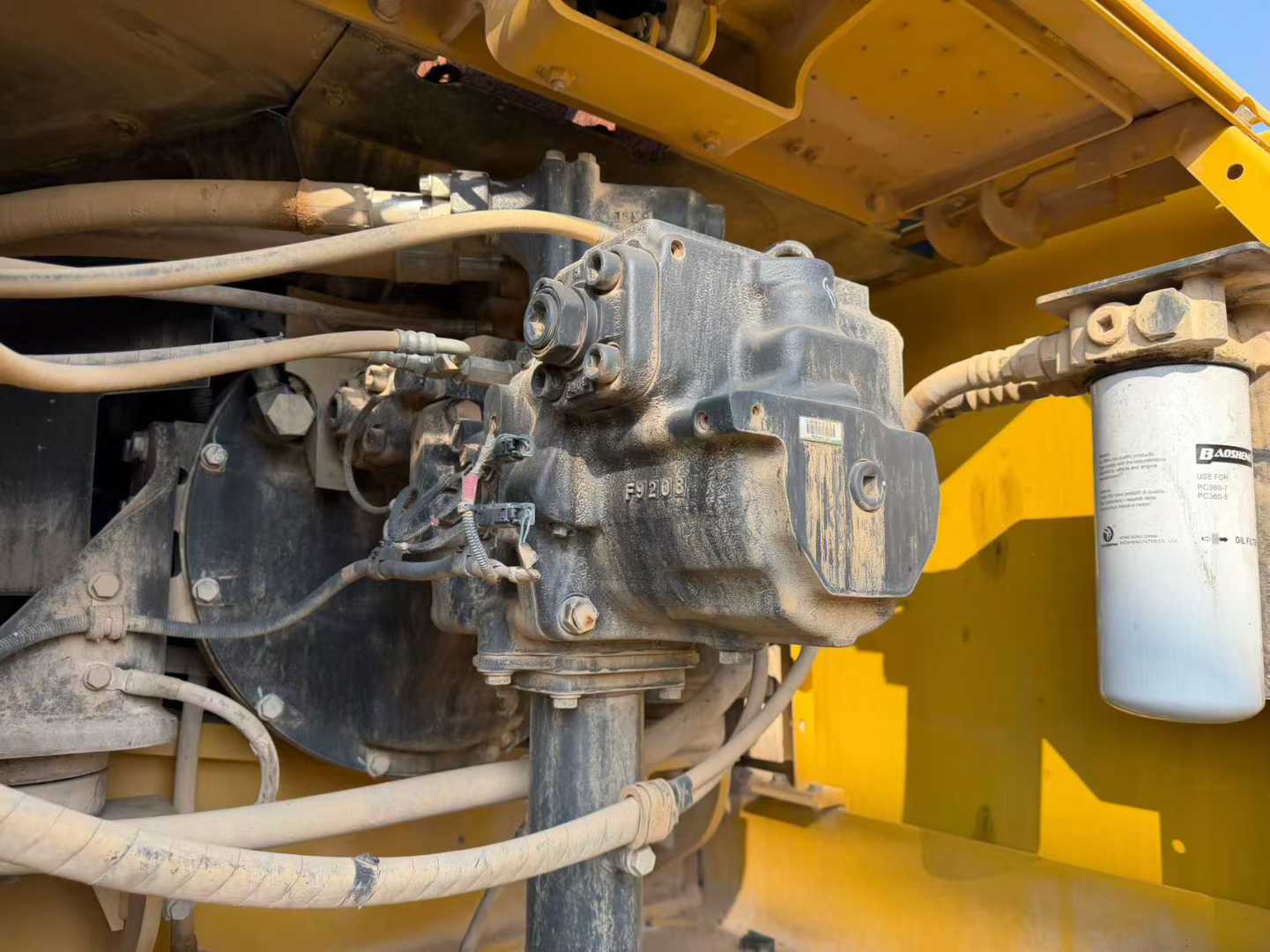

| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 37.3 |
| Pilot Oil Circuit (MPa) | 3.2 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-140 x 1285 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-160 x 1825 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-140 x 1480 |
| Fuel Tank (L) | 605 |
| Hydraulic Tank (L) | 188 |
| Engine Oil changes (L) | 37 |
| Coolant (L) | 31 |
| Total transport length (mm) | 11150 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3145 |
| Counterweight ground clearance (mm) | 1185 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4450 |
| Back end turning radius (mm) | 3450 |
| Onboard width (mm) | 3090 |
| Total track length (mm) | 4625 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 3700 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 11100 |
| Maximum digging depth (mm) | 7380 |
| Maximum excavation height (mm) | 10100 |
| Maximum unloading height (mm) | 7050 |
| Maximum vertical digging depth (mm) | 6400 |
| Maximum excavation radius of stop surface (mm) | 10920 |
