Product Description

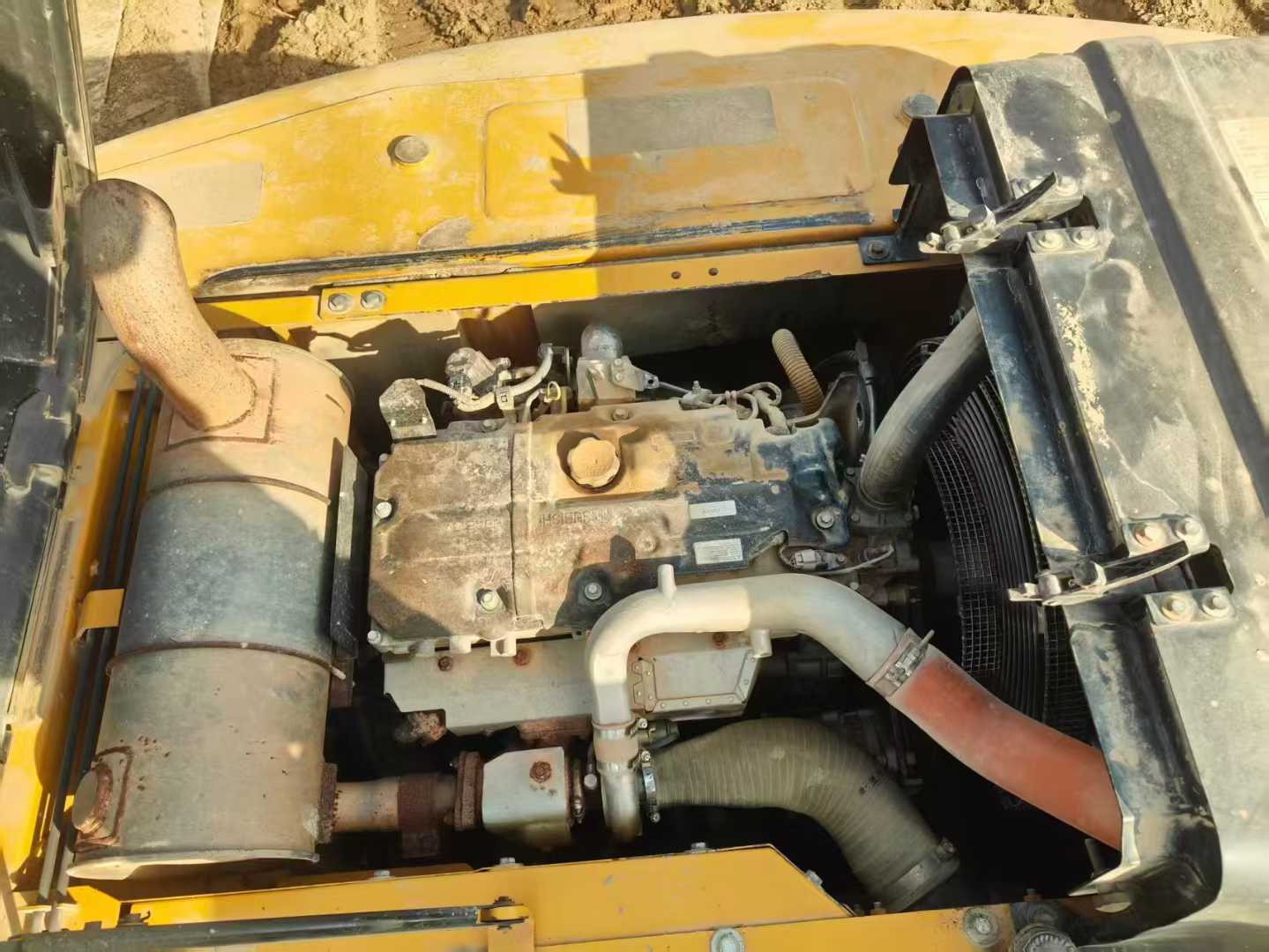

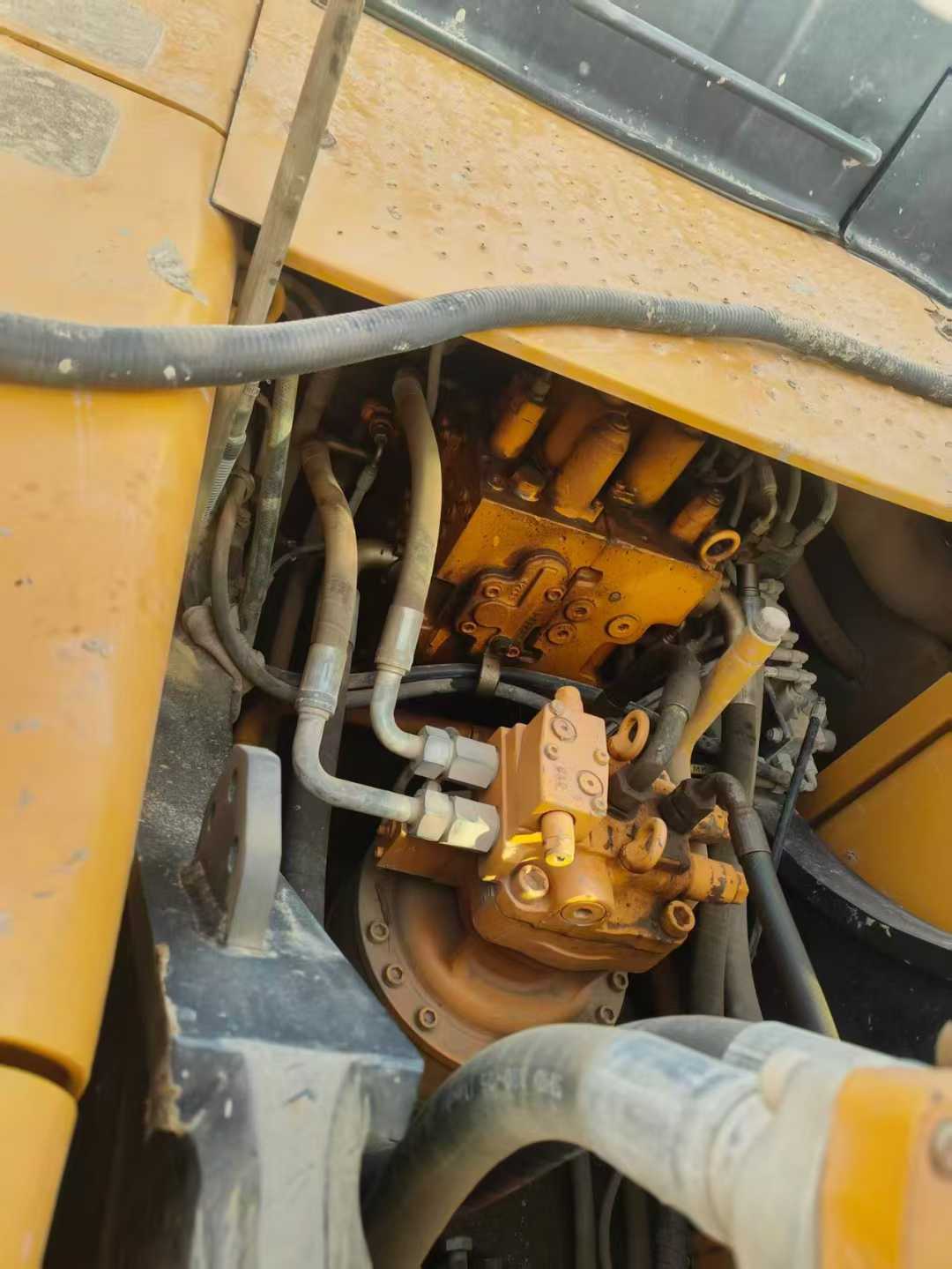

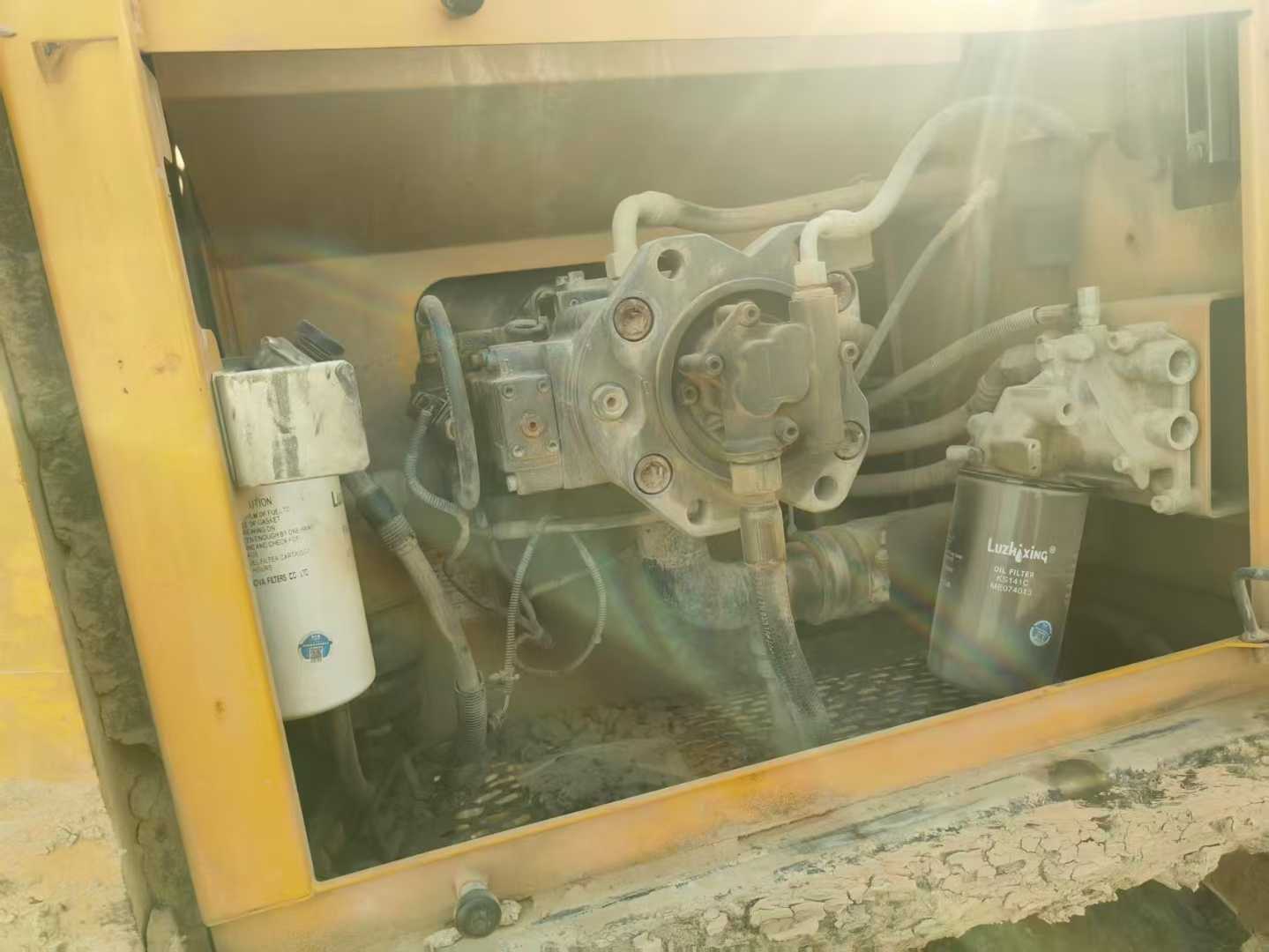

"Recommendation of Premium Second-hand Excavators We currently have a first-hand supply of Sany SY195LC-9 from the end of 2017. This equipment is fully equipped with Kawasaki, featuring excellent quality and stable performance. It is your ideal choice for construction. This excavator has a working duration of 3,600 hours. It is in good condition, well maintained, and has no record of major overhauls. It has remained in excellent working condition throughout its use. In terms of the power system, this machine is equipped with an original imported Cummins engine, which is powerful, fuel-efficient and quiet. It can provide sufficient power support even under harsh working conditions. Meanwhile, it is also equipped with an advanced electronic control system, which can achieve precise control, improve work efficiency and reduce energy consumption at the same time. The hydraulic system adopts a complete set of hydraulic components of the Kawasaki brand from Japan, including the main pump, valve body and other key parts, ensuring the smooth operation and rapid response of the entire machine. Both the digging force and the rotational torque perform outstandingly, and it can easily handle various complex working environments. In addition, th
| Specifications | Value |
|---|---|
| No. | 963678 |
| Tonnage (tons) | 19 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.8~1.1(0.95) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Maximum torque (N.m) | 580/1600 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4060 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3260 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 9600 |
| Maximum vertical digging depth (mm) | 6255 |
