Product Description
【 Premium Recommendation 】 Brand New Arrivals! In 2019, the Sany SY195 excavator was produced. Since its manufacture, this equipment has been dedicated to earthwork operations and has never been subjected to high-intensity work such as a breaker, ensuring the integrity and durability of its mechanical structure. The entire vehicle retains its original factory paint without any signs of refurbishment, looking as good as new. It is an excellent choice that is hard to come by when you purchase second-hand construction machinery. The cumulative working time of this machine is 3,800 hours, which is within the optimal usage condition range. It not only ensures sufficient running-in to reduce the failure rate but is also far from reaching the stage of severe wear. It can still operate stably for a long time in the future. The power system adopts a high-performance engine independently developed by Sany Heavy Industry, which is powerful and has good fuel economy. Even in complex working conditions, it can handle them with ease. The hydraulic system is equipped with core components of internationally renowned brands, featuring rapid response and precise control. It can meet various refined operation requirements, significantly enhancing work e
| Specifications | Value |
|---|---|
| No. | 966271 |
| Tonnage (tons) | 19 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.8~1.1(0.95) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

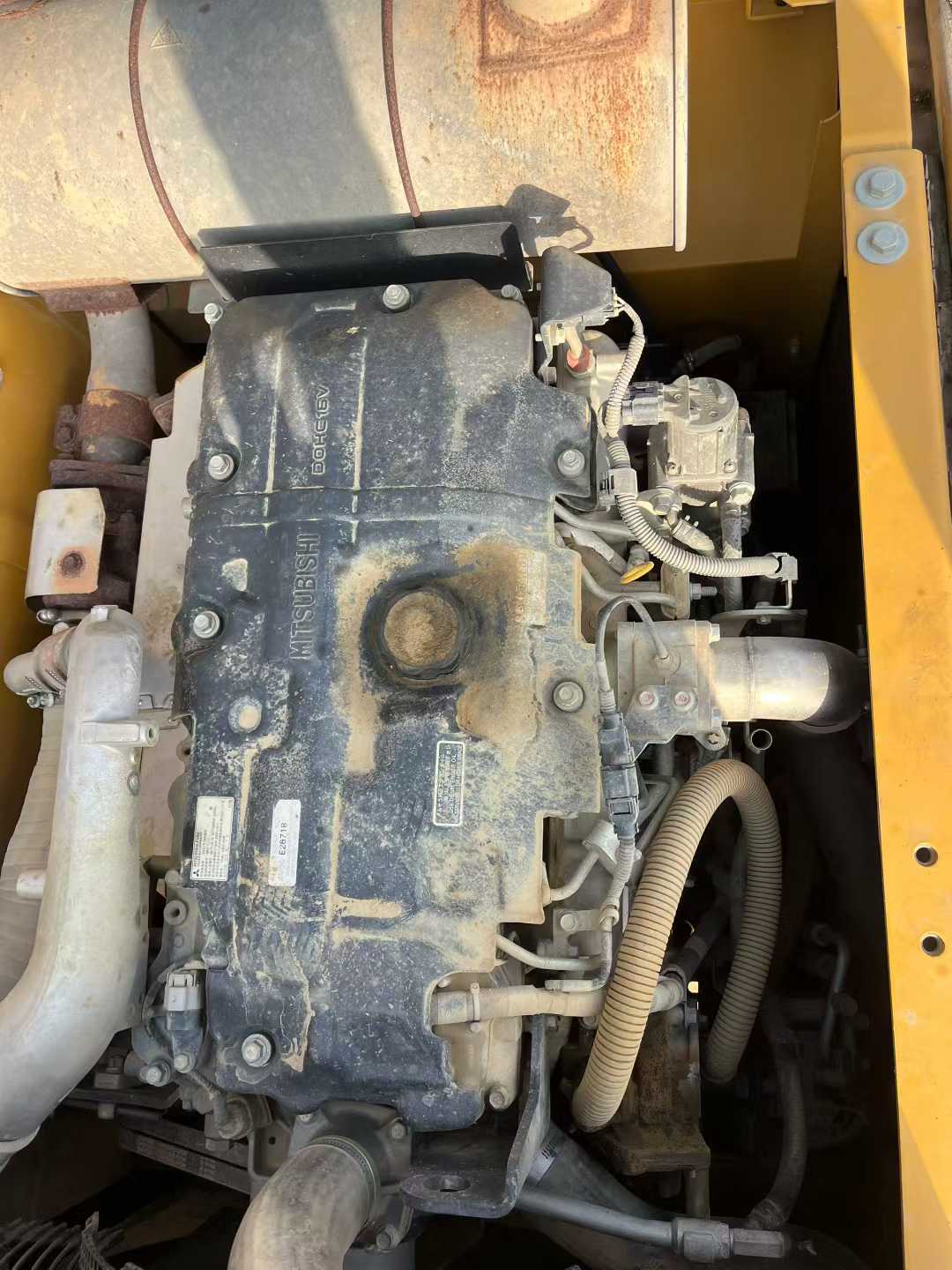

| Engine type | 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Maximum torque (N.m) | 580/1600 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4060 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3260 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 9600 |
| Maximum vertical digging depth (mm) | 6255 |
