Product Description

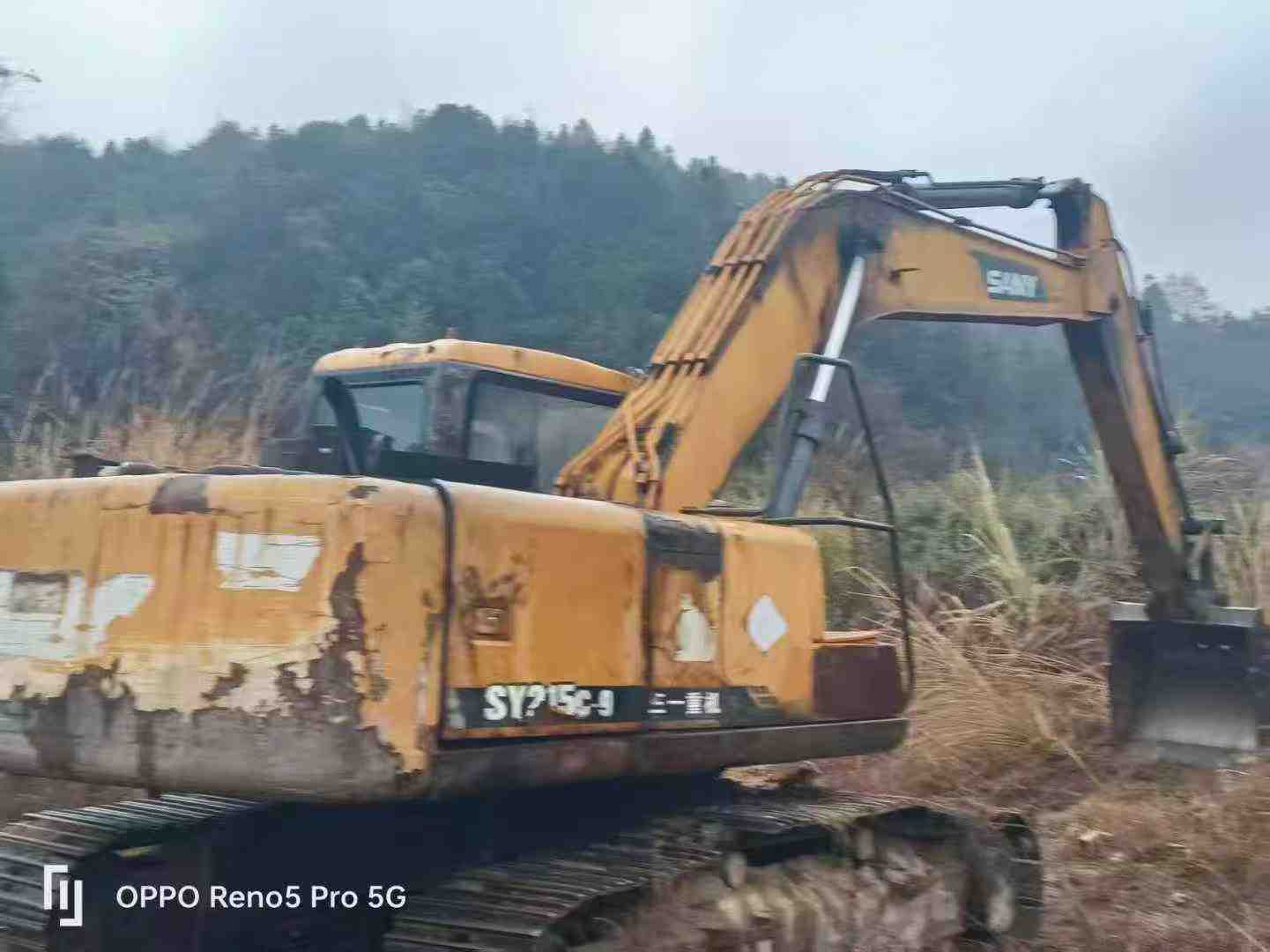

【 Premium Recommendation 】2013 Sany SY215-8S second-hand excavator. This equipment is in excellent overall condition and is an ideal choice for your engineering construction. This excavator has accumulated a working time of approximately over 50,000 hours, yet its performance remains stable and reliable, demonstrating the outstanding durability and stability of the Sany brand. In terms of the power system, this machine is equipped with a high-performance engine, which is powerful and has good fuel economy. Even under long-term and high-intensity operation, it can maintain a stable output power to ensure construction efficiency. Meanwhile, after meticulous maintenance and regular servicing, the engine operates smoothly without any abnormal noise, providing continuous power support for your project. The hydraulic system is designed with advanced technology, featuring rapid response and precise control. Whether it is excavation, loading or crushing operations, they can all be handled with ease and the operation is flexible and flexible. In addition, the hydraulic system has excellent sealing performance, effectively preventing oil leakage, reducing maintenance costs and extending service life. In terms of appearance, this excavator is
| Specifications | Value |
|---|---|
| No. | 966512 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.93 |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

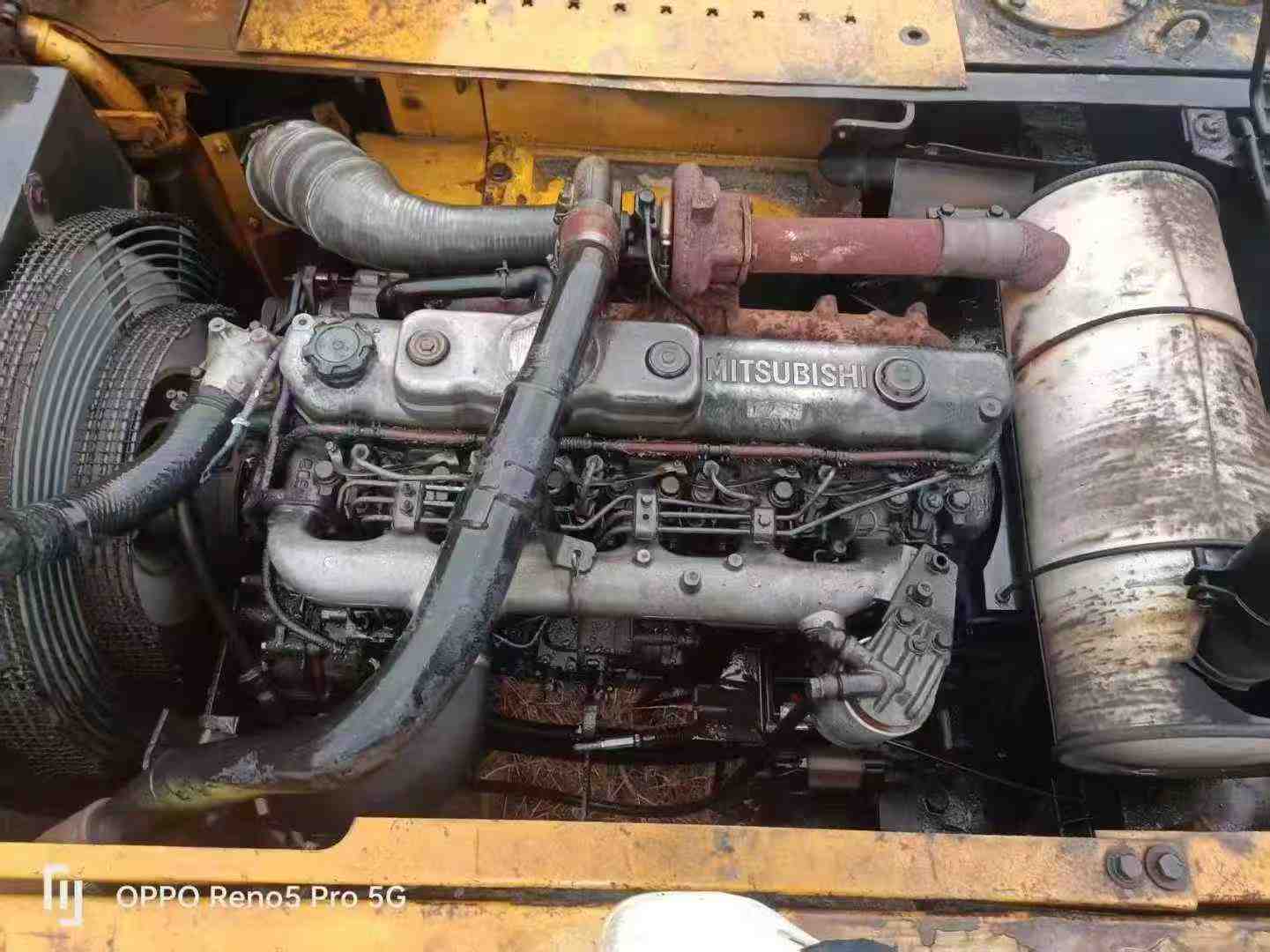

| Engine type | Mitsubishi 6D34-TL |
| Rated power (kw/rpm) | 114/2050 |
| Cooling mode | water-cooling |
| Displacement (L) | 5.861 |
| Ground specific pressure (Kpa) | 45 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 100 |
| Travel speed (km/h) | 5.5/3.2 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 2 x 210 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 9395 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 2955 |
| Full cab height (mm) | 2990 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3630 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3445 |
| Maximum digging radius (mm) | 9885 |
| Maximum digging depth (mm) | 6630 |
| Maximum excavation height (mm) | 9305 |
| Maximum unloading height (mm) | 6475 |
| Maximum vertical digging depth (mm) | 5980 |
| Bulldozer lift or depth (mm) | There is no |
