HOME>>Brands>>Sany SY215C-9

2013 Sany SY215C-9

1/9
Used Sany SY215C-9 Excavator 2013 Model / 1

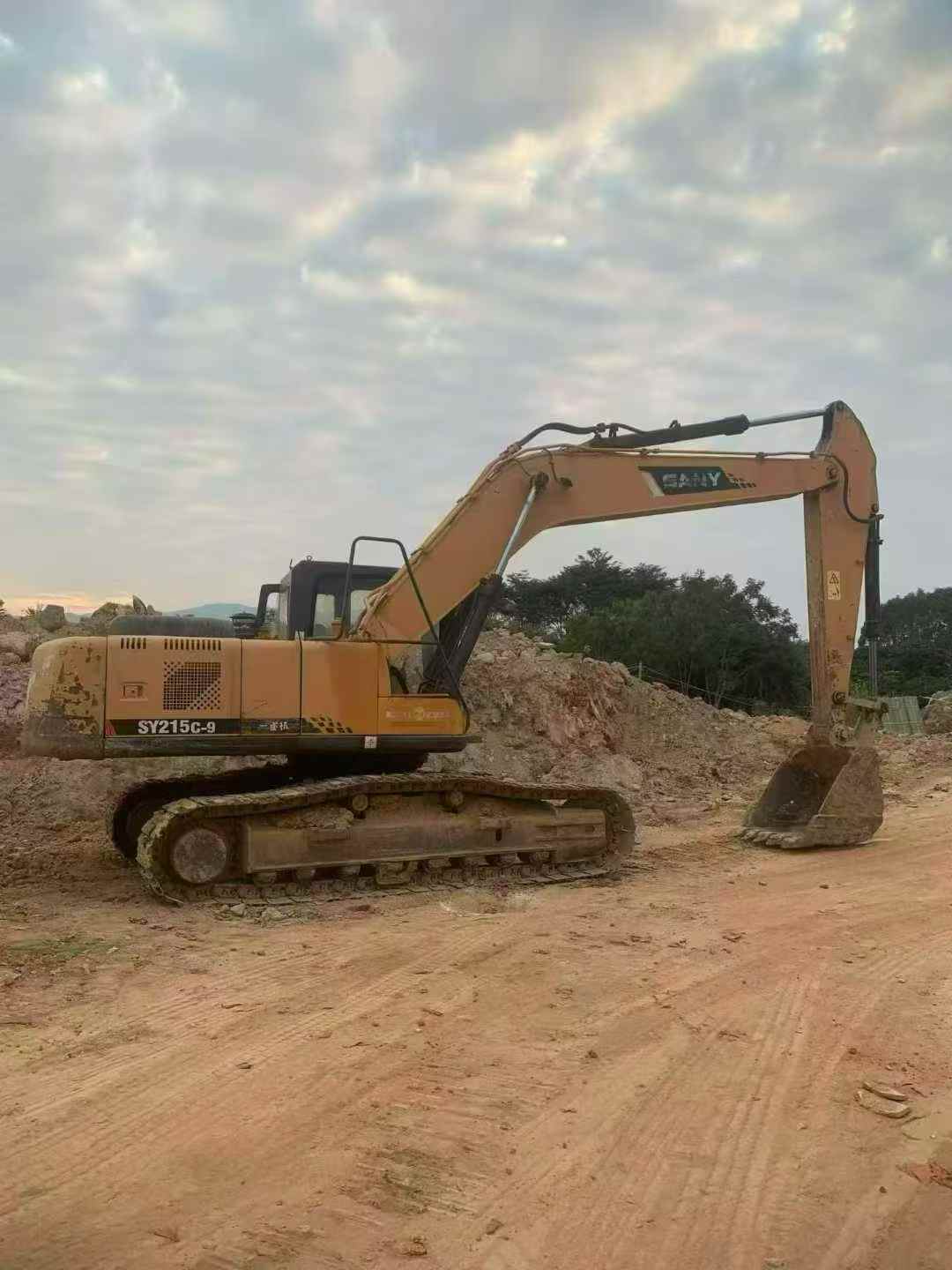

Used Sany SY215C-9 Excavator 2013 Model / 2

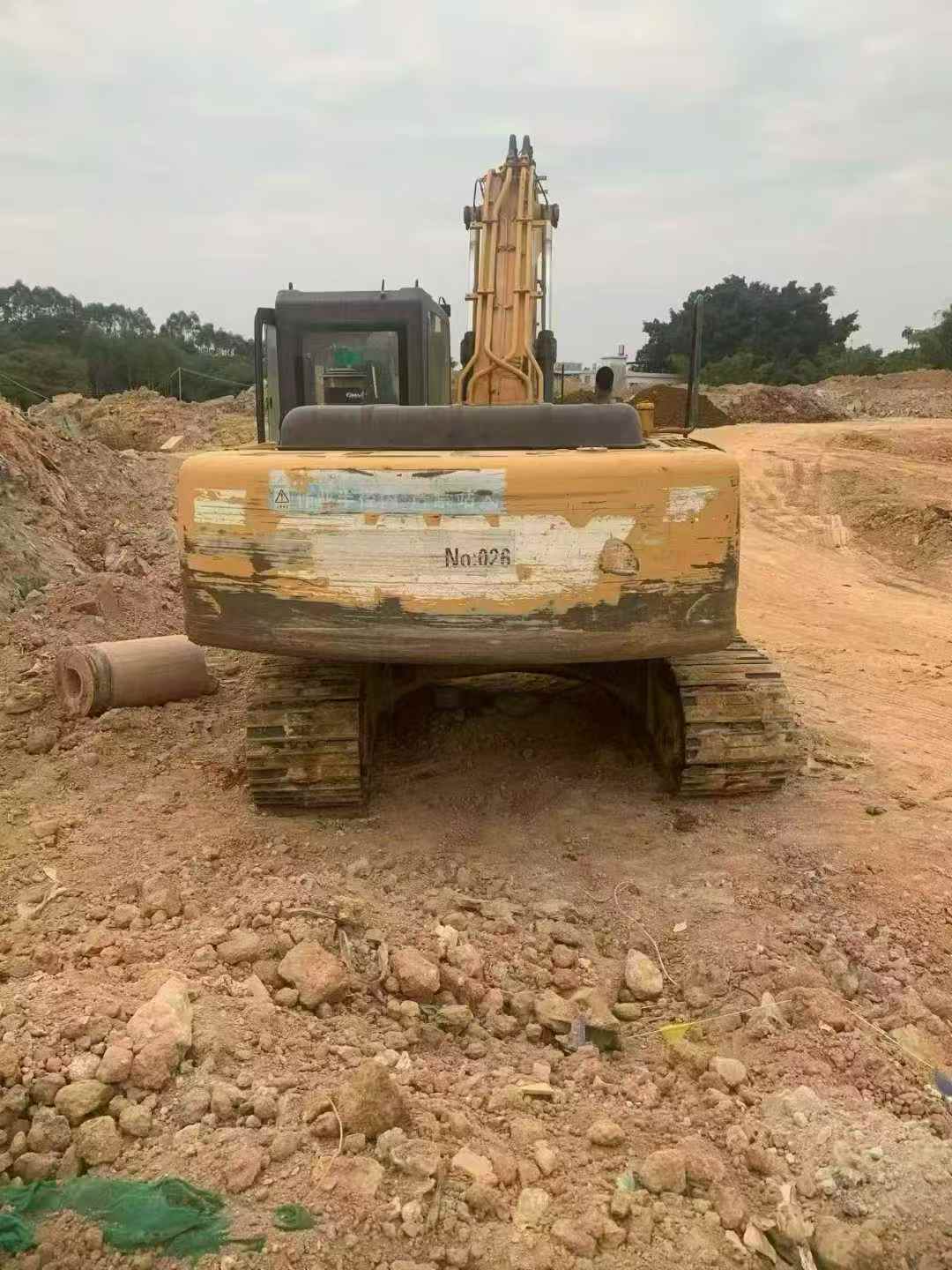

Used Sany SY215C-9 Excavator 2013 Model / 3

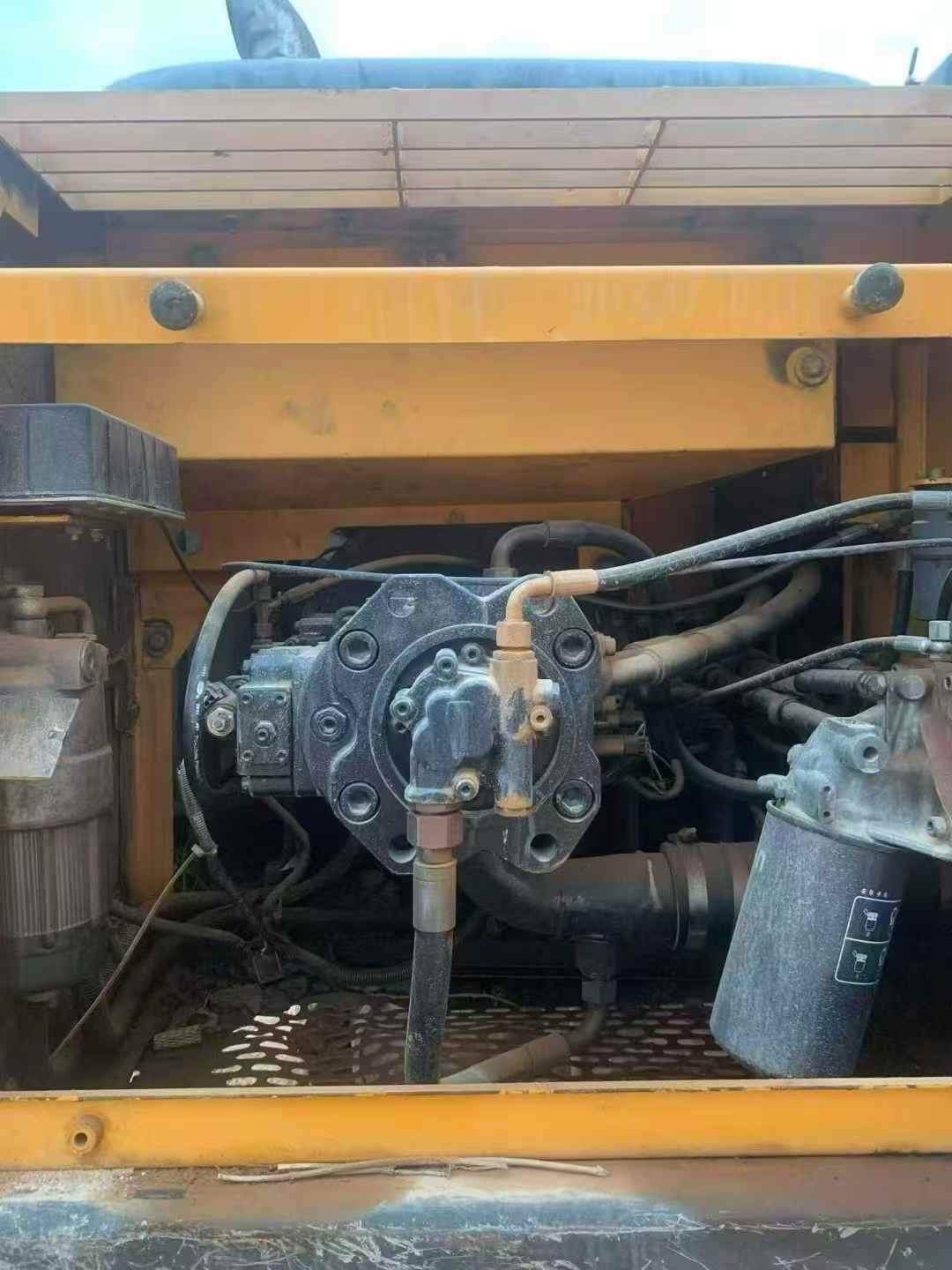

Used Sany SY215C-9 Excavator 2013 Model / 4

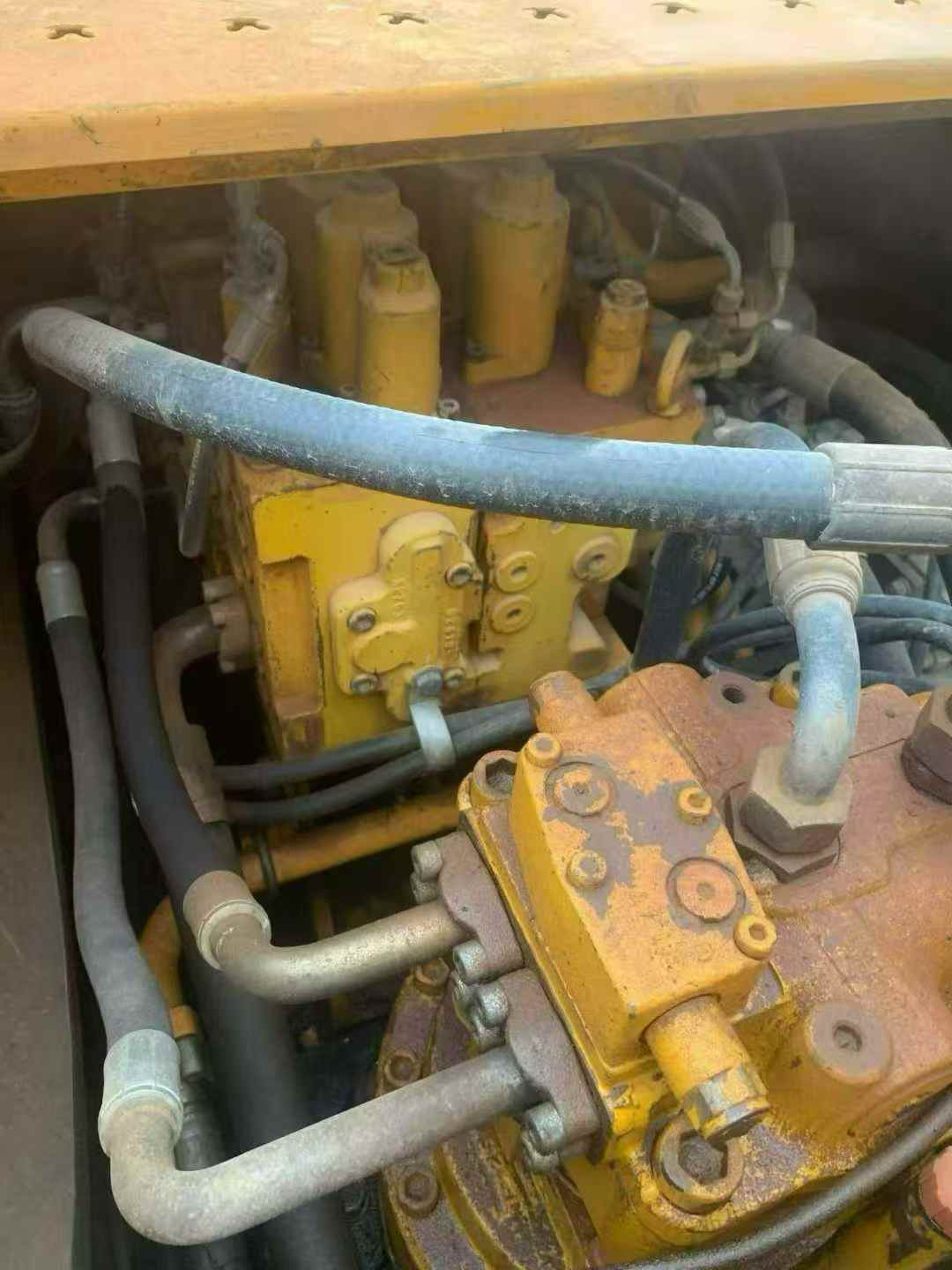

Used Sany SY215C-9 Excavator 2013 Model / 5

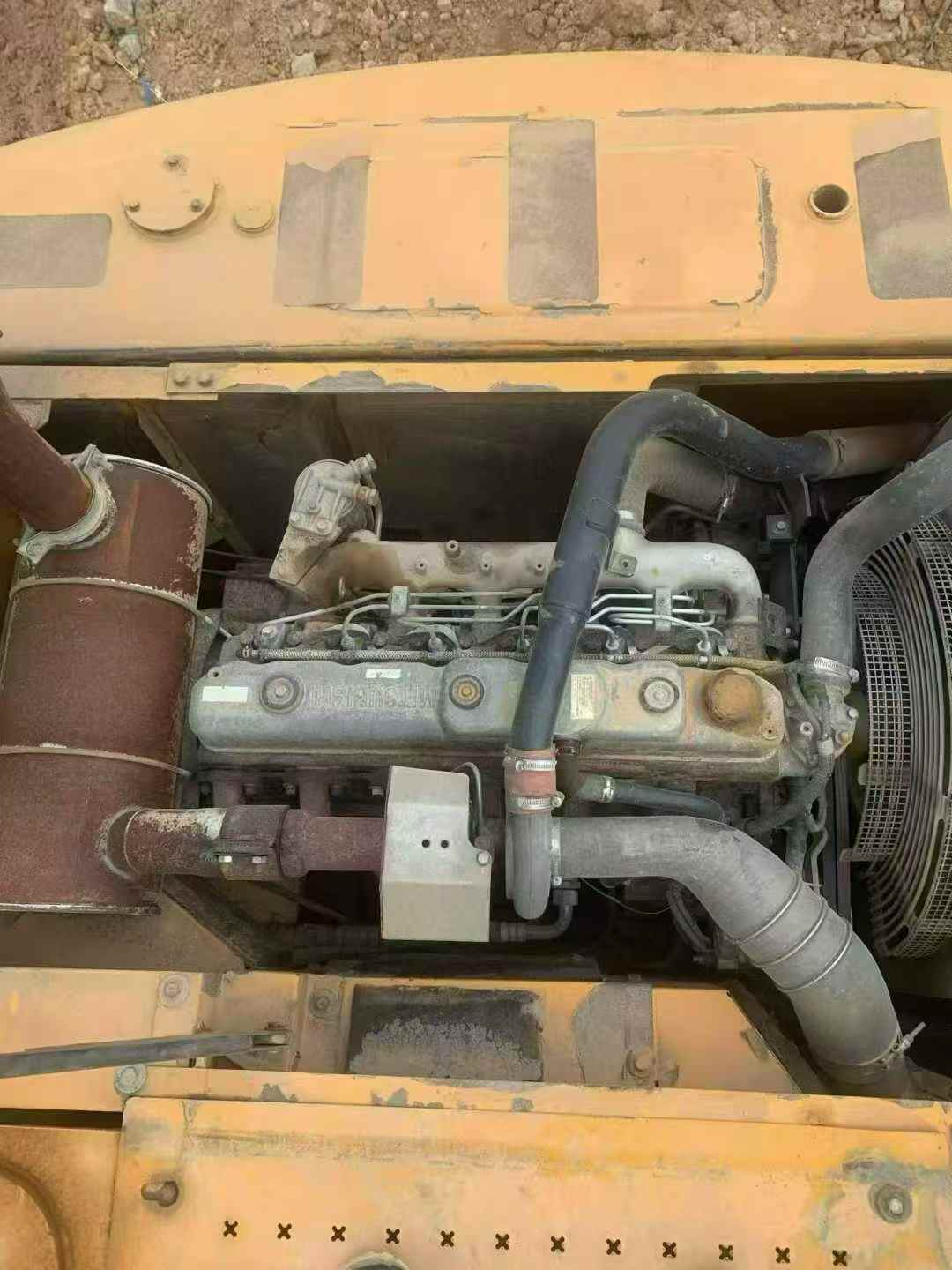

Used Sany SY215C-9 Excavator 2013 Model / 6

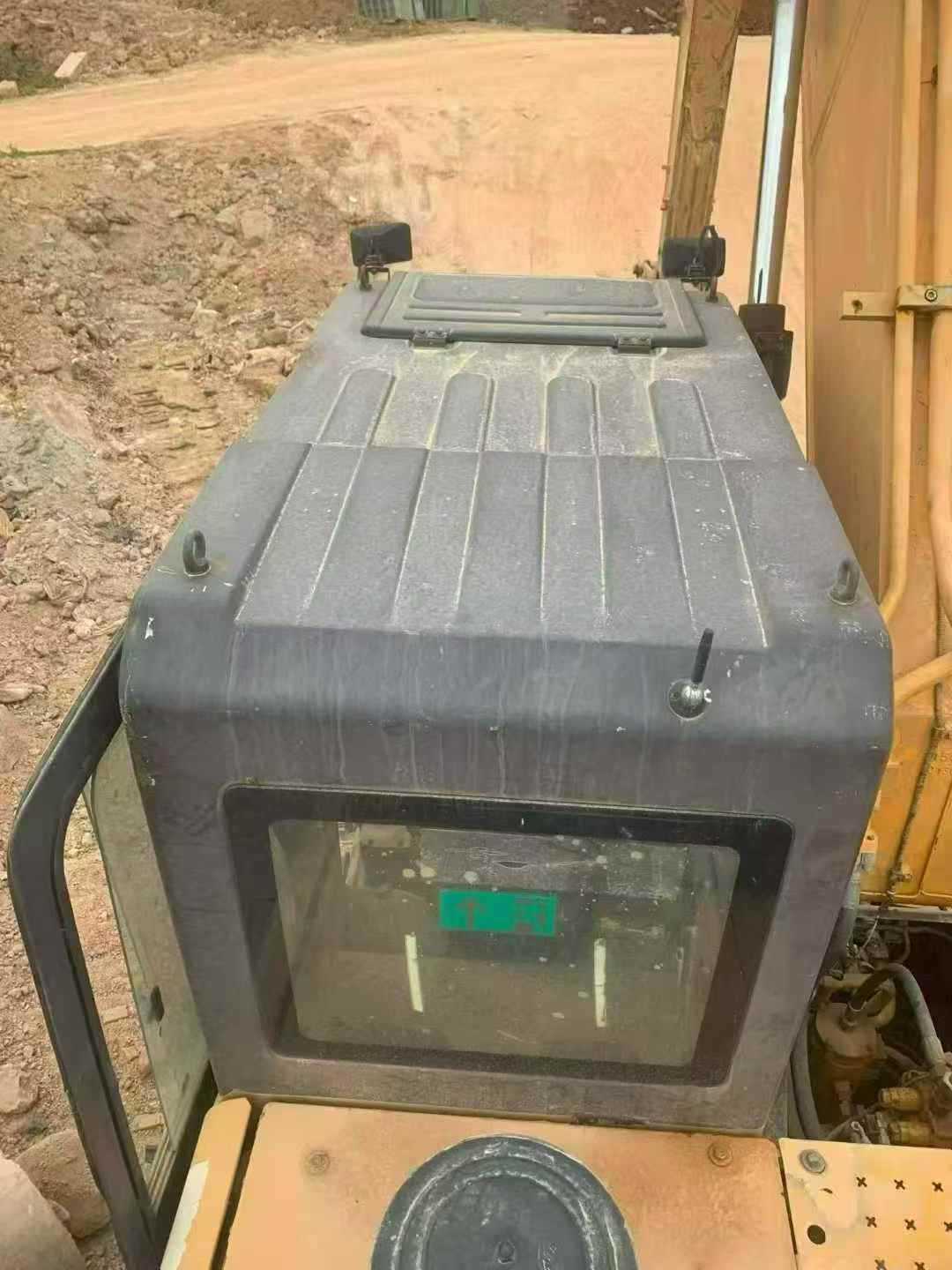

Used Sany SY215C-9 Excavator 2013 Model / 7

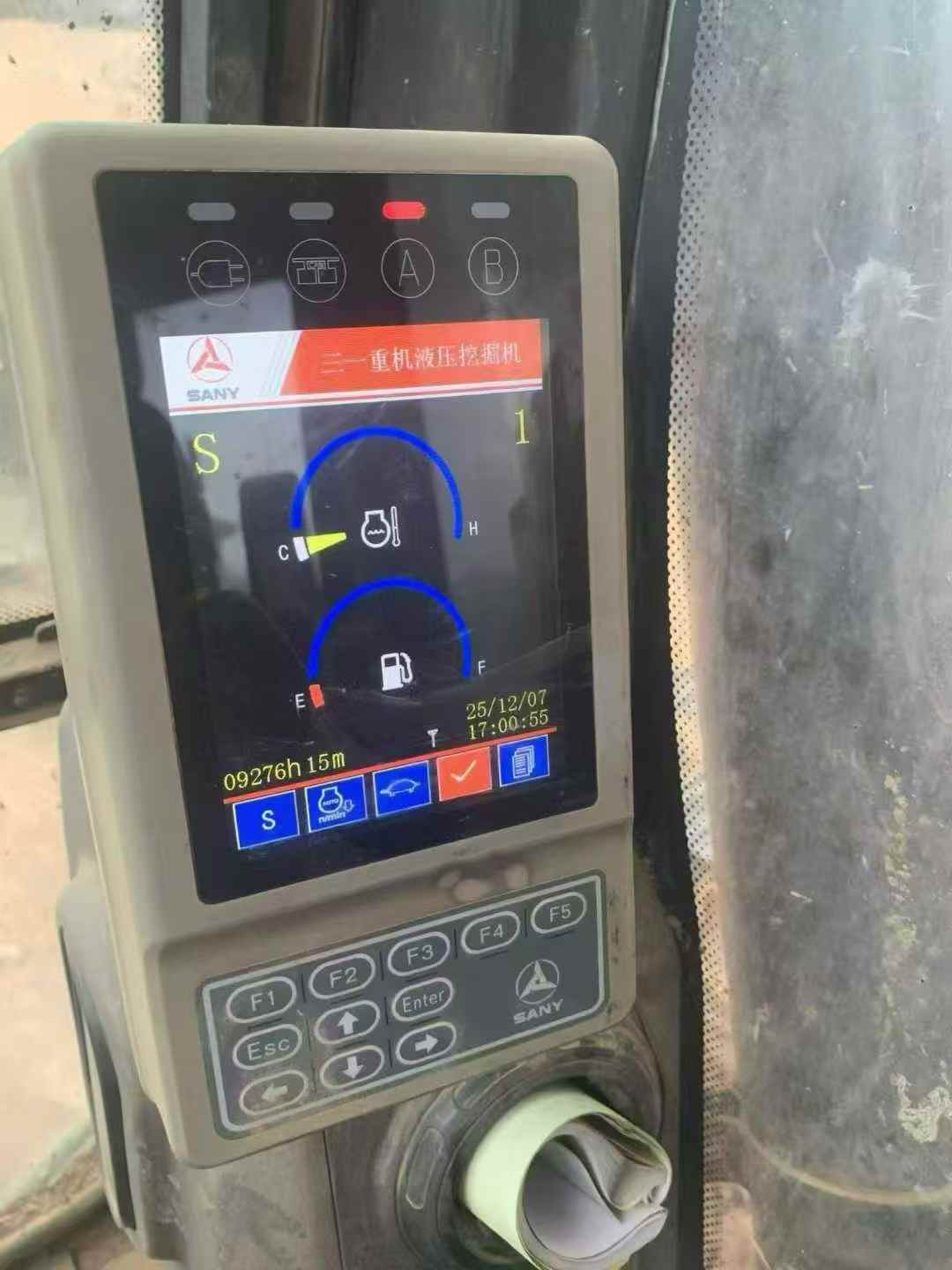

Used Sany SY215C-9 Excavator 2013 Model / 8

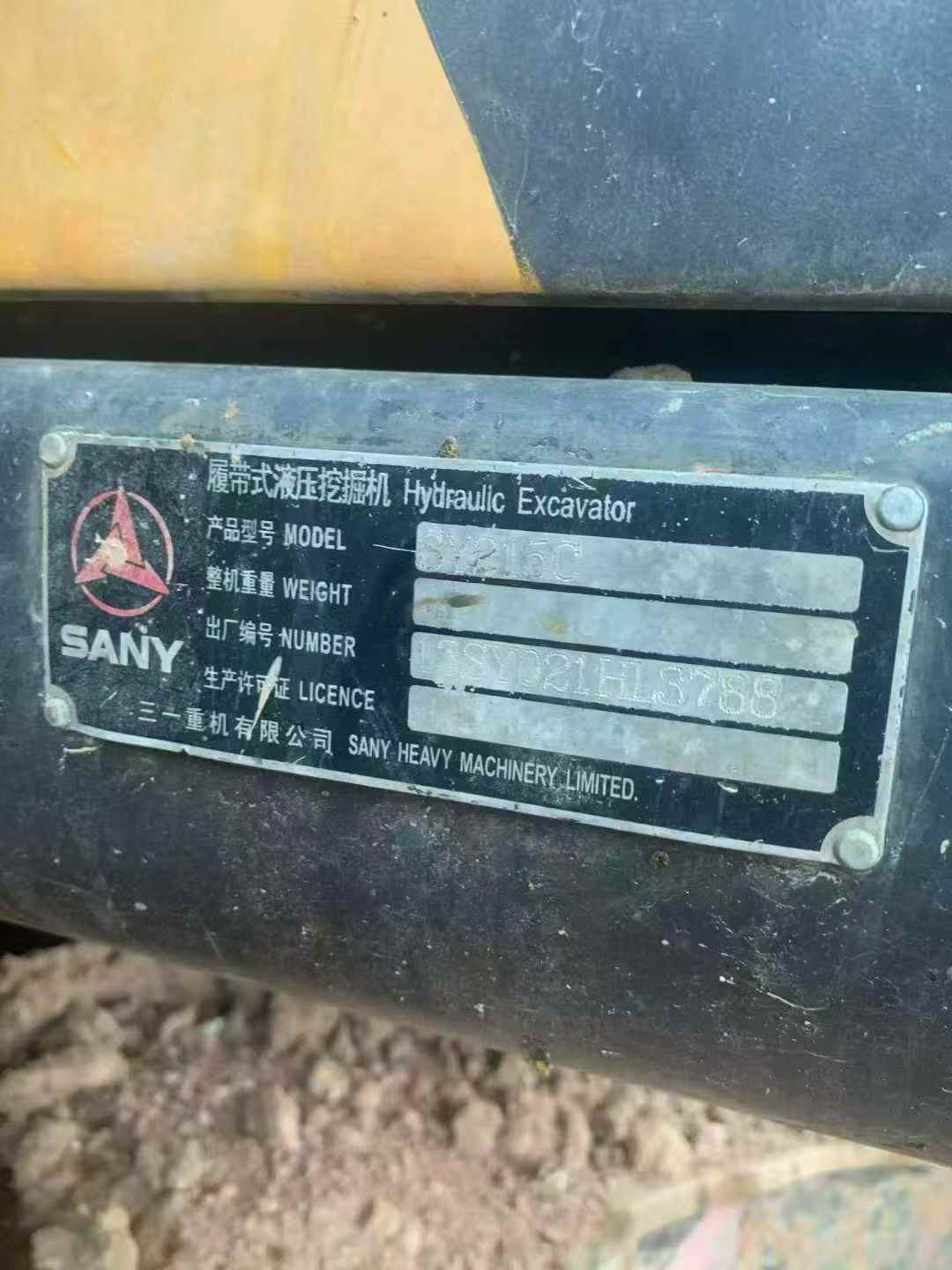

Used Sany SY215C-9 Excavator 2013 Model / 9

Product Description

【 Premium Recommendation 】 2013 Sany SY215-9 excavator, Construction site work vehicle, User Benefit! This Sany SY215-9 excavator is a model from 2013 and has maintained a good working condition since it left the factory. It has already proven its strength and reliability on multiple construction sites, with a cumulative working time of approximately 6,000 hours. For a medium-sized excavator, this usage period is in a very healthy state and it still has a long service life. In terms of the power system, this excavator is equipped with a high-performance engine, ensuring strong power output and smooth operation. Whether it is excavation, loading or crushing operations, they can all be handled with ease. In addition, its advanced fuel management system can effectively reduce fuel consumption, improve work efficiency and also save you operating costs. The hydraulic system is a major highlight of this equipment. It adopts high-quality hydraulic components and has been carefully calibrated, making the operation more sensitive and accurate. Whether in meticulous operations or under heavy load conditions, it can provide stable and reliable support. Meanwhile, the efficient heat dissipation design ensures stability during long-term operatio

SpecificationsValue
No.965602
Tonnage (tons)21
Working weight (kg)21800
Bucket capacity (m³)0.93 (0.8~1.2)
Country of originShanghai
powerTraditional power
manufacturerMade in China
bucketbackhoe
Rated power (kw/rpm)114/2050
Cooling modewater-cooling
Ground specific pressure (Kpa)46.5
Rotation speed (rpm)11
Climbing ability (%)70/35 °
Bucket digging force (kN)138
Rod digging force (kN)103
Travel speed (km/h)5.4/3.3
Main overflow set pressure (Mpa)34.3
Maximum flow of main pump (l/min)2 x 210
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25.5
Control Hydraulic Circuit (Mpa)3.9
Hydraulic crushing pipeline is standardno
Total transport length (mm)9680
Total transport width (mm)2980
Total transport height (mm)3440
Full cab height (mm)2990
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)3595
Back end turning radius (mm)2890
Onboard width (mm)2710
Total track length (mm)4250
Track gauge (mm)2380
Track plate width (mm)600 (800/700 optional)
Total track width (mm)2980
Track ground length (mm)3445
Maximum digging radius (mm)9950
Maximum digging depth (mm)6600
Maximum excavation height (mm)9570
Maximum unloading height (mm)6700
Maximum vertical digging depth (mm)5800
Bulldozer lift or depth (mm)There is no
Dodging plate width × height (mm)There is no
Maximum excavation radius of stop surface (mm)9885
see more

Overview

No.965602

Brand Name:

Sany

Model Number:

SY215C-9

Year:

2013

Location:

Fujian China
