2020 Sany SY245H

1/9
Used Sany SY245H Excavator 2020 Model / 1

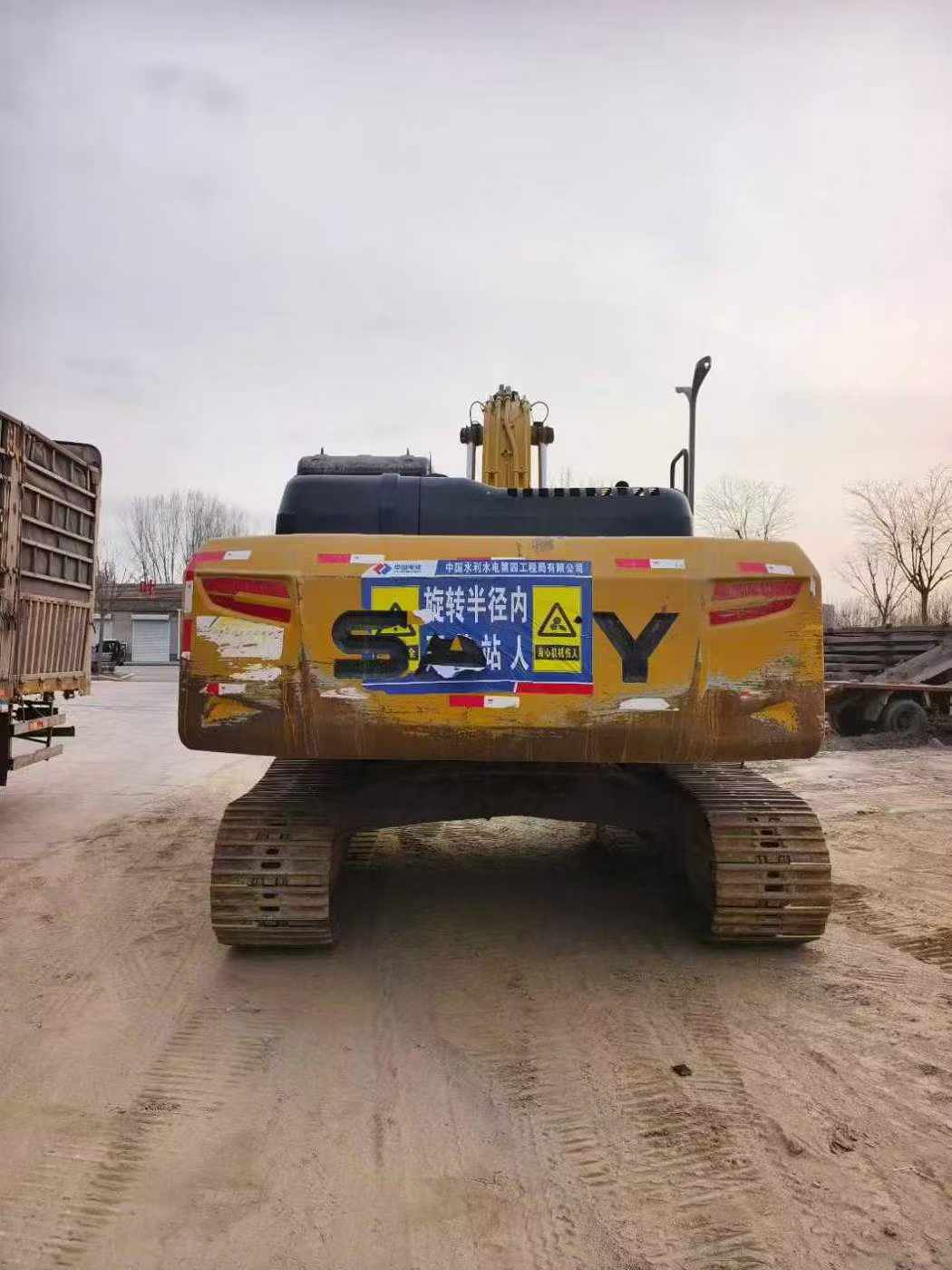

Used Sany SY245H Excavator 2020 Model / 2

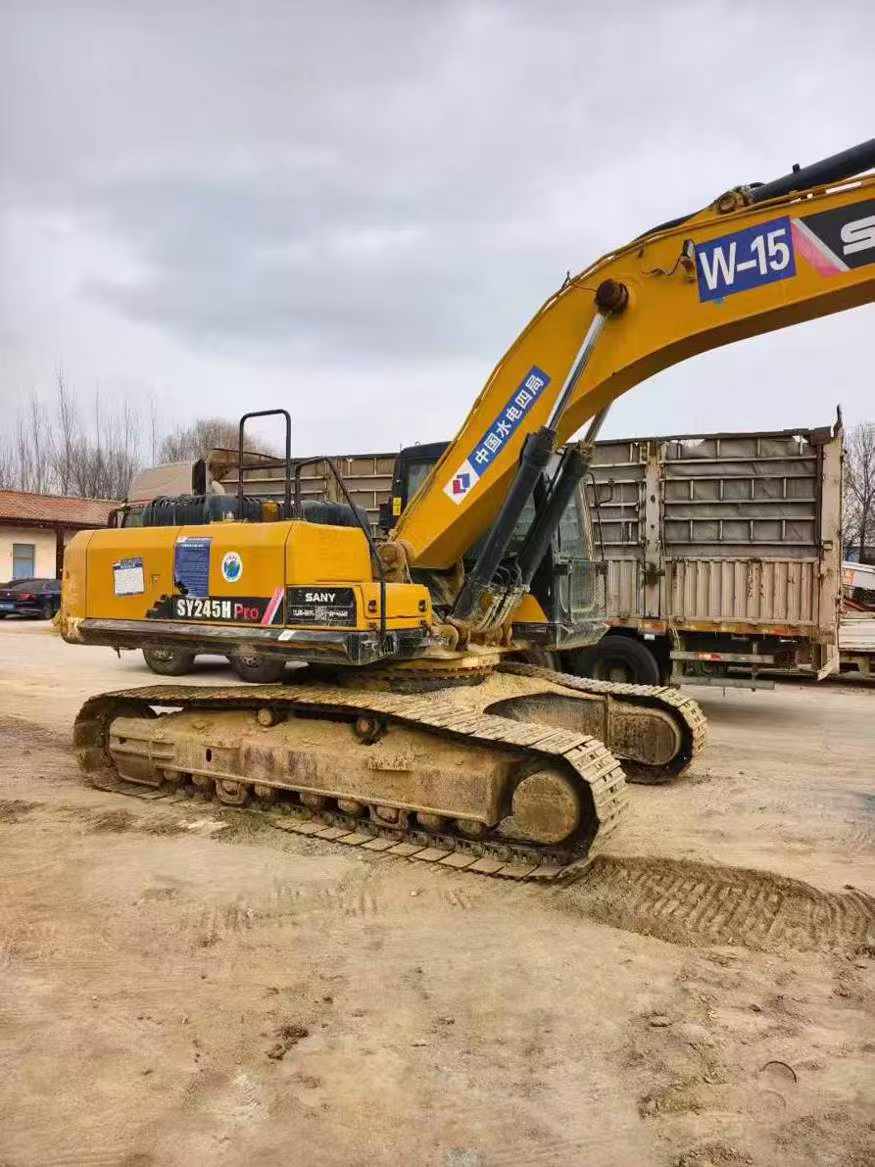

Used Sany SY245H Excavator 2020 Model / 3
Used Sany SY245H Excavator 2020 Model / 4

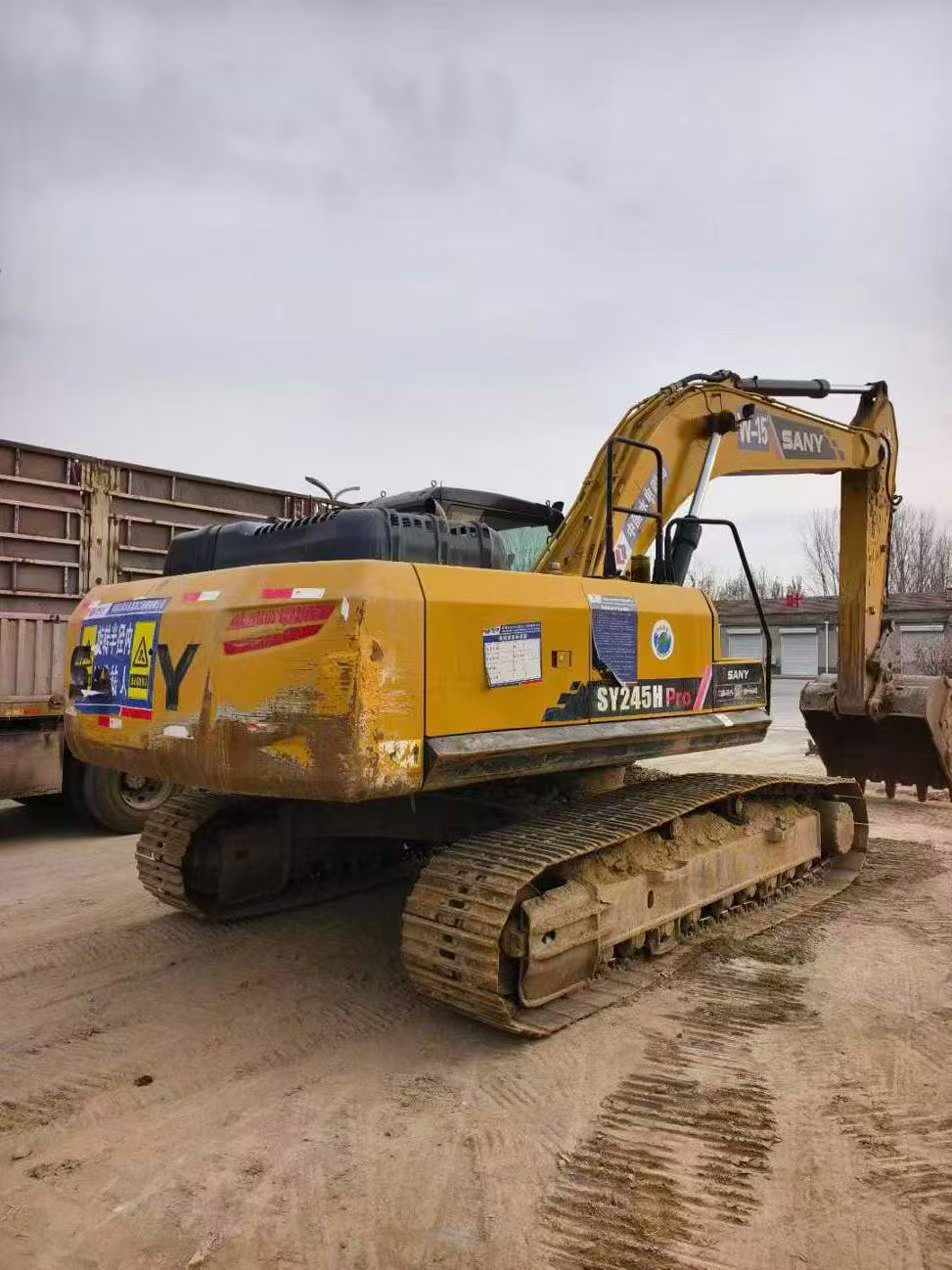

Used Sany SY245H Excavator 2020 Model / 5

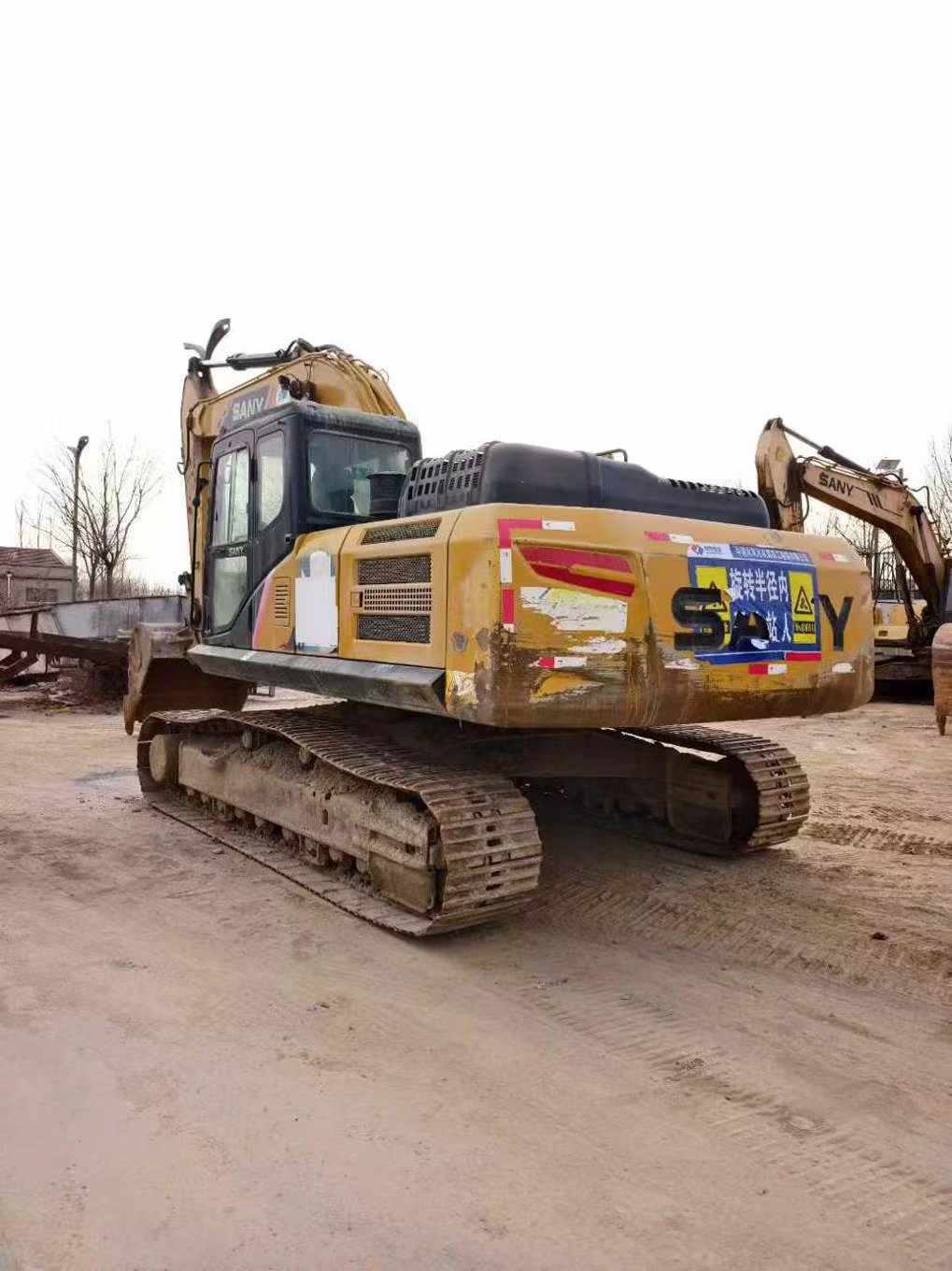

Used Sany SY245H Excavator 2020 Model / 6

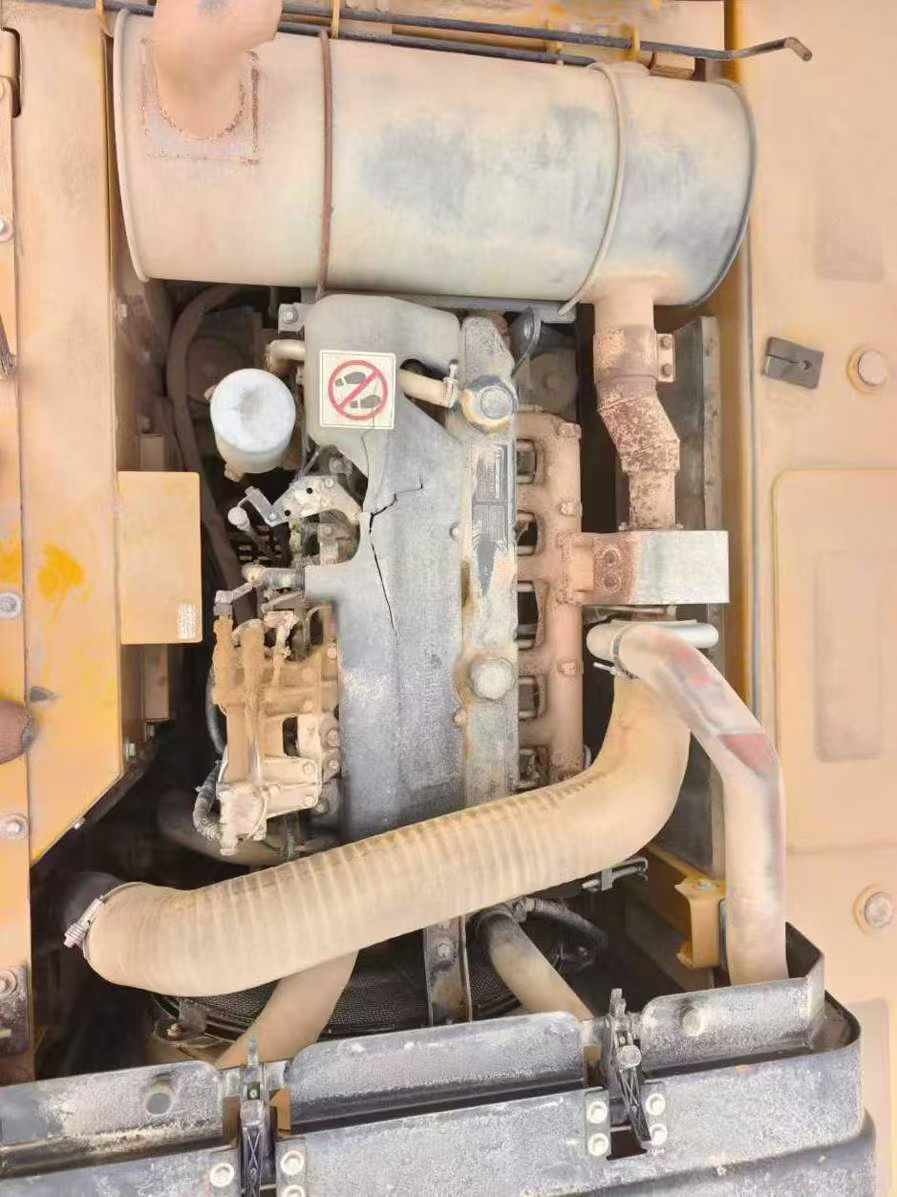

Used Sany SY245H Excavator 2020 Model / 7

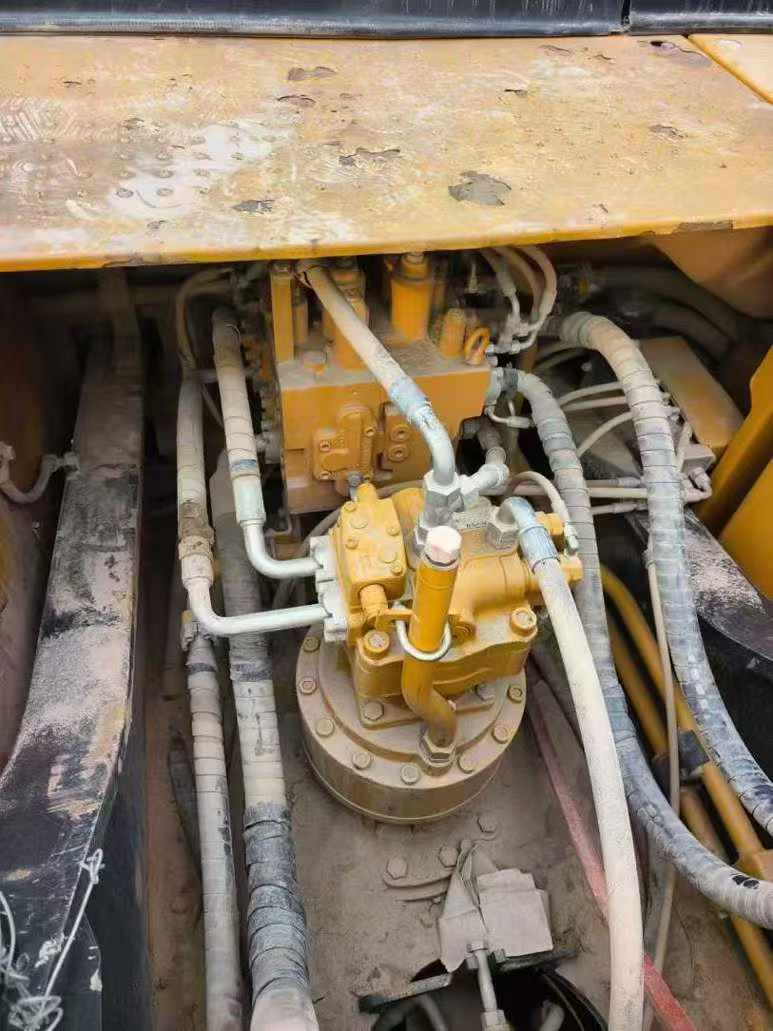

Used Sany SY245H Excavator 2020 Model / 8

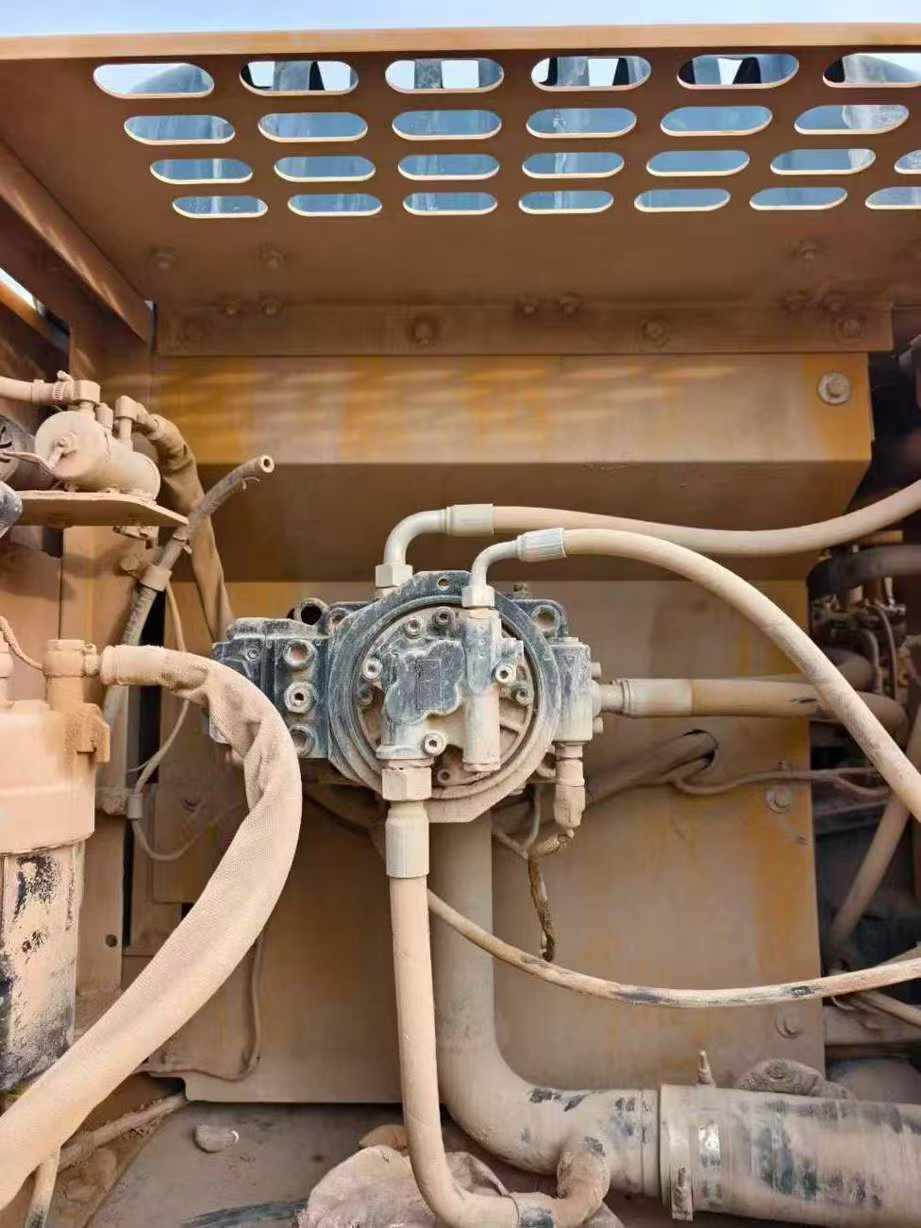

Used Sany SY245H Excavator 2020 Model / 9

Product Description

【 Quality Recommendation 】 The Sany SY245H excavator, manufactured in the second half of 2020, has remained in its original state since its release and has never undergone any modification or hamming operations, ensuring the integrity and stability of its mechanical structure. As of now, the cumulative working time of this machine is only 1,800 hours, and it is in an excellent working condition. In terms of power, it is equipped with a Cummins QSB6.7 engine, which is renowned for its excellent fuel economy and strong power output, providing stable and reliable performance under various working conditions. Meanwhile, an efficient cooling system ensures the stability of the engine temperature during long-term operation, thereby extending its service life. The hydraulic system adopts the main pump and motor of Kawasaki brand from Japan, which are perfectly matched with the control system independently developed by Sany, making the operation of the entire machine more precise and smooth. Whether it is complex operations such as excavation, loading or crushing, they can all be handled with ease. In addition, advanced negative flow control technology effectively reduces energy consumption and enhances work efficiency. The exterior of the

SpecificationsValue
No.965665
Tonnage (tons)24
Working weight (kg)25500
Bucket capacity (m³)1.3~1.5(1.5)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeD06FRC
Rated power (kw/rpm)147/2100
Cooling modewater-cooling
Maximum torque (N.m)750/1350
Number of cylinders (PCS)6
Displacement (L)6.373
Ground specific pressure (Kpa)53.2
Rotation speed (rpm)10.6
Climbing ability (%)70
Bucket digging force (kN)175
Rod digging force (kN)120
Travel speed (km/h)5.4/3.4
Fuel Tank (L)475
Hydraulic Tank (L)277
Engine Oil changes (L)29
Total transport length (mm)10290
Total transport width (mm)3190
Total transport height (mm)3190
Full cab height (mm)3255
Minimum ground clearance (mm)470
Minimum turning radius of front working device (mm)3800
Back end turning radius (mm)3105
Onboard width (mm)3045
Total track length (mm)4445
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3640
Maximum height at minimum turning radius (mm)8016
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10225
Maximum digging depth (mm)6705
Maximum excavation height (mm)9745
Maximum unloading height (mm)6715
see more

Overview

No.965665

Brand Name:

Sany

Model Number:

SY245H

Year:

2020

Location:

Shandong China
