Product Description

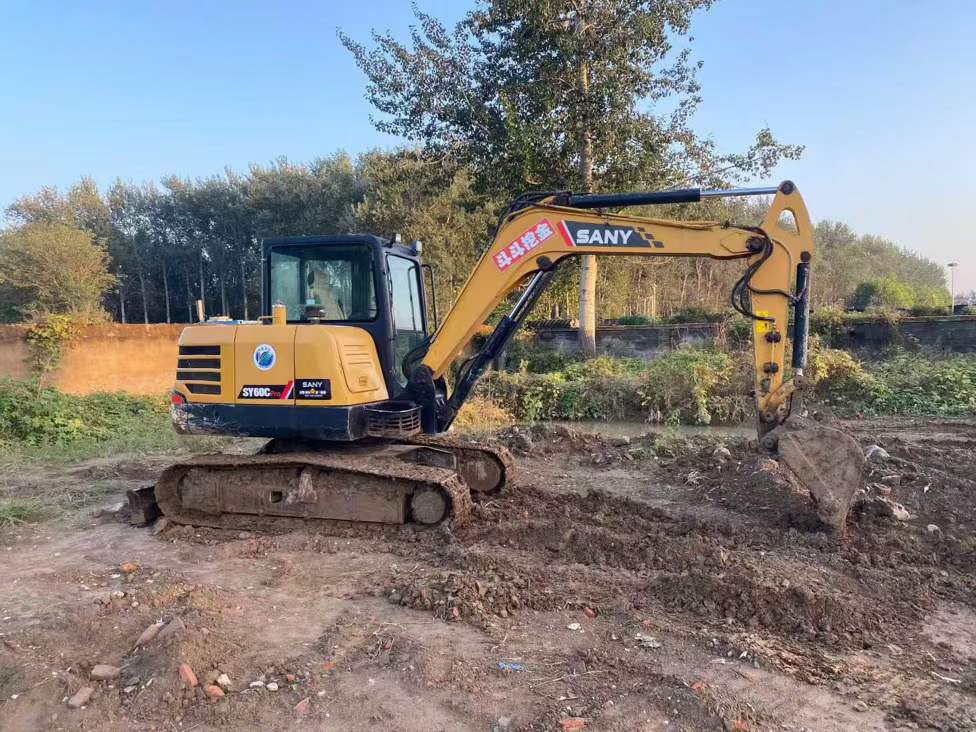

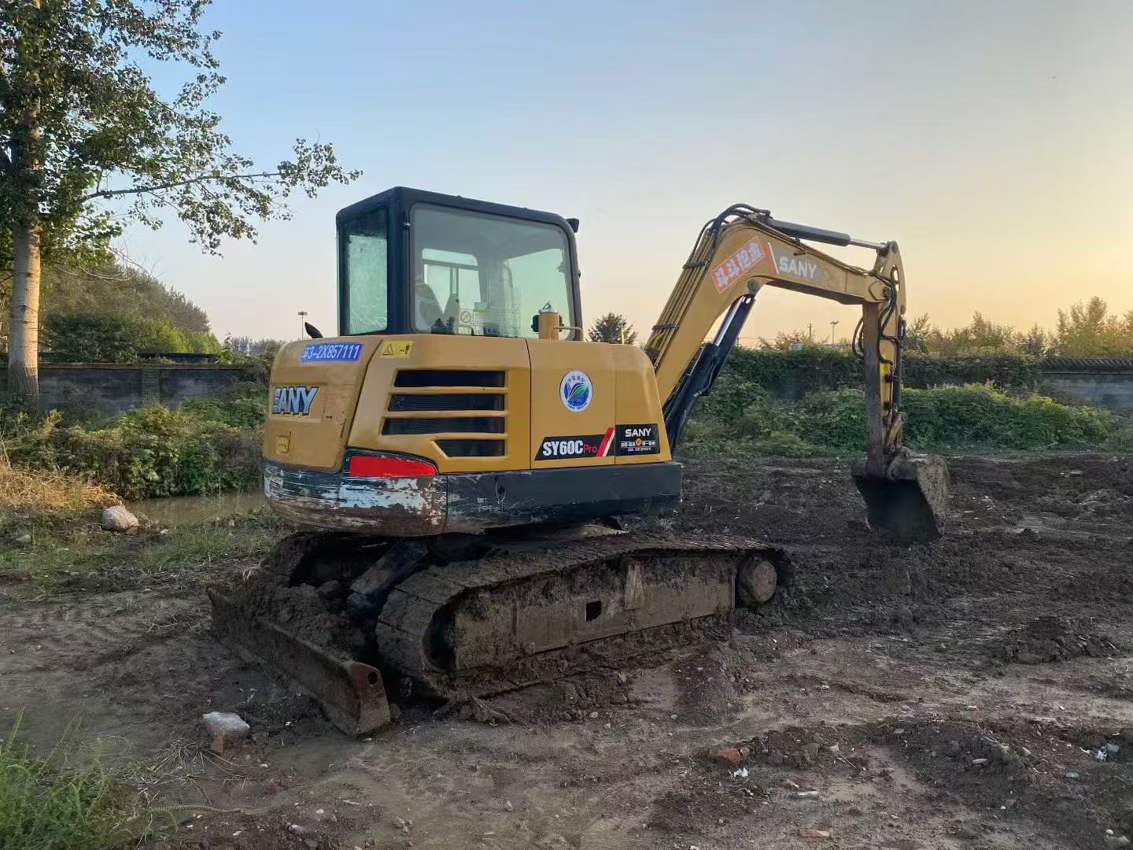

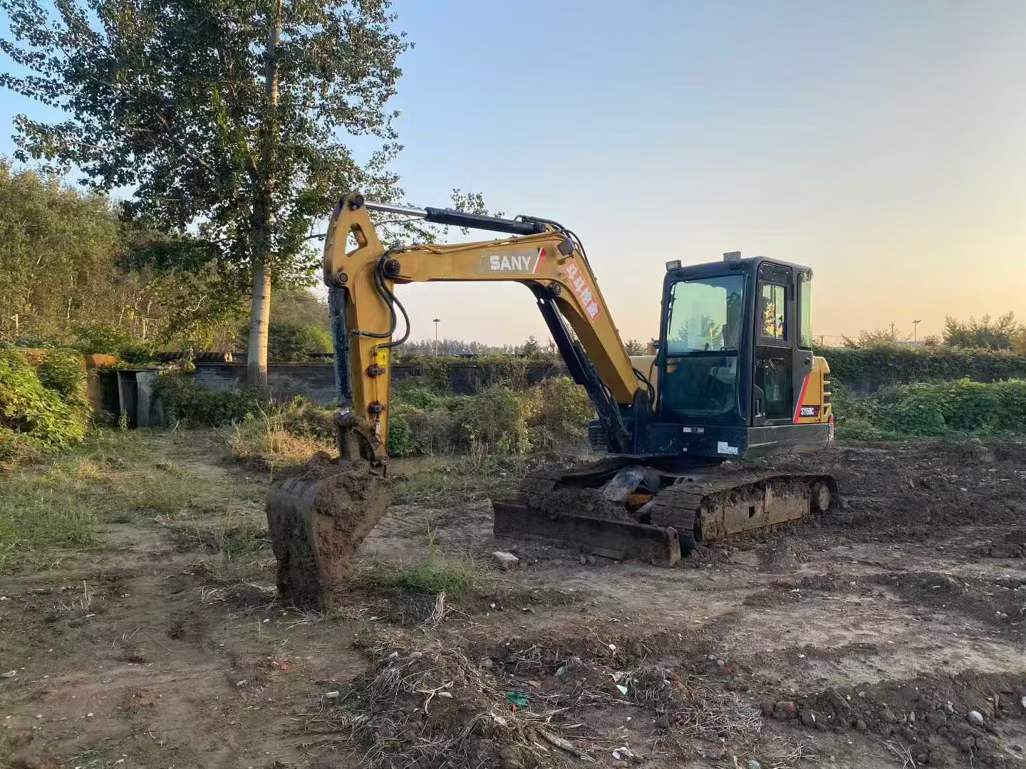

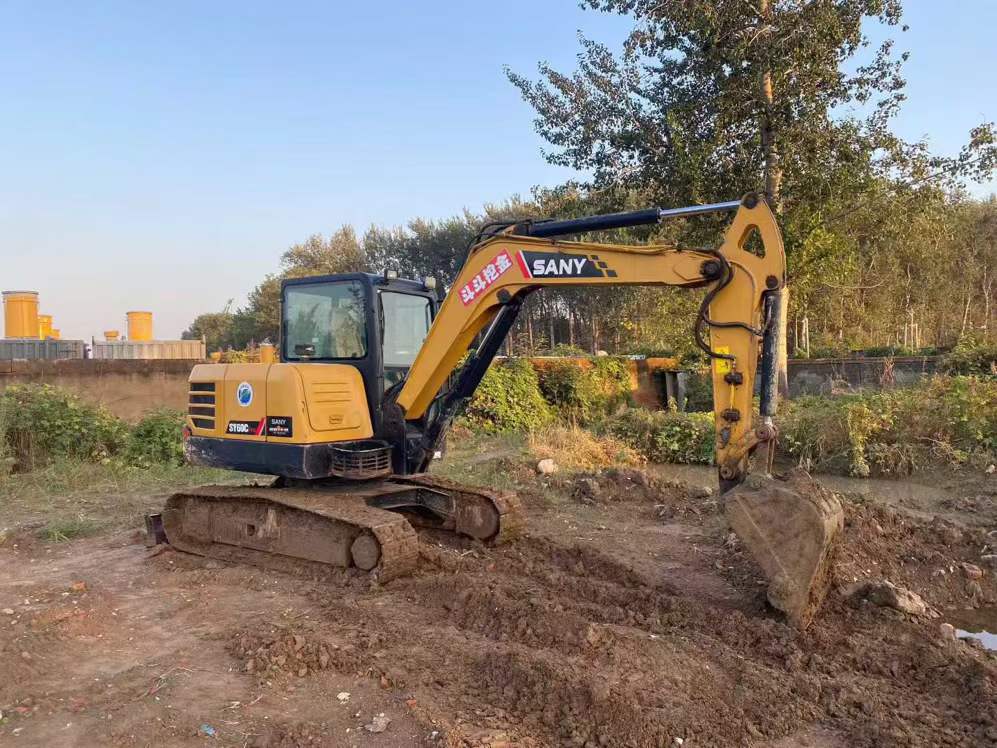

2017 Sany SY60C, pure 60, National III engine, complete procedures, verifiable by the company, new Kubota engine, original vehicle with shaky strips and plates, large and beautiful parts that haven't been touched, hurry up
| Specifications | Value |
|---|---|
| No. | 941756 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 6000 |
| Bucket capacity (m³) | 0.10-0.28(0.23) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | V2607 |
| Rated power (kw/rpm) | 36/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 206.9/1100~1500 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.615 |
| Ground specific pressure (Kpa) | 30.7 |
| Rotation speed (rpm) | 9.6 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 45 |
| Rod digging force (kN) | 33 |
| Travel speed (km/h) | 4.22/2.25 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 9.6 |
| Total transport length (mm) | 5925 |
| Total transport width (mm) | 2005 |
| Total transport height (mm) | 2630 |
| Minimum ground clearance (mm) | 370 |
| Back end turning radius (mm) | 1640 |
| Total track length (mm) | 2700 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 42 |
| Maximum digging radius (mm) | 6090 |
| Maximum digging depth (mm) | 3770 |
| Maximum excavation height (mm) | 5735 |
| Maximum unloading height (mm) | 3975 |
| Maximum vertical digging depth (mm) | 3025 |
| Bulldozer lift or depth (mm) | 300/405 |
