2016 Sany SY65C

1/5
Used Sany SY65C Excavator 2016 Model / 1
Used Sany SY65C Excavator 2016 Model / 2
Used Sany SY65C Excavator 2016 Model / 3

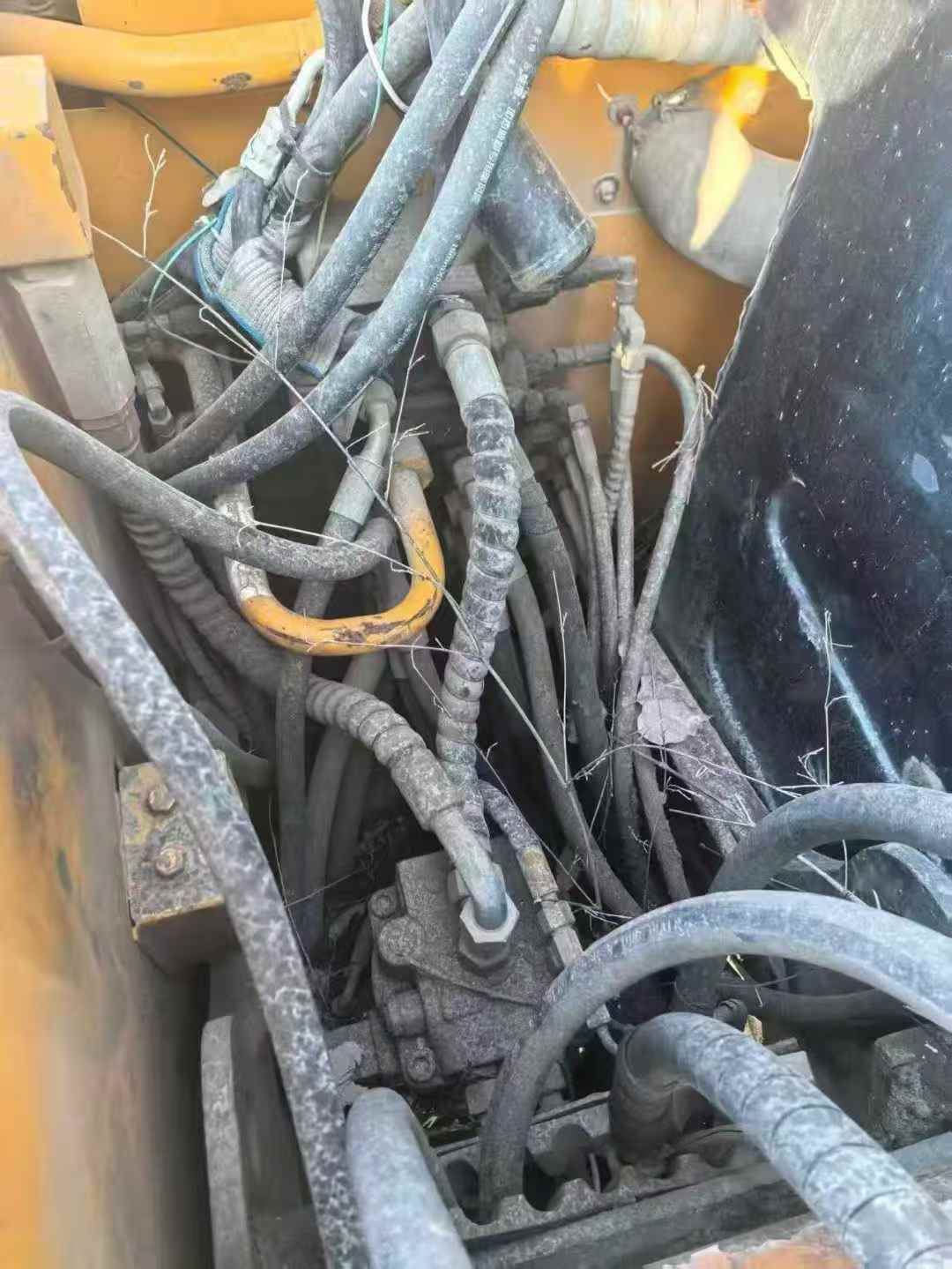

Used Sany SY65C Excavator 2016 Model / 4

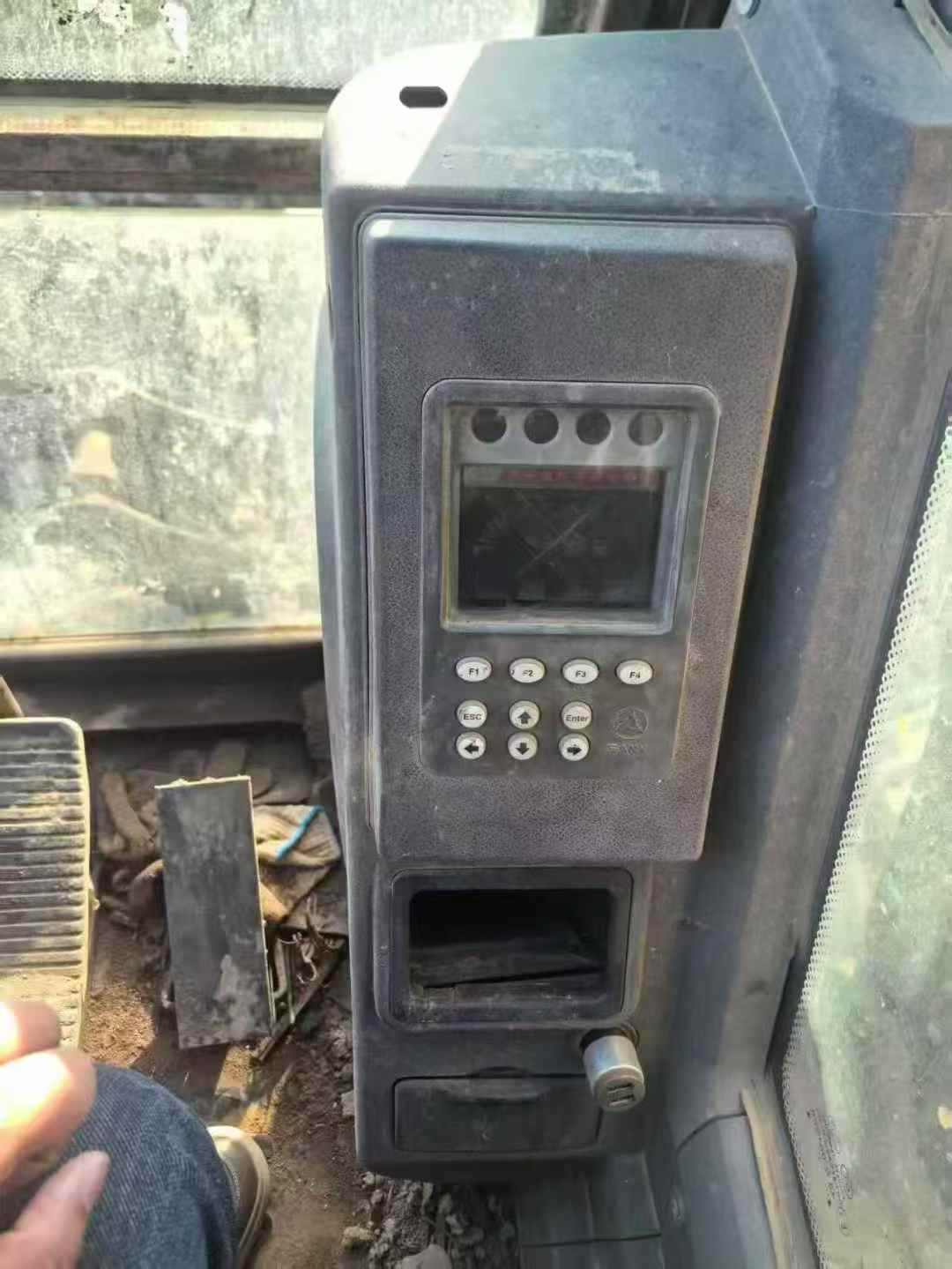

Used Sany SY65C Excavator 2016 Model / 5

Product Description

"Sany 65-9 second-hand excavator This second-hand Sany 65-9 excavator is priced at only 39,000 yuan, offering an extremely high cost performance. It is an ideal choice for you to obtain efficient construction equipment within your limited budget. This machine has a cumulative working time of approximately 2,000 hours and is in good working condition, suitable for various small and medium-sized engineering operation requirements. In terms of the power system, it adopts a high-performance engine independently developed by Sany Heavy Industry. It not only has strong power but also good fuel economy. Even under long-term high-intensity operation, it can maintain stable output, significantly reducing operating costs. Meanwhile, this engine also features low noise and low emissions, meeting environmental protection requirements and making your construction greener and healthier. The hydraulic system adopts an advanced load-sensitive control system, which is highly responsive and operates precisely. It can achieve rapid response and smooth transition, ensuring operational efficiency and safety. Whether it is complex working conditions such as excavation, loading or crushing, it can handle them with ease and meet the diverse demands in diff

SpecificationsValue
No.965620
Tonnage (tons)6
Working weight (kg)6700
Bucket capacity (m³)0.12-0.32
Country of originKunshan in Jiangsu Province
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeSANY D03S3
Rated power (kw/rpm)42/2100
Cooling modewater-cooling
Maximum torque (N.m)1900/1600~2000
Number of cylinders (PCS)4
Displacement (L)2.77
Ground specific pressure (Kpa)33
Rotation speed (rpm)11.5
Climbing ability (%)70/35 °
Bucket digging force (kN)56
Rod digging force (kN)35.6
Travel speed (km/h)2.4/4.8
Main overflow set pressure (Mpa)26
Maximum flow of main pump (l/min)149
Traveling Hydraulic Circuit (Mpa)26
Rotary Hydraulic Circuit (Mpa)21.6
Control Hydraulic Circuit (Mpa)3.6
Hydraulic crushing pipeline is standardno
Main pump typeVariable swashplate plunger pump
Bucket cylinders - Number × diameter × stroke (mm)80 x 730
Bucket rod cylinders - Number × diameter × stroke (mm)90 x 900
Boom cylinders - Number × diameter × stroke (mm)110 x 885
Fuel Tank (L)145
Hydraulic Tank (L)120
Engine Oil changes (L)9
Coolant (L)12
Total transport length (mm)6000
Total transport width (mm)2160
Total transport height (mm)2560
Full cab height (mm)2560
Minimum ground clearance (mm)375
Back end turning radius (mm)1720
Total track length (mm)2710
Track gauge (mm)1680
Track plate width (mm)400
Total track width (mm)2160
Track ground length (mm)2180
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)5
Number of track plates (single side) (PCS)42
Maximum digging radius (mm)6160
Maximum digging depth (mm)3985
Maximum excavation height (mm)6930
Maximum unloading height (mm)5145
Maximum vertical digging depth (mm)3470
Bulldozer lift or depth (mm)200/480
Dodging plate width × height (mm)460(dodging plate height)
see more

Overview

No.965620

Brand Name:

Sany

Model Number:

SY65C

Year:

2016

Location:

Fujian China
