Product Description

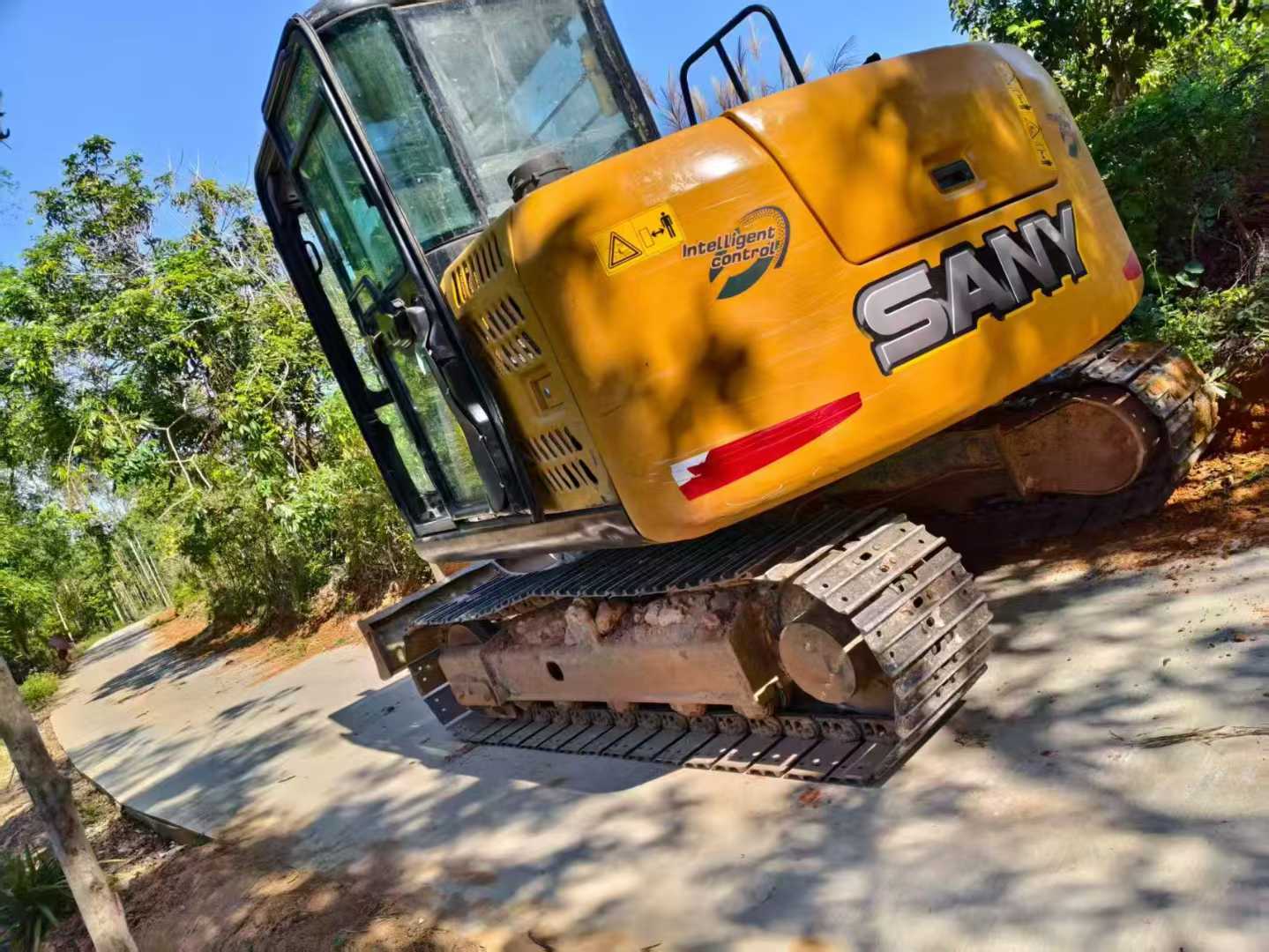

"Sany 75C-10 Second-hand excavator This second-hand Sany 75C-10 excavator produced in 2019 is one of the most popular small excavators in the market. Since leaving the factory, it has only worked for 2,800 hours and is in good working condition. Both its appearance and performance are maintained quite well. This machine is equipped with a high-efficiency and energy-saving engine independently developed by Sany. It is powerful and has good fuel economy. It can not only meet the operation requirements under various complex working conditions, but also effectively reduce operating costs. Meanwhile, this device is equipped with an advanced hydraulic system, featuring high operational sensitivity and fast response speed. It can achieve precise control, enhancing work efficiency while ensuring construction quality. In addition, the Sany 75C-10 excavator also has the following major advantages: - ** Strong reliability ** : The entire machine has a sturdy and durable structure. Key components are all made of high-quality materials to ensure long-term stable operation. - ** Easy maintenance ** : The design fully takes into account the convenience of daily maintenance and repair, allowing users to easily complete routine inspections and replac
| Specifications | Value |
|---|---|
| No. | 963439 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7280 |
| Bucket capacity (m³) | 0.12~0.32 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Isuzu AU-4LE2X |
| Rated power (kw/rpm) | 43/2200 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 200/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 56 |
| Rod digging force (kN) | 38 |
| Travel speed (km/h) | 4.4/2.4 |
| Fuel Tank (L) | 150 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 9.5 |
| Total transport length (mm) | 6120 |
| Total transport width (mm) | 2220 |
| Total transport height (mm) | 2720 |
| Minimum ground clearance (mm) | 380 |
| Back end turning radius (mm) | 1800 |
| Total track length (mm) | 2820 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Track ground length (mm) | 2195 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 39 |
| Maximum digging radius (mm) | 6240 |
| Maximum digging depth (mm) | 4020 |
| Maximum excavation height (mm) | 7060 |
| Maximum unloading height (mm) | 5155 |
| Maximum vertical digging depth (mm) | 3290 |
| Bulldozer lift or depth (mm) | 350/360 |
