2016 Sumitomo SH240-3

1/9
Used Sumitomo SH240-3 Excavator 2016 Model / 1

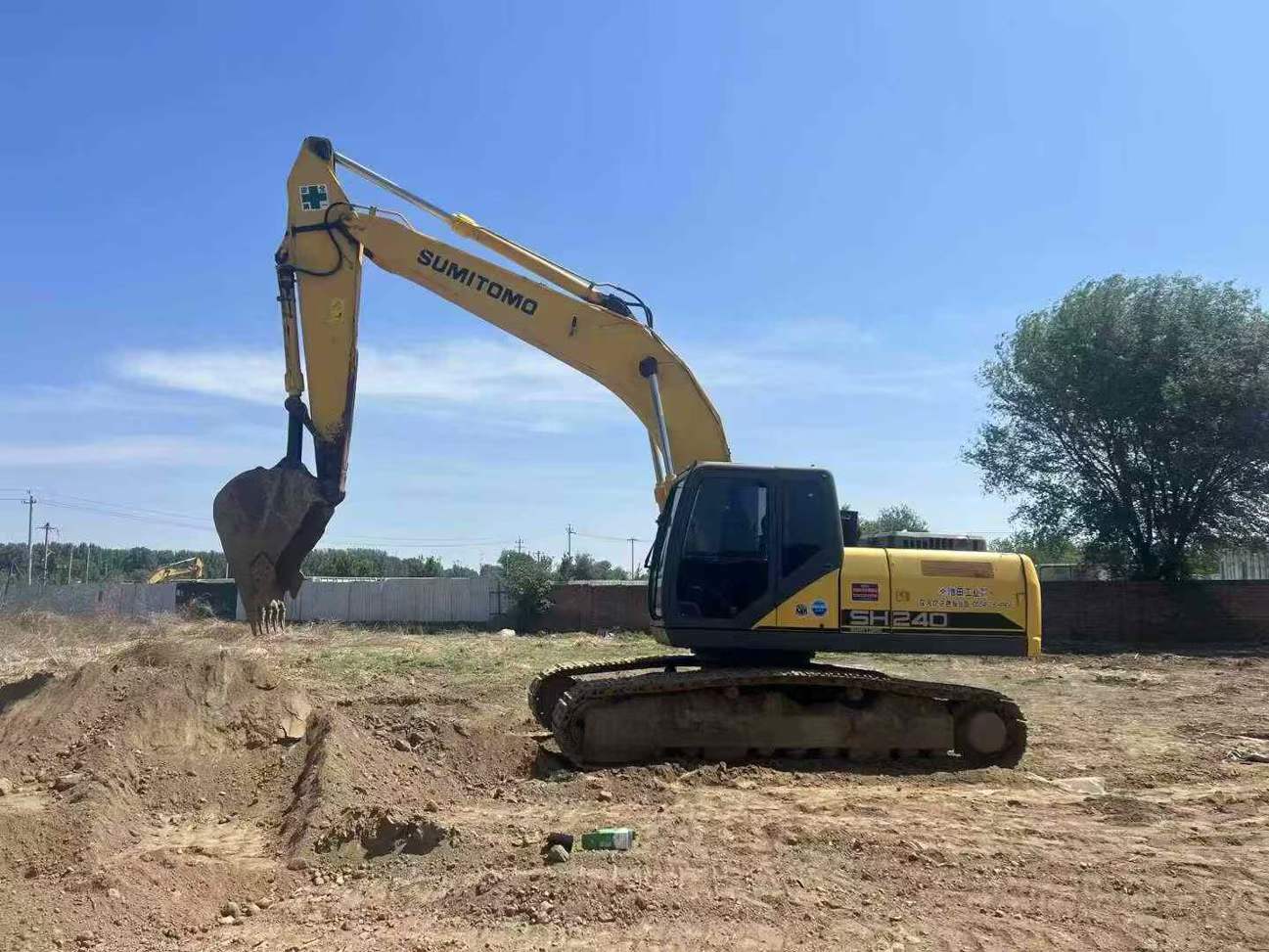

Used Sumitomo SH240-3 Excavator 2016 Model / 2

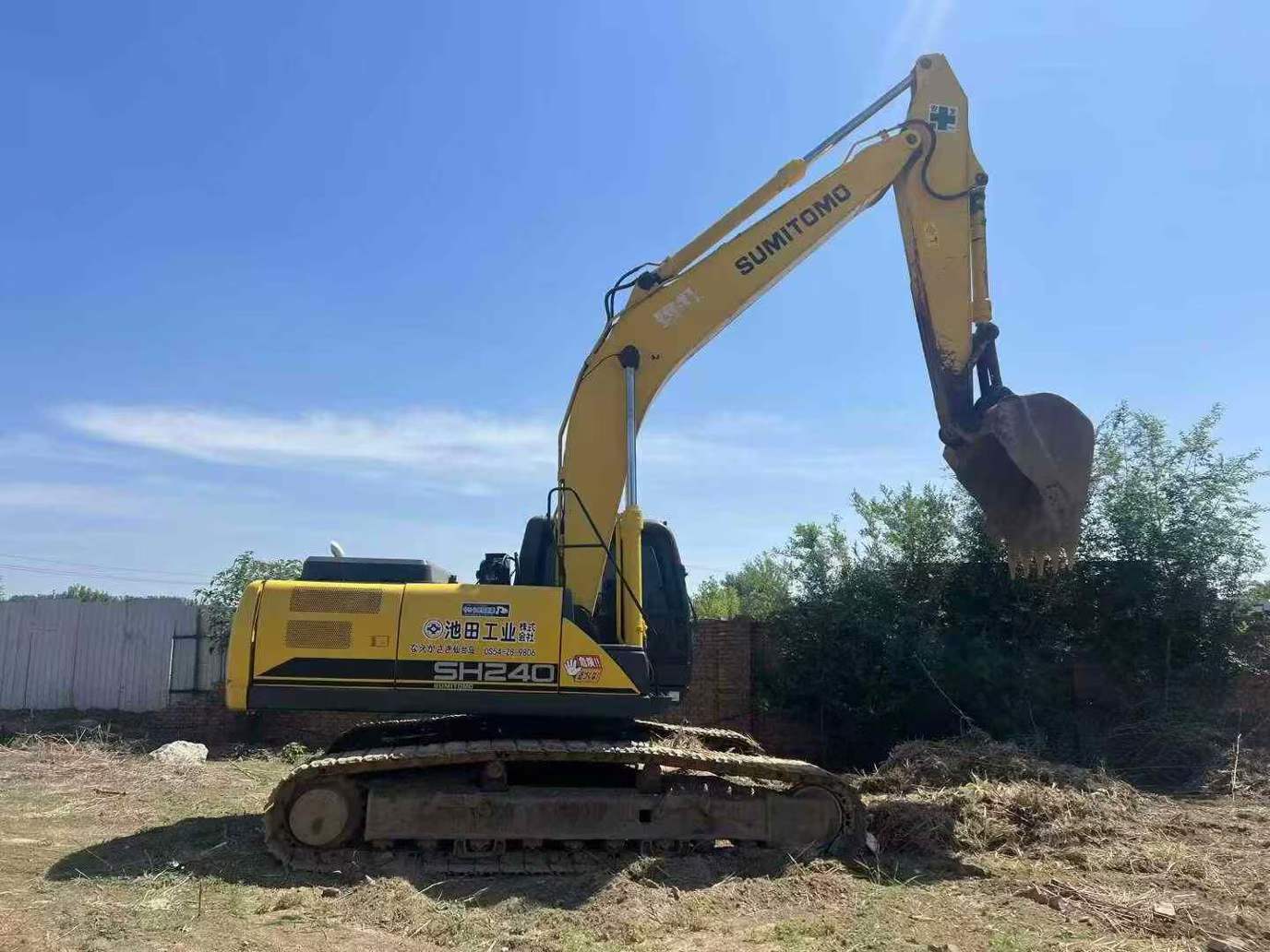

Used Sumitomo SH240-3 Excavator 2016 Model / 3
Used Sumitomo SH240-3 Excavator 2016 Model / 4
Used Sumitomo SH240-3 Excavator 2016 Model / 5

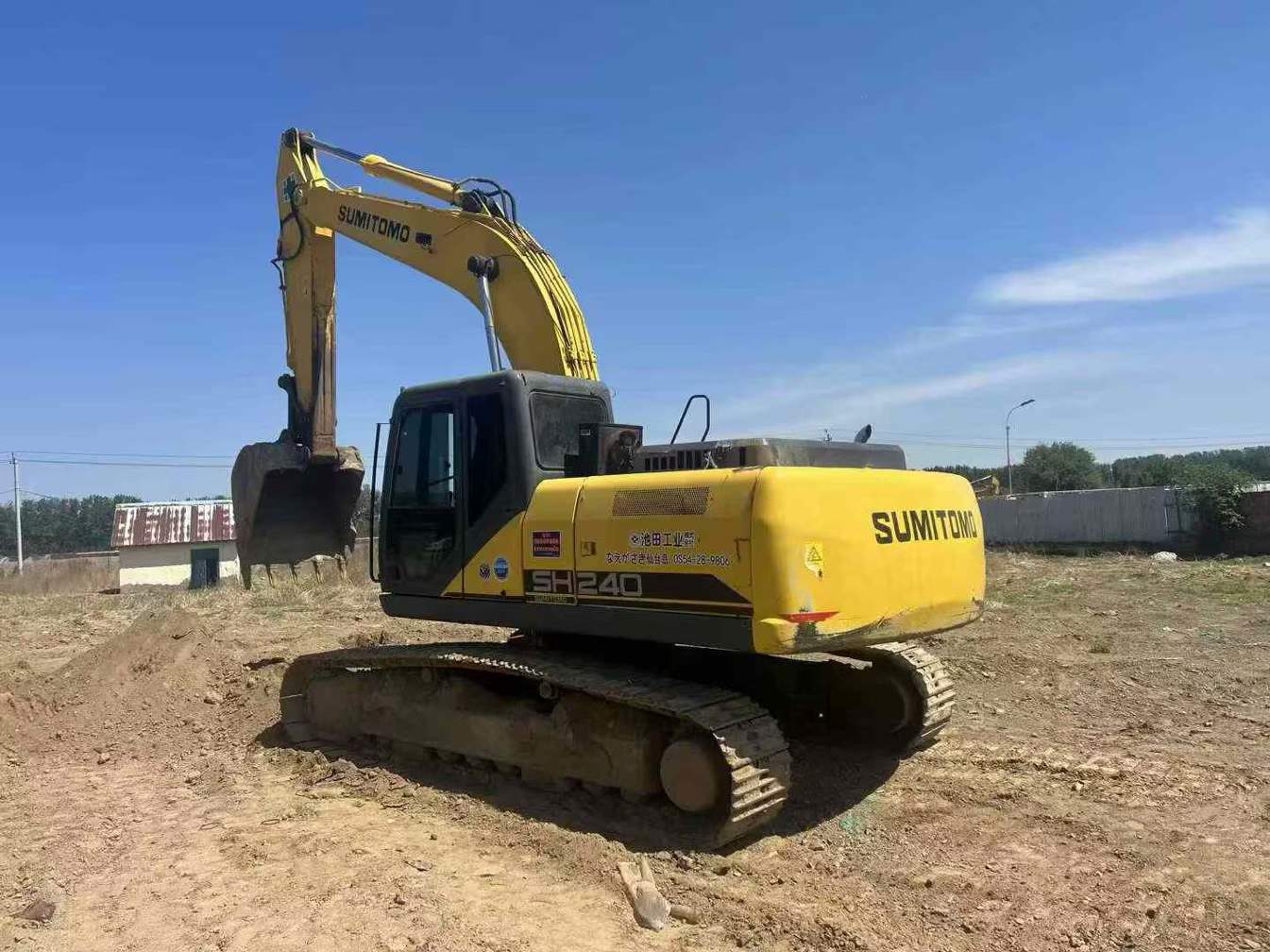

Used Sumitomo SH240-3 Excavator 2016 Model / 6
Used Sumitomo SH240-3 Excavator 2016 Model / 7

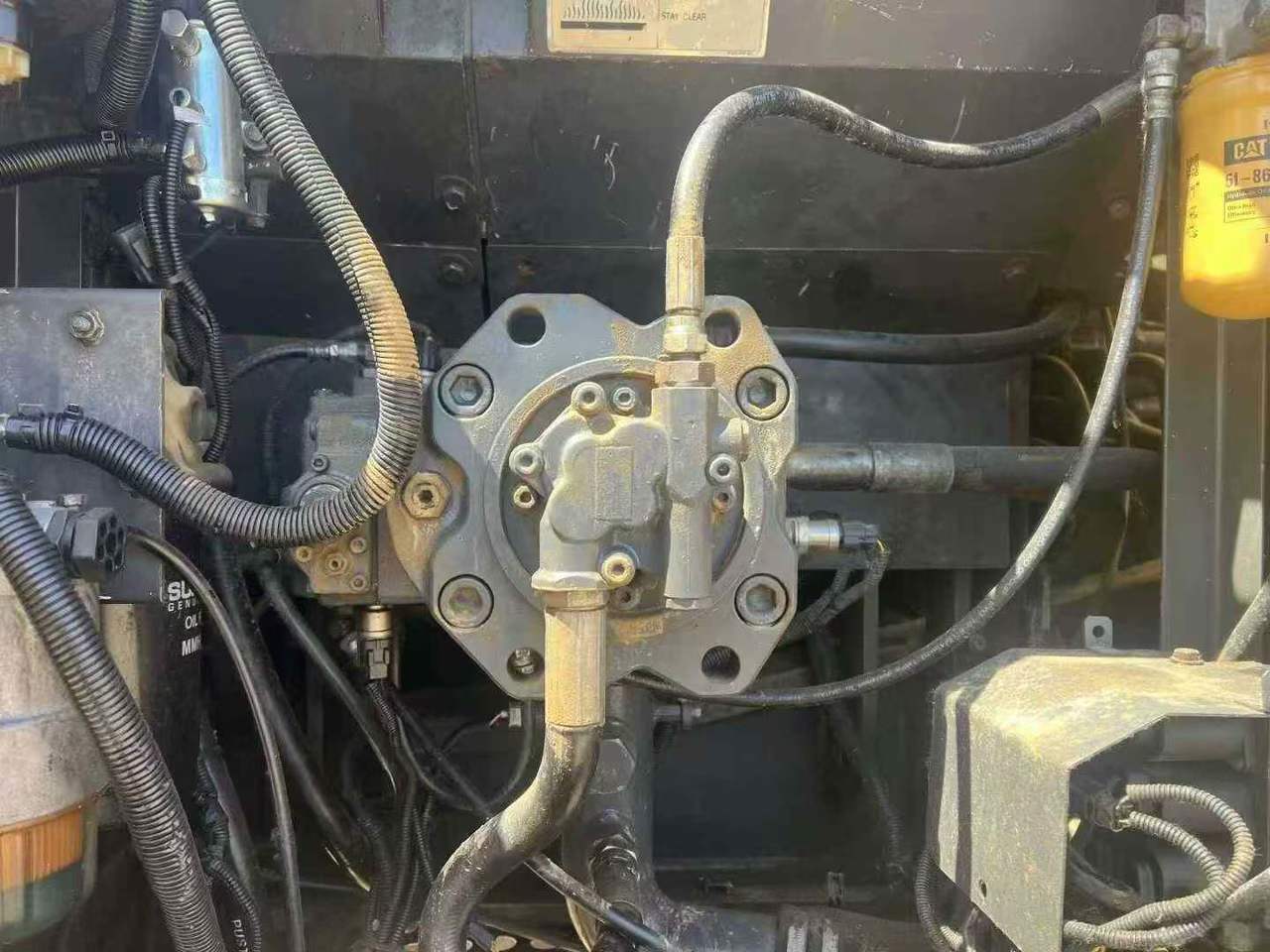

Used Sumitomo SH240-3 Excavator 2016 Model / 8

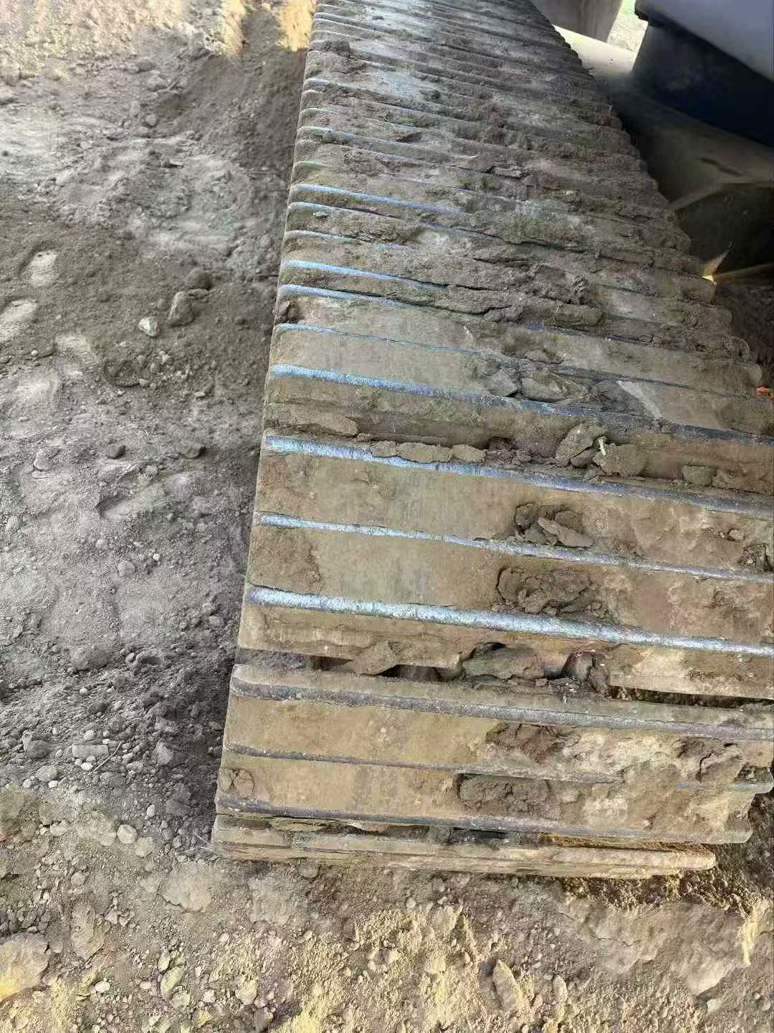

Used Sumitomo SH240-3 Excavator 2016 Model / 9

Product Description

"Premium Second-hand Sumitomo 240 excavator This well-maintained Sumitomo 240 excavator has maintained an excellent working condition from beginning to end. It has an actual working time of only 3,500 hours, which is far shorter than the average service life of similar equipment. This means that its core components and overall performance are still at their peak. In terms of the power system, this machine is equipped with a high-performance original imported engine, which not only starts quickly and runs smoothly, but also provides strong and stable power output under various working conditions, ensuring maximum operational efficiency. The hydraulic system is one of the key factors in evaluating the performance of an excavator. This Sumitomo 240 is equipped with an advanced closed load-sensing hydraulic control system, which can achieve precise and rapid action response. It can handle operations such as excavation, loading and crushing with ease. More importantly, this system also has an outstanding energy-saving effect. While ensuring efficient operation, it significantly reduces fuel consumption, saving costs for users. Furthermore, "original version of the entire vehicle" means that this excavator retains the best configuration a

SpecificationsValue
No.962101
Tonnage (tons)24
Working weight (kg)23300
Bucket capacity (m³)1.1
Country of originXiamen (in Fujian Province)
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeISUZU BB-6BG1T
Rated power (kw/rpm)121/2150
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)6.494
Working formFour-stroke, direct injection, fully electronically controlled, turbocharged diesel engine with intercooling
Ground specific pressure (Kpa)46
Rotation speed (rpm)10.4
Climbing ability (%)70/35 °
Bucket digging force (kN)160/173
Rod digging force (kN)115/125
Travel speed (km/h)3.4/5.5
Main overflow set pressure (Mpa)34.3/37.3
Rotary hydraulic motor typeQuantitative axial piston motor
Type of walking hydraulic motorVariable axial piston motor ×2
Maximum flow of main pump (l/min)468
Hydraulic crushing pipeline is standardno
Main pump type
Bucket cylinders - Number × diameter × stroke (mm)
Bucket rod cylinders - Number × diameter × stroke (mm)
Boom cylinders - Number × diameter × stroke (mm)
Fuel Tank (L)340
Hydraulic Tank (L)225
Total transport length (mm)9880
Total transport width (mm)3190
Total transport height (mm)3080
Minimum ground clearance (mm)460
Minimum turning radius of front working device (mm)3870
Back end turning radius (mm)2910
Total track length (mm)4640
Track gauge (mm)2590
Track plate width (mm)600
Total track width (mm)3190
Maximum digging radius (mm)10420
Maximum digging depth (mm)6970
Maximum excavation height (mm)9810
Maximum unloading height (mm)6760
Maximum vertical digging depth (mm)6210
Bulldozer lift or depth (mm)No bulldozer
Dodging plate width × height (mm)No bulldozer
see more

Overview

No.962101

Brand Name:

Sumitomo

Model Number:

SH240-3

Year:

2016

Location:

Peking China
