2016 Sumitomo SH240-5

1/9

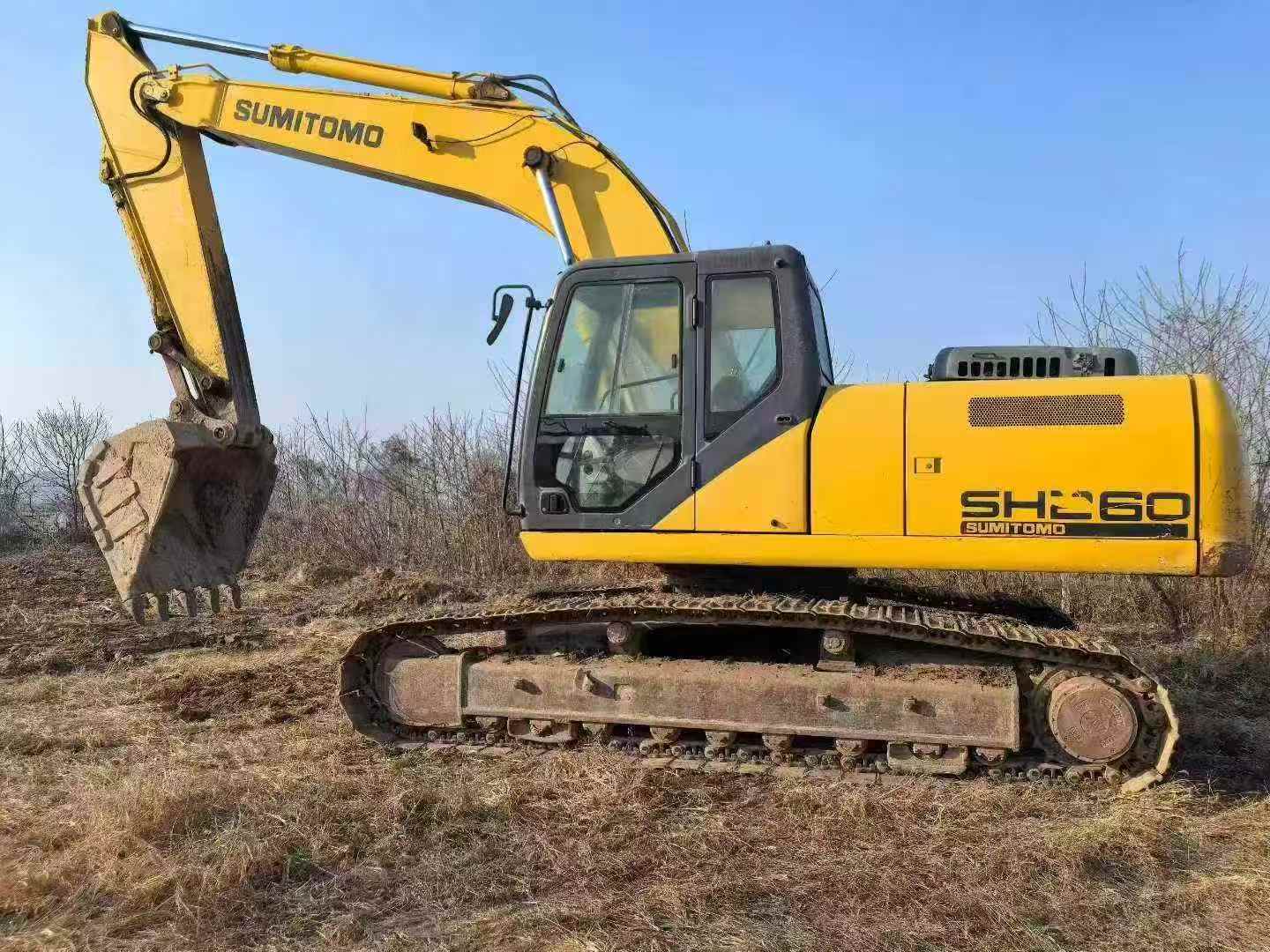

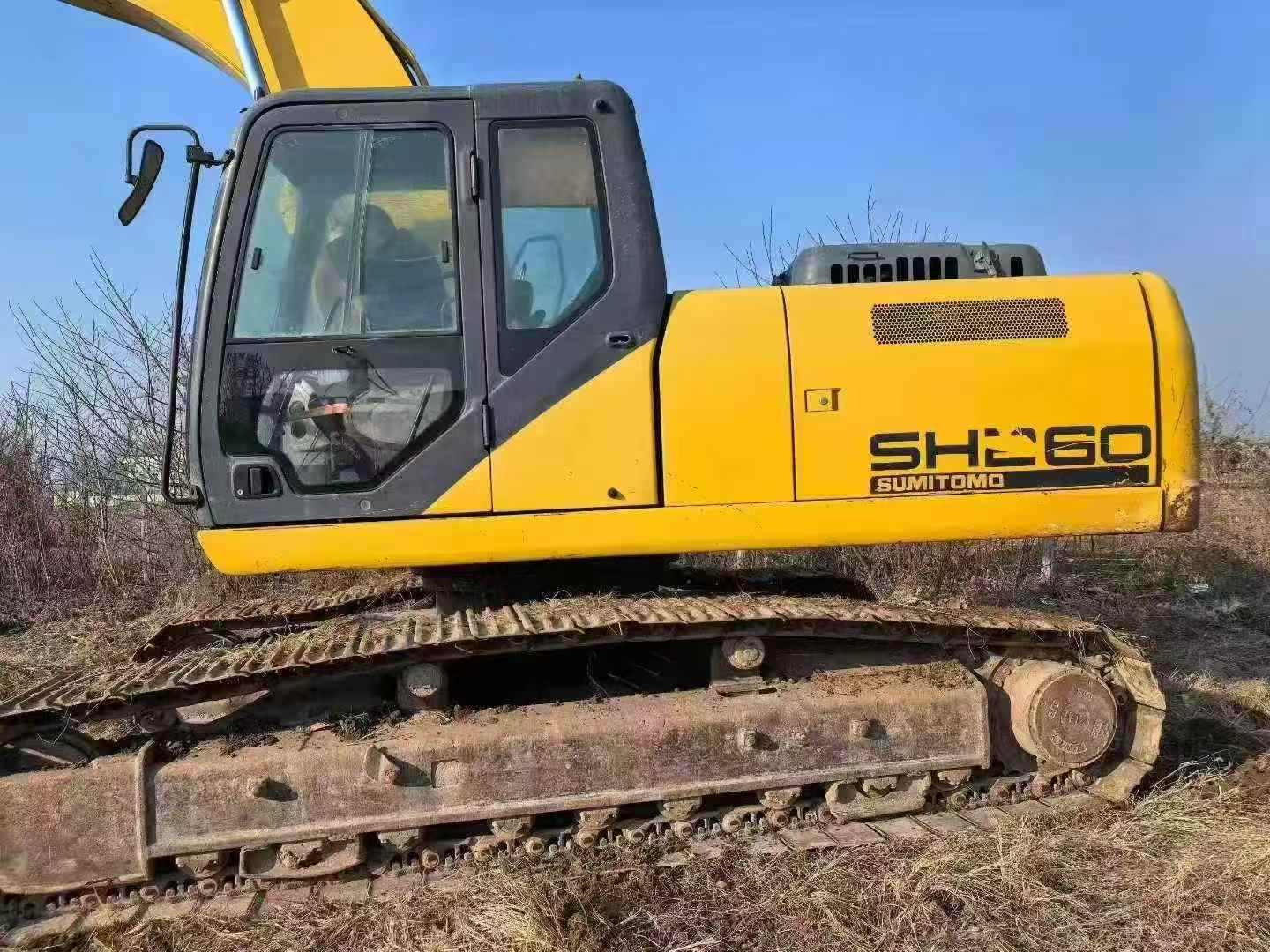

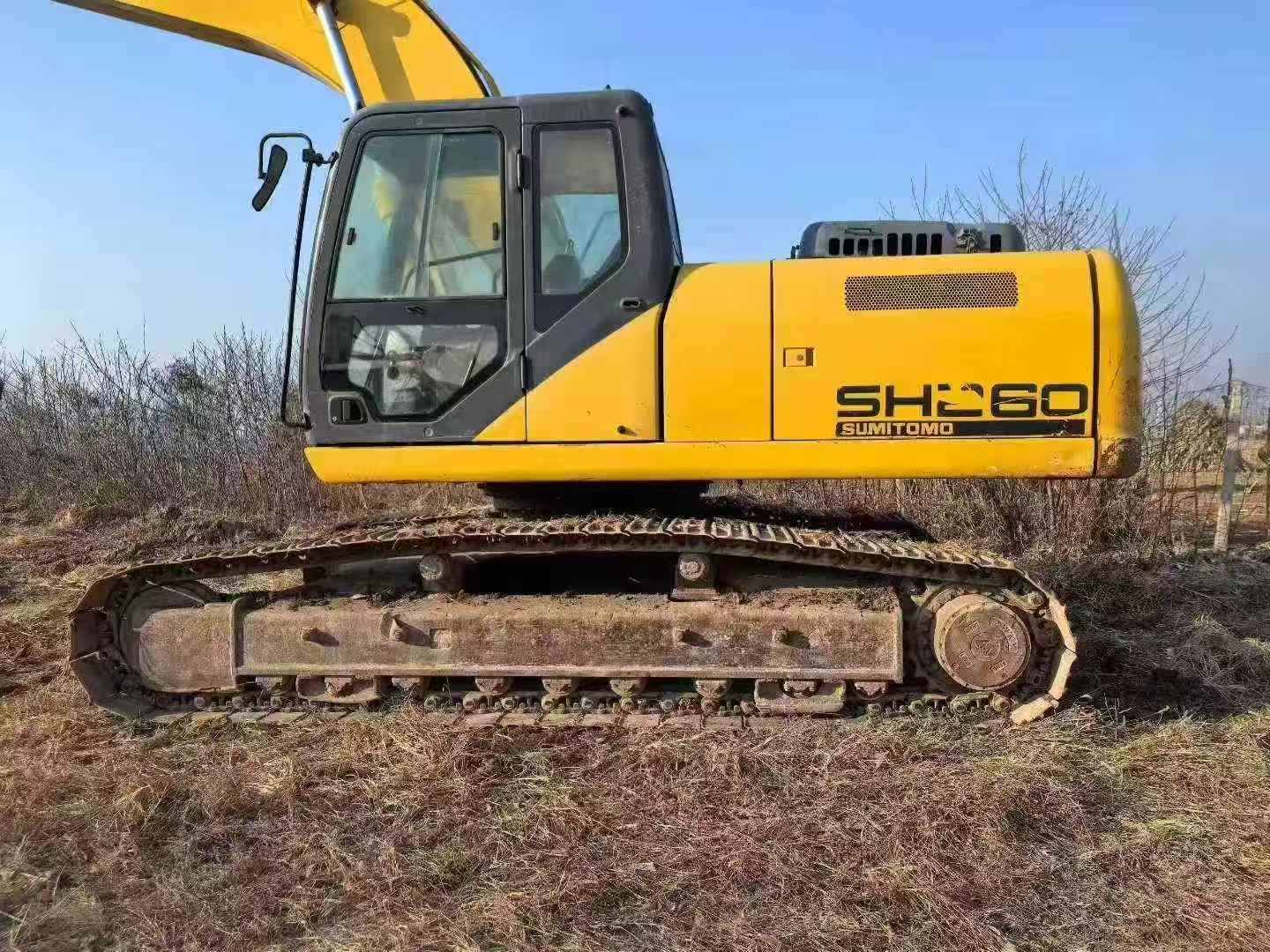

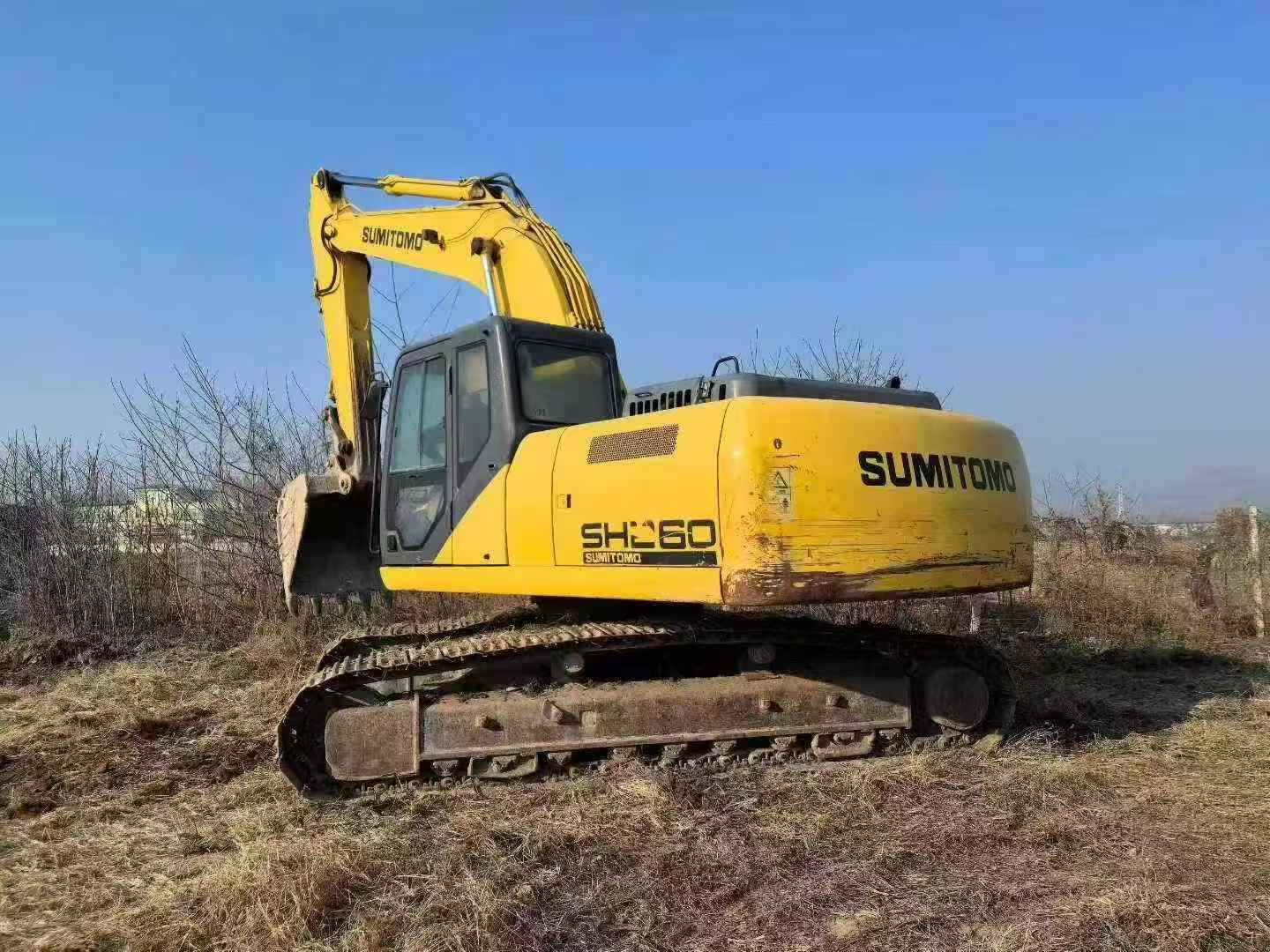

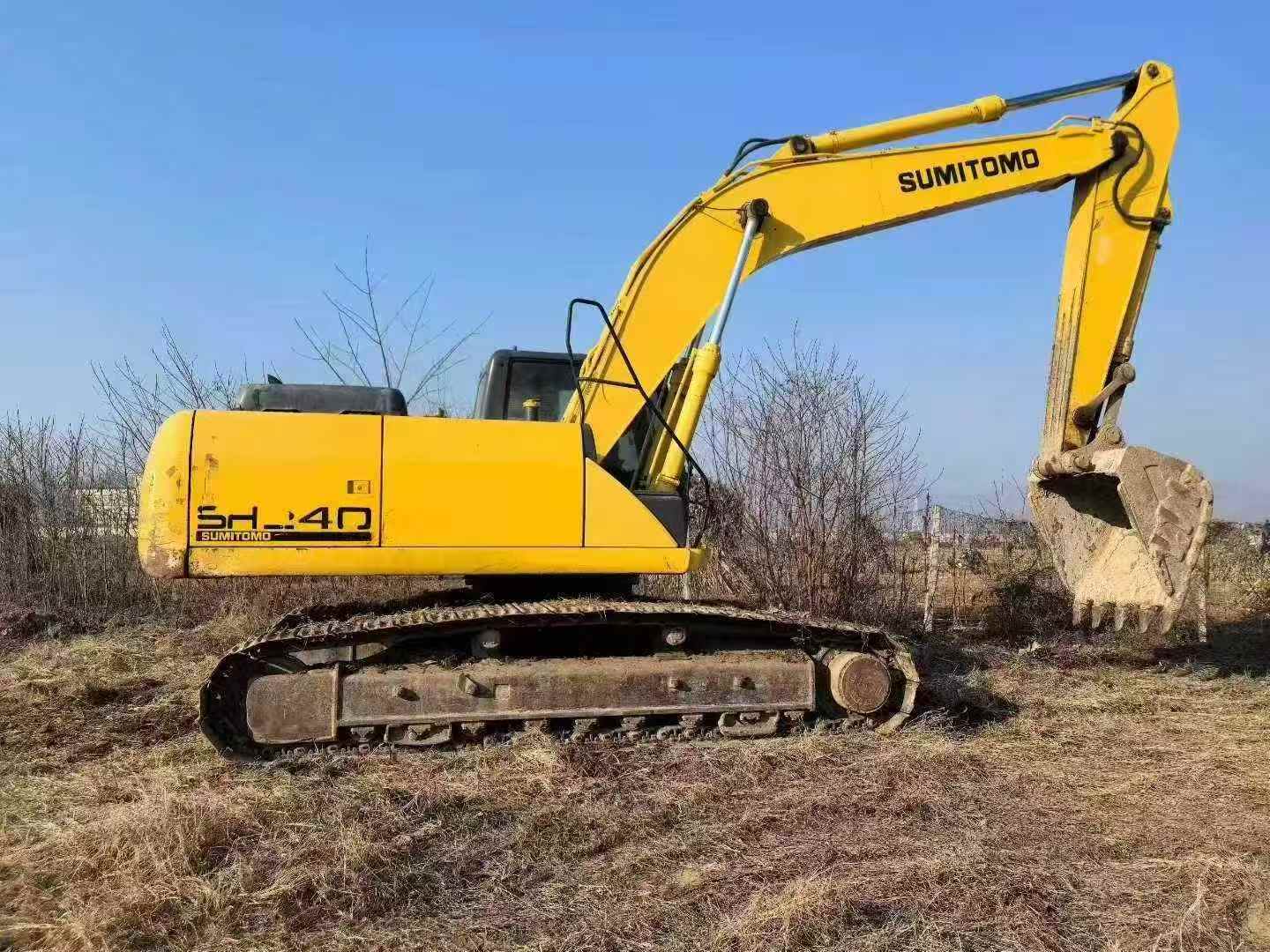

Used Sumitomo SH240-5 Excavator 2016 Model / 1
Used Sumitomo SH240-5 Excavator 2016 Model / 2
Used Sumitomo SH240-5 Excavator 2016 Model / 3
Used Sumitomo SH240-5 Excavator 2016 Model / 4
Used Sumitomo SH240-5 Excavator 2016 Model / 5
Used Sumitomo SH240-5 Excavator 2016 Model / 6
Used Sumitomo SH240-5 Excavator 2016 Model / 7
Used Sumitomo SH240-5 Excavator 2016 Model / 8
Used Sumitomo SH240-5 Excavator 2016 Model / 9

Product Description

【 Premium Recommendation 】 The original Sumitomo 240-5 excavator. This equipment is a rare and cost-effective choice in the market. The whole machine is 9.9 new, with almost no wear and tear on the appearance and the internal structure intact as before. It can be directly used on construction sites for only 126,000 yuan, offering an extremely high cost performance. The working time of this excavator is only 1,800 hours, which is far lower than the average usage time of similar equipment. This means that it is still in the best working condition, with a very long service life and excellent performance. In terms of the power system, it adopts the original imported Sumitomo engine, which operates stably and reliably, with strong power and low fuel consumption. It can maintain efficient operation even in harsh environments. The hydraulic system adopts advanced load sensing technology, ensuring the accuracy and smoothness of operation. Whether it is excavation, loading or crushing operations, it can handle them with ease. In addition, its robust and durable chassis design further enhances the overall stability and safety of the equipment, enabling it to perform well even in complex terrain conditions. In conclusion, this Sumitomo 240-5 no

SpecificationsValue
No.970718
Tonnage (tons)24
Working weight (kg)24600
Bucket capacity (m³)1.1-1.3
Boom length (mm)5850
Rod length (mm)3000
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeIsuzu AH-4HK1X (Tie 3)
Rated power (kw/rpm)132.1/2000
Cooling modewater-cooling
Cylinder diameter × stroke (mm)115 x 125
Number of cylinders (PCS)4
Displacement (L)5.193
Working formFour-stroke, direct injection, fully electronically controlled, turbocharged diesel engine with intercooling
Ground specific pressure (Kpa)48
Rotation speed (rpm)10.7
Climbing ability (%)70/35 °
Bucket digging force (kN)
Rod digging force (kN)
Travel speed (km/h)3.5/5.5
Main overflow set pressure (Mpa)34.3
Rotary hydraulic motor typeQuantitative axial piston motor
Type of walking hydraulic motorVariable axial piston motor
Maximum flow of main pump (l/min)468
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)28.9
Hydraulic crushing pipeline is standardno
Main pump typeVariable axial piston pump ×2+ gear pump ×1
Working Hydraulic Circuit (Mpa)36.8
Bucket cylinders - Number × diameter × stroke (mm)
Bucket rod cylinders - Number × diameter × stroke (mm)
Boom cylinders - Number × diameter × stroke (mm)
Fuel Tank (L)410
Hydraulic Tank (L)147
Engine Oil changes (L)23.1
Coolant (L)25.2
Hydraulic System (L)250
Total transport length (mm)9930
Total transport width (mm)3190
Total transport height (mm)3150
Full cab height (mm)3000
Counterweight ground clearance (mm)1100
Minimum ground clearance (mm)460
Minimum turning radius of front working device (mm)3950
Back end turning radius (mm)2940
Onboard width (mm)2770
Total track length (mm)4650
Track gauge (mm)2590
Track plate width (mm)600
Total track width (mm)3190
Track ground length (mm)3840
Maximum digging radius (mm)10280
Maximum digging depth (mm)6900
Maximum excavation height (mm)9760
Maximum unloading height (mm)6760
Maximum vertical digging depth (mm)6140
Bulldozer lift or depth (mm)No bulldozer
Dodging plate width × height (mm)No bulldozer
Maximum excavation radius of stop surface (mm)10100
Maximum effective digging depth (mm)6740
see more

Overview

No.970718

Brand Name:

Sumitomo

Model Number:

SH240-5

Year:

2016

Location:

Hebei China
