Product Description

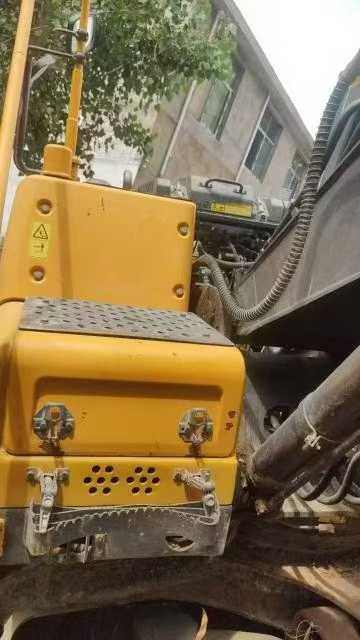

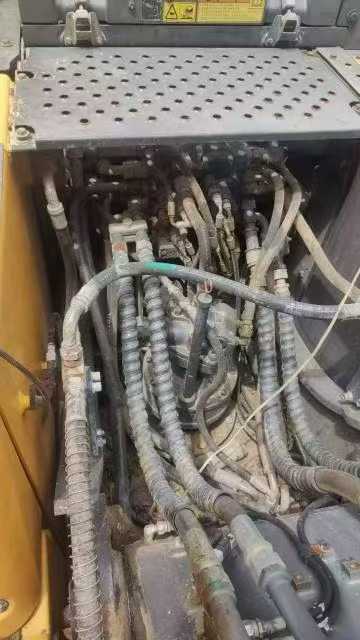

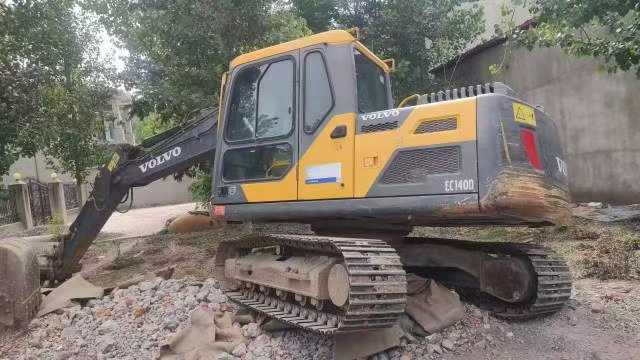

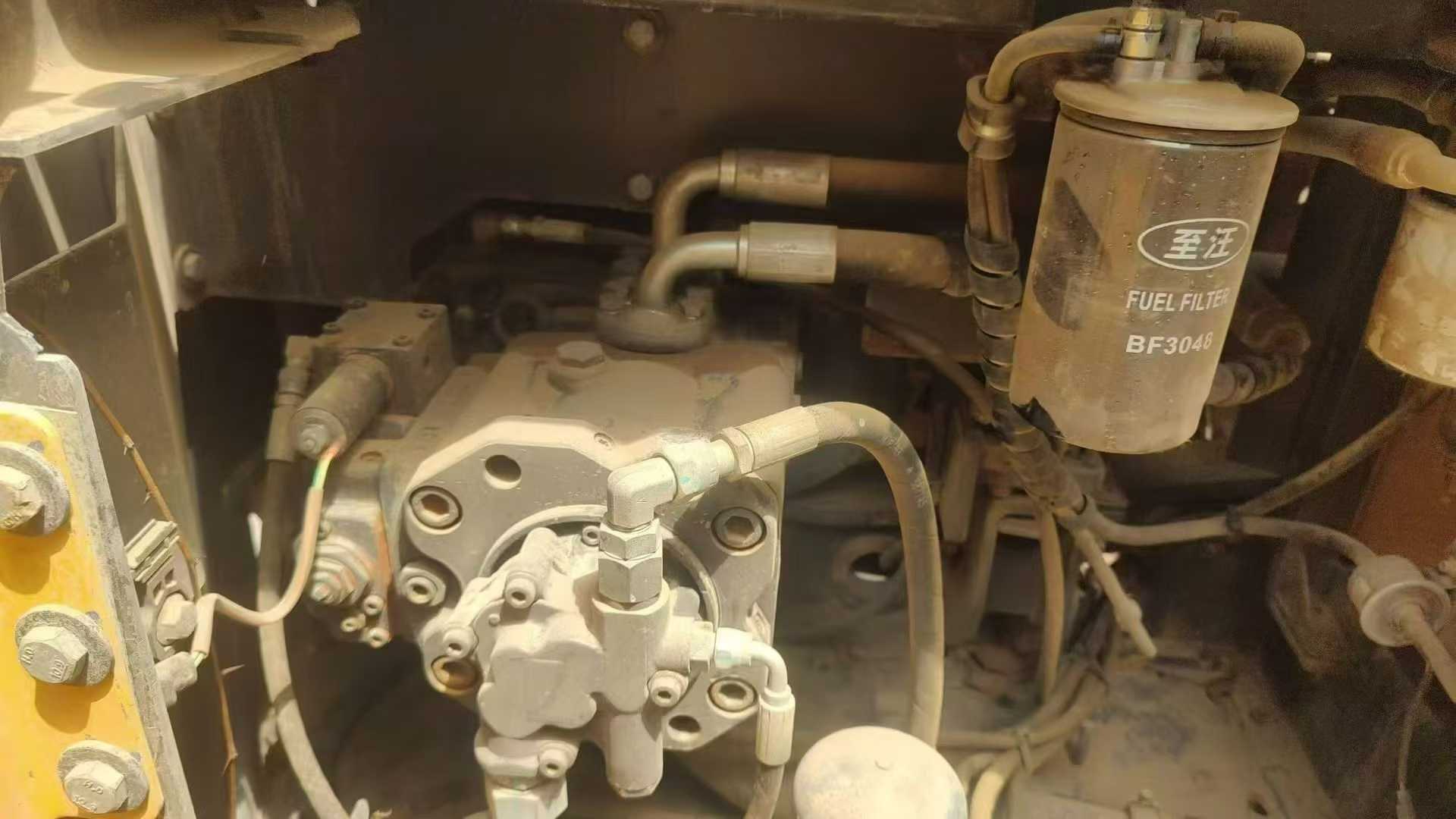

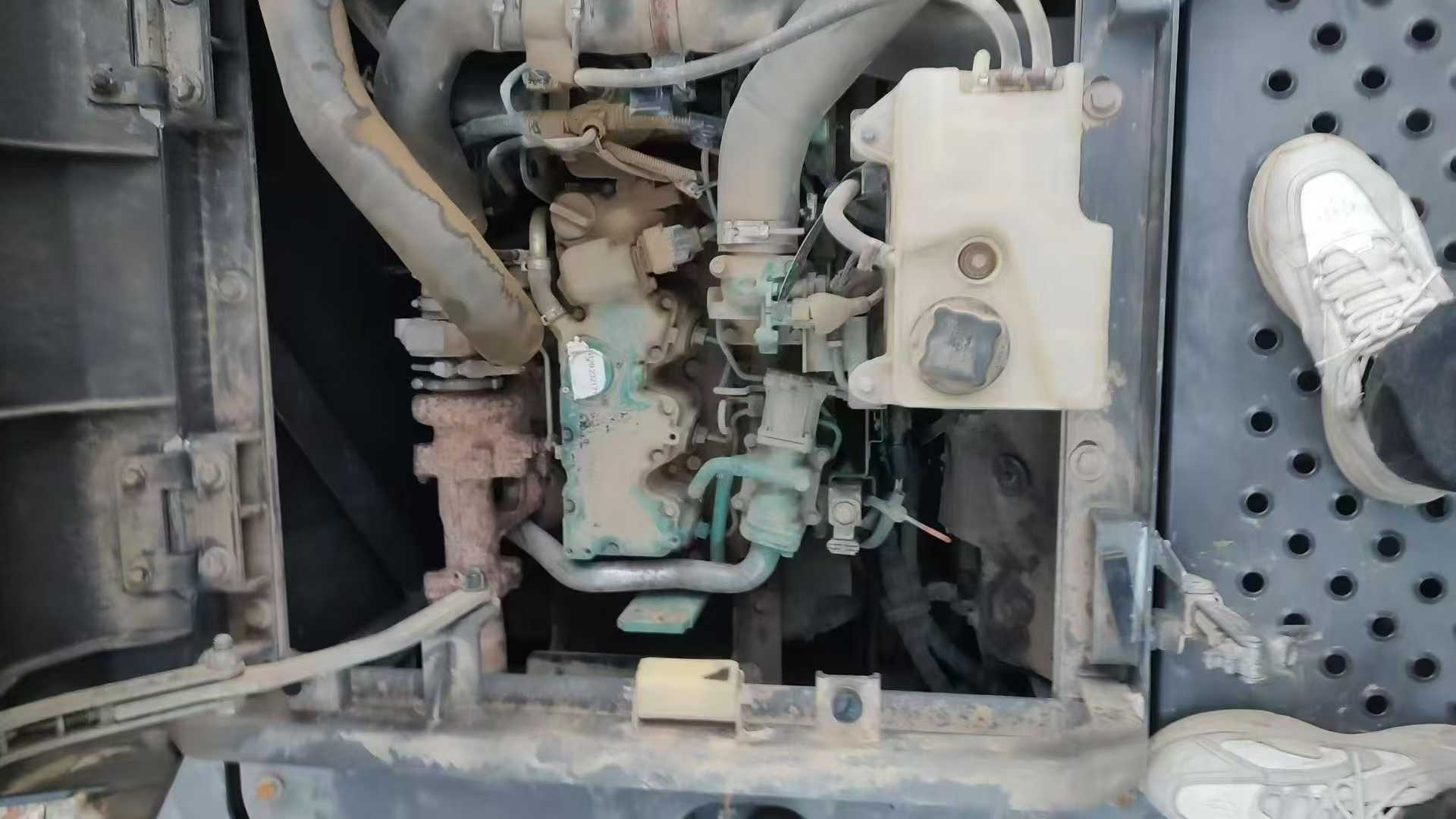

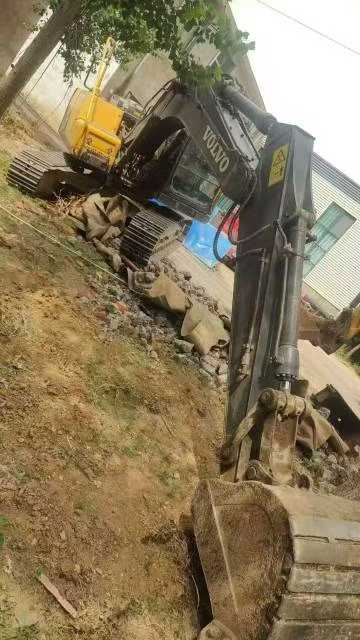

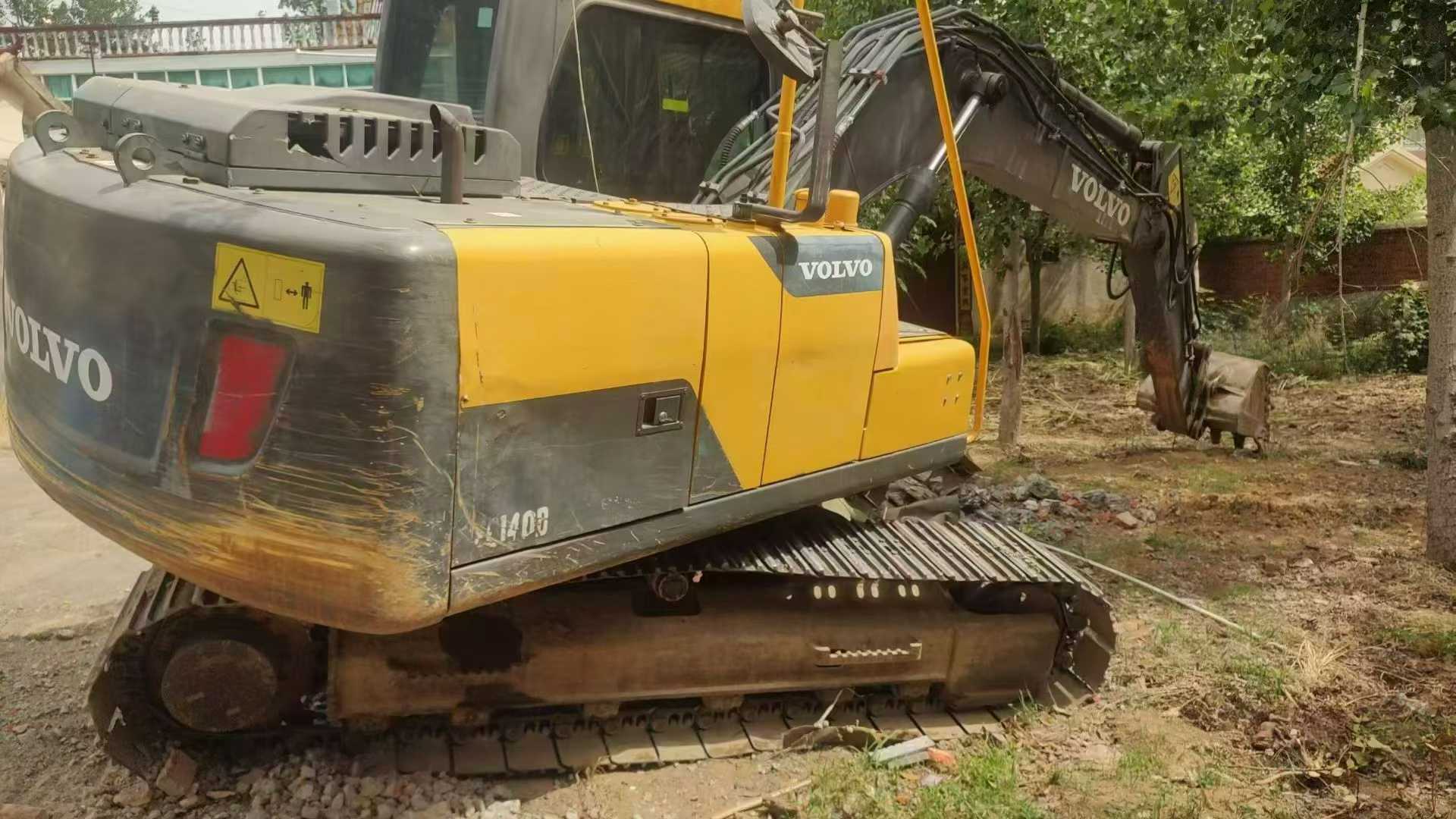

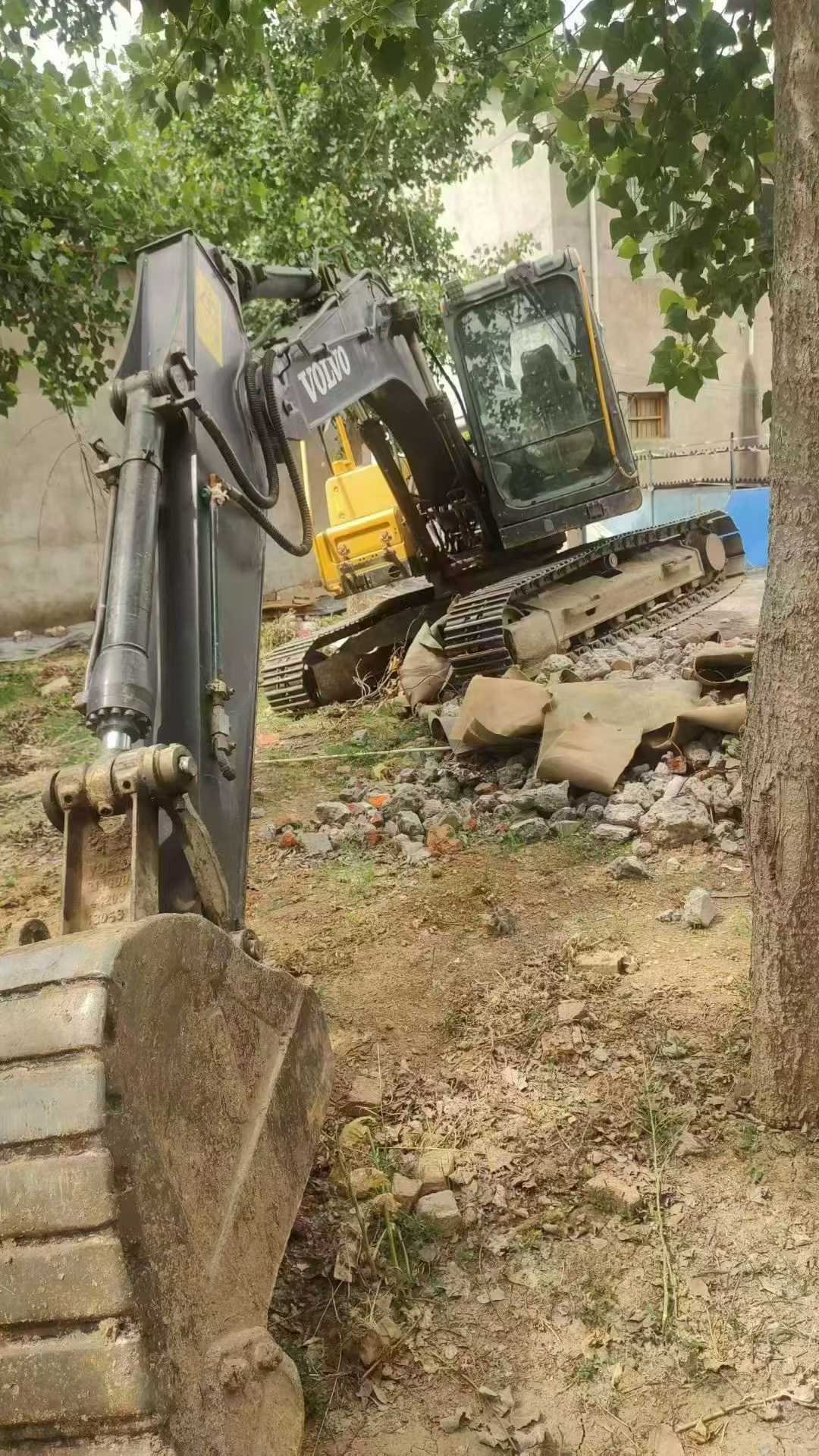

Volvo 120 top-quality original car chain in November 2018. If you like it, please send me a private chat. It can be rented or sold
| Specifications | Value |
|---|---|
| No. | 933666 |
| Tonnage (tons) | 2 |
| Working weight (kg) | 1780 |
| Bucket capacity (m³) | 0.05 |
| Boom length (mm) | 1900 |
| Rod length (mm) | 1050 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi L3E |
| Rated power (kw/rpm) | 14/2200 |
| Maximum torque (N.m) | 54/1850 |
| Number of cylinders (PCS) | 3 |
| Displacement (L) | 0.95 |
| Ground specific pressure (Kpa) | 28.4 |
| Rotation speed (rpm) | 10 |
| Travel speed (km/h) | 4.7 |
| Main overflow set pressure (Mpa) | 21 |
| Maximum flow of main pump (l/min) | 43 |
| Fuel Tank (L) | 21 |
| Engine Oil changes (L) | 3.6 |
| Coolant (L) | 4.5 |
| Hydraulic System (L) | 23 |
| Total transport length (mm) | 3780 |
| Total transport width (mm) | 1200 |
| Total transport height (mm) | 2270 |
| Full cab height (mm) | 2270 |
| Counterweight ground clearance (mm) | 470 |
| Back end turning radius (mm) | 1160 |
| Track gauge (mm) | 950 |
| Track plate width (mm) | 250 |
| Track ground length (mm) | 1240 |
| Maximum digging depth (mm) | 2570 |
| Maximum excavation height (mm) | 3750 |
| Maximum unloading height (mm) | 2670 |
| Maximum vertical digging depth (mm) | 1580 |
| Maximum excavation radius of stop surface (mm) | 4010 |
