2020 Volvo EC210B

1/9
Used Volvo EC210B Excavator 2020 Model / 1
Used Volvo EC210B Excavator 2020 Model / 2
Used Volvo EC210B Excavator 2020 Model / 3
Used Volvo EC210B Excavator 2020 Model / 4
Used Volvo EC210B Excavator 2020 Model / 5
Used Volvo EC210B Excavator 2020 Model / 6
Used Volvo EC210B Excavator 2020 Model / 7
Used Volvo EC210B Excavator 2020 Model / 8
Used Volvo EC210B Excavator 2020 Model / 9

Product Description

Volvo EC210 Excavator There is currently a high-quality Volvo EC210 excavator for sale. This machine is a capable assistant on the construction site and is in excellent condition. The working time of this excavator is only 4,500 hours. For a second-hand excavator, this usage period is very ideal, indicating that it still has a long service life. In terms of the power system, this Volvo EC210 is equipped with an original high-performance engine. After meticulous maintenance and care, it operates in good condition, starts quickly, and has strong power. It can handle both digging hard soil layers and performing precise operations with ease. In addition, low fuel consumption and low noise are also one of its major highlights, which can effectively reduce operating costs while improving work efficiency. In terms of the hydraulic system, this excavator adopts advanced hydraulic technology, ensuring smoothness and accuracy during operation. There is no leakage in all key components, which proves its excellent sealing performance and durability. Meanwhile, the high cleanliness of the hydraulic oil further ensures the long-term stable operation of the system. It is worth mentioning that this excavator retains its original chassis and has a s

SpecificationsValue
No.972060
Tonnage (tons)21
Working weight (kg)20500
Bucket capacity (m³)0.9-0.92
Boom length (mm)5700
Rod length (mm)2900
Country of originKorea/Shanghai, China
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe

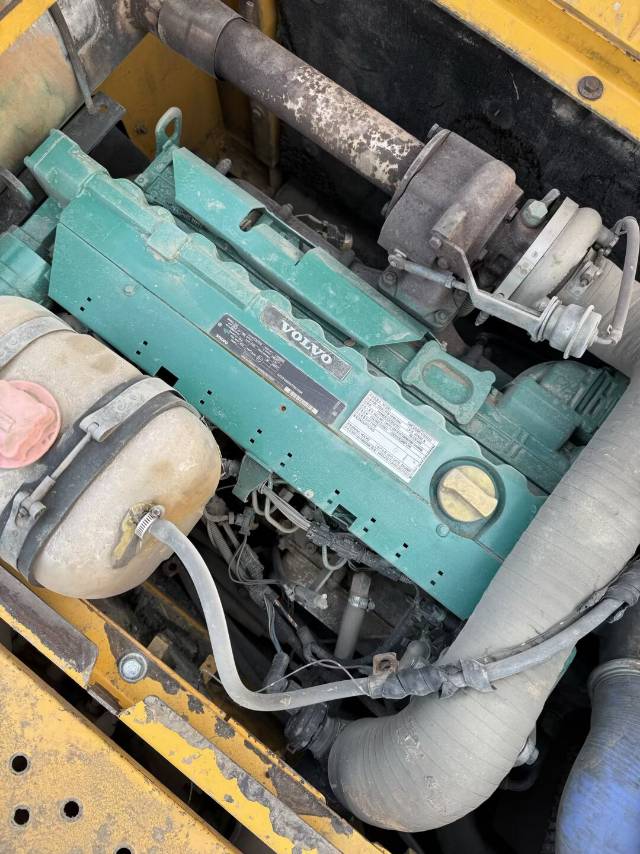

Engine typeVolvo D6D
Rated power (kw/rpm)107/1900
Cooling modewater-cooling
Cylinder diameter × stroke (mm)98 x 126
Number of cylinders (PCS)6
Displacement (L)5.7
Working formTurbocharging; Electronically controlled direct injection
Ground specific pressure (Kpa)45.6
Rotation speed (rpm)11.6
Climbing ability (%)70% (35°)
Bucket digging force (kN)136.3 (Standard mode) /147.1 (Extra mode)
Rod digging force (kN)98.2 (Standard Mode) /104.9 (Extra mode)
Maximum tractive force (kN)183
Travel speed (km/h)3.2/5.5
Rotary hydraulic motor typeAxial piston hydraulic motor (with mechanical brake)
Type of walking hydraulic motorVariable axial piston motor ×2
Maximum flow of main pump (l/min)200 * 2 + 19
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)26.5
Control Hydraulic Circuit (Mpa)3.9
Main pump typeVariable axial piston pump ×2+ gear pump
Working Hydraulic Circuit (Mpa)32.4/34.3
Bucket cylinders - Number × diameter × stroke (mm)1-120 x 1065
Bucket rod cylinders - Number × diameter × stroke (mm)1-135 x 1540
Boom cylinders - Number × diameter × stroke (mm)2-125 x 1235
Fuel Tank (L)350
Hydraulic Tank (L)160
Engine Oil changes (L)25
Coolant (L)27.5
Hydraulic System (L)295
Total transport length (mm)9690
Total transport width (mm)2800
Total transport height (mm)3000 (total height of big arm)
Full cab height (mm)2930
Counterweight ground clearance (mm)1025
Minimum ground clearance (mm)460
Minimum turning radius of front working device (mm)3650
Back end turning radius (mm)2850
Total track length (mm)4170
Track gauge (mm)2200
Track plate width (mm)Two teeth 700; Three teeth 600/700/800/900
Total track width (mm)2800
Track ground length (mm)3370
Maximum digging radius (mm)9940
Maximum digging depth (mm)6730
Maximum excavation height (mm)9450
Maximum unloading height (mm)6650
Maximum vertical digging depth (mm)5830
Maximum excavation radius of stop surface (mm)9750
Maximum effective digging depth (mm)6510
see more

Overview

No.972060

Brand Name:

Volvo

Model Number:

EC210B

Year:

2020

Hour:

4158h

Location:

Tibet China
